Model number

P6760S-G16 V0.1

chassis

Material/Structure

Aluminum alloy + sheet metal material, no fan heat dissipation

colour

Iron gray + sand gray

Dimensions (length, width and height)

185 * 164.3 * 66.1 MM

Weight (bare weight)

1.8 KG

Install

Desktop/wall-mounted /DIN rail

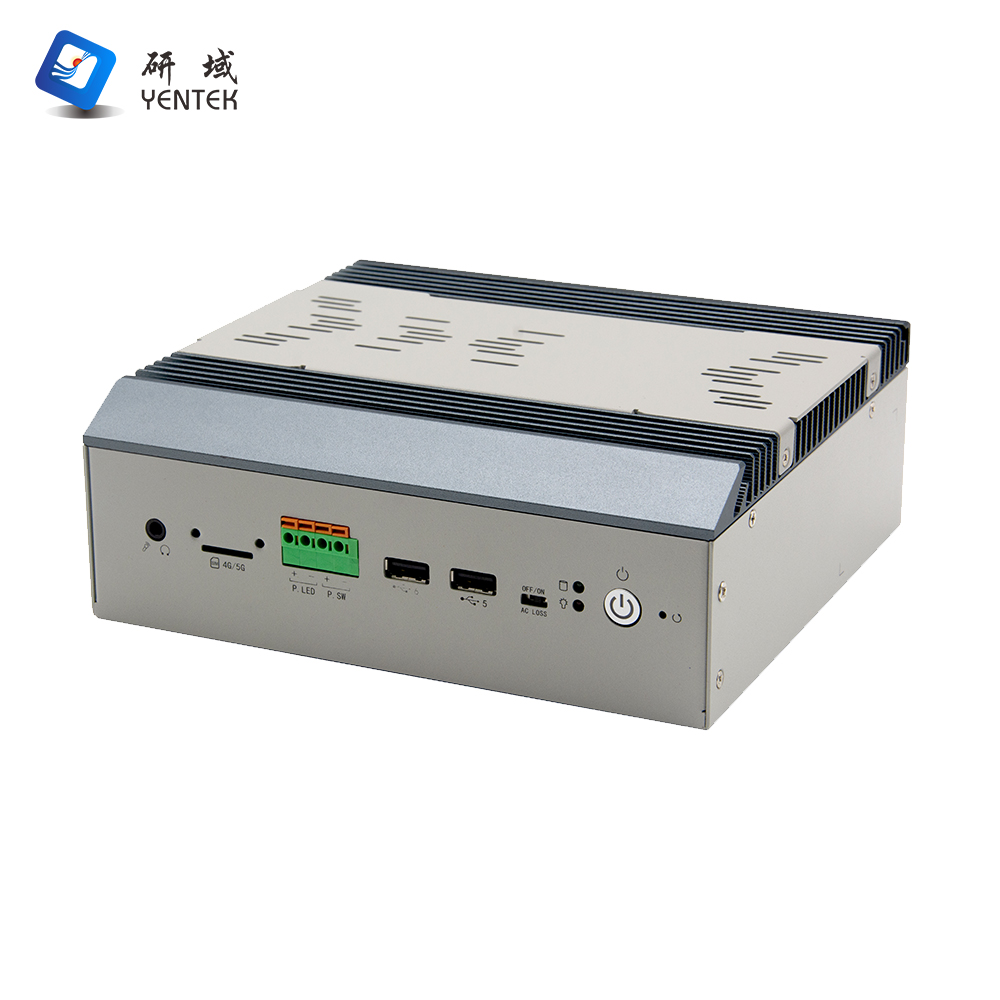

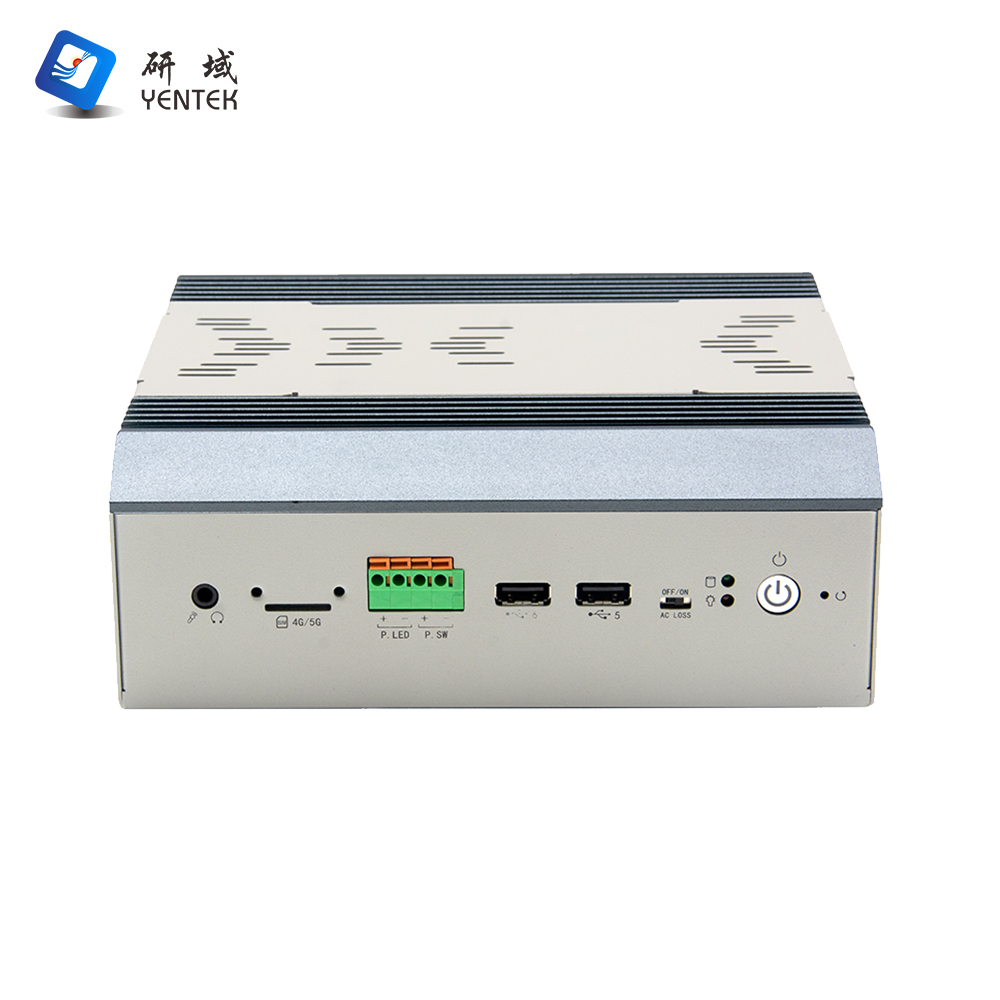

Front panel interface

Switch

1* Power key with indicator light, 1* one key restore (and reset key to choose one) key, 1*ACLOSS (power on DIP switch)

LED

1* hard disk indicator, 1* hard disk indicator

USB

2* USB2.0

Audio frequency

1* Audio, Line out&Mic 2-in-1

Phoenix terminal

1* 4P(1* Power signal /1* Power indicator signal)

SIM

1* SIM standard card slot

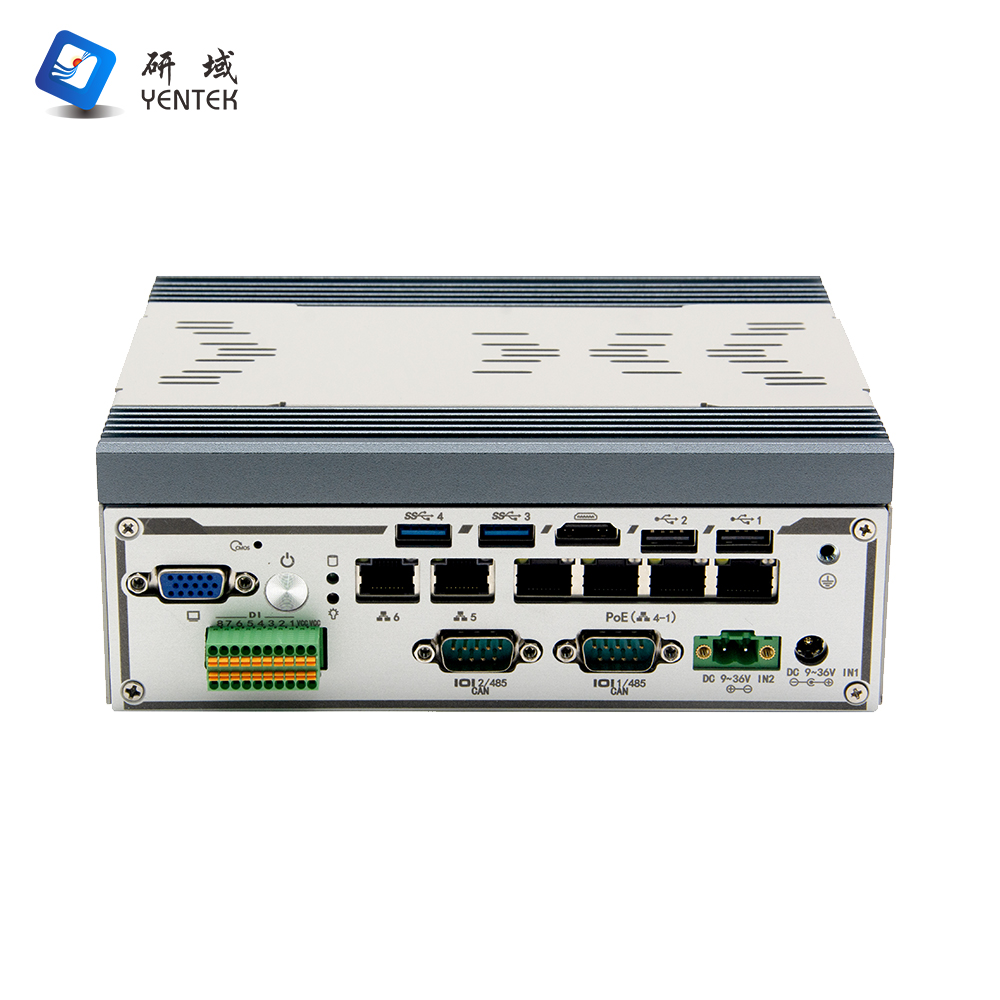

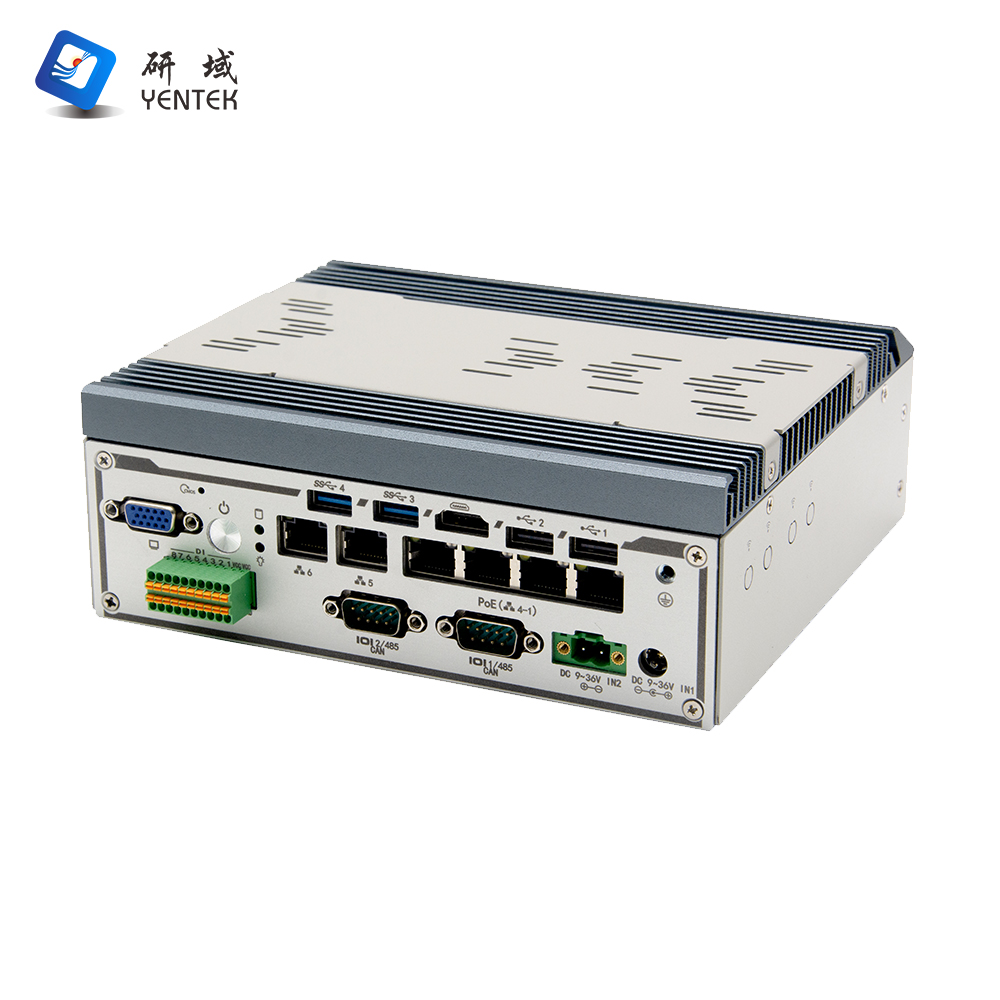

Rear panel interface

Switch

1* Power button,1*CMOS restore button

LED

1* hard disk indicator, 1* hard disk indicator

Display interface

1* VGA, 1* HD OUTPUT1.4, support dual display

COM

2* RS232/485 DB9 serial port, CAN support CAN(CAN module needs to be loaded)

LAN

6* Intel I210AT Gigabit ports, four of which support POE

Phoenix terminal

2* 10pin(8 in 8 out GPIO, 2.5KV optical isolated input/output)

USB

2* USB3.0, 2 x USB2.0

Dip switch

2 sets of 6-bit dip switches, RS232/485 switch (located at the bottom of the chassis)

Power interface

1* DC connector or 1 x 2P P=5.08mm Phoenix terminal, support DC 9 to 36V wide voltage power input

store

SATA

1* 2.5-inch hard disk

MSATA

1* MSATA

M.2

1* M.2/SSD, supports Key-M, 2280, NVME PCIE x4 SSDS

extend

MINIPCIE

1* MINIPCIE/4G, support 4G module

Power supply type

input

Power supply type

External power adapter

Voltage input

DC 9-36V wide voltage

Power output

AC TO DC more than 60W (depending on specific equipment)

environment

Operating temperature

-10℃ to 50℃

Storage temperature

-20℃ to 70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
