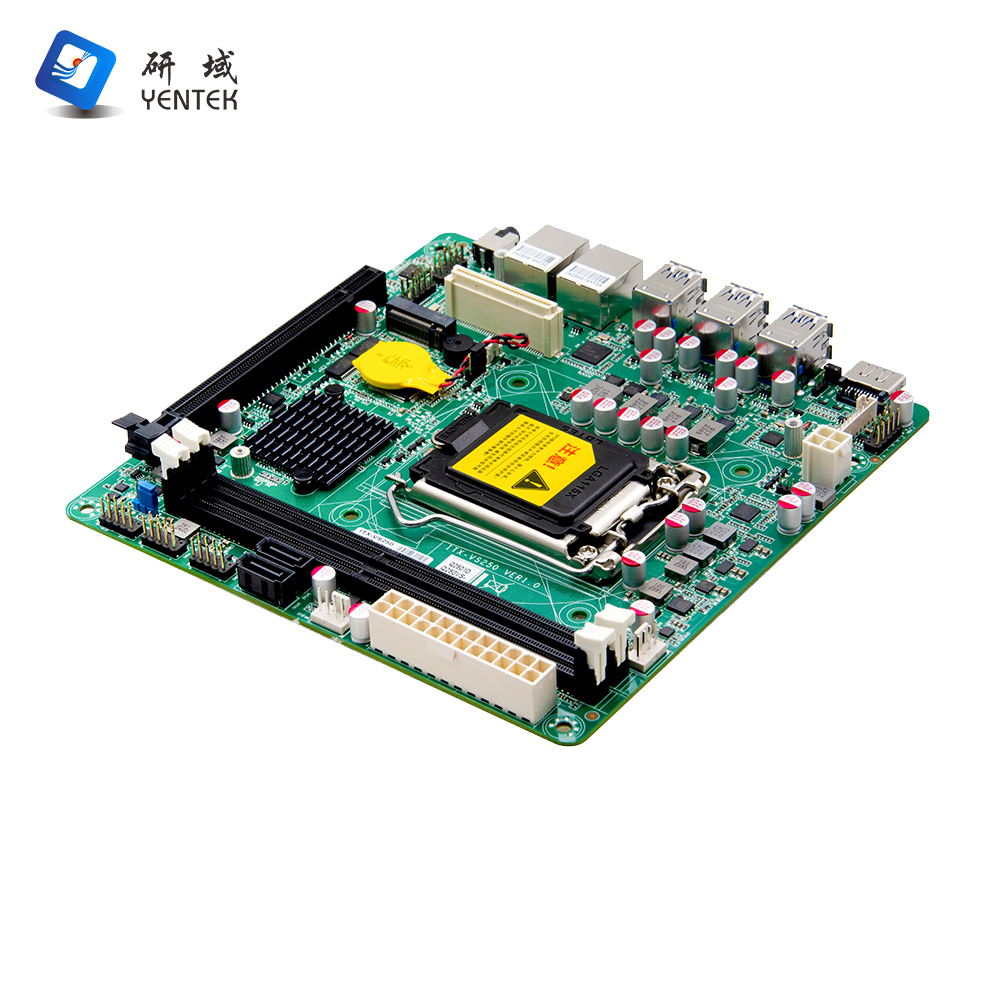

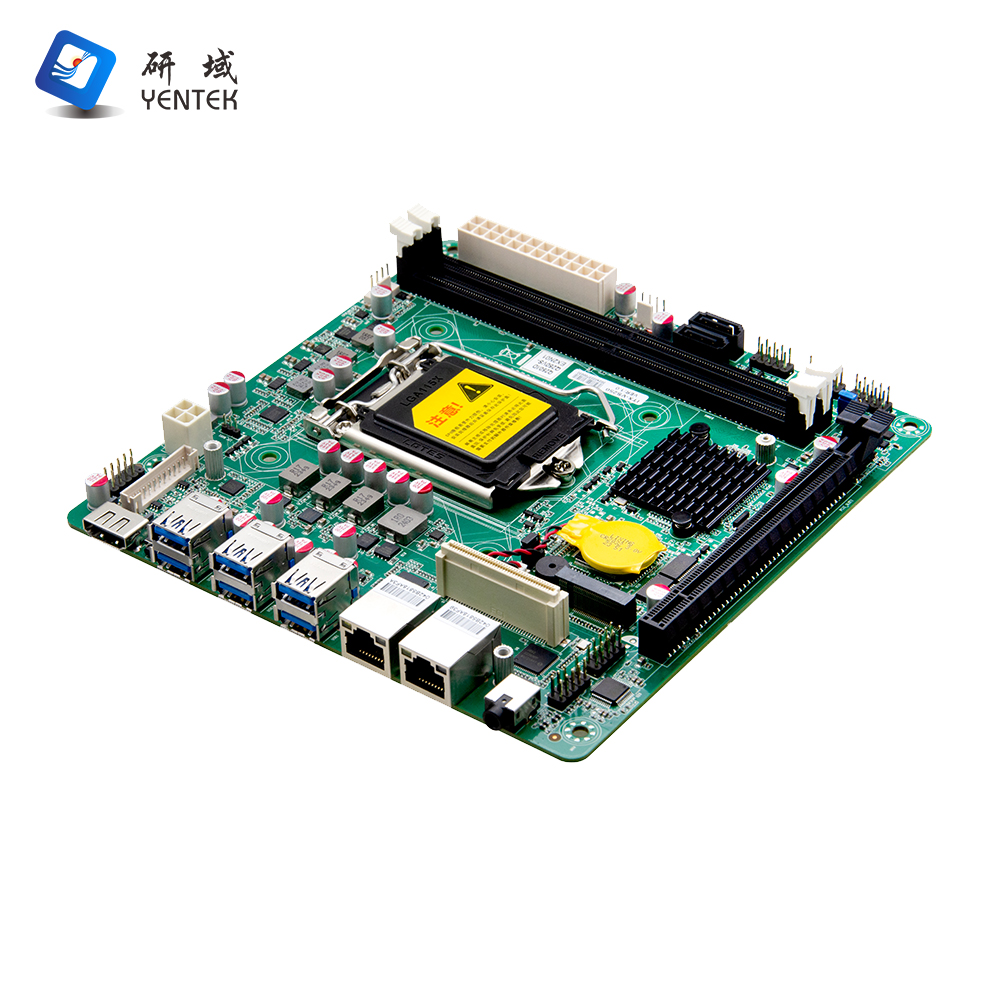

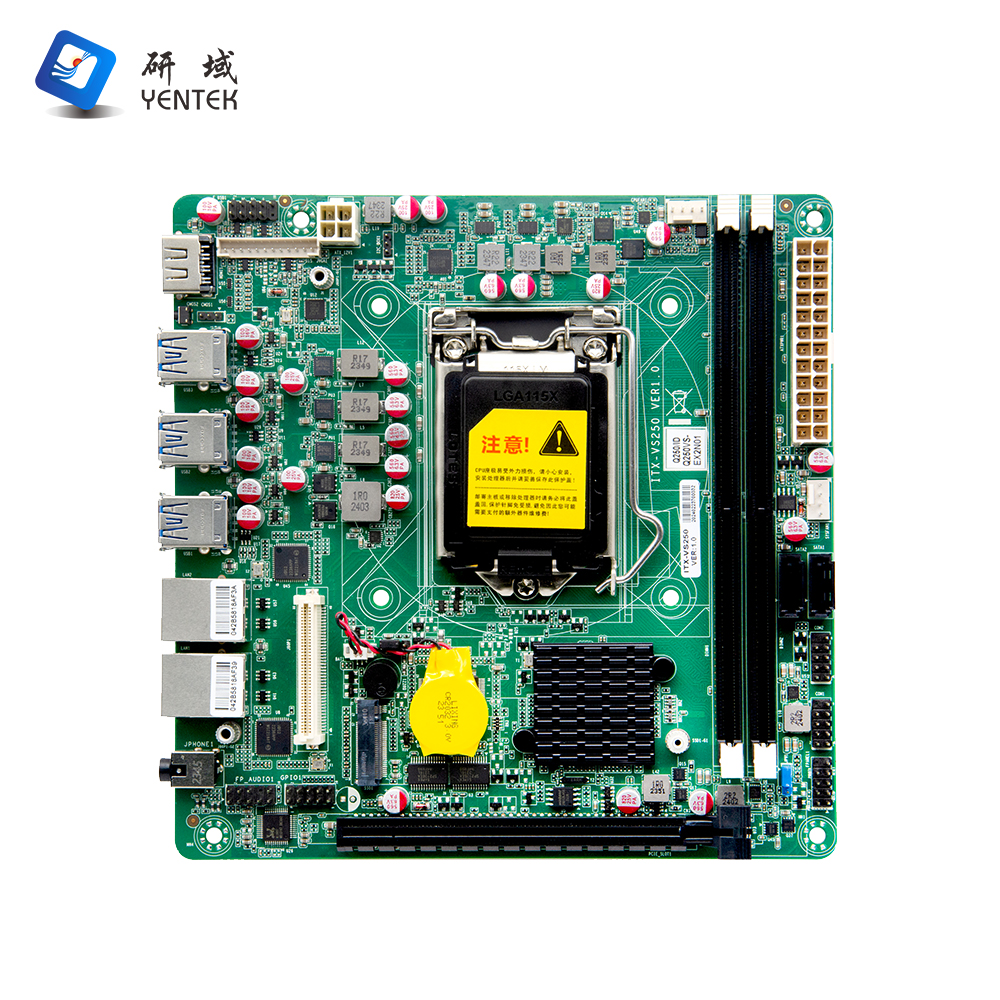

Product model

ITX-VS250 VER:1.0

processor

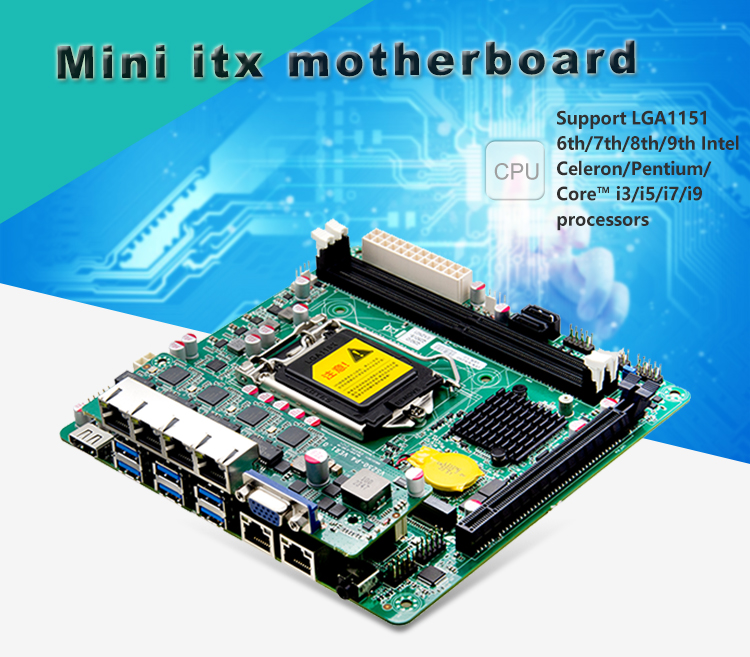

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors，Note: Support 6/7 generation 95W, 8/9 generation only support: 6 core 65W and below CPU

chipset

Using Intel® Q250 chipset,

Internal memory

2 x DDR4 DIMM slots, supporting a dual-channel memory of up to 2400 MHZ and 64GB

display

Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display

The maximum resolution supported by the 1 x VGA port is 1920x1080@60Hz

1* HD OUTPUT1.4 interface, support the highest resolution of 4096x2304@24Hz

network

2* Intel ®I210AT Gigabit network adapter chip, supporting network wake up /PXE function

deposit

2* SATA3.0 hard disk interface, transmission speed up to 6Gbps,

1* M.2 slot, support M.2 2280 NVME PCIE X4 standard SSD

Tone frequency

Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with MIC/Line-out support

Expansion slot

1* PCIE3.0 X16 slot

1* 80pin high-speed seat, including 4*PCIE signal, 1*VGA signal (with VS250-P4 small board)

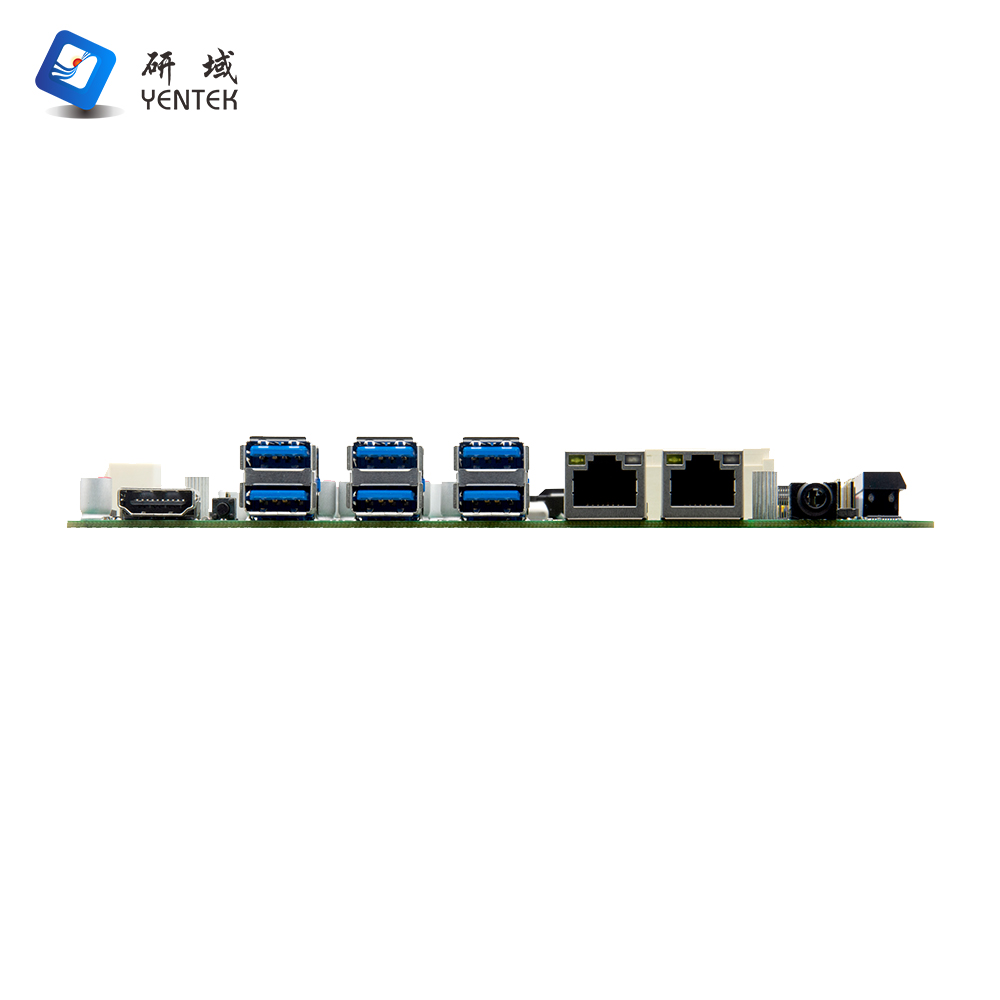

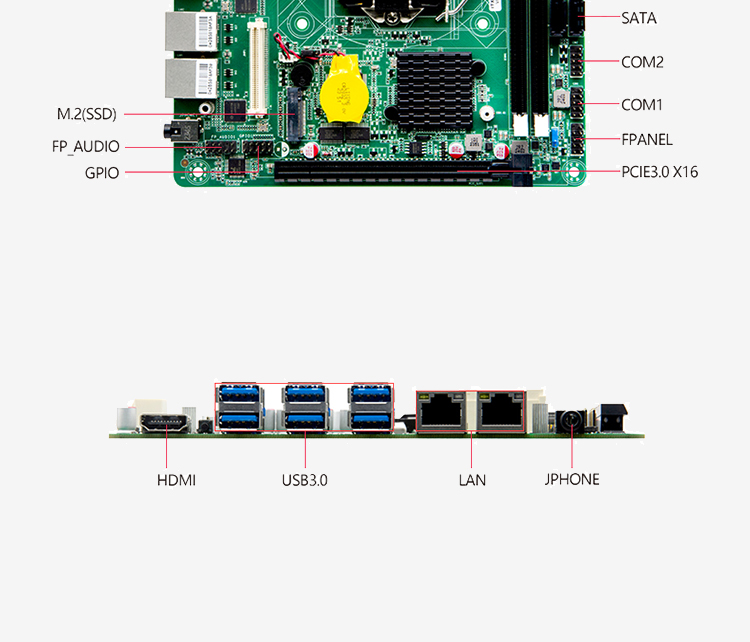

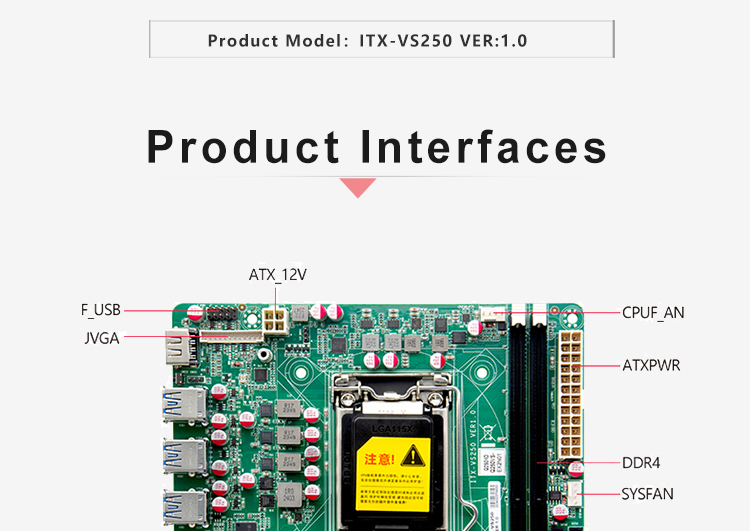

I/O ports on the backplane

1* HD OUTPUT port

6* USB3.0 interface (5Gbps)

2* RJ45 Gigabit network interface

1* Audio 2 and 1 interface (Line-out/MICK support)

Built-in I/O interface

1* VGA pin interface, and 80pin high-speed VGA is one of two options

2* USB2.0 interface 2*5pin

1* front audio interface 2*5pin

1* Front panel function button and indicator port 2*5pin

2 x RS232 serial port 2 x 5pin

1* 2*2pin ATX power interface

1* 24pin ATX power interface

1*4pin CPU fan interface; 1*4pin system fan port

Fan interface

Supports four in four out GPIO function

GPIO

128Mb Flash ROM

BIOS

Support hardware reset function (256 level, 0~255 seconds)

Guard dog

Windows7/Windows10/Linux

Operating system

Powered by ATX 24Pin and 4pin power supplies

Power supply type

0℃ to 60℃

Operating temperature

-20℃ to 70℃

Storage temperature

5%-95% relative humidity, no condensation

Working humidity

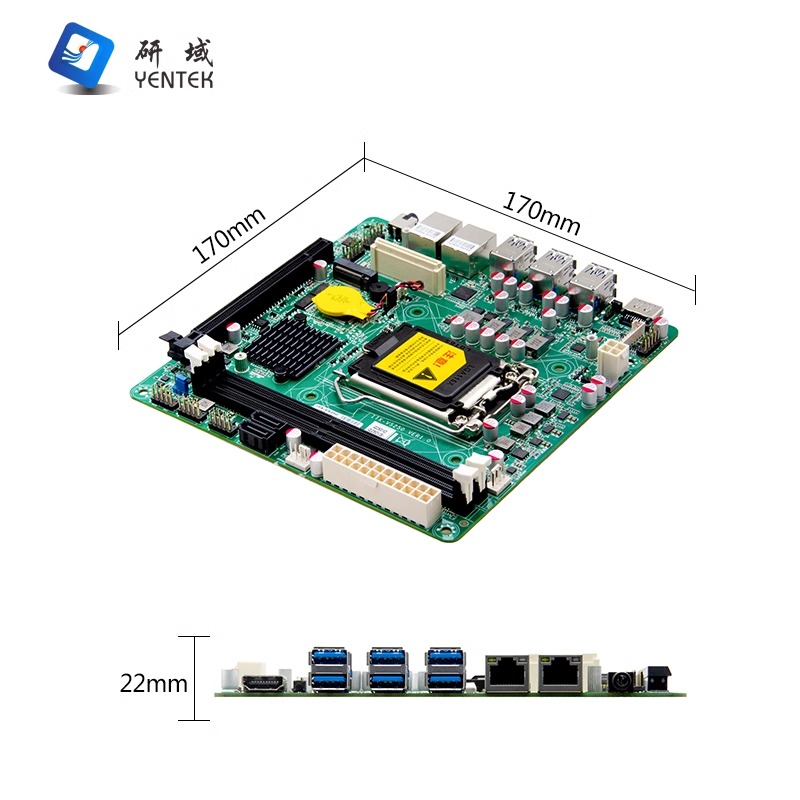

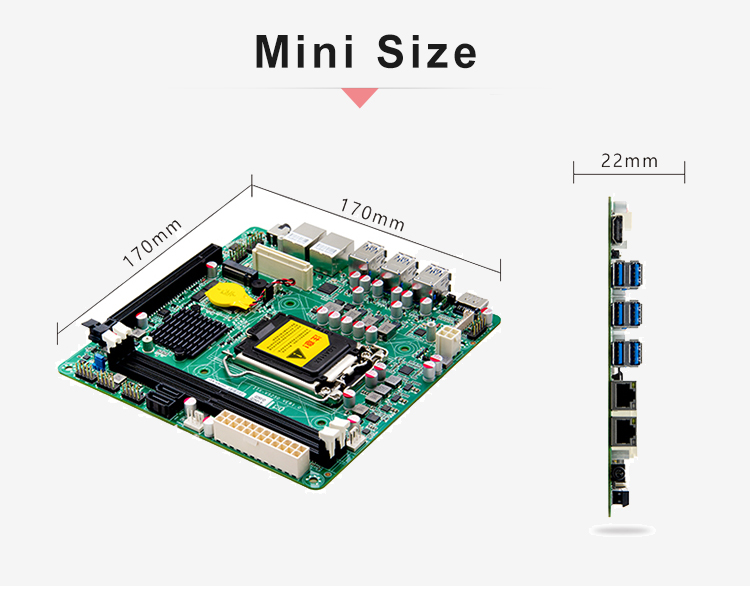

170mm * 170mm
