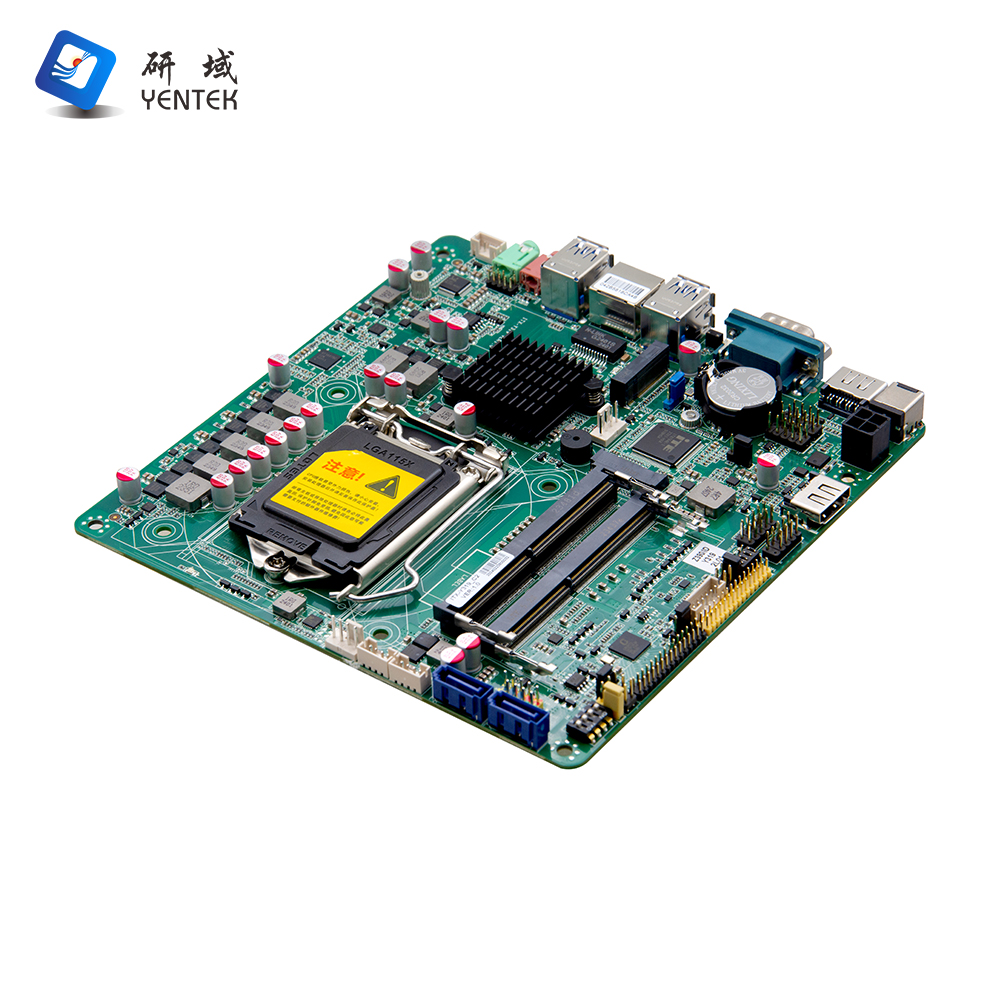

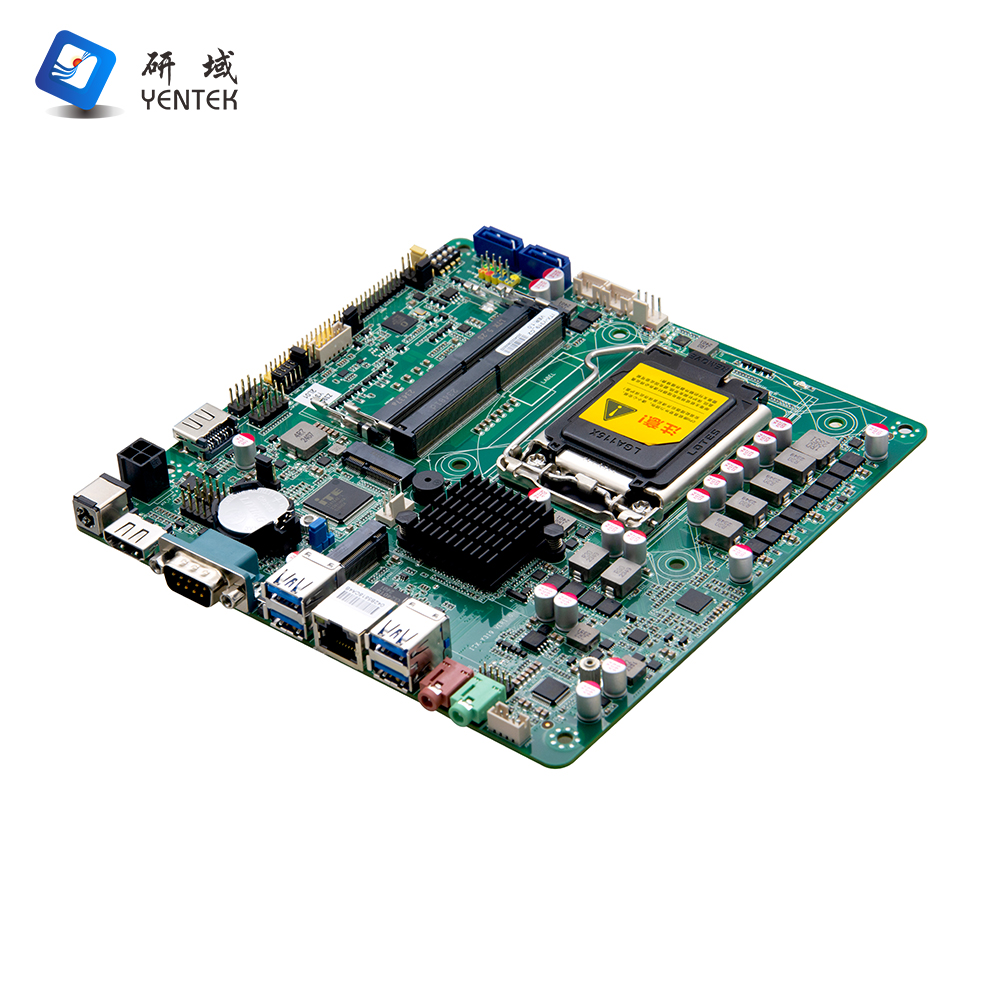

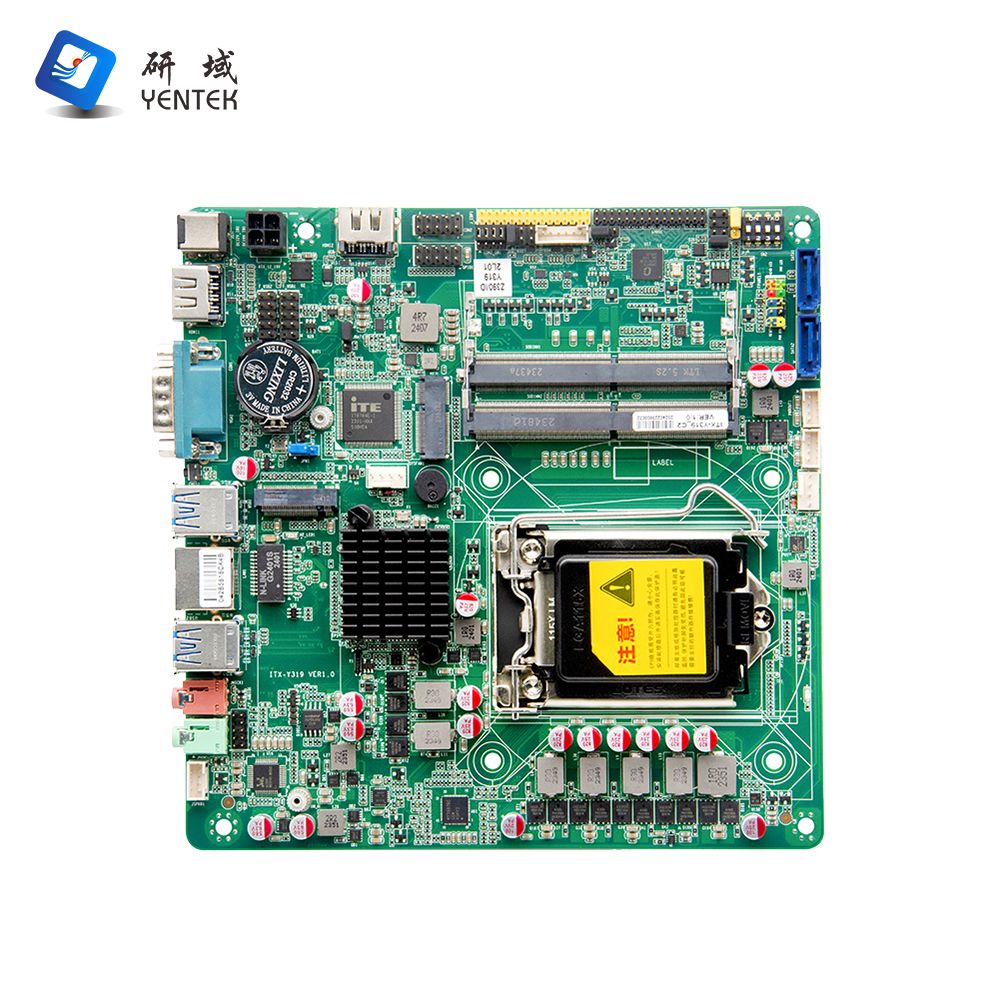

Product model

ITX-Y319_C2 VER:1.0

processor

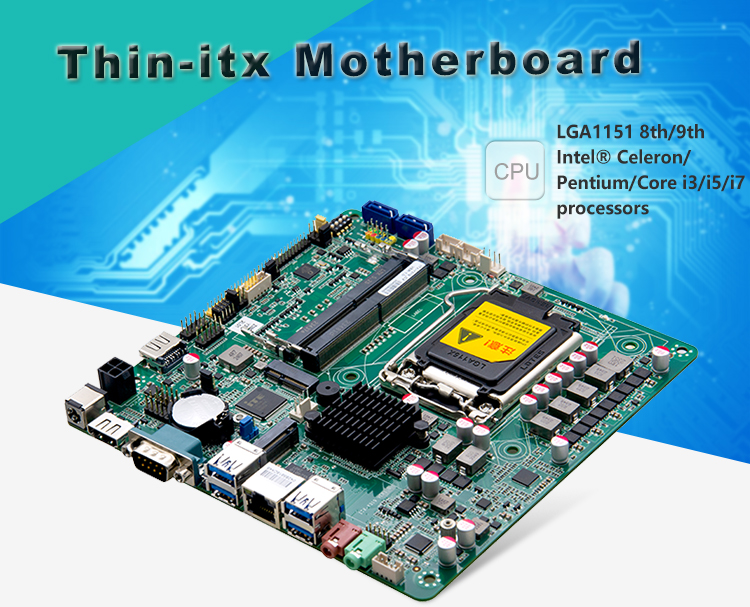

LGA1151 8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processors supported Note: Support 8/9 generation only support 6 core full series CPU, 8 core only support 35W

chipset

With Intel® Z390 high-speed chipset,

Internal memory

2* DDR4 SODIMM slots, supporting up to 2666 MHZ memory and up to 128GB memory

display

Integrated Intel® HD Graphics core graphics card, support DirectX12,OpenGL4.4, support 4K display

2 x HD OUTPUT1.4 port, the highest resolution is 4096X2304@24Hz

1* Supports dual channel 24bit LVDS interface, and EDP is one of the two via jump

network

1* RTL8111H Gigabit NIC chip, supports network wake up /PXE function

deposit

2* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1 x M.2 slot, supporting the M.2 Key M 2280 NVME PCIE X4/SATA adaptive standard SSD

Tone frequency

Onboard ALC897 7.1+2 channel high fidelity audio controller, support MIC/Line-out, power amplifier, The amplifier supports 4Ω/3W dual channels

Expansion slot

1* M.2 slot, supporting the M.2 Key E 2230 WIFI module

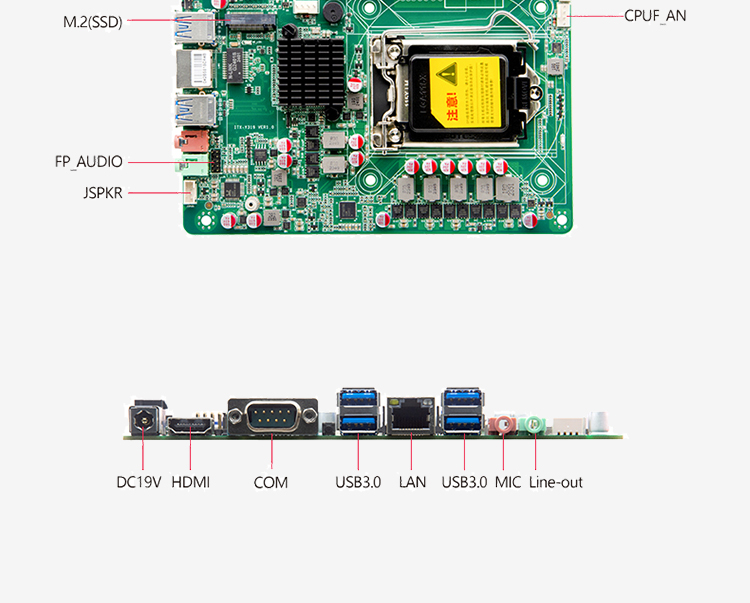

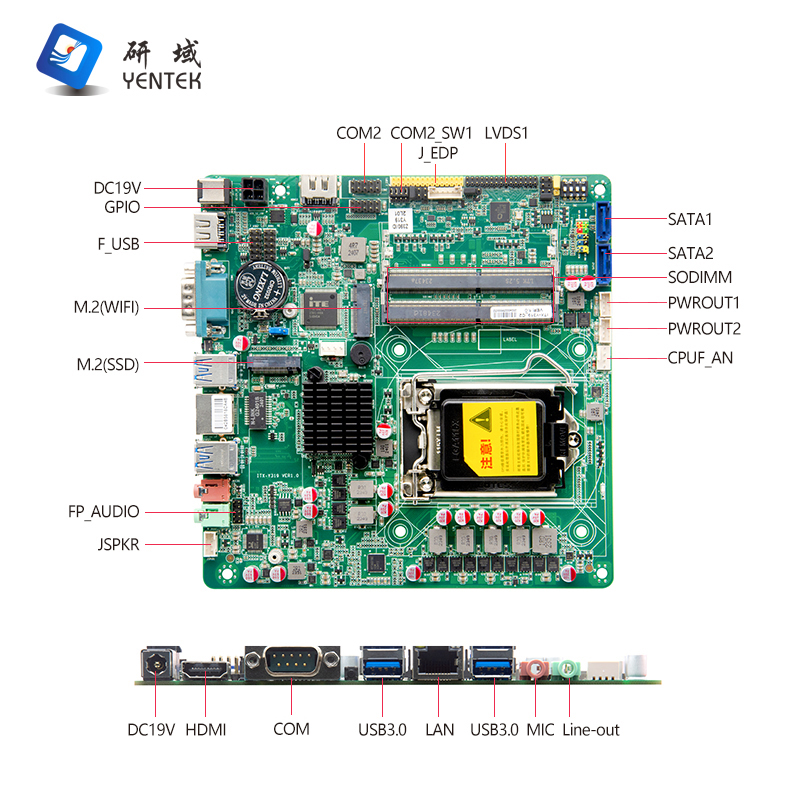

I/O ports on the backplane

4* USB3.0 port

1* HD OUTPUT port

1* DB9 RS232 serial interface (co-listed with DB15 VGA interface, optional VGA interface)

1* RJ45 Gigabit network port

1* Line-out(green),1*MIC(red)

1* DC19V power input interface

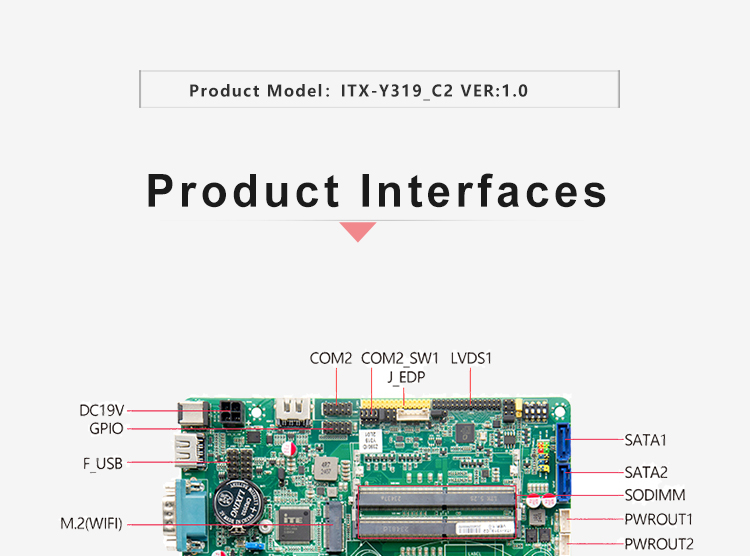

Built-in I/O interface

4* USB2.0 interface 2*5pin

1* HD OUTPUT port (side)

1* LVDS interface 2*15pin, support dual channel 24bit

1* backlight power supply interface 1*6pin

1* EDP interface, 2*15pin, with LVDS by jumping one of two

1* RS232 serial interface, 2*5pin

1* PS/2 keyboard and mouse interface 1*6pin

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* hard disk power supply voltage port 1*4pin

1* Front panel function button and indicator port 2*5pin

1*4pin ATX power interface. Support 19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system fan port

GPIO

Supports four input/output GPIO functions

BIOS

64Mb Flash ROM

Support system

Windows 10/Linux

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

Support DC19V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

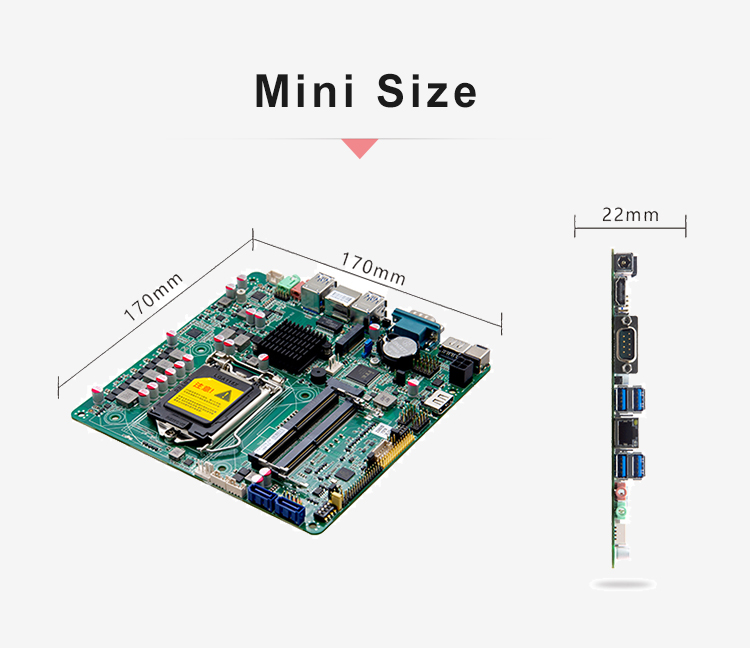

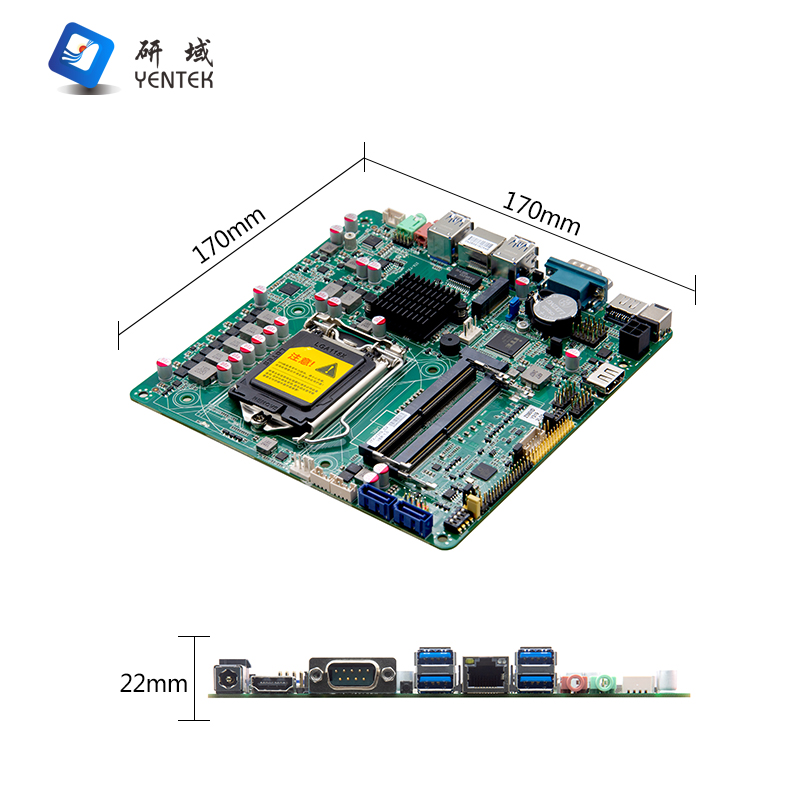

Size

170mm * 170mm
