P6750S-D2 V0.1
Product characteristics ● 1*HD OUTPUT2.0, 1*HD OUTPUT1.4, 1*VGA, support for three displays ● 2*Intel I210AT Gigabit electrical port ● 2*RS232/485 DB9 serial port (CAN support, need to load CAN module) ● 2*USB3.0, 4*USB2.0 ● DC12V input ● fanless cooling (can be changed with fan)
|
Model number |
P6750S-D2 V0.1 |
|
|
chassis
|
Material/Structure |
Aluminum alloy + sheet metal material, fanless heat dissipation |
|
colour |
Iron gray + sand gray |
|
|
Dimensions |
185 * 163.4 * 48.5 MM |
|
|
Weight (bare weight) |
KG |
|
|
Install |
Desktop/wall-mounted /DIN rail |
|
|

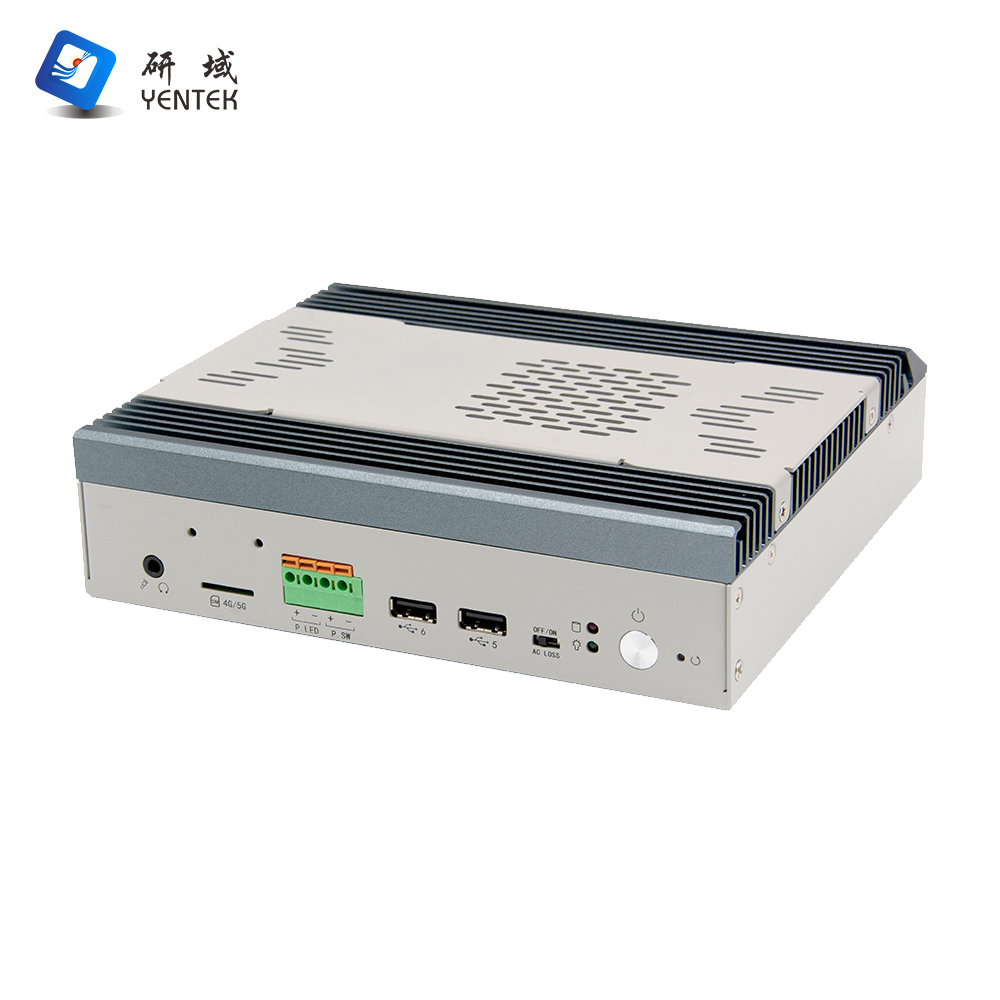

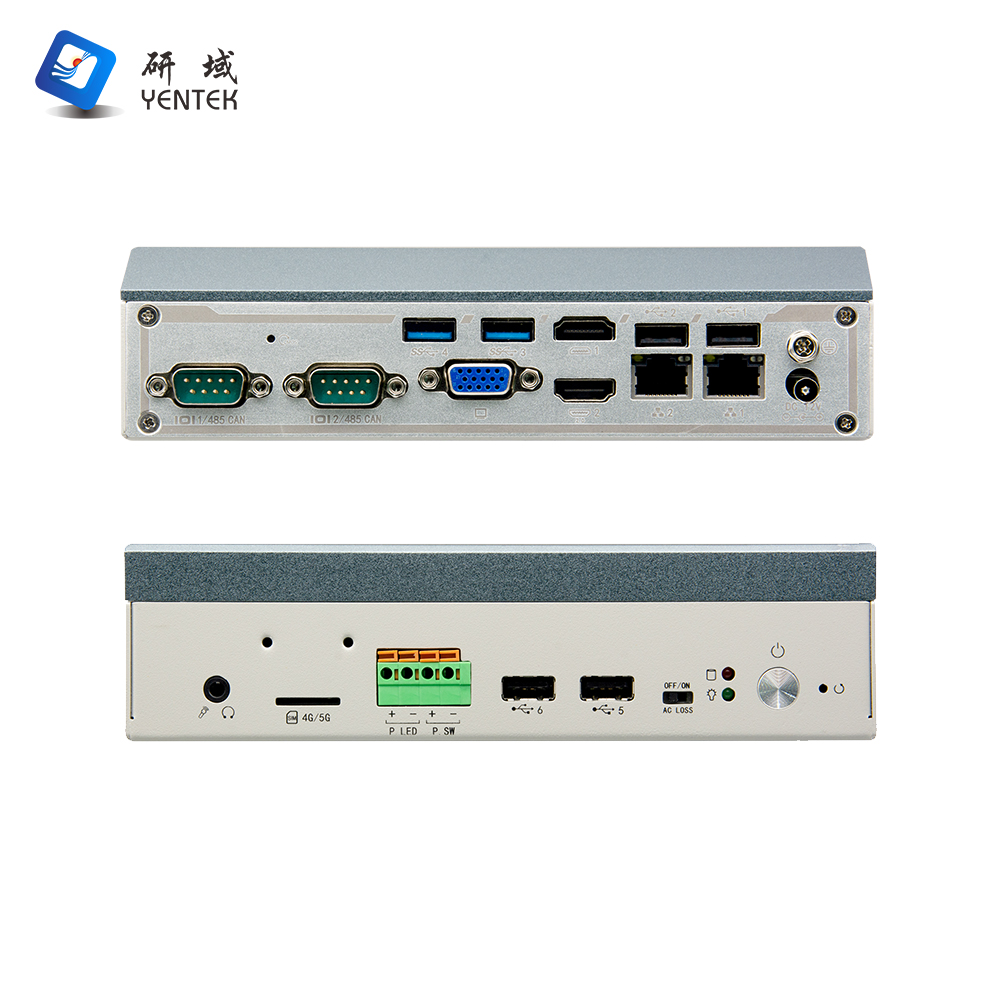

Front panel interface
|
Switch |
1* Power button, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch) |
|
LED |
1* hard disk indicator, 1* hard disk indicator |
|
|
USB |
2 * USB2.0 |
|
|
Audio frequency |
1*Audio, Line out&Mic 2-in-1 |
|
|
Phoenix terminal |
1*4P(including 1* power signal /1* power indicator signal) |
|
|
SIM |
1*SIM standard card slot |
|
|

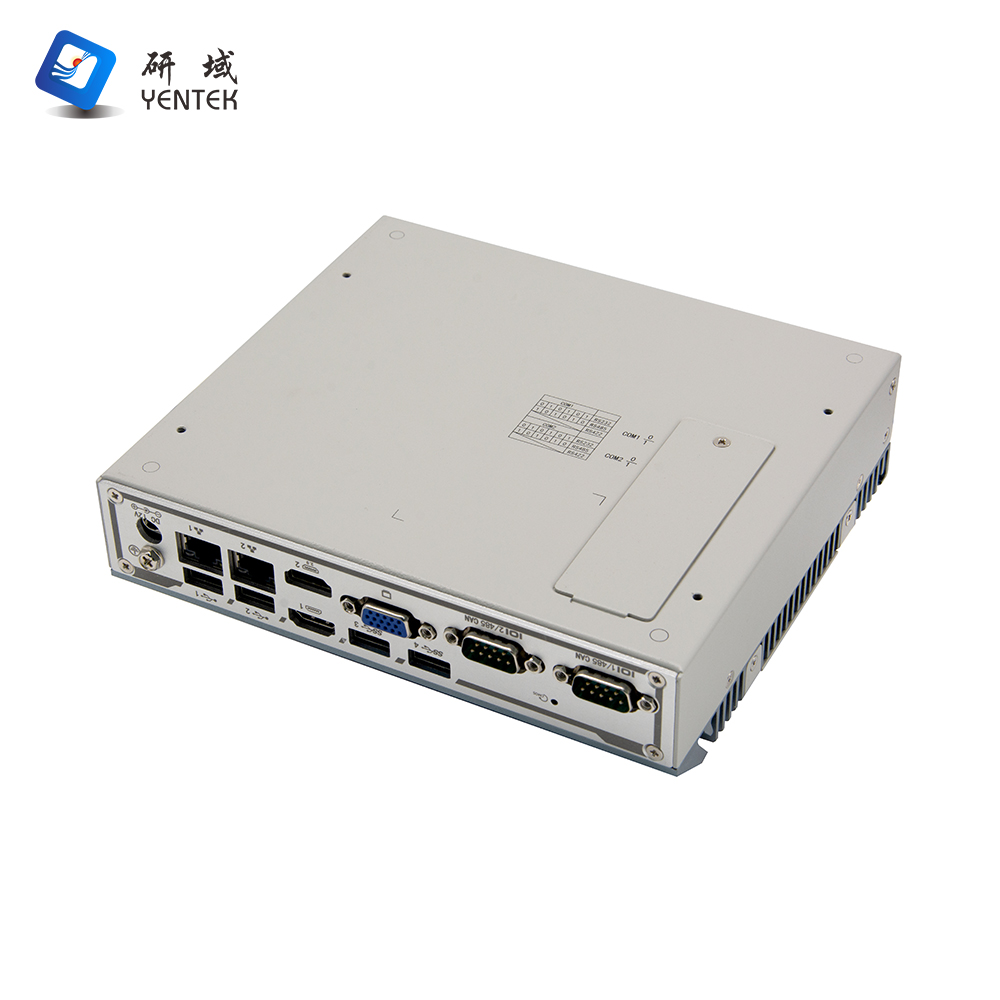

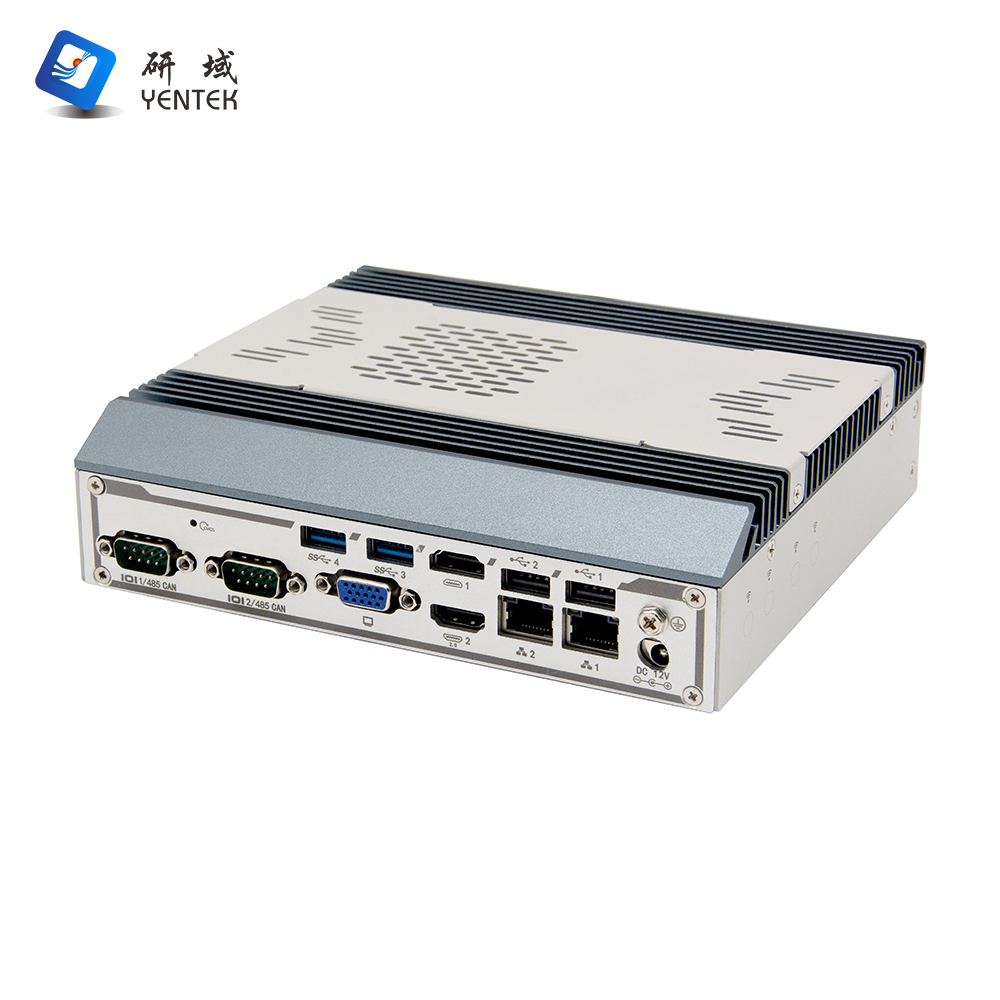

Rear panel interface
|
Switch |
1*CMOS restore key |
|
Display interface |
1*HD OUTPUT2.0, 1*HD OUTPUT1.4, 1*VGA, supports three displays |
|
|
COM |
2*RS232/485 DB9 serial port, CAN support CAN(CAN module needs to be loaded) |
|
|
LAN |
2*Intel I210AT Gigabit electrical port |
|
|
USB |
2 * USB3.0, 2 * USB2.0 |
|
|
Dip switch |
2 sets of 6-bit dip switches, RS232/485 switching use |
|
|
Power interface |
1*DC 12V(5.5*2.5) |
|
|
store
|
MSATA |
1*MSATA |
|
M.2 |
1*M.2/SSD, supports Key-M, 2280, NVME PCIE x4 SSDS |
|
|
extend |
MINIPCIE |
1*MINIPCIE, support WiFi/4G module |
|
Power supply type input
|
Power supply type |
External power adapter |
|
Voltage input |
DC 12V |
|
|
Power output |
AC TO DC more than 60W |
|
|
environment |
Operating temperature |
-10℃ to 50℃ |
|
Storage temperature |
-20℃ to 70℃ |
|
|
Relative humidity |
5%-95% relative humidity, no condensation |
|
|
Working vibration |
0.5g rms/5-500HZ/random/operating |
|
