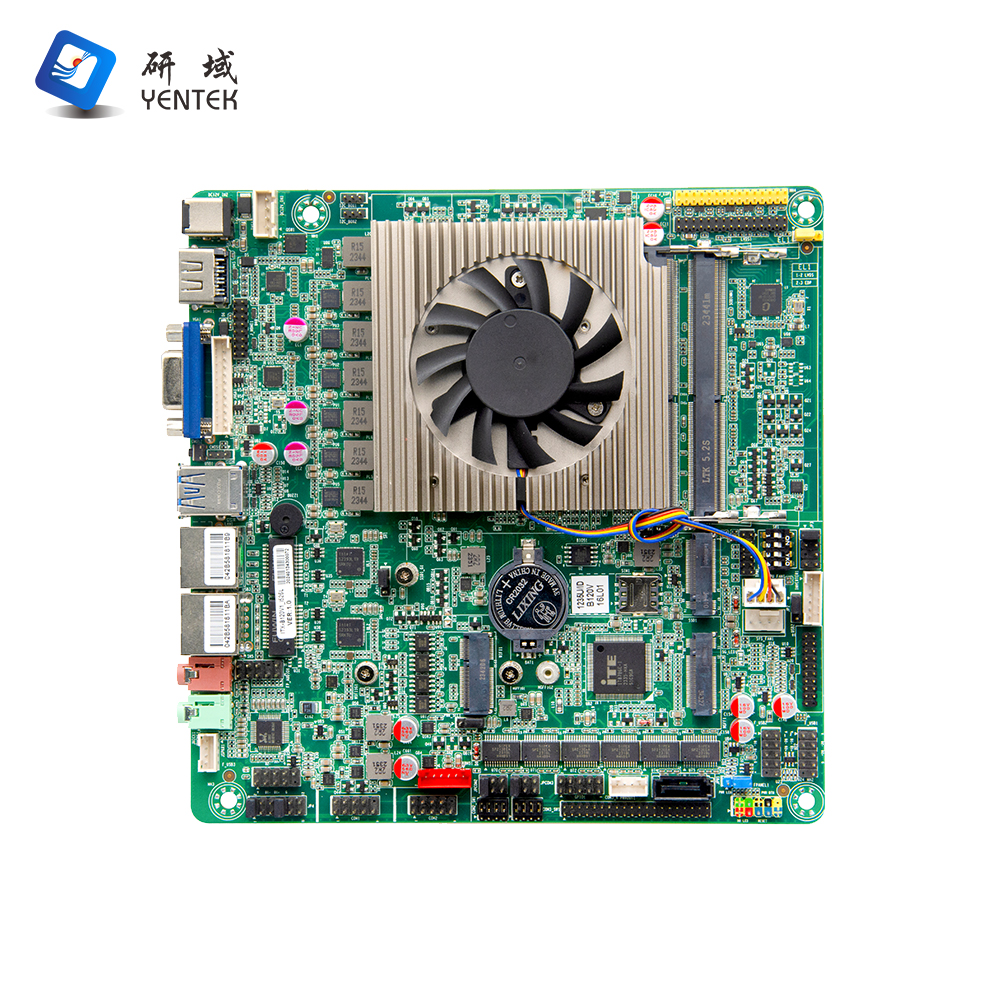

Product model

ITX-B120V1_I526L VER:1.0(1235U)

processor

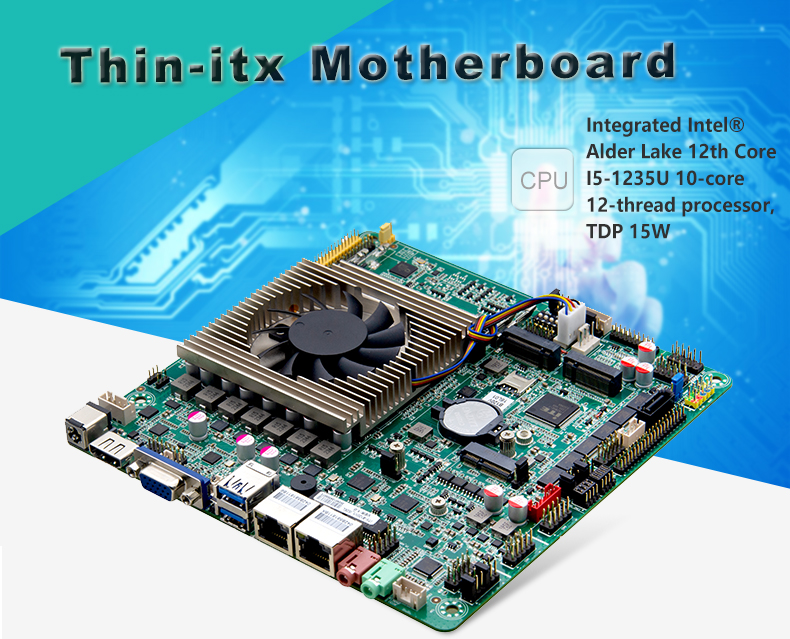

Integrated Intel®Alder Lake 12th Core I5-1235U 10-core 12-thread processor, TDP 15W

Compatible with Intel®Alder Lake/Raptor Lake 12th/13th Celeron/I3/I5/I7 processors

chipset

SOC

Internal memory

2* DDR4 SODIMM slots, supporting 3200MHz memory and a maximum of 64GB memory

display

Integrated Intel® Iris® Xe Graphics core graphics card, support DirectX12.1,OpenGL4.6, support 4K/60Hz display

The maximum resolution supported by the 1 x VGA port is 1920x1080@60Hz

1* HD OUTPUT2.0 interface, the highest resolution supported: 4096x2304@60Hz

1* HD OUTPUT1.4 port, the highest resolution supported is 4096x2304@24Hz

1* LVDS port, supporting dual-channel 24BIT

1* EDP interface, and LVDS interface through the jump one

network

2* Intel KTI226V Gigabit network adapter chip, supporting network wake up /PXE function

deposit

1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps

1* M.2 slot, supporting M.22280 NVME PCIE 3.0 X4 SSDS

Tone frequency

Onboard ALC897 7.1+2 channel high fidelity audio controller, support MIC/Line-out, power amplifier,The amplifier supports 4Ω/3W dual channels

Expansion slot

1* M.2 slot, supporting the M.2 2230 WIFI module

1* M.2 slot, supporting the M.2 2242/2252 4G/5G module

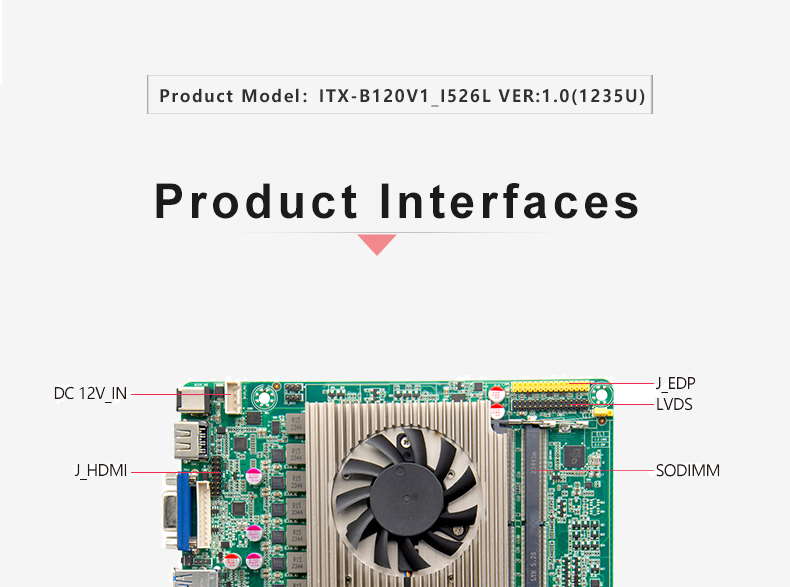

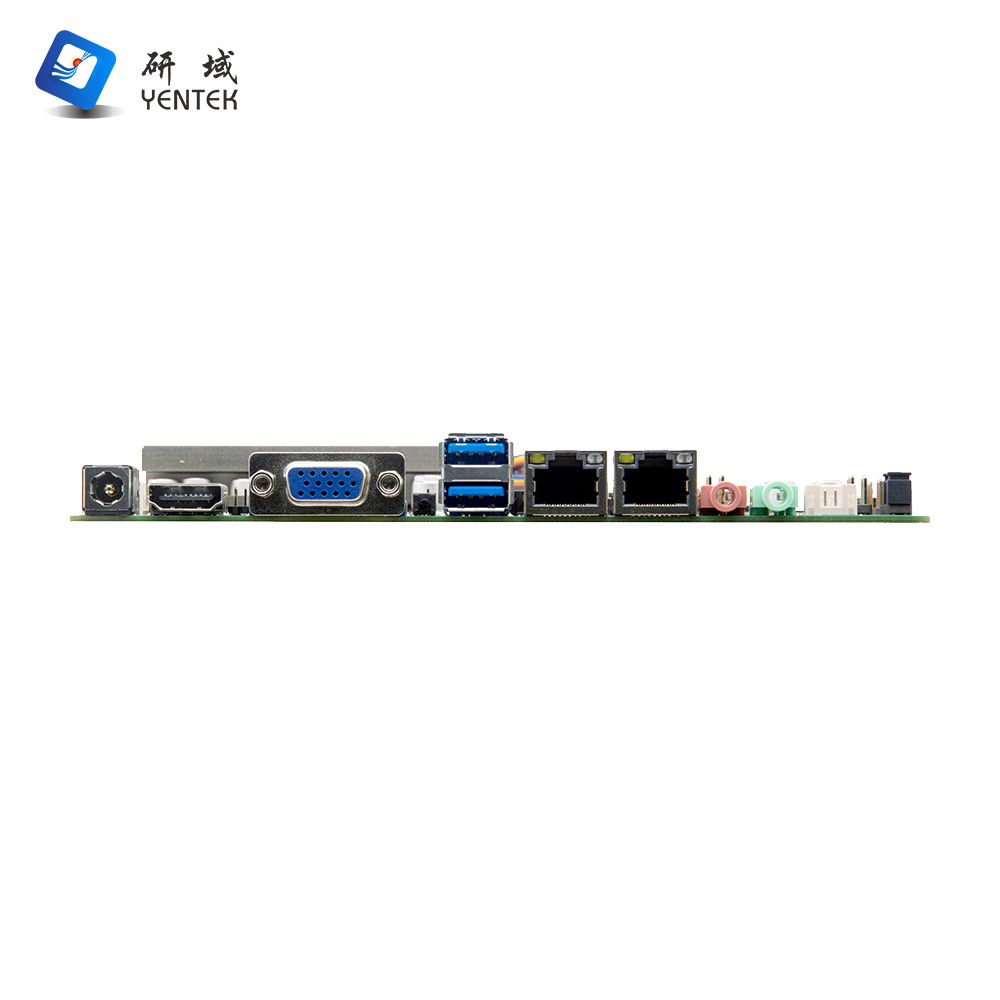

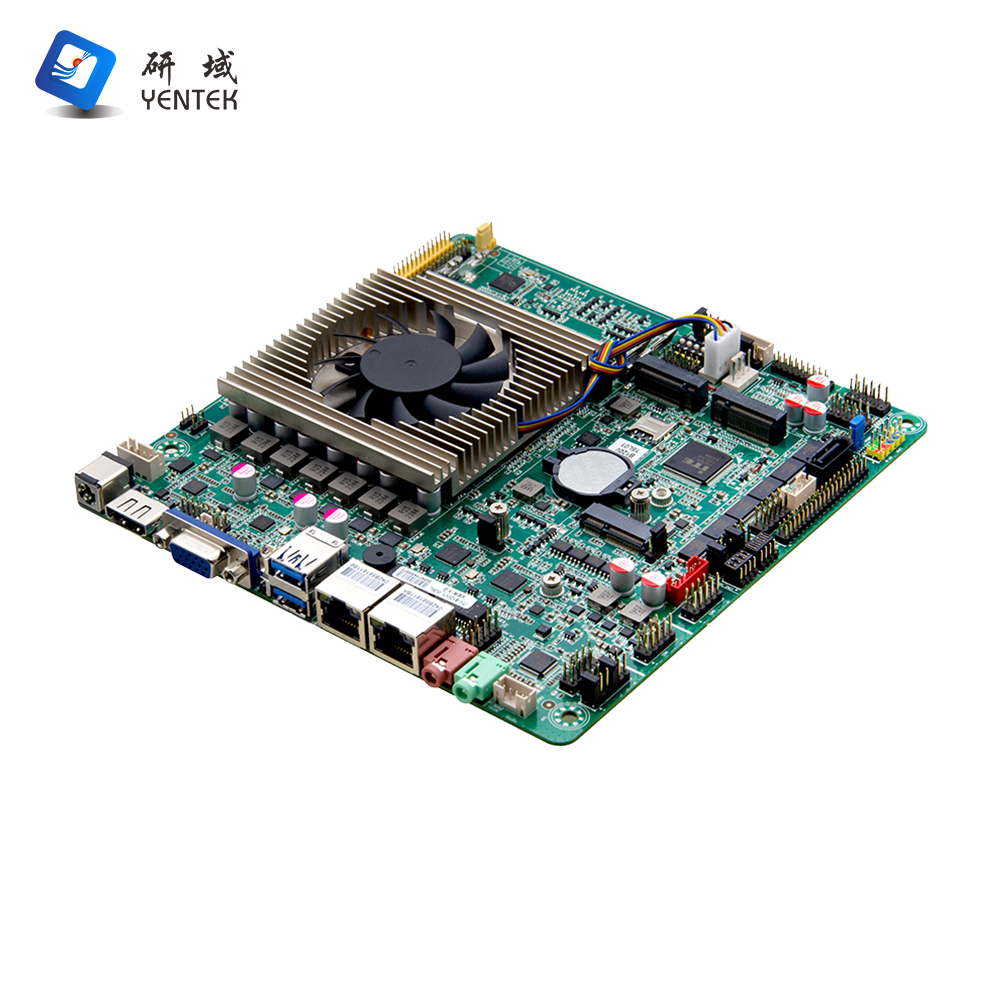

I/O ports on the backplane

1* DC12V power port supports 12V power input and output

1* HD OUTPUT2.0 interface

1* VGA port

2* USB3.0 interface (5Gbps)

2* RJ45 Gigabit network interface (LAN2 and USB2.0 are listed together)

1* Line-out(green), 1*MICK(red)

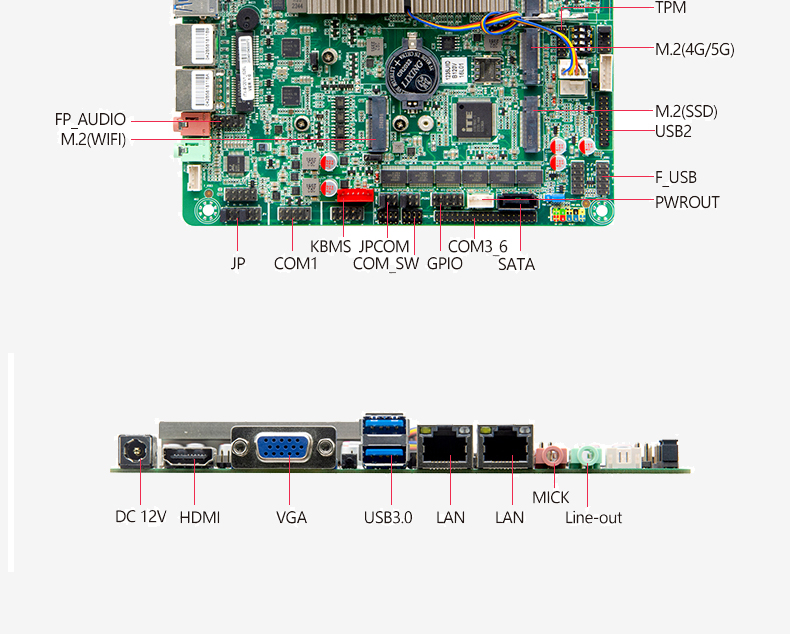

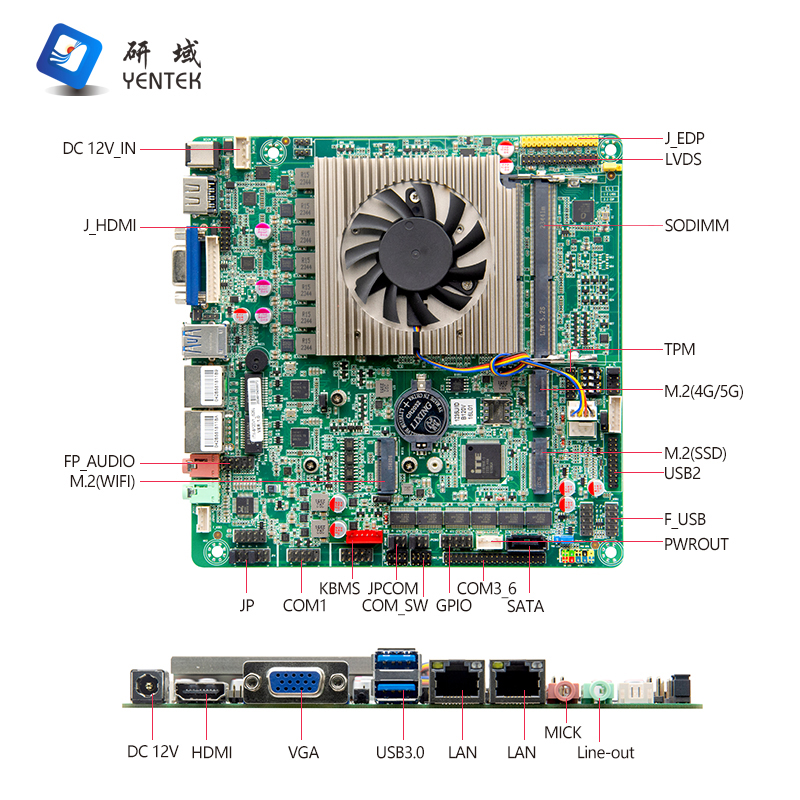

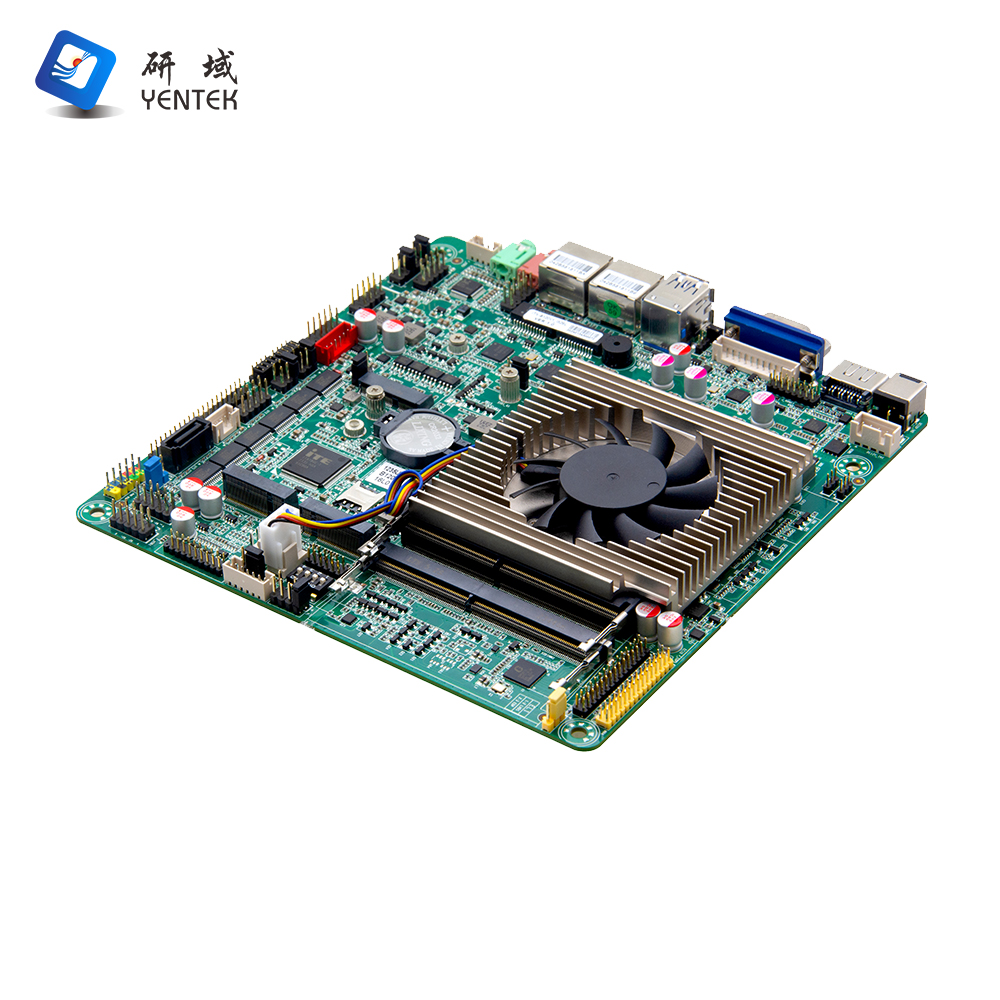

Built-in I/O interface

.

1* JVGA pin port 1*12pin, same signal as DB15

1* JHD OUTPUT interface 2*8pin, can be used alone

1* LVDS interface, 2*15pin,

1* EDP interface, 2*15pin, with LVDS by jumping one of two

1* screen backlight power supply interface 1*6pin

6* RS232 serial port, of which COM1 supports 9pin live function, COM2/3 supports RS485/422

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* Front panel function button and indicator port 2*5pin

6* USB2.0 interface 2*5pin

2* USB3.0 interface 2*10pin

1* PS/2 keyboard and mouse interface 1*6pin

1* hard drive power port 1*4pin

1* TPM port 2*6pin

1* 4pin DC power interface, support 12V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system fan port

GPIO

Supports four input/output GPIO functions

BIOS

256Mb Flash ROM

Support system

Windows 10/Linux

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

DC12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5 ~ 90% relative humidity, no condensation

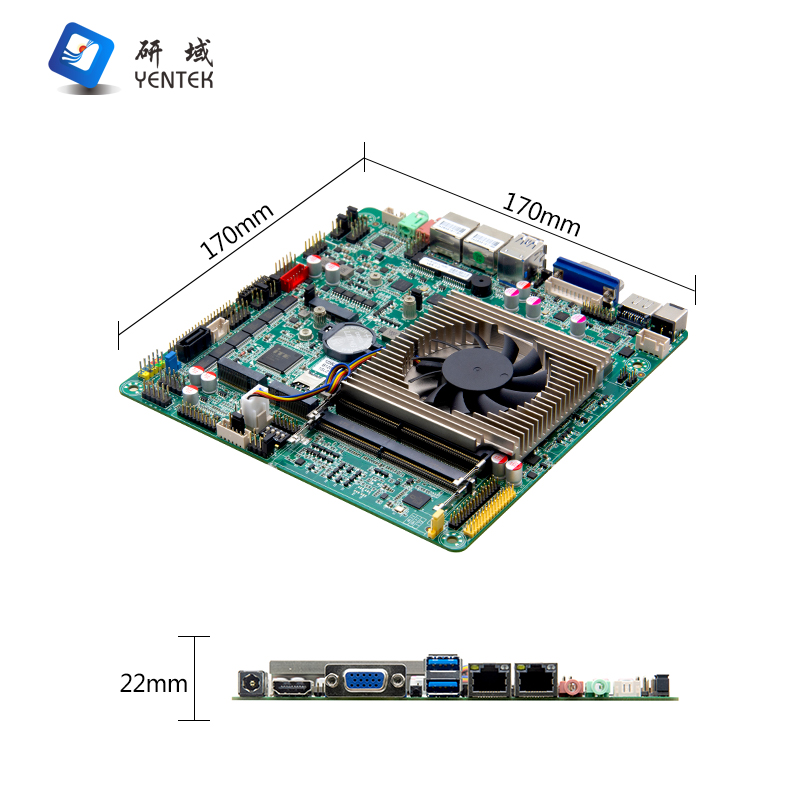

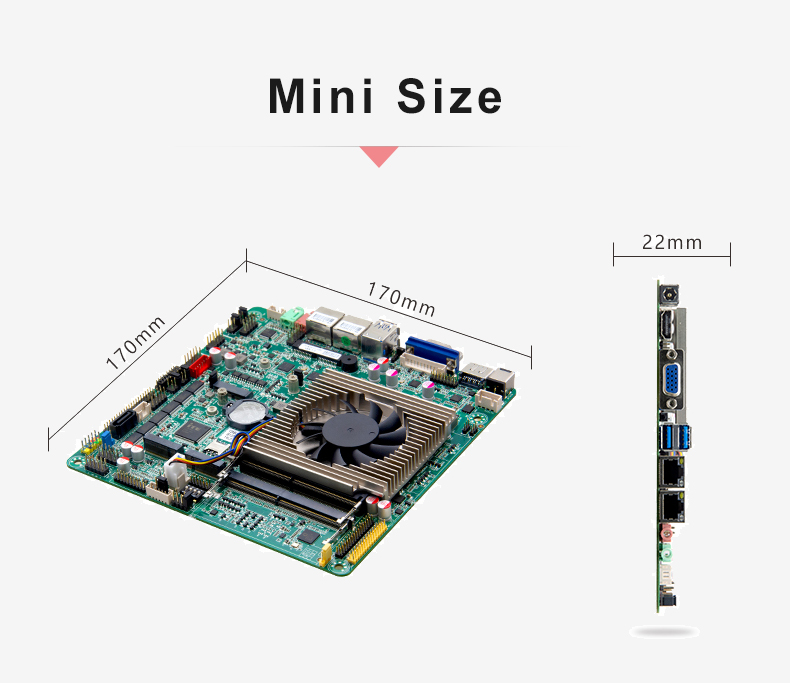

Size

170mm * 170mm
