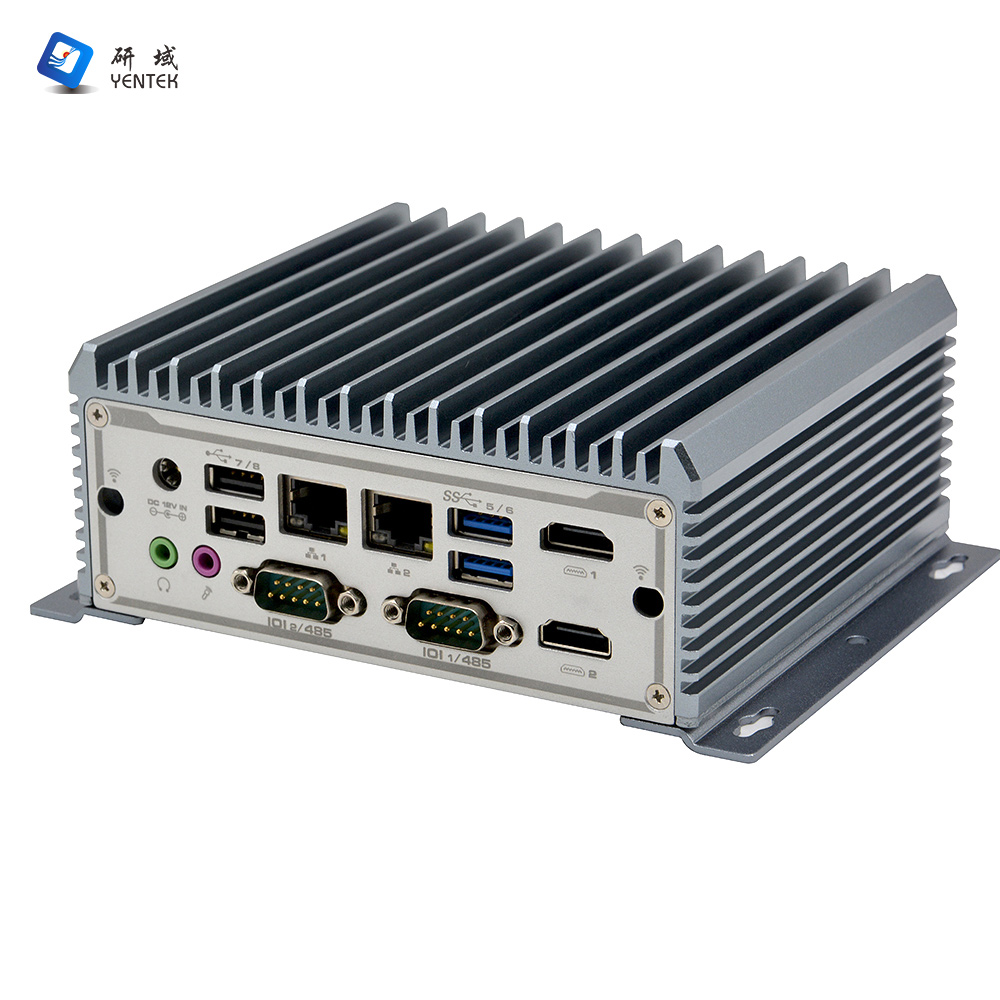

Model number

P3250E-V V0.1

chassis

Material/Structure

Aluminum alloy + sheet metal material, fanless heat dissipation

colour

Iron gray + sand gray

Dimensions (length, width and height)

153 * 128 * 64.1 MM

Weight (bare weight)

1.1 KG

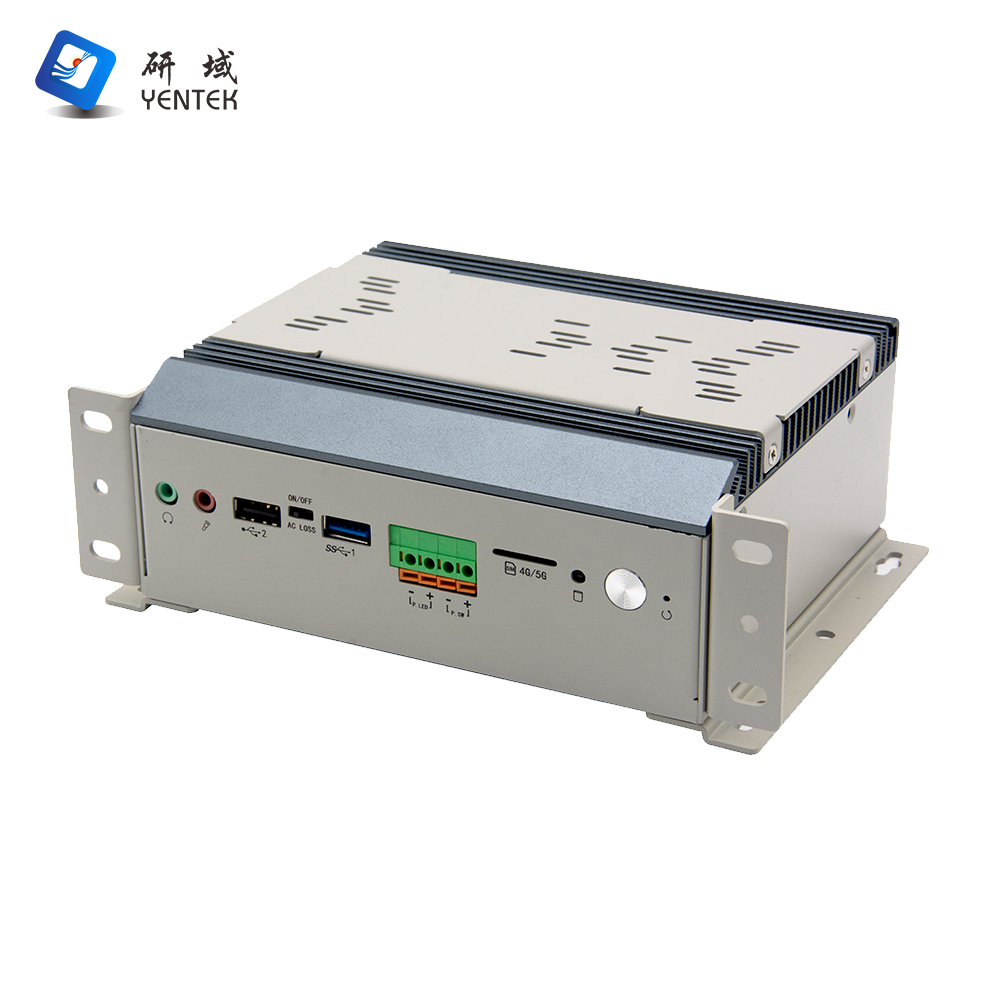

Install

Desktop /DIN rail/Wall mount /VESA

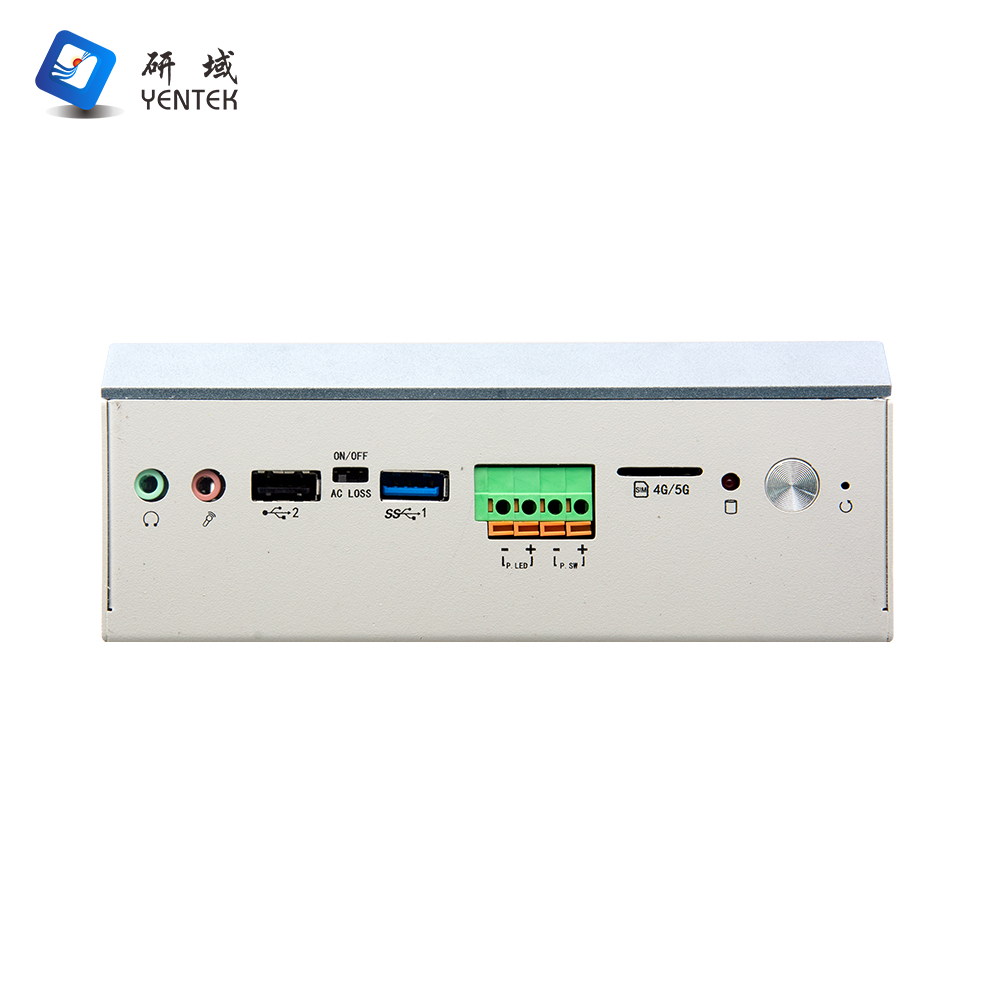

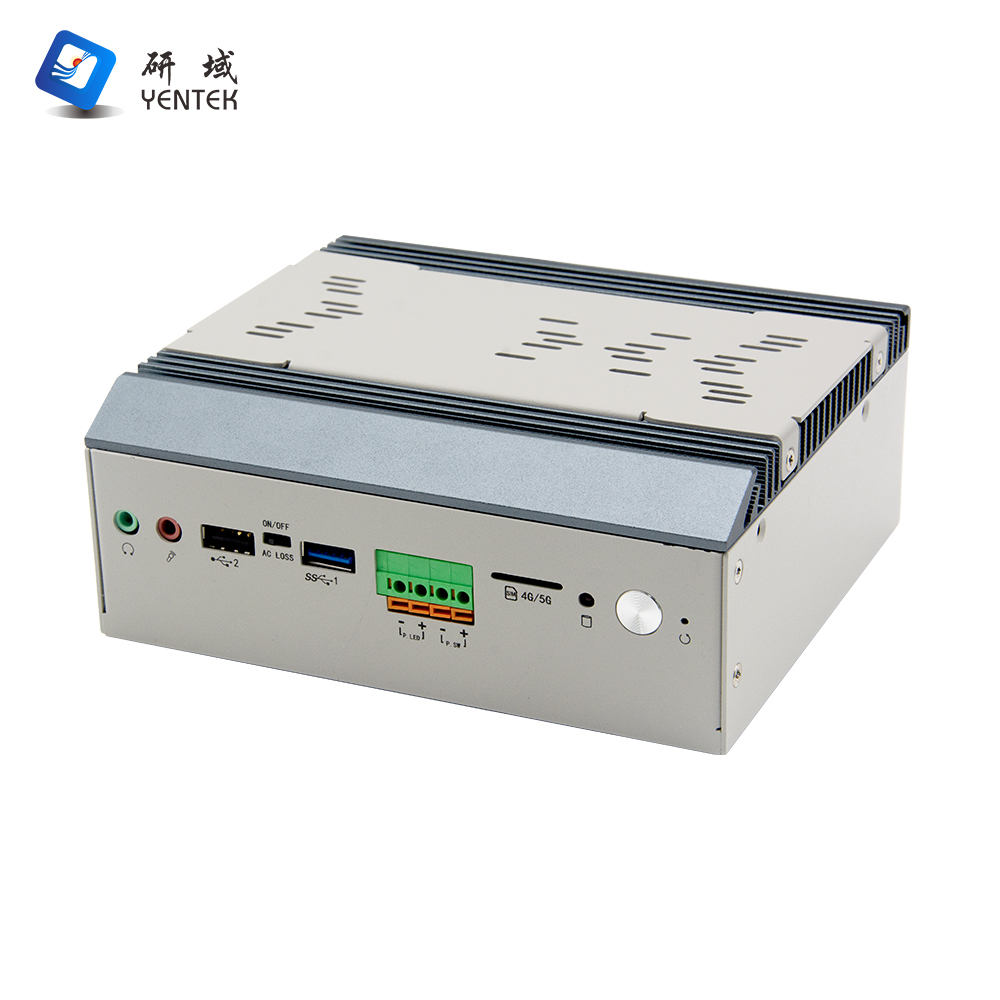

Front panel interface

Switch

1* Power key with indicator light, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch)

LED

1* hard disk indicator

USB

1 x USB2.0, 1 x USB3.0

Audio frequency

1*Line out, 1*Mic

SIM

1*SIM standard card slot

Phoenix terminal

1*4P(1* Power signal /1* Power indicator signal)

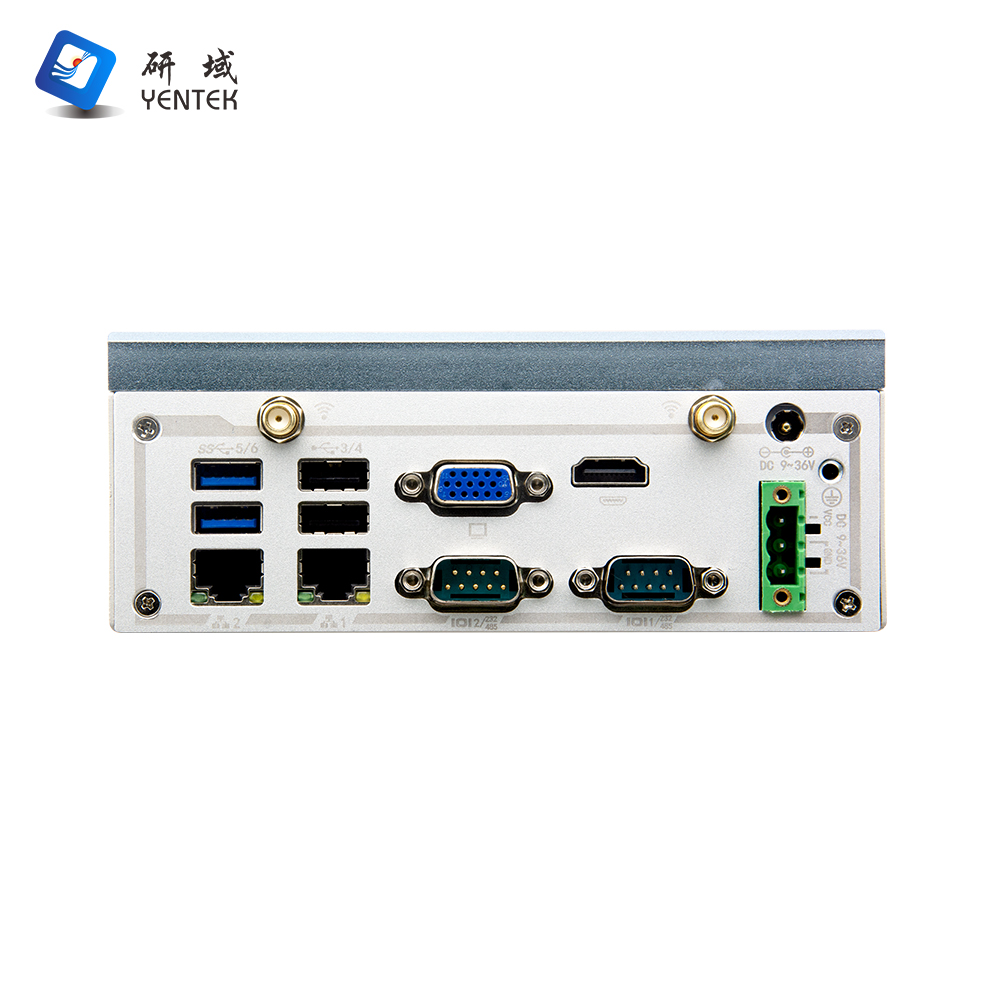

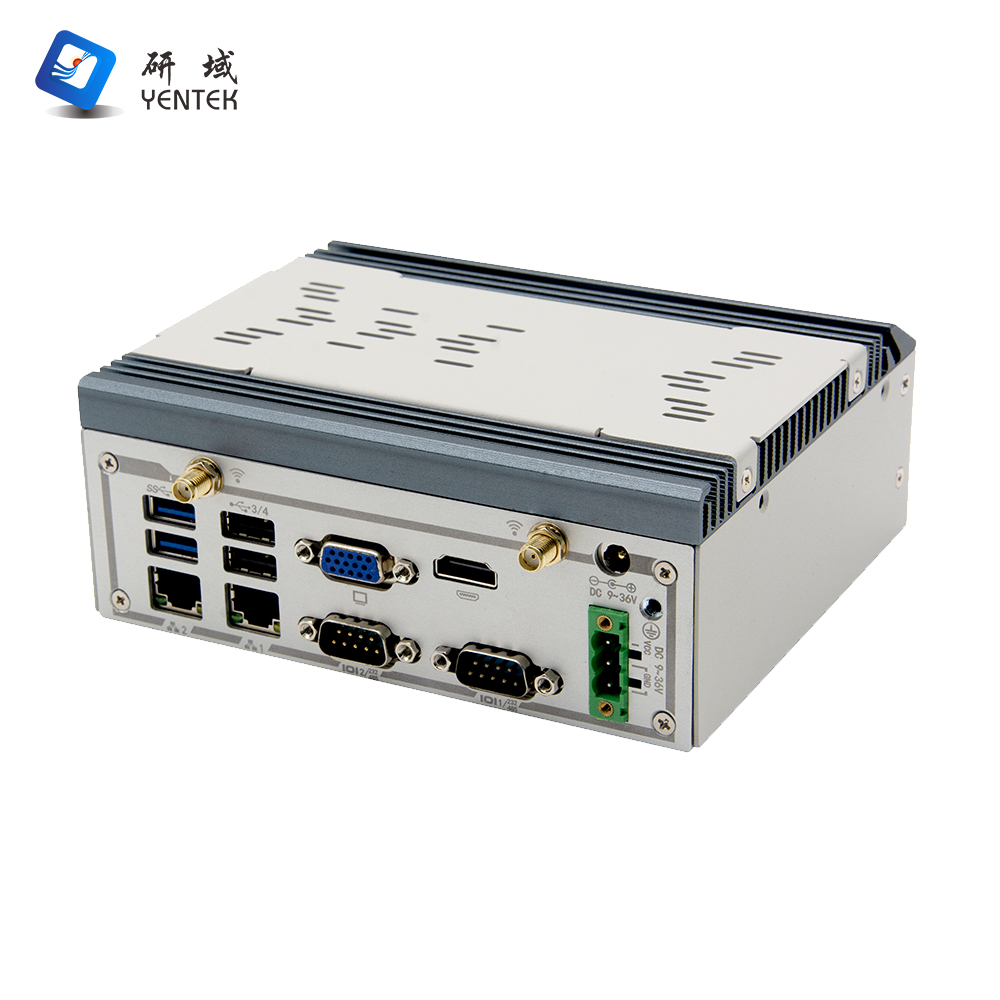

Rear panel interface

Display interface

1*VGA, 1*HDMI1.4

COM

2*RS232/485 DB9 Serial port

LAN

2*Intel I210AT Gigabit electrical port

USB

2 x USB3.0, 2 x USB2.0

Power interface

1*DC(5.5*2.5) or 1*3P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage

store

SATA

1 x 2.5-inch hard disk

MSATA

1*MSATA

M.2

1*M.2/SSD, supports Key-M, 2280, NVME PCIE x4 SSDS

extend

M.2

1*M.2/5G, supports Key-B, 2242/52, 5G modules

Wireless network card

Integrated WiFi(WiFi model based on NUC module)

Power supply type

input

Power supply type

External power adapter

Voltage input

DC 9-36V

Power output

AC TO DC more than 60W

environment

Operating temperature

-10℃ to 50℃

Storage temperature

-20℃ to 70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
