P2150S-V
Product characteristics ● 1*HDMI, 1*VGA, support dual display ● 2*RJ45 ● 2*RS232/485 DB9 serial port, CAN support ● 4*USB3.0, 4*USB2.0 ● DC12V power input
|
Model number |
P2150S-V V0.1 |
|
|
chassis
|
Material/Structure |
Aluminum alloy + sheet metal material, no fan heat dissipation |
|
colour |
Iron gray + sand gray |
|
|
Dimensions (length, width and height) |
W126 L128 * * H61.5 MM |
|
|
Weight (bare weight) |
0.95 KG |
|
|
Install |
Support VESA installation/desktop/wall mount |
|
|

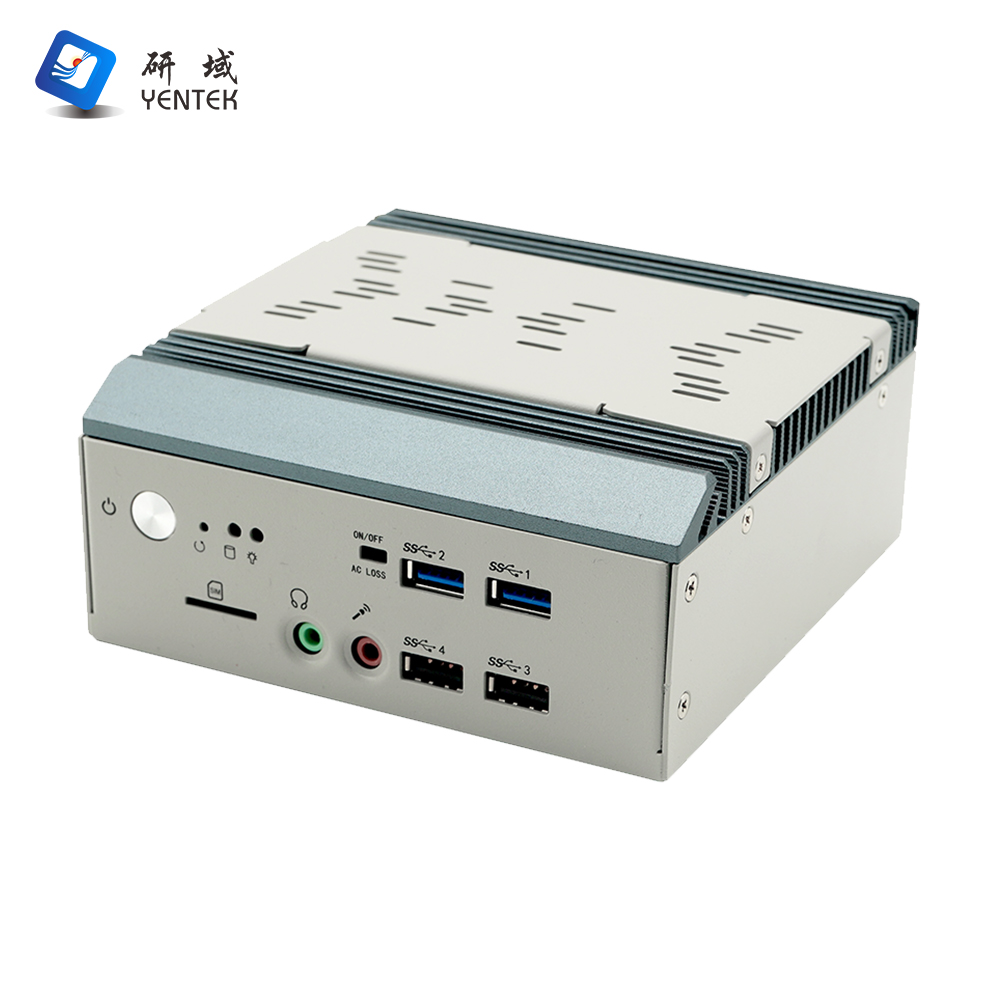

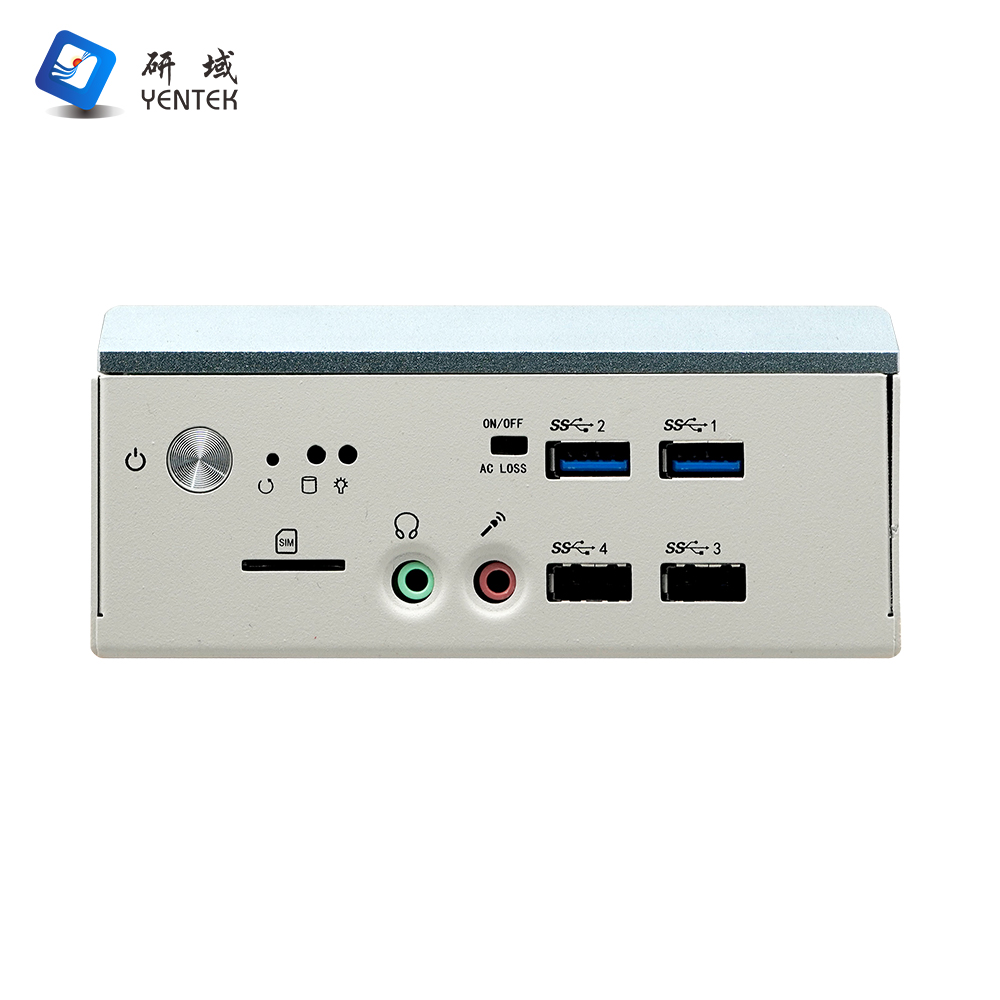

Front panel interface
|
POWER |
1* Power switch, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch) |
|
LED |
1* hard disk indicator, 1* power indicator |
|
|
USB |
2 x USB3.0, 2 x USB2.0 |
|
|
Audio frequency |
1*Line out, 1*Mic |
|
|
SIM |
1*SIM standard card slot |
|
|

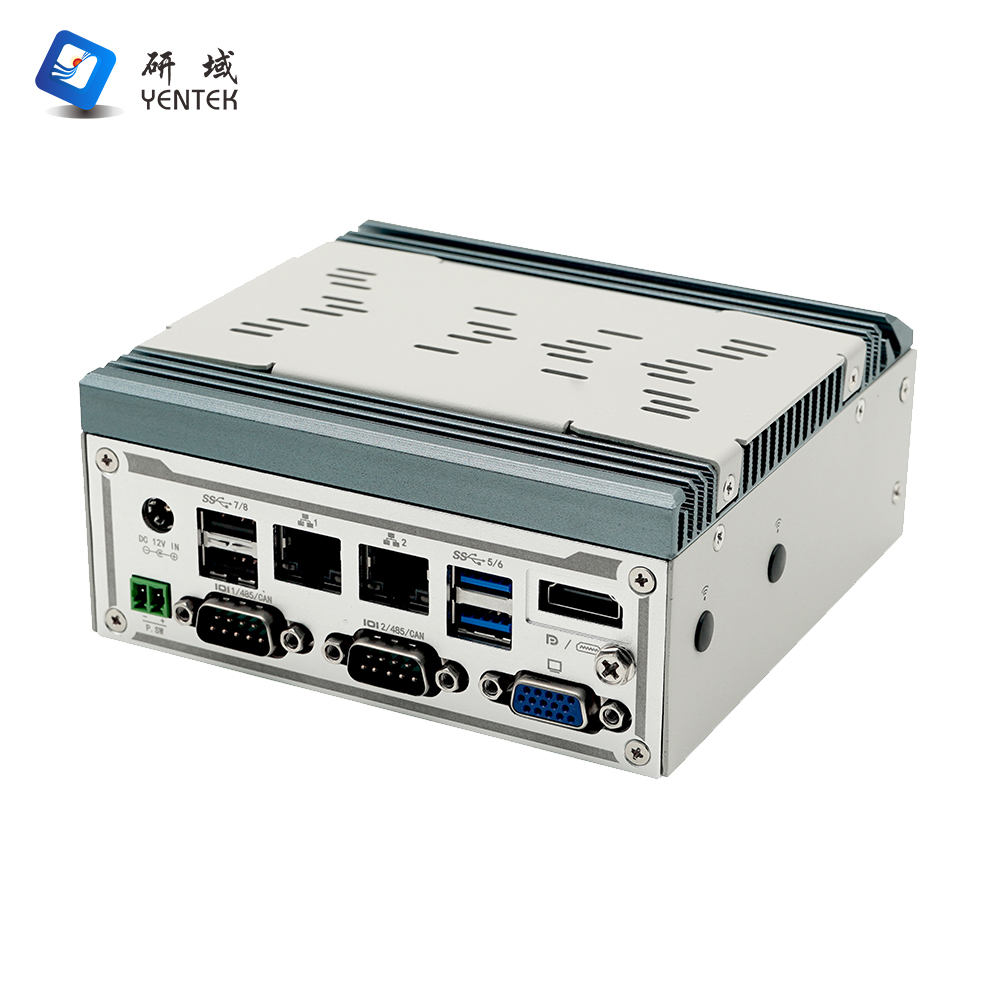

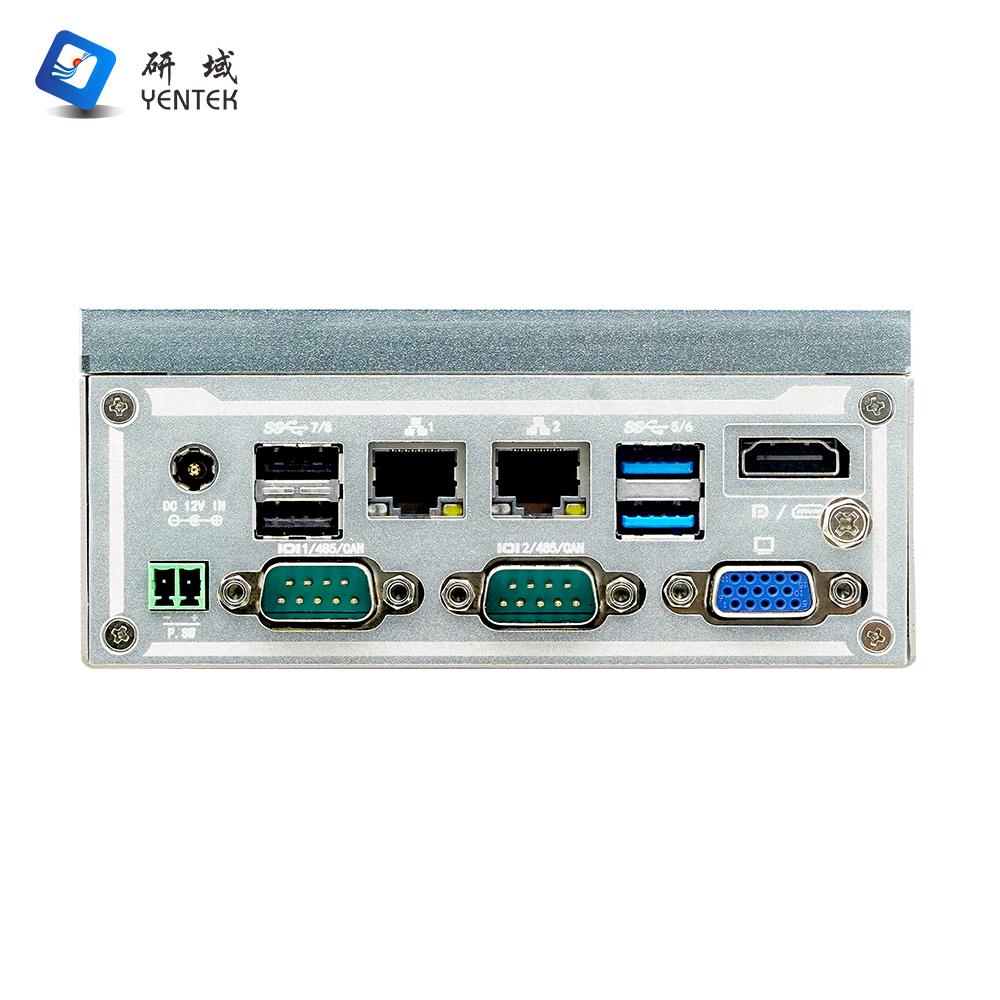

Rear panel interface
|
Display interface |
1*VGA, 1*HDMI |
|
LAN |
2*RJ45 GbE LAN |
|
|
COM |
2*RS232/485 DB9 serial port, supporting CAN (CAN module required) |
|
|
USB |
2 x USB3.0, 2 x USB2.0 |
|
|
Phoenix terminal |
1*2P(1* power signal, can be remote control) |
|
|
Power source |
1*DC 12V(5.5*2.5) |
|
|
store |
M.2 |
1*M.2/SSD, supports Key-M, 2280, SATA standard SSD |
|
extend
|
MINICPIE |
1*MINIPCIE, support WIFI/4G module |
|
Wireless network card |
1*M.2/5G, supporting Key-B, 2242/52, 5G module (not supported by default, need to change the material) |
|
|
Power demand
|
Power supply type |
External power adapter |
|
Voltage input |
DC 12V |
|
|
Power output |
AC TO DC more than 36W |
|
|
environment |
Operating temperature |
-10℃ to 50℃ |
|
Storage temperature |
-20℃ to 70℃ |
|
|
Relative humidity |
5%-95% relative humidity, no condensation |
|
|
Working vibration |
0.5g rms/5-500HZ/random/operating |
|
