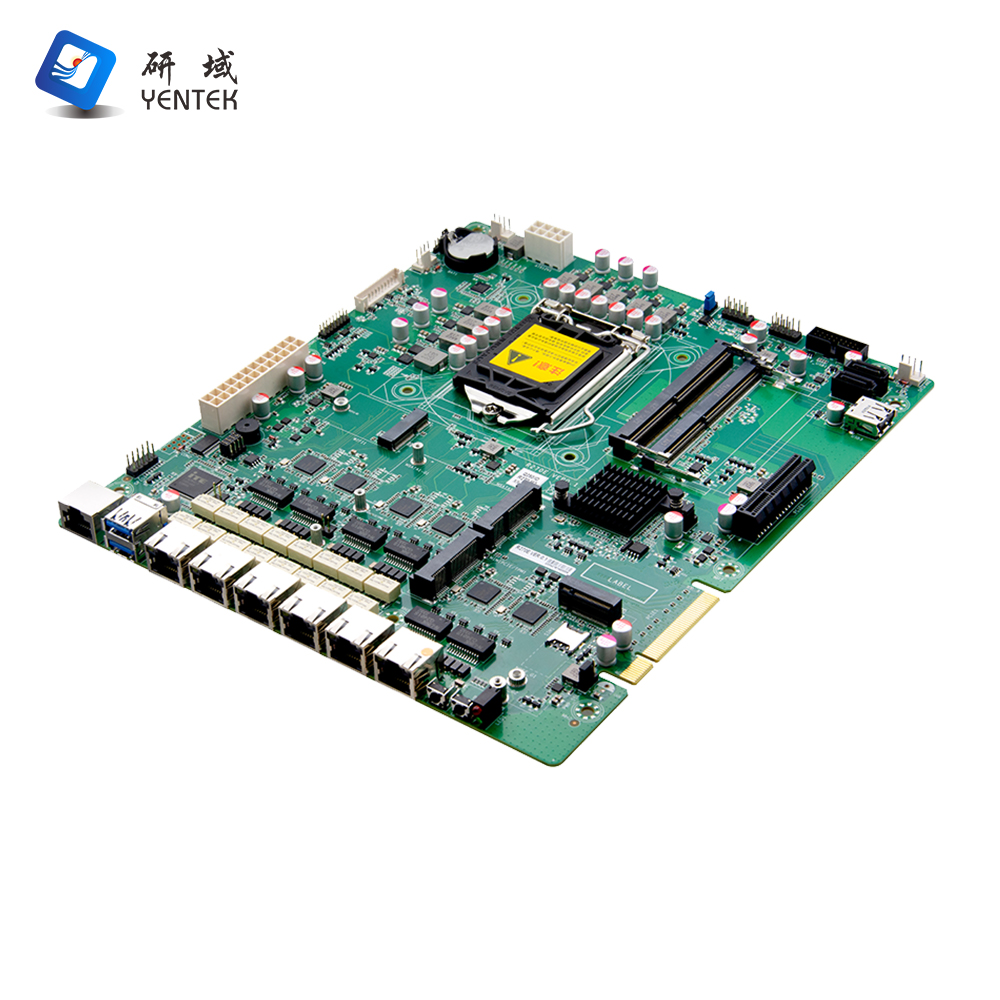

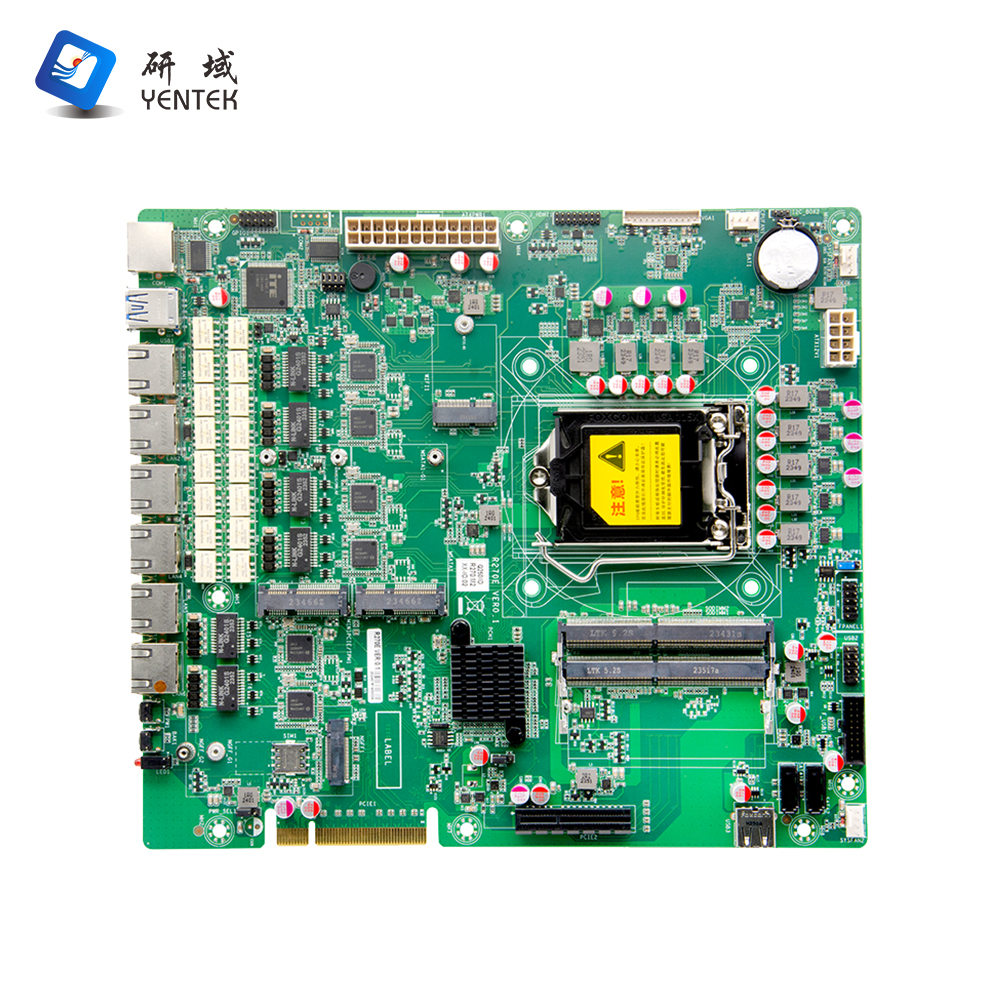

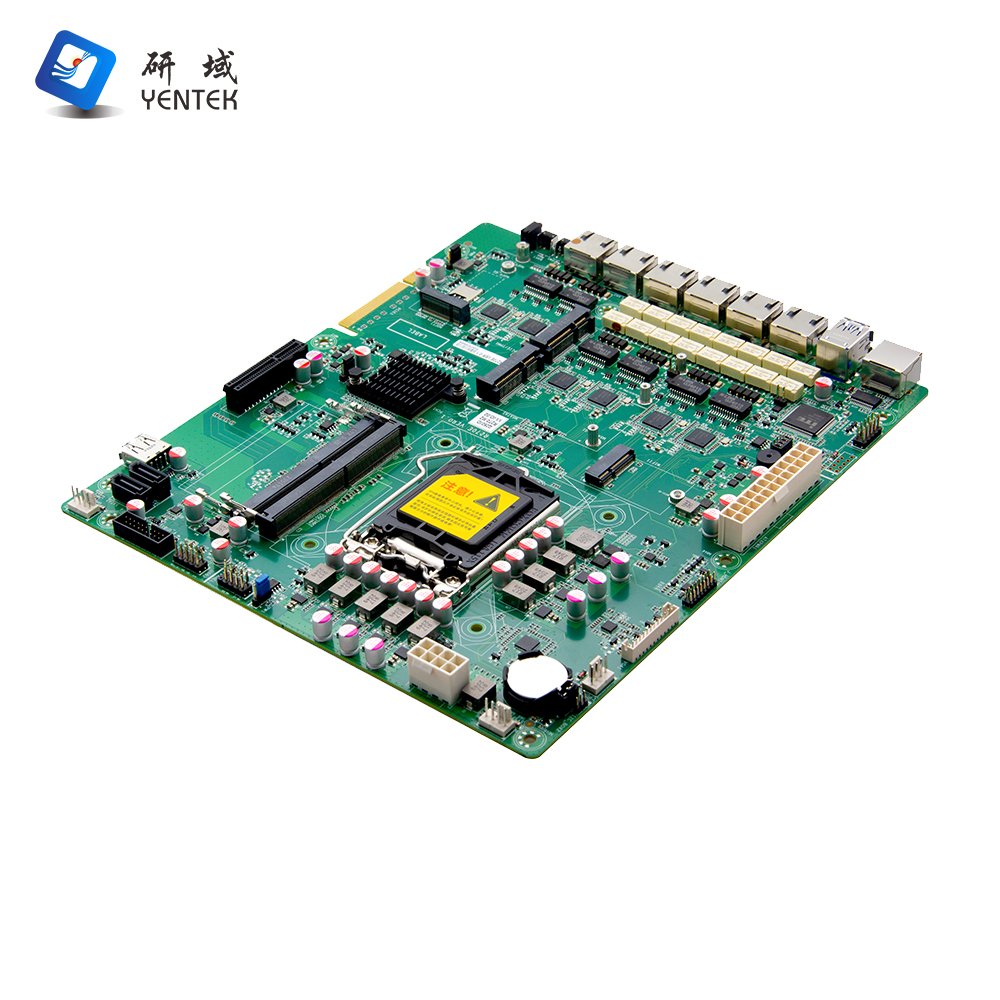

Product model

R270E VER:0.1

processor

Support the Intel ® LGA1151 6 th / 7 th / 8 th / 9th Celeron/Pentium/Corei3 / i5 / i7 / i9 series processor

chipset

Intel®Q250 high-speed chipset

Internal memory

2* SODIMM slots, supporting 2133 MHZ DDR4 memory and a maximum of 64GB

display

Integrated Intel®HD Graphics core graphics card

1* HDMI port,1 x VGA port

network

The 6 x Intel I210AT Gigabit NIC supports wake up, PXE, and two groups of BYPASS functions

deposit

2* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps

Tone frequency

N/A

Expansion slot

1* Mini-PCIE slot, support WIFI/TPM-4COM module,

1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module

1 x PCIE X8 gold finger

1 x PCIE X4 slot

1* M.2 slot, supporting the M.2 Key E 2230 WIFI module

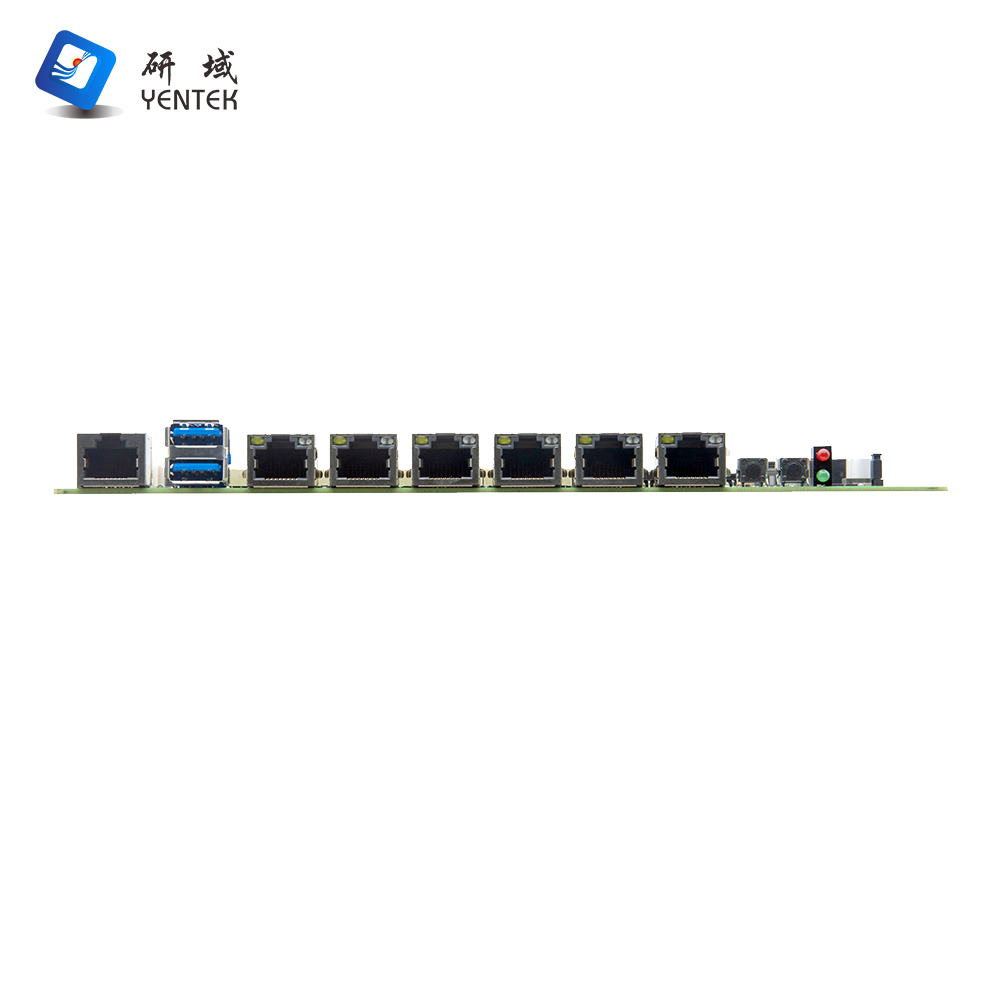

I/O ports on the backplane

1* RJ45 serial port

2* USB3.0 port

6* RJ45 Gigabit network interface

1* power switch, 1* one button restore

1* double-layer LED light, (red under green, upper hard disk light, lower power light)

Built-in I/O interface

1 x JVGA1 Interface 1 x 12pin

1* JHDMI port 2*8pin

2*USB2.0 interface 2*5pin

2* USB3.0 interface 2*10pin

1* Single-layer USB2.0 interface

1* RS232 serial interface 2*5pin

1* GPIO pin arrangement (four in four out)

1* Front panel switch button and indicator port 2*5Pin

1* 24pin ATX power interface

1* 2*4pin ATX power interface

1* SIM card seat

Fan interface

1*4pin CPU intelligent fan interface, 2* 4pin system fan interface

GPIO

Supports four input/output GPIO functions

BIOS

128Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

ATX power supply

Operating system

Windows 10 ,/Linux

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

dimension

240mm * 213mm
