Product model

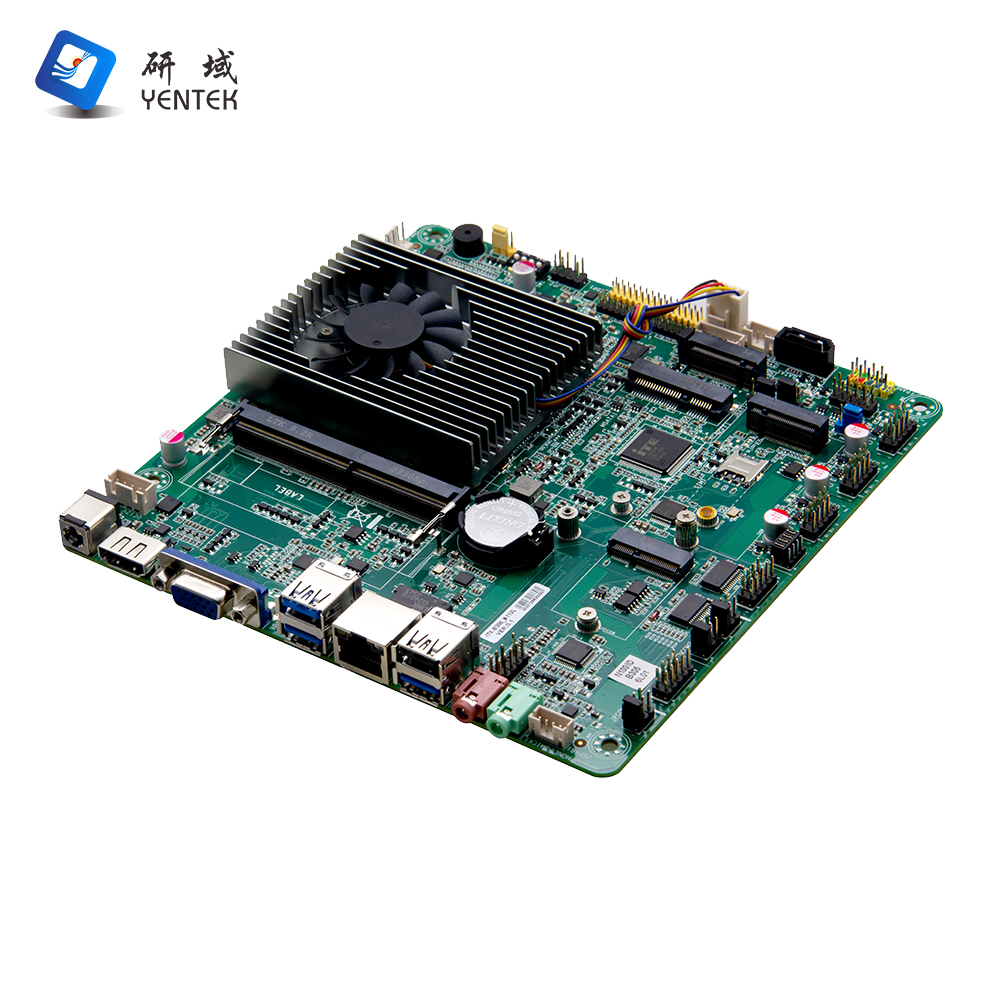

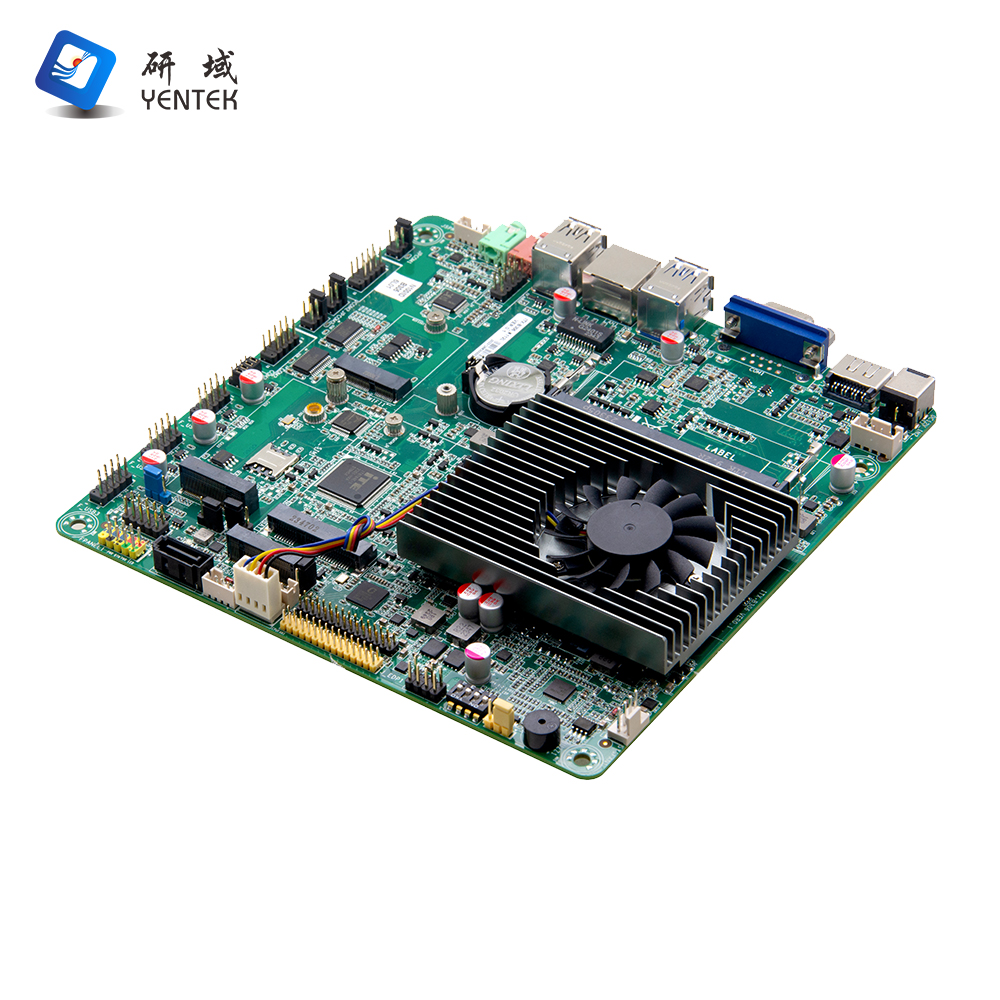

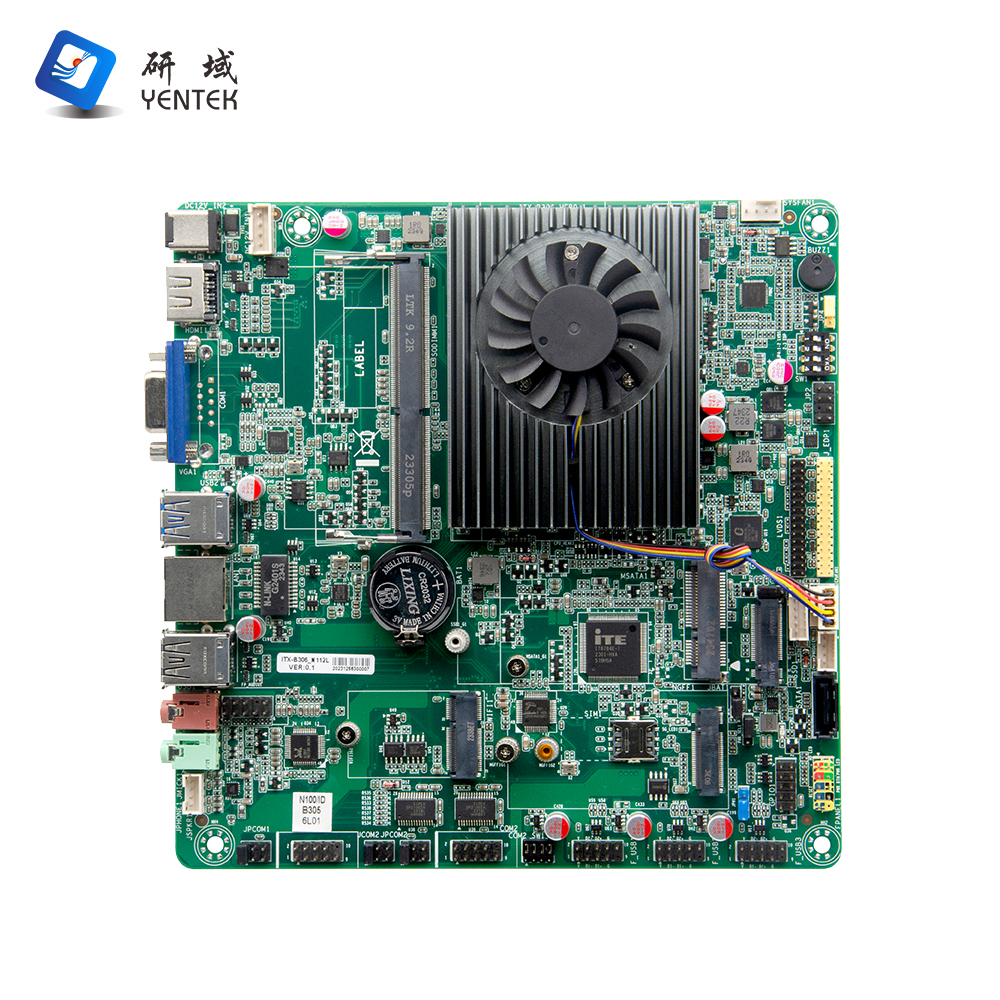

ITX-B306_N112L VER:0.1(N100)

processor

Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad-thread processor, TDP 6W, Compatible with the full range of Intel® Alder Lake-N cpus, customers can flexibly choose

chipset

SOC

Internal memory

1* SODIMM slot for a single channel of 3200MHz DDR4 memory (up to 16GB)

display

Integrated Intel® UHD Graphics core graphics card, support DirectX 12.1, OpenGL4.6

1* VGA,1*HDMI1.4 interface,1* LVDS interface,1* EDP interface

network

Note:LVDS and EDP interfaces are either via jump

Storage

1* RTL8111H Gigabit NIC, supports network wake up and PXE functions

1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps

1* MSATA slot, support SSD SSD,SSD transfer speed up to 6Gbps

1 x M.2 slot, supporting the M.2 Key M 2280 PCIE X1 SSD

Tone frequency

Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier

The power amplifier is recommended to use a 4Ω3W speaker

Expansion slot

1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module

1* M.2 slot, supporting the M.2 Key E 2230 WIFI module

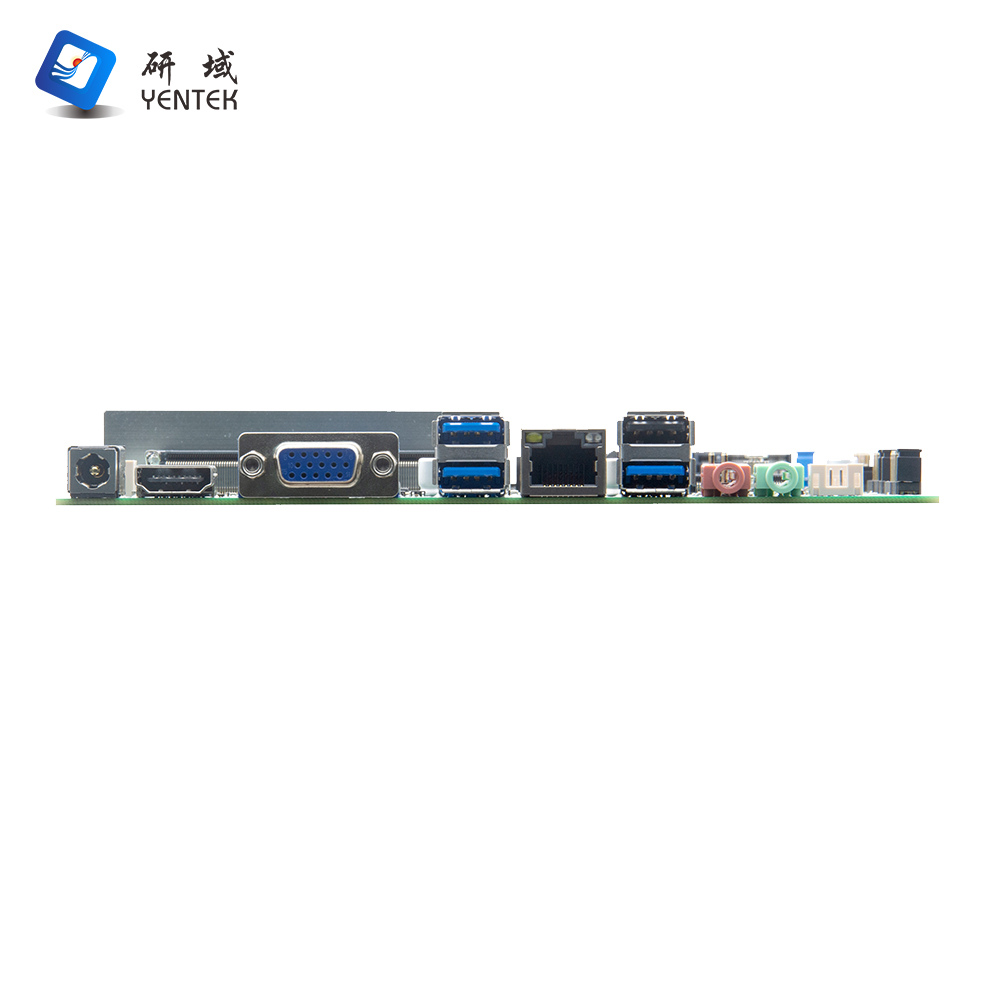

I/O ports on the backplane

1* DC 12V power input port

The 1* VGA display port is optional from the DB9 serial port

1* HDMI2.0 display interface

3* USB3.0 ports,1* USB2.0 ports

1* RJ45 Gigabit network port

1* Line-out (green), 1*MICK(red)

Built-in I/O interface

1* DC power interface, 1*4pin support 12V power input and output

1* JVGA port 1*12pin, same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT,

1* EDP interface (yellow), 2*15pin, with LVDS for one of two via jump

1* screen backlight power supply interface 1*6pin

6* USB2.0 interface, 2*5pin

2* RS232 serial interface,COM1/2 support 9pin live function,COM2 support RS485/422 function,COM1 and external DB9 for one of two options

1* hard drive power port 1*4pin

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* LPT interface 2*13pin

1* SIM card slot

1* Front panel function button and indicator port 2*5pin

Fan interface

1*4pin CPU intelligent fan interface,1*4pin system fan interface

GPIO

Supports four input/output GPIO

BIOS

256Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Windows 11/Linux

Power supply type

Adopts DC 12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm * 170mm
