R570H-E1 V1.0
Product characteristics ● 1*HDMI, 1*VGA ● 6*RS232 DB9 serial ports, 2 of which support RS232/485/422 ● 8*USB, 1*PS/2 ● Supports 1*PCIE X16 expansion ● 1U standard chassis, aluminum alloy panel, high quality galvanized steel plate ● Built-in small 1U FLex power supply
|
Model number |
R570H-E1 V1.0 |
|
|
chassis
|
Material/Structure |
1U standard chassis, aluminum alloy panel, high quality galvanized steel plate |
|
colour |
Argentous black |
|
|
Dimensions (length, width and height) |
430 MM * 320 MM * 44.5 MM |
|
|
Weight (bare weight) |
4.5 KG |
|
|
Install |
1U standard rack |
|
|

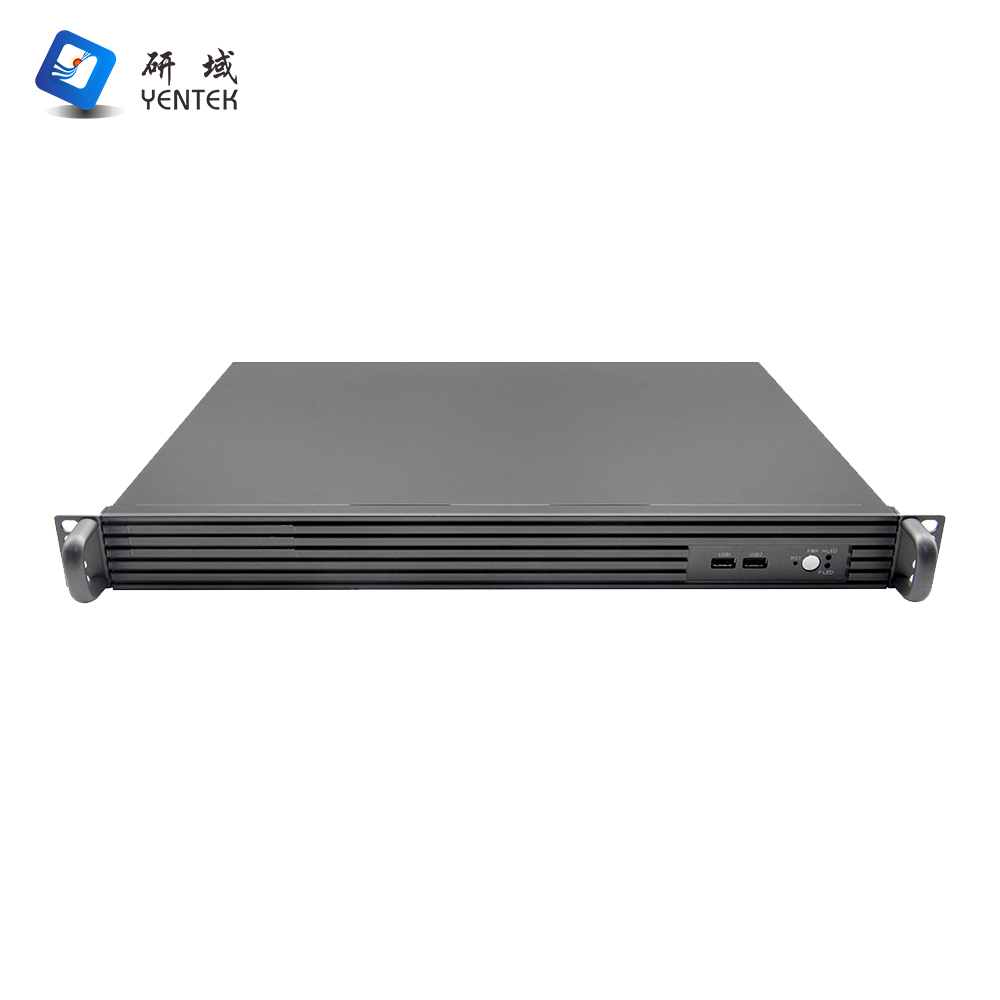

Front panel interface
|
POWER |
1* Power switch, 1* reset switch |
|
LED |
1* hard disk indicator, 1* power indicator |
|
|
USB |
2 * USB2.0 |
|
|

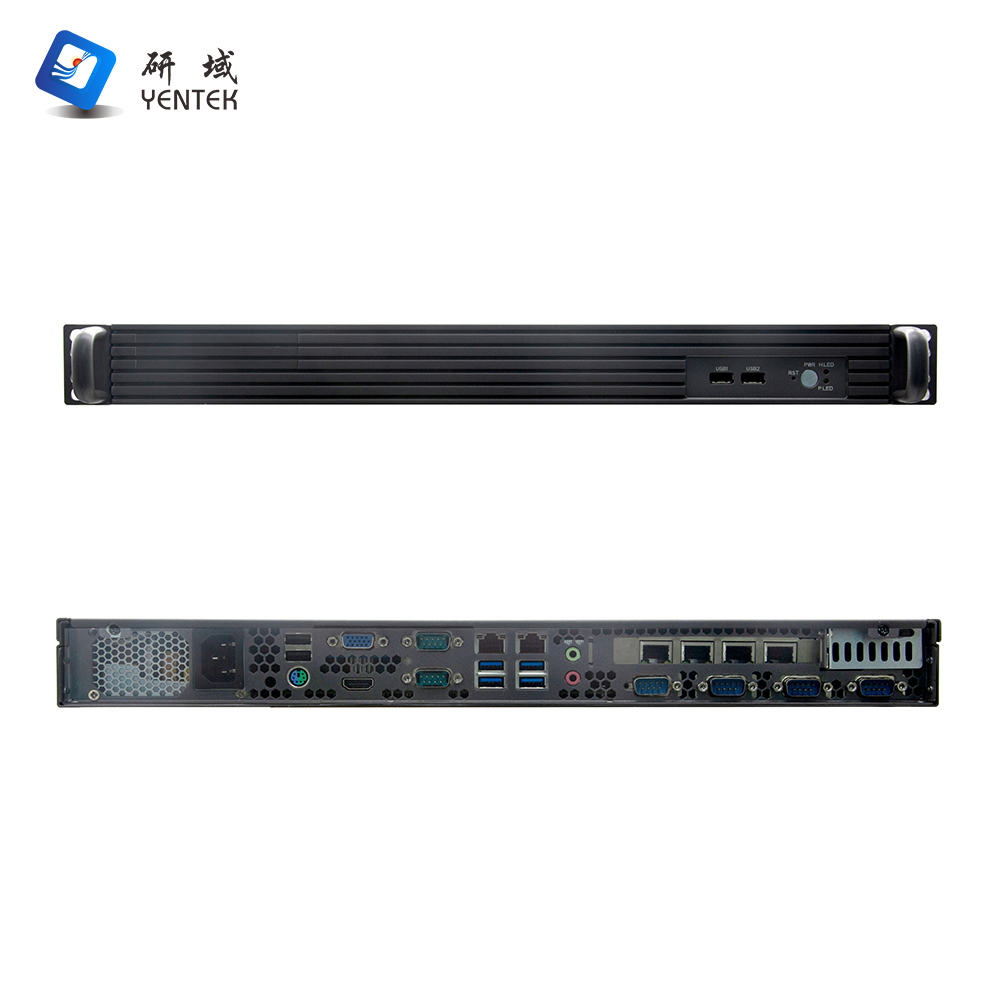

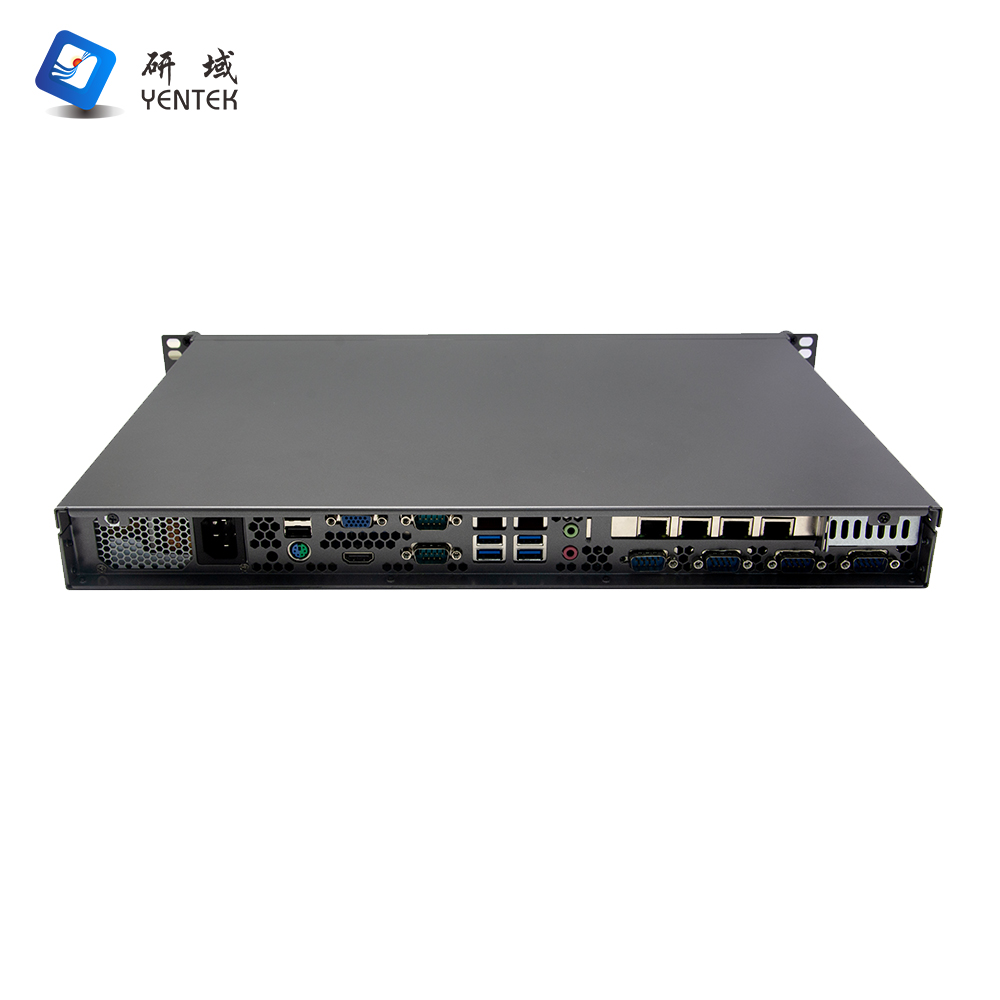

Rear panel interface
|
Display interface |
1*VGA, 1*HDMI |
|
COM |
2*RS232/485/422 DB9 serial port, can be expanded 4*RS232 DB9 serial port (optional) |
|
|
LAN |
2*RJ45 |
|
|
USB |
6*USB(USB3.0/2.0 quantity based on motherboard) |
|
|
PS/2 |
1*PS/2 |
|
|
store |
SATA |
Supports 1 x 3.5-inch hard disks or 1 x 2.5-inch hard disks |
|
extend |
PCIE |
1*PCIE X16 |
|
Power source
|
Power supply type |
Built-in small 1U FLEX power supply |
|
Voltage input |
AC 110-220V |
|
|
environment |
Operating temperature |
-10℃ to 50℃ |
|
Storage temperature |
-20℃ to 70℃ |
|
|
Relative humidity |
5%-95% relative humidity, no condensation |
|
|
Working vibration |
0.5g rms/5-500HZ/random/operating |
|
