Product model

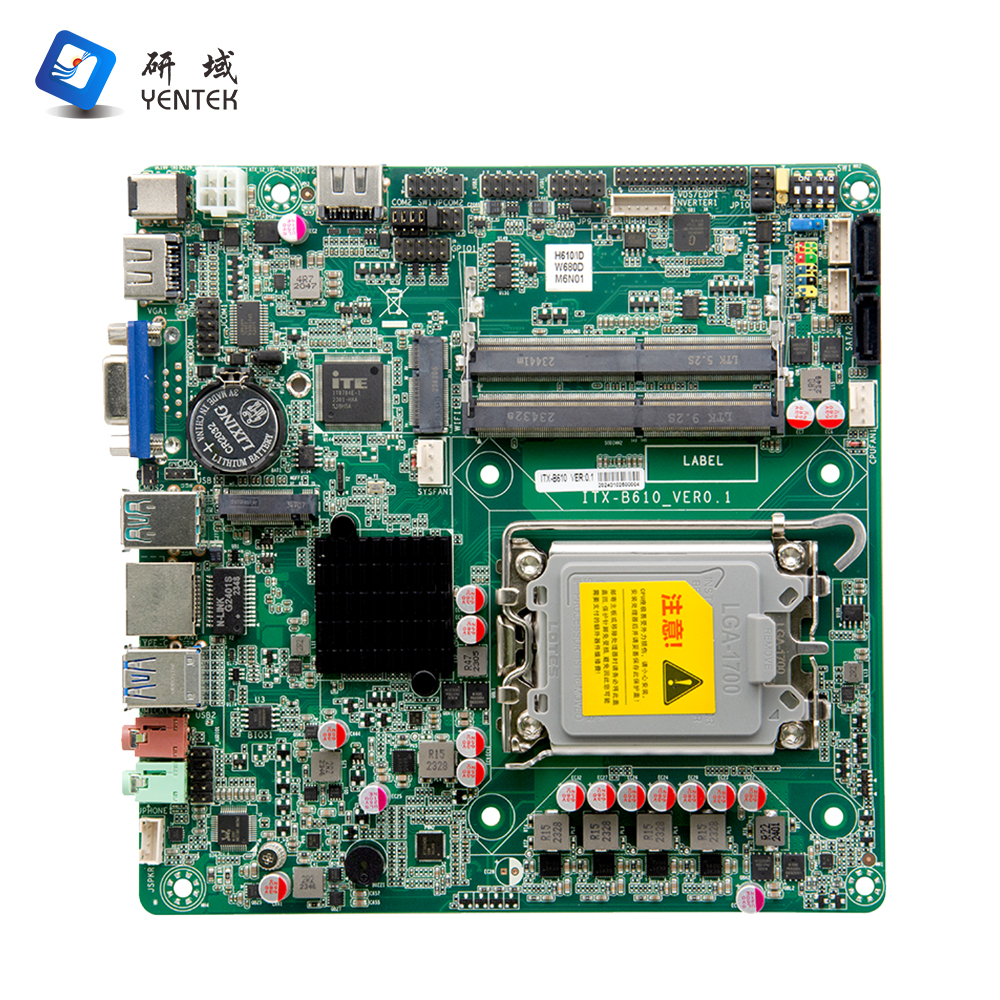

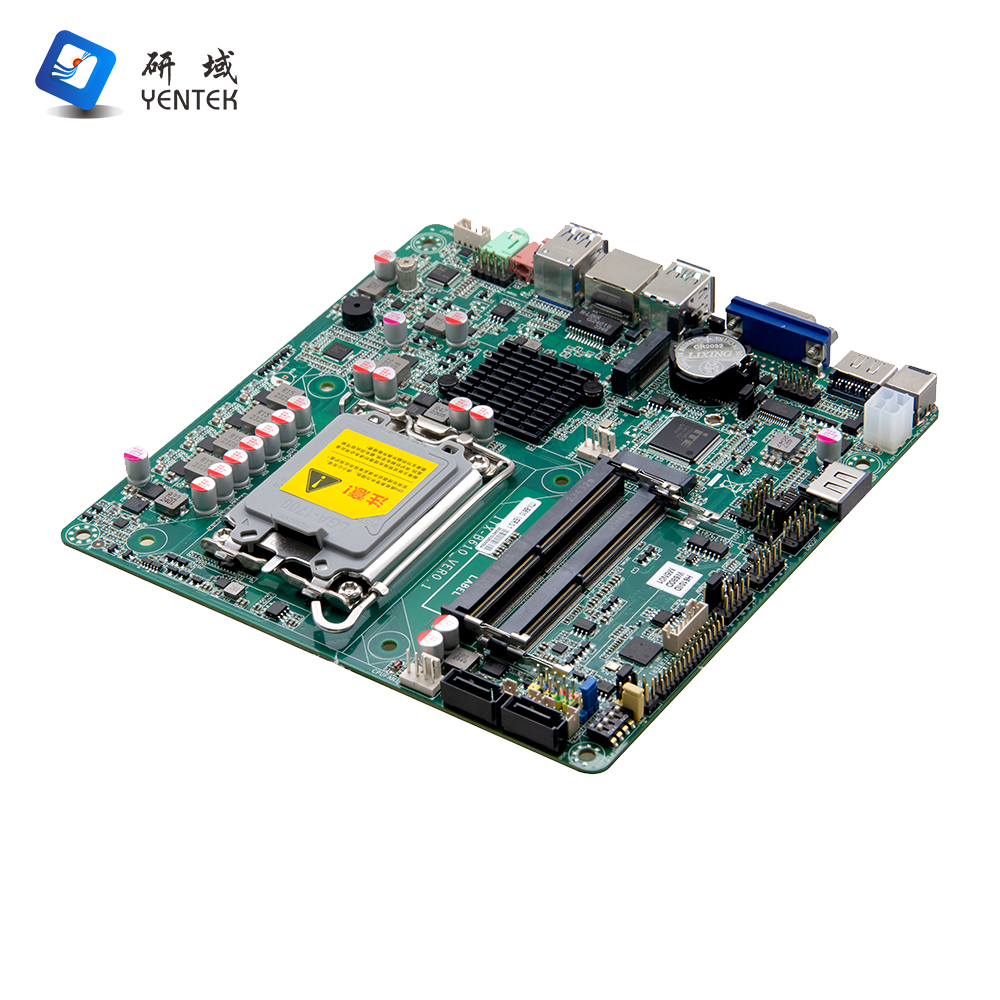

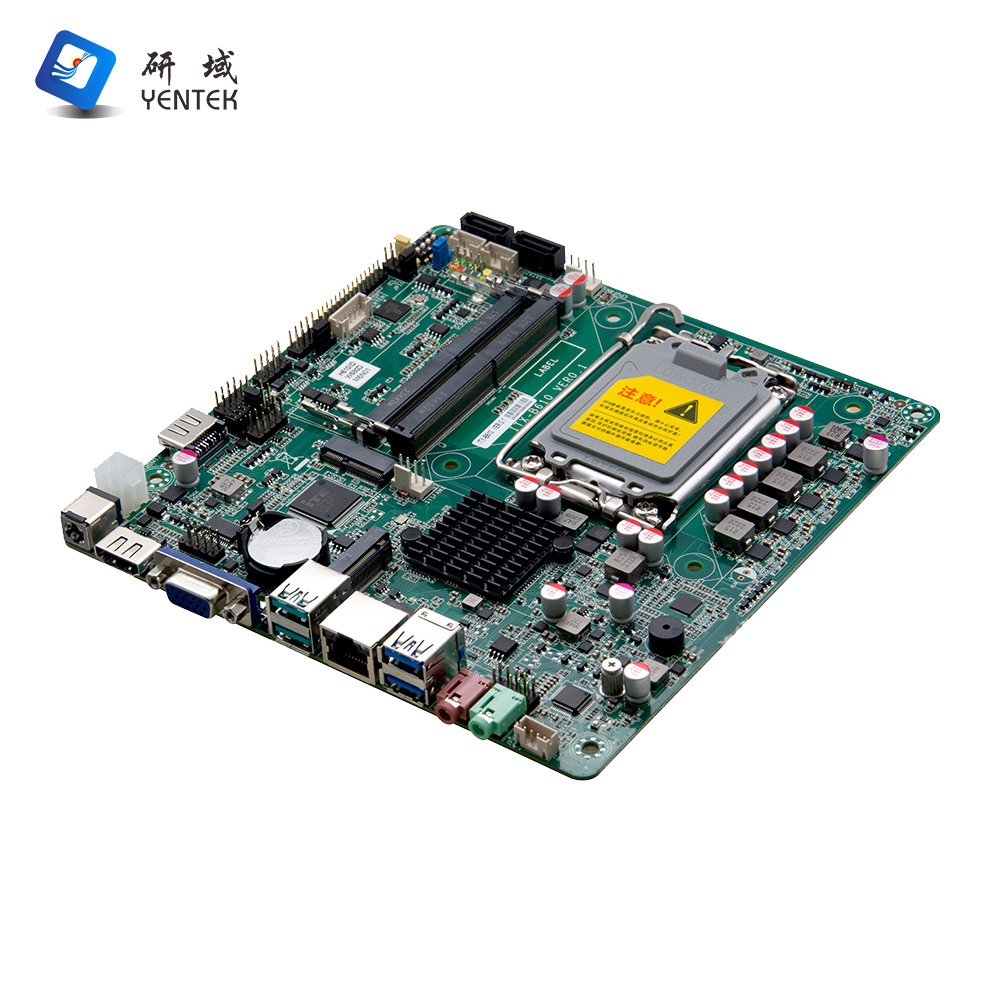

ITX-B610 VER:0.1

processor

Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

chipset

Note: cpus under 65W are supported. Rui Frequency is disabled by default

With Intel® H610 chipset,

Internal memory

2 * DDR4 SODIMM slots, supporting a dual-channel memory of up to 3200MHz and up to 128GB

display

Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display

1 * VGA port, the maximum resolution is 1920X1200@60Hz

1* HDMI1.4 interface, support the highest resolution of 4096x2304@24Hz

1* HDMI 1.4 interface, support the highest resolution of 4096x2304@24Hz

1* LVDS port, supporting dual-channel 24BIT

1* EDP interface, shared pin with LVDS interface

network

1* RTL8111H Gigabit NIC chip, supports network wake up /PXE function

deposit

2* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* M.2 slot, supporting the M.2 Key M 2260/2280 NVME PCIE3.0X4 /SATA adaptive SSD

Tone frequency

Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support

Expansion slot

1* M.2, which supports the M.2 Key E 2230 WIFI/BT module

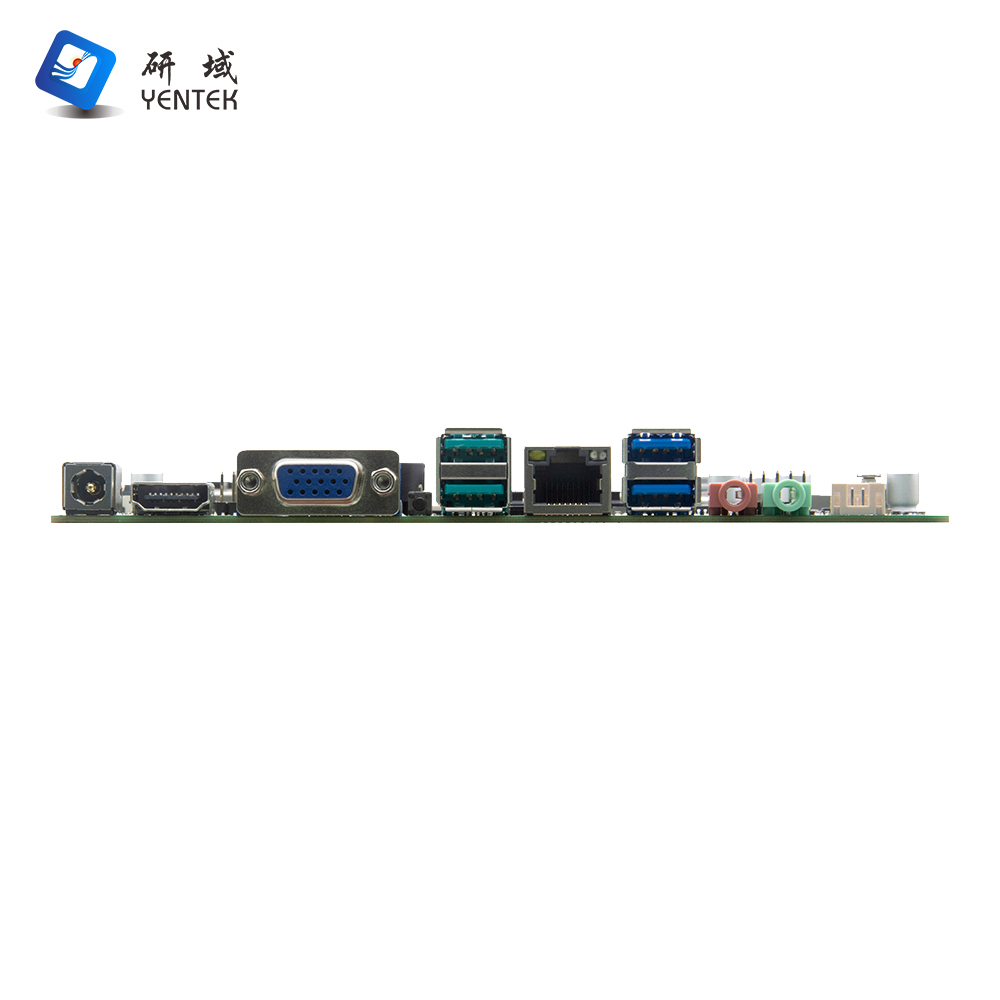

I/O ports on the backplane

1*DC power interface, support DC19V power supply

1* HDMI1.4 port

1 x VGA port

2* USB3.0 interface (5Gbps) (listed with Type-C)

1* RJ45 Gigabit network port

2* USB3.2 interface (10Gbps) Green,

1* MICK (red), 1*Line-out(green)

1* HDMI1.4 port (side)

Built-in I/O interface

2* RS232 serial port, of which COM1 and DB9 two choice,COM2 support RS485/422,

4* USB2.0 interface 2*5pin

1* LVDS port, supporting dual-channel 24BIT

1* EDP interface, shared pin with LVDS

2* hard disk power port 1*4pin

1* screen backlight power supply interface 1*6pin

1* 4pin DC power interface, support 19V power input and output

1* front audio interface 2*5pin

1* Power amplifier interface 1*4pin (NS4251)

1* Front panel function button and indicator port 2*5pin

Fan interface

1*4pin CPU fan interface; 1*4pin system fan port

BIOS

128Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Windows 11/Linux

Power supply type

DC19V power supply

Operating temperature

0℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm
