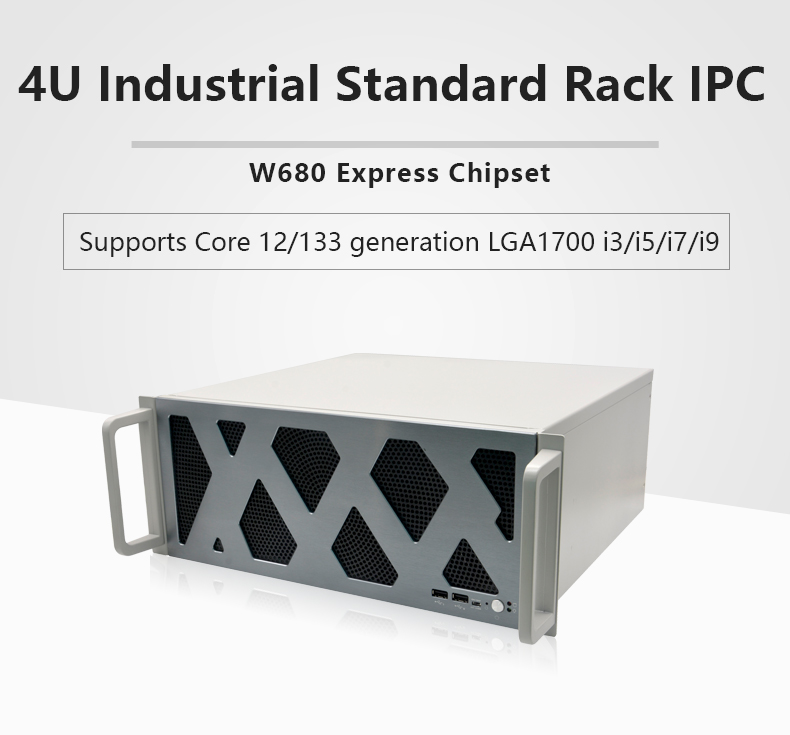

Model number

IPC-505MS V1.0(W680MS)

chassis

Material/Structure

Galvanized steel material

colour

Iron gray

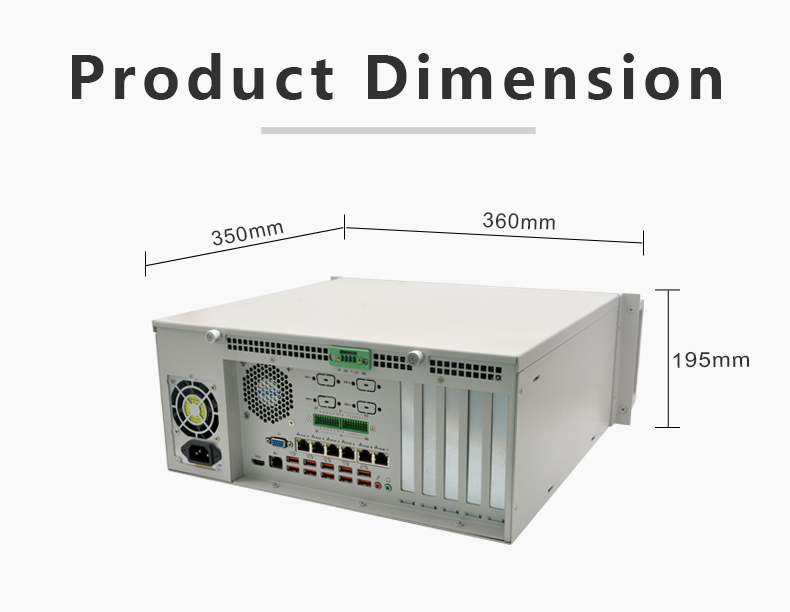

Dimensions (length, width and height)

360mm*350mm*152mm

Weight (bare weight)

7.60 KG

Install

Desktop /4U rack type

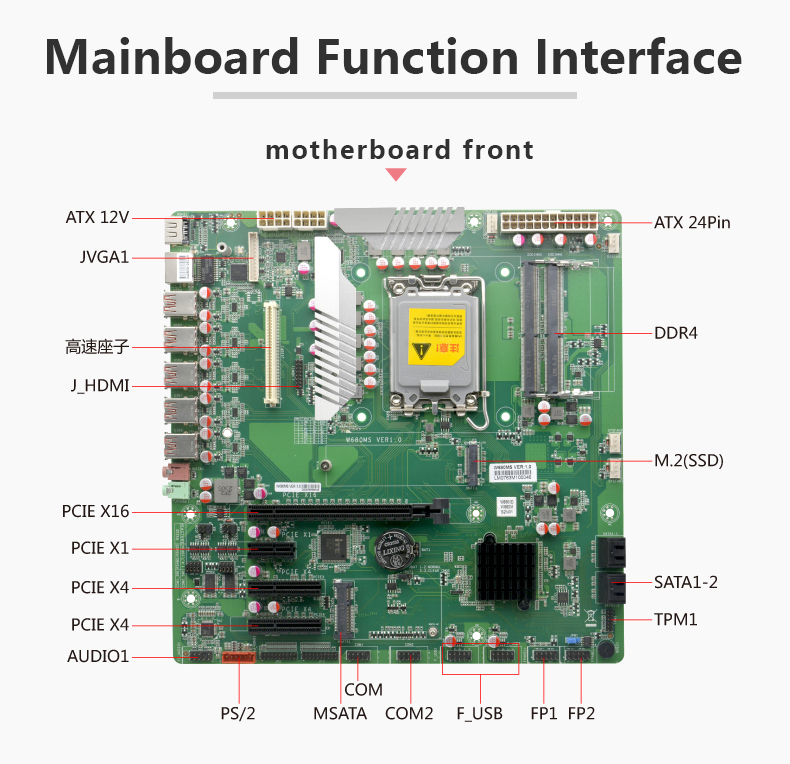

Main board

CPU

Supports Intel LGA1700 12th/13th Intel Celeron/Pentium/Core i3/i5/i7/i9 processors

System chip

Intel W680 high-speed chipset

reveal

Integrated Intel® HD Graphics Graphics control

Internal memory

2 * SODDR4 DIMM slots, supporting a dual-channel maximum of 3200MHz, 128GB, and ECC

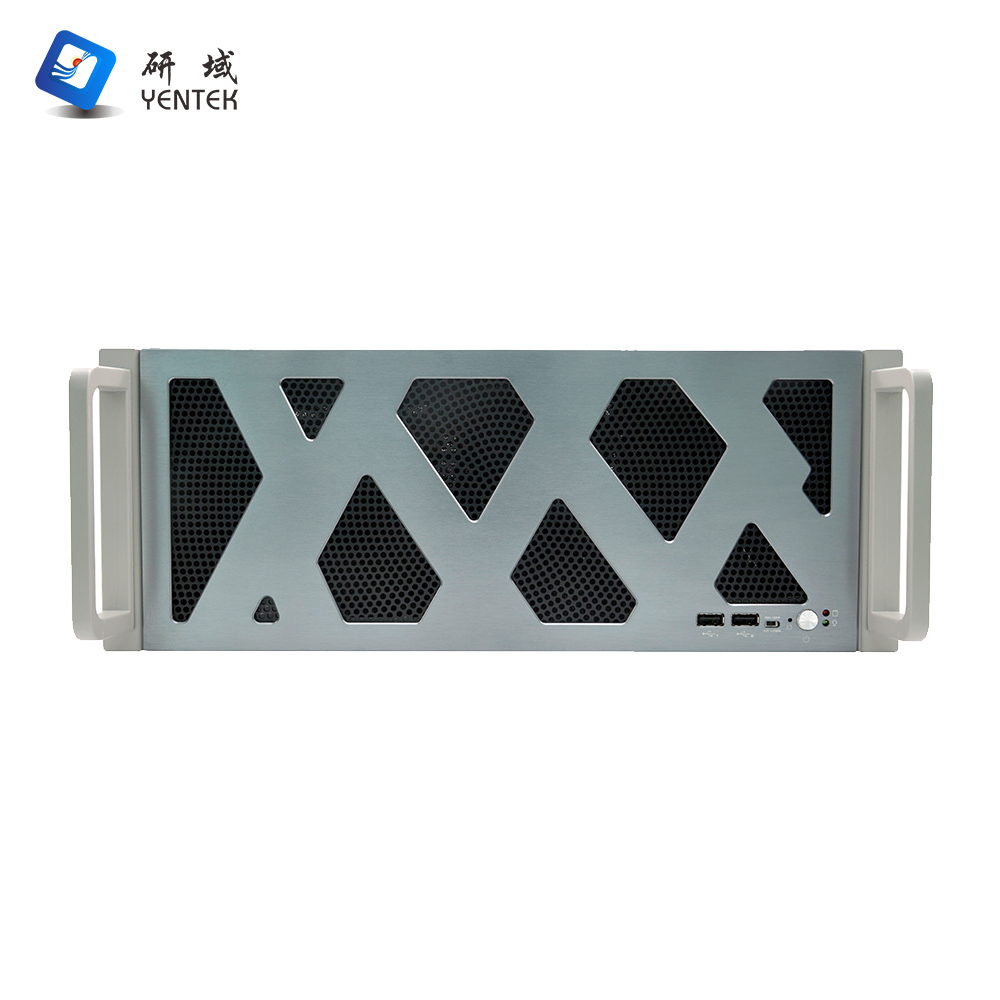

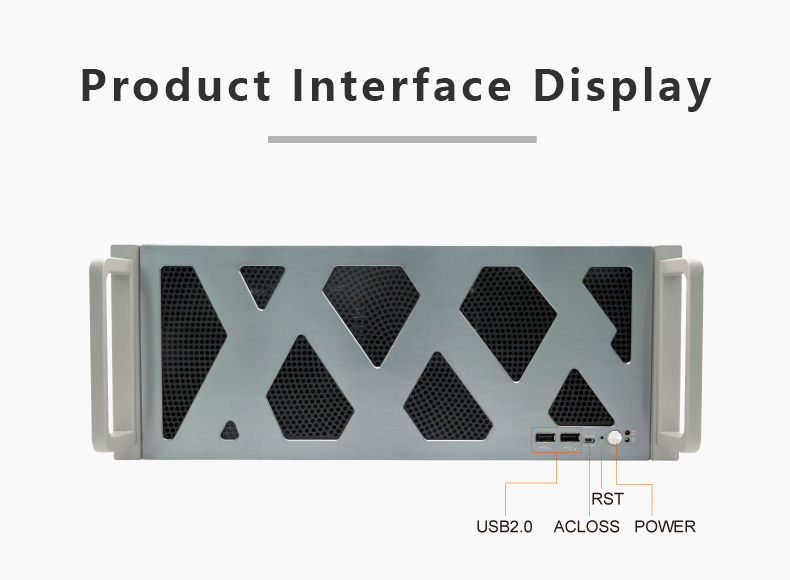

Front panel interface

POWER

1* Power button, 1* Reset button, 1*ACLOSS(Power on DIP switch)

LED

1* Power indicator, 1* hard disk indicator

USB

2 * USB2.0

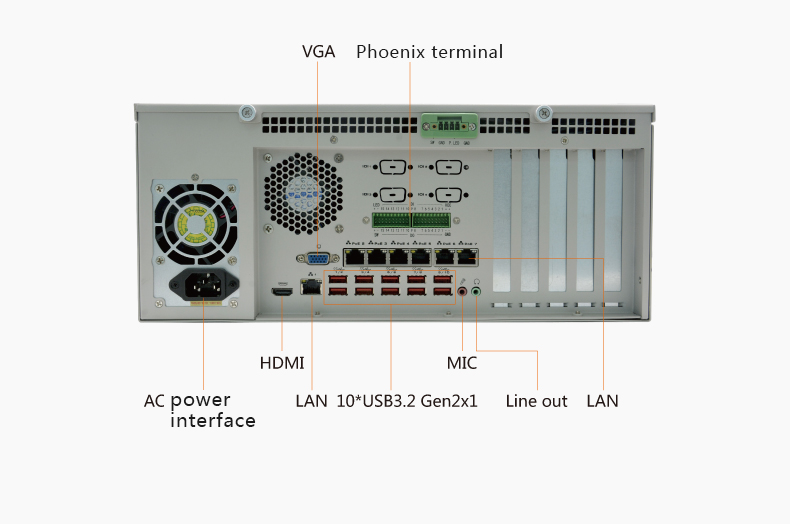

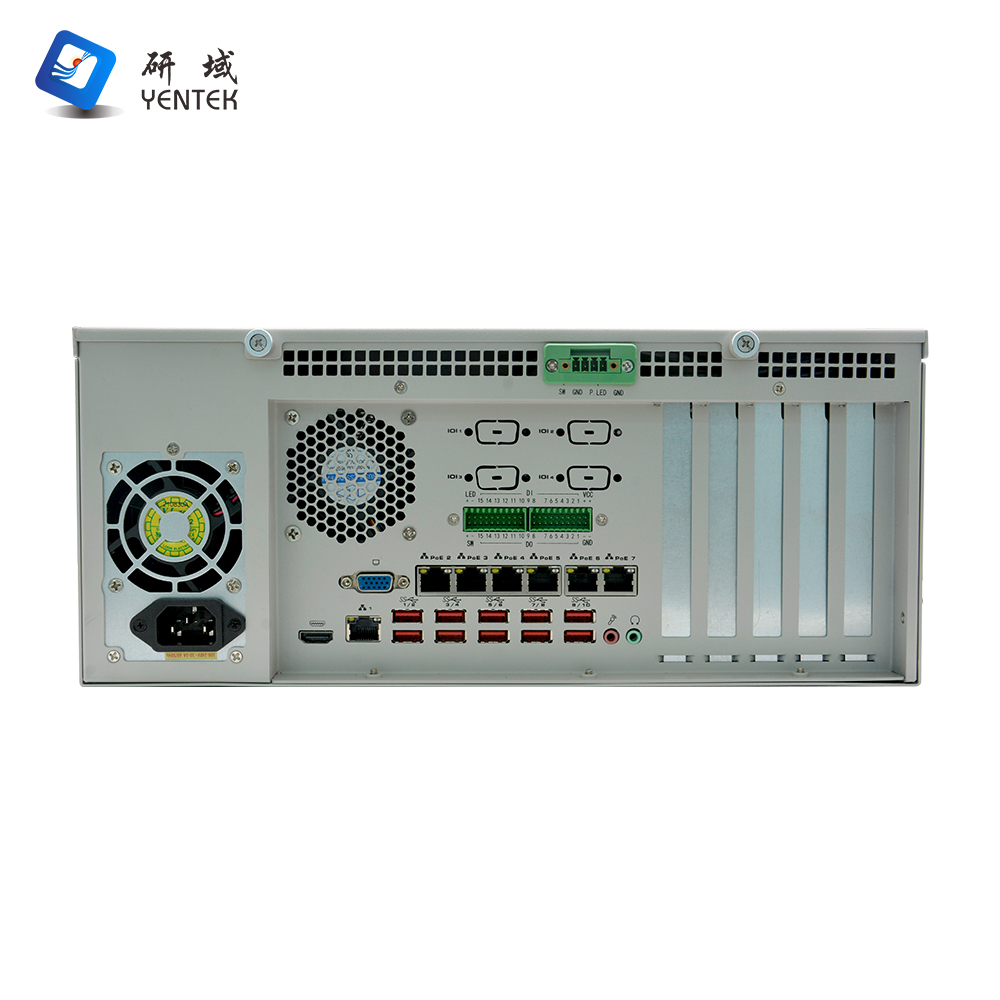

Rear panel interface

Display interface

1*VGA, 1*HD OUTPUT1.4

LAN

7*Intel I210 Gigabit network cards, six of which support POE

USB

10*USB3.2 Gen2x1, 10Gbps

Phoenix terminal

1*4pin Phoenix terminal (Power indicator/Power on signal)

Two groups of 2*10pin Phoenix terminals, supporting DIO 16 in and 16 out tape isolation

Audio frequency

1*Line out, 1*MIC

Power source

1*AC power input port

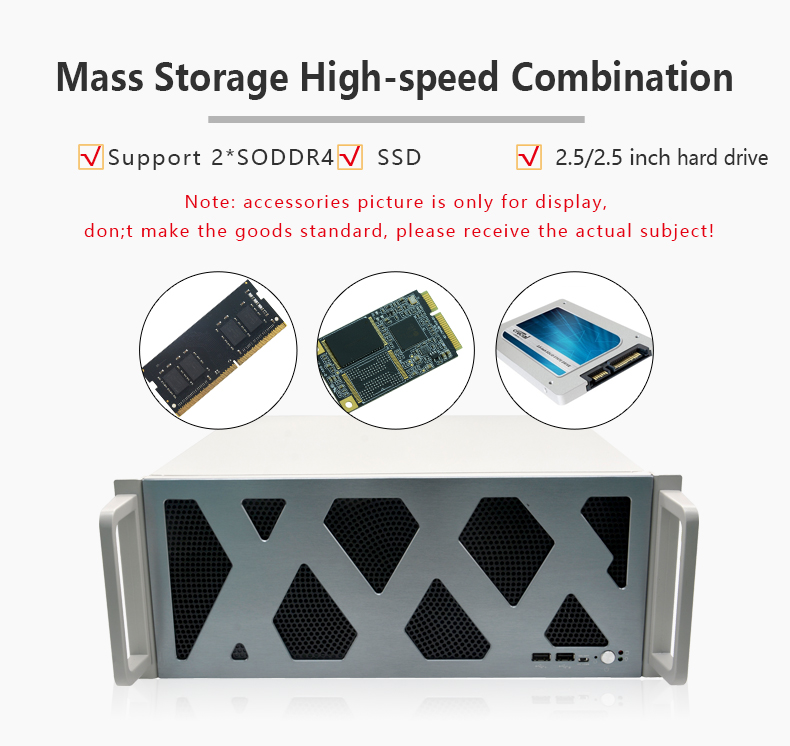

store

SATA

1 * 3.5" hard disk or 1 x 2.5" hard disk

MSATA

1*MSATA

M.2

1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD

extend

PCIE x16

1* PCIE4.0x16

PCIE x4

2* PCIE4.0x4

PCIE x1

1*PCIE4.0 x1

System support

Windows

Windows 10/11

Linux

Ubuntu

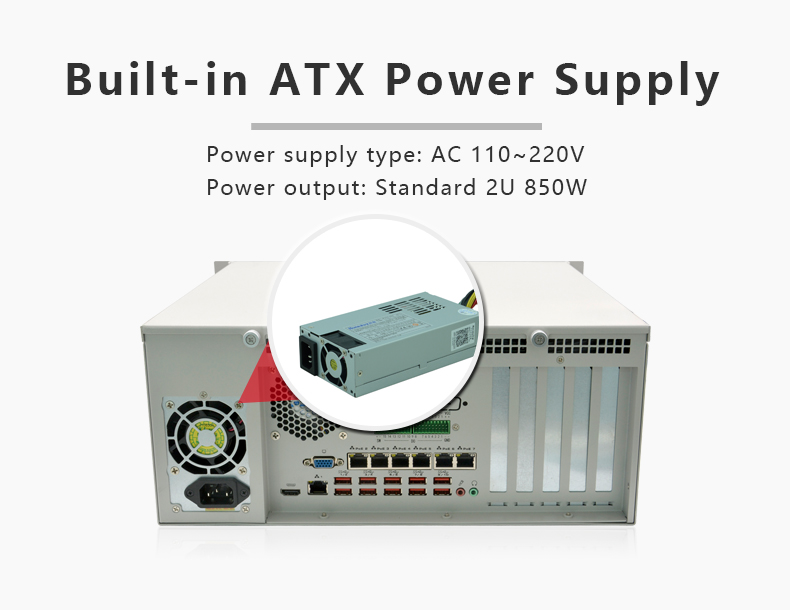

Power demand

Power supply type

AC 110~220V

Power output

2U 850W as standard

environment

Operating temperature

-10℃ to 50℃

Storage temperature

-20℃ to 70℃

Relative humidity

0.5g rms/5-500HZ/random/operating

Working vibration

5%-95% relative humidity, no condensation
