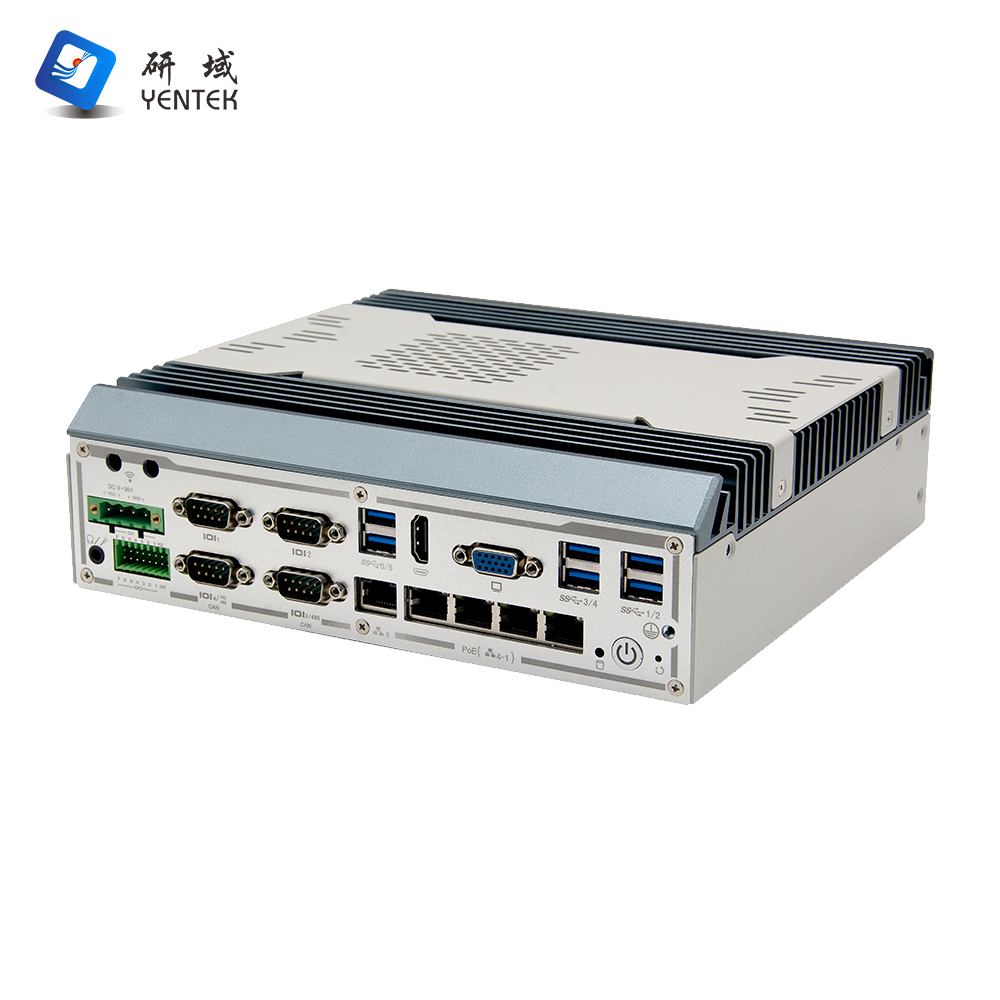

G3750F-P4 V1.0(G250)

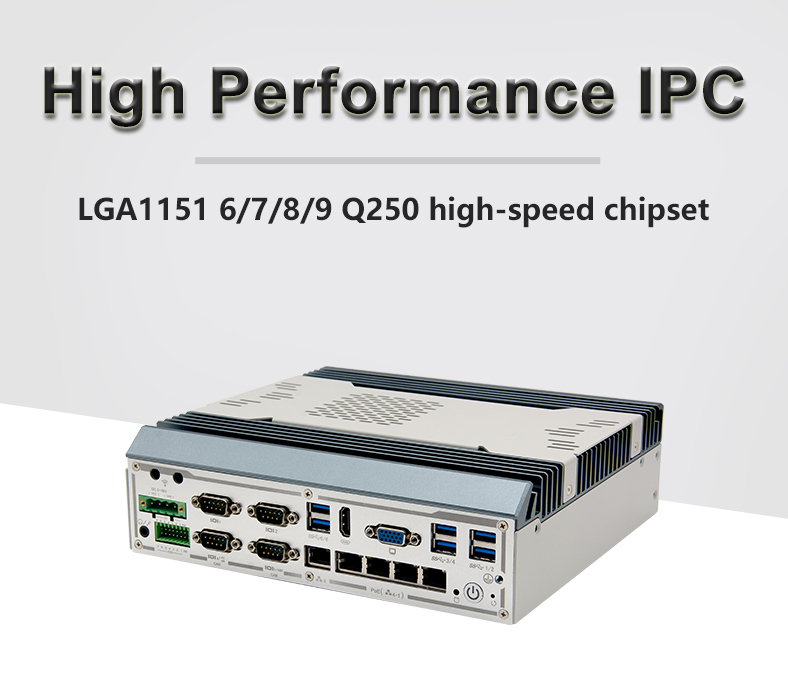

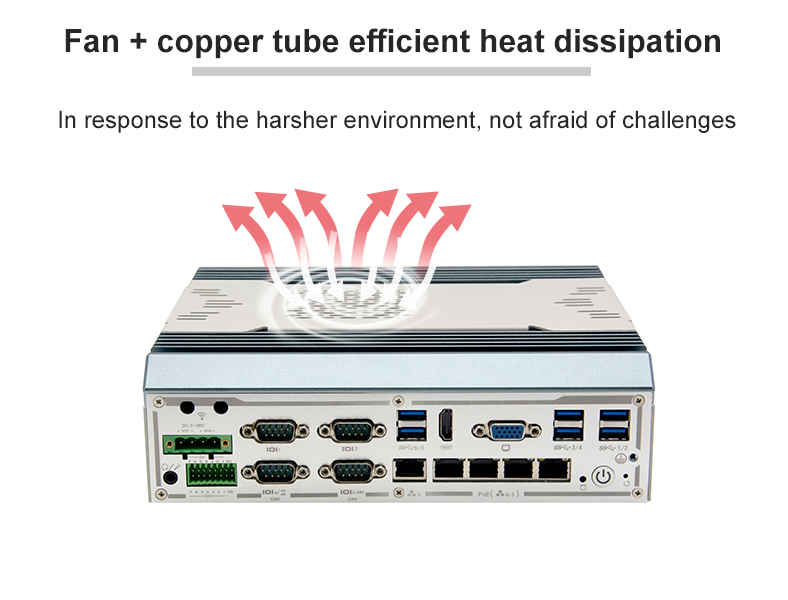

Product characteristics ● Intel LGA1151/6-9 series processors ● 2*SODIMM DDR4 memory, up to 64GB ● 1*HD OUTPUT, 1*VGA, support dual display ● 5*Intel I210AT, 4 of which support POE ● 4*RS232 DB9 serial ports, of which 2 support 485, 1 support 422, COM3~4 support CAN (need to load CAN module) ● 8*USB3.0, 2*USB2.0, 1*USB2.0 built-in ● Support DIO 7 in and 7 out tape isolation ● Support DC 9~36V wide voltage (1*4P Phoenix terminal) ● Fan heat dissipation, copper tube heat conduction
|
Model number |
G3750F-P4 V1.0(G250) |
|
|
chassis
|
Material/Structure |
Aluminum alloy + sheet metal fan heat dissipation |
|
colour |
Iron gray + sand gray |
|
|

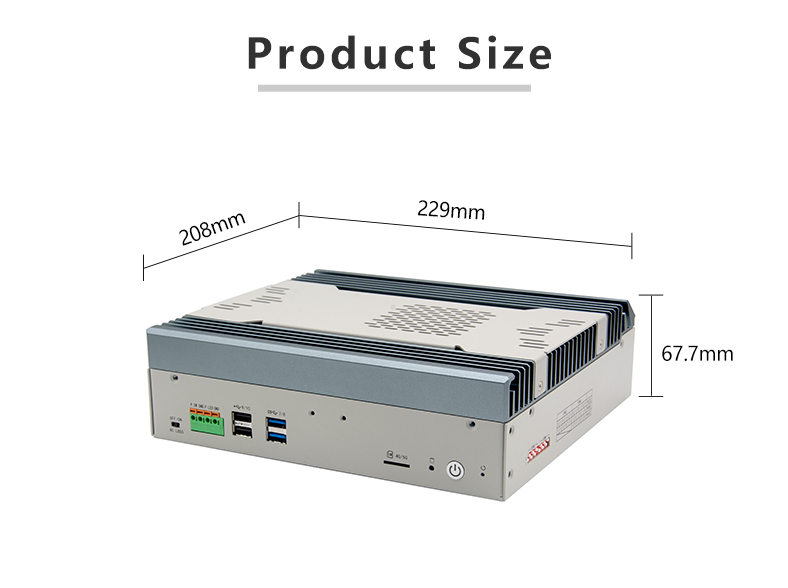

Dimensions |
229 * 208 * 67.7 MM |
|
|
Weight (bare weight) |
3.4 KG |
|
|
Install |
Desktop/embedded /DIN rail |
|
|

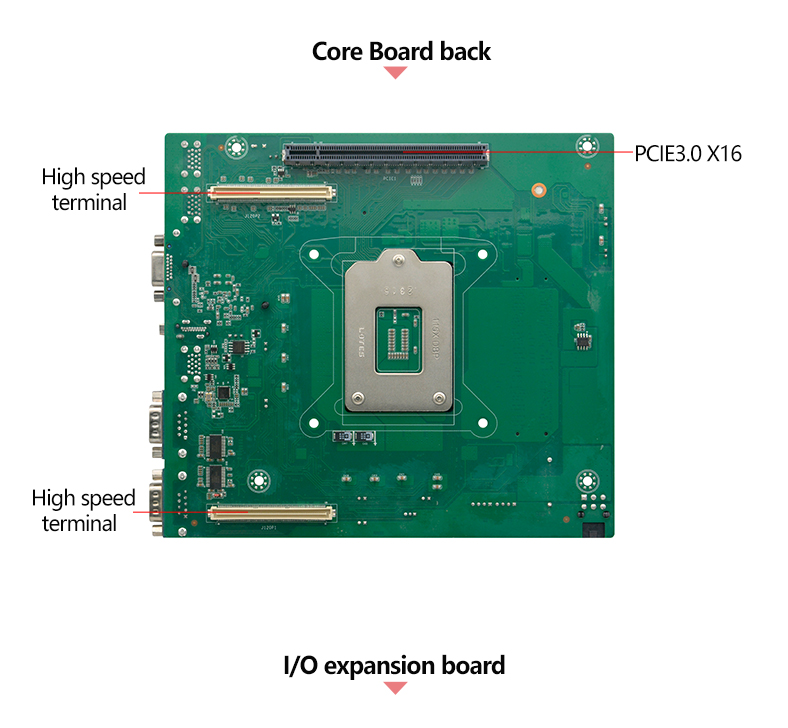

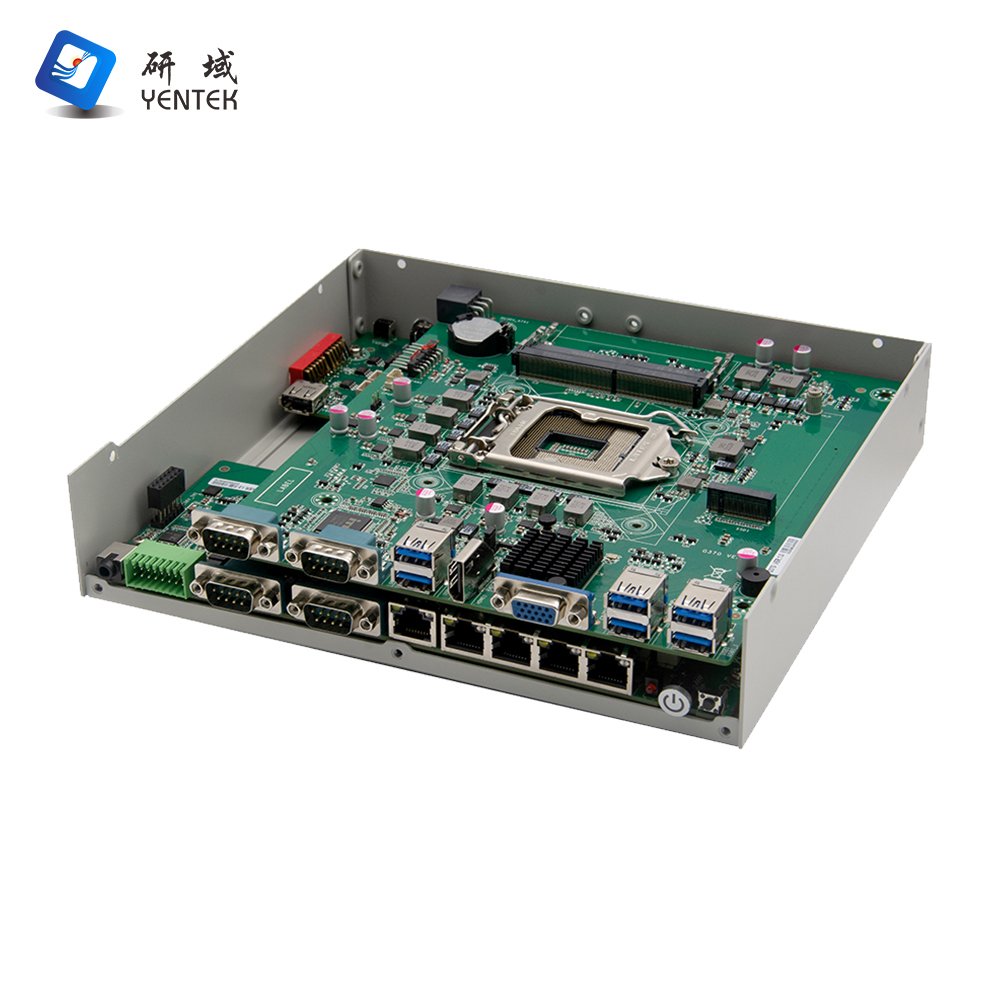

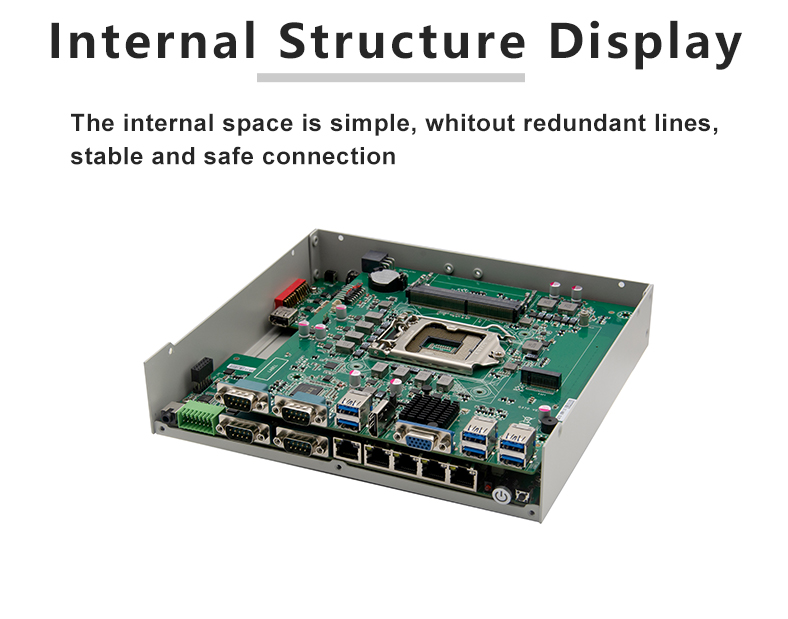

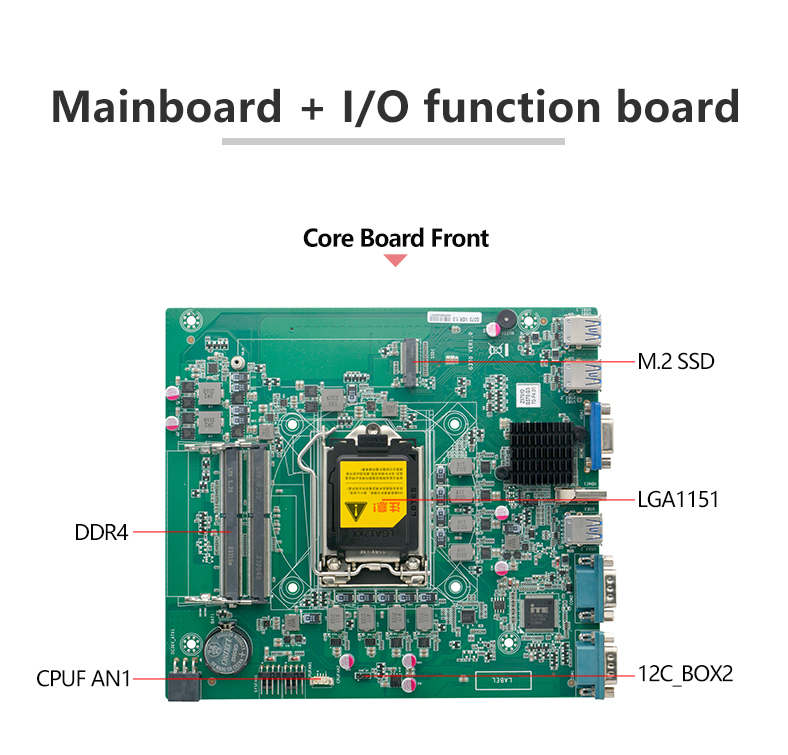

Main board
|
CPU |
Intel® LGA1151/6-9 series processors |
|
Internal memory |
2*SODIMM DDR4 memory, supports a maximum of 64GB |
|
|

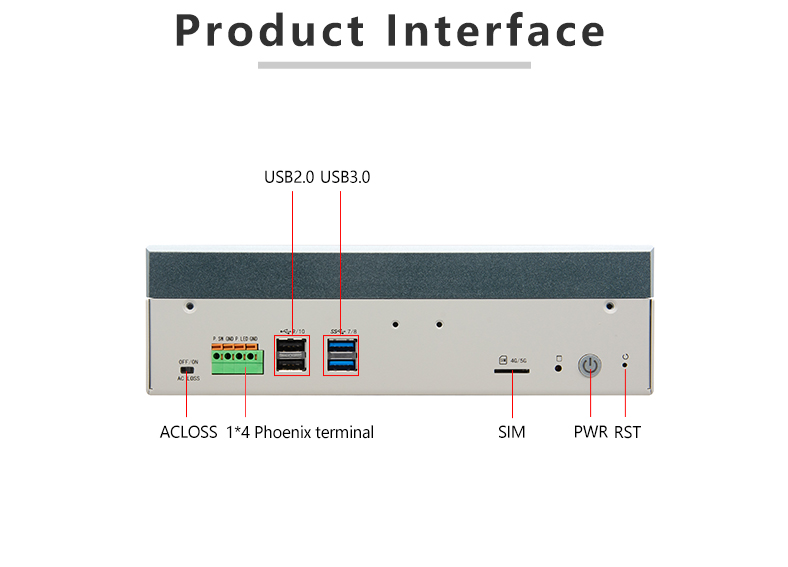

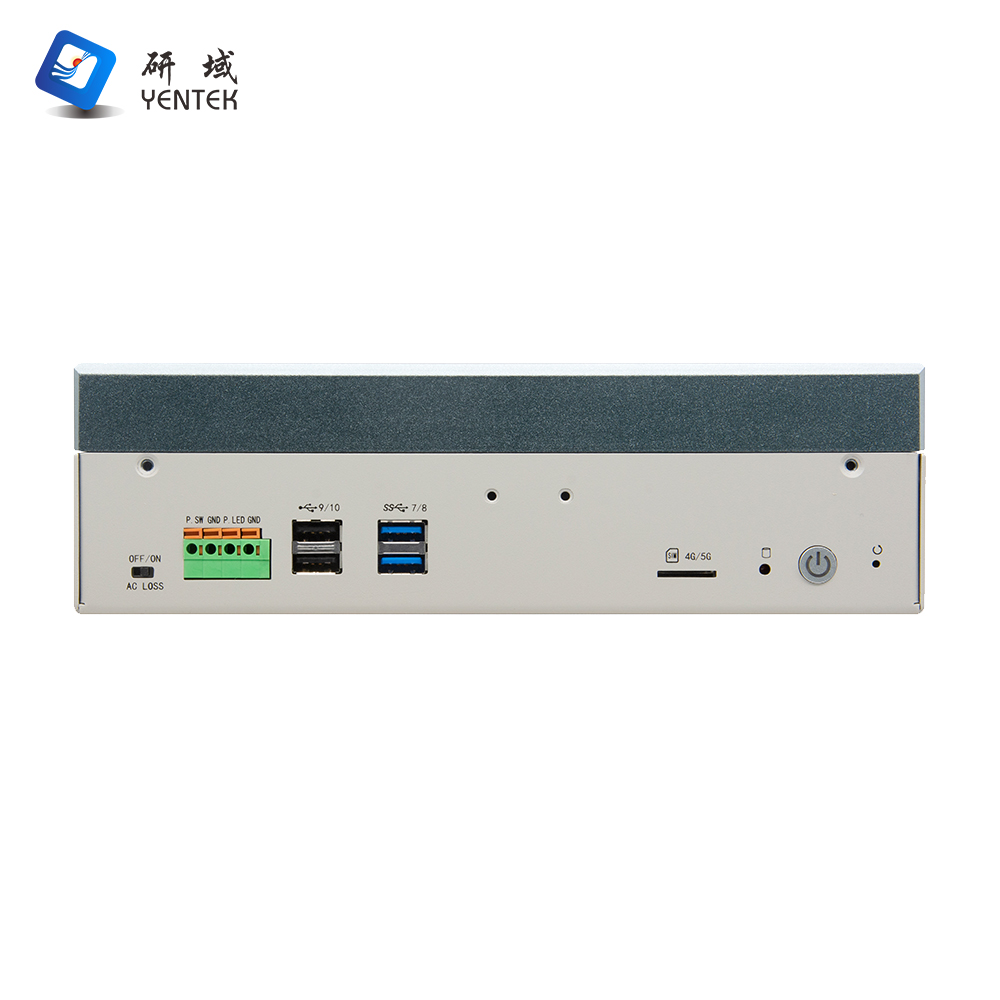

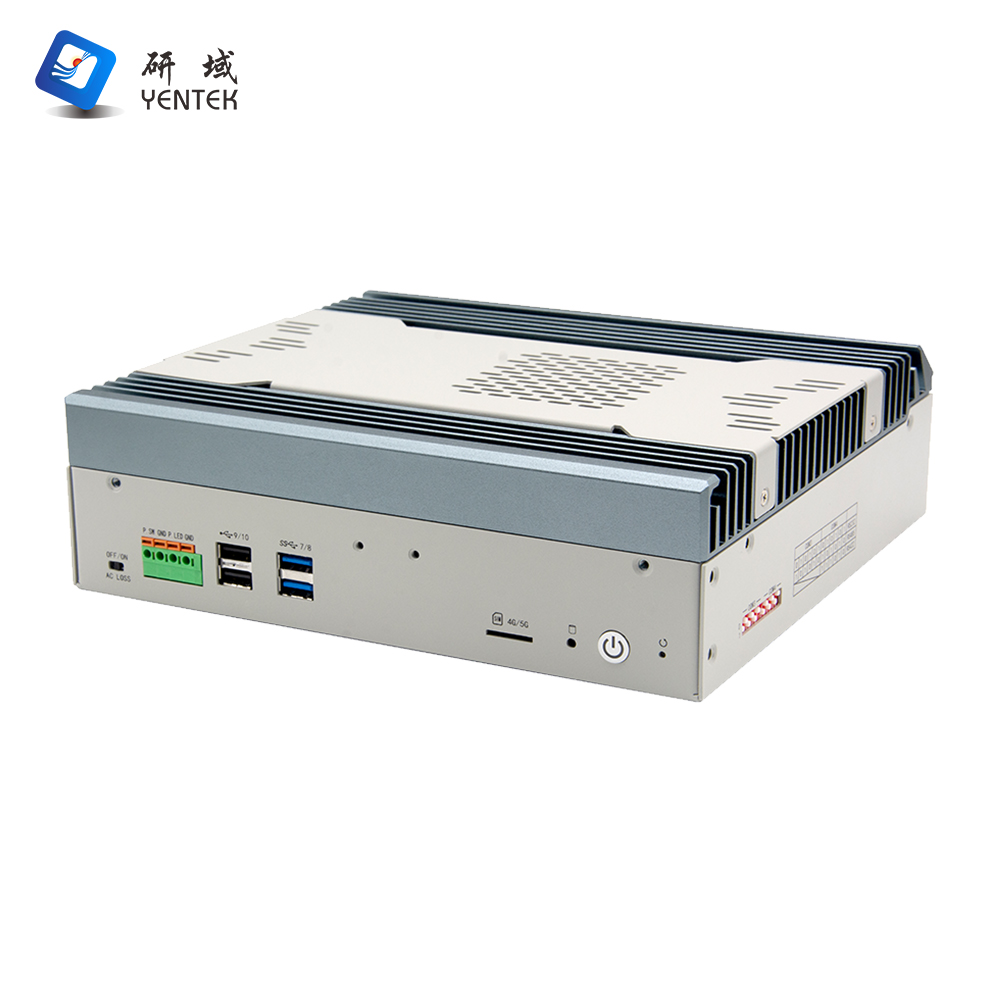

Front panel interface
|
Switch |
1* Power key with indicator light, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch) |
|
LED |
1* hard disk indicator |
|
|
USB |
2*USB3.0, 2*USB2.0, 1*USB2.0 built-in |
|
|
Phoenix terminal |
1*4P Phoenix terminal (1* power indicator signal, 1* power switch signal) |
|
|
SIM |
1*SIM standard card slot (Signal default M.2 5G) |
|
|

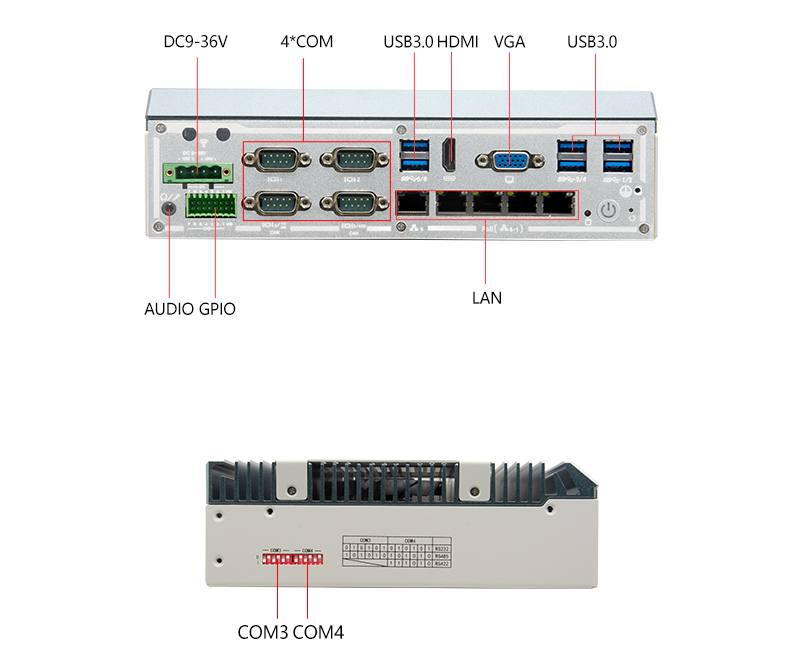

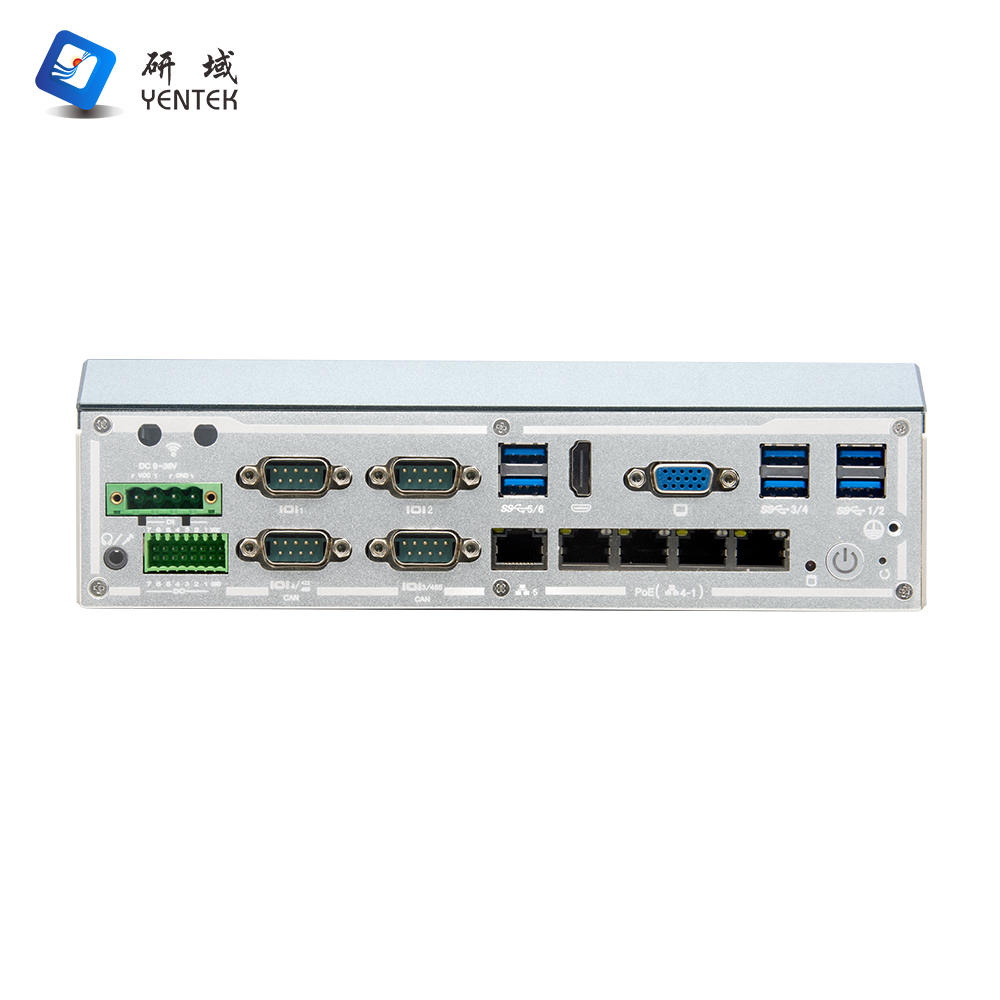

Rear panel interface
|
Display interface |
1* VGA(1920 * 1200@60Hz), 1 * HD OUTPUT1.4, dual display supported |
|
USB |
6*USB3.0 |
|
|
COM |
4*RS232 DB9 serial ports, of which 2 support RS485, 1 support RS422, COM3~4 support CAN function (need to load CAN module) |
|
|
LAN |
5*Intel I210AT Gigabit ports, four of which support POE |
|
|
Phoenix terminal |
2*8pin(7 in 7 out GPIO tape isolation) |
|
|
Audio frequency |
1*Audio, Line out and MIC in one |
|
|

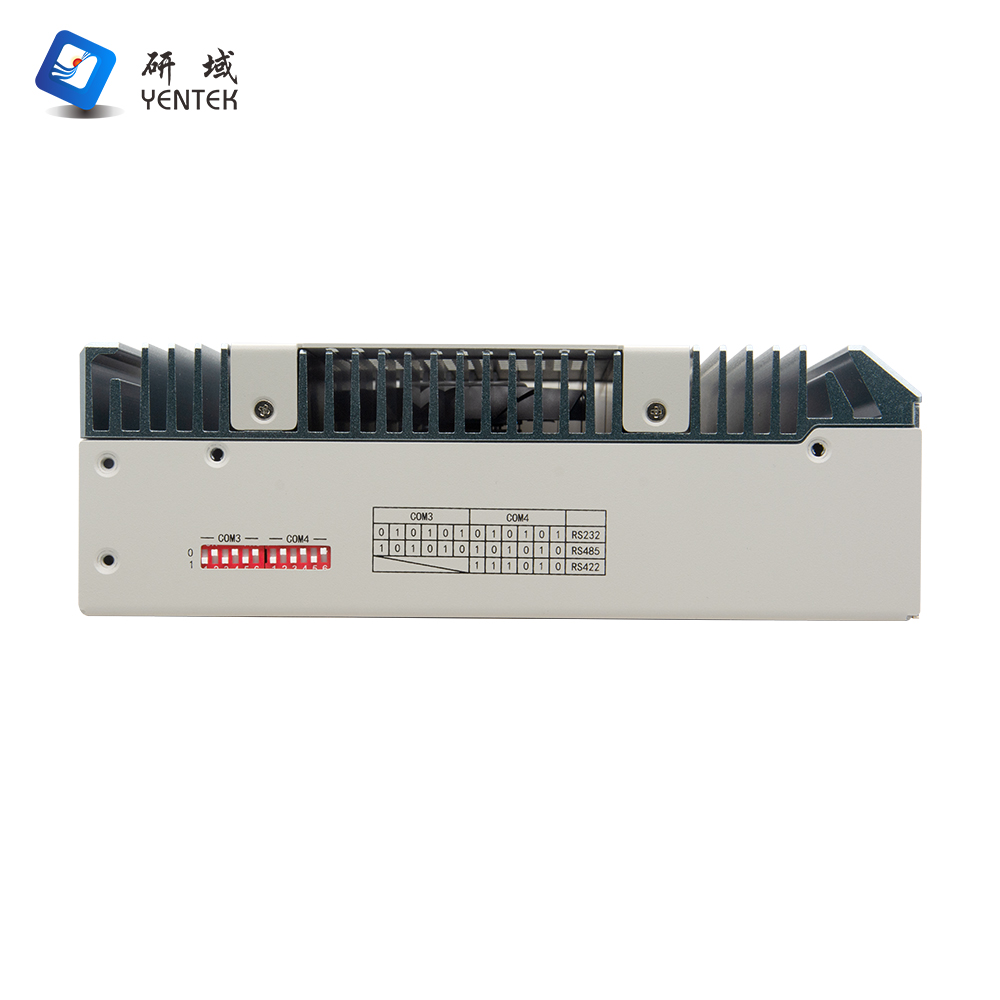

Dip switch |
Two sets of 6-bit dip switches. The COM3 RS232/485 switch is implemented by the COM3 DIP switch, and the COM4 RS232/485/422 switch is implemented by the COM-SW1 hop cap and COM4 DIP switch combination |
|
|

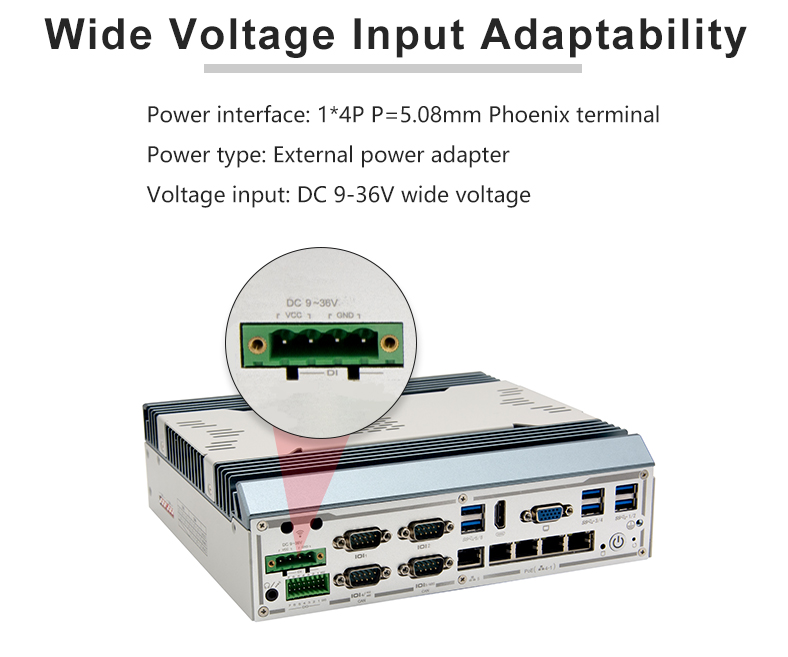

Power interface |
1 * 4P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage input |
|
|

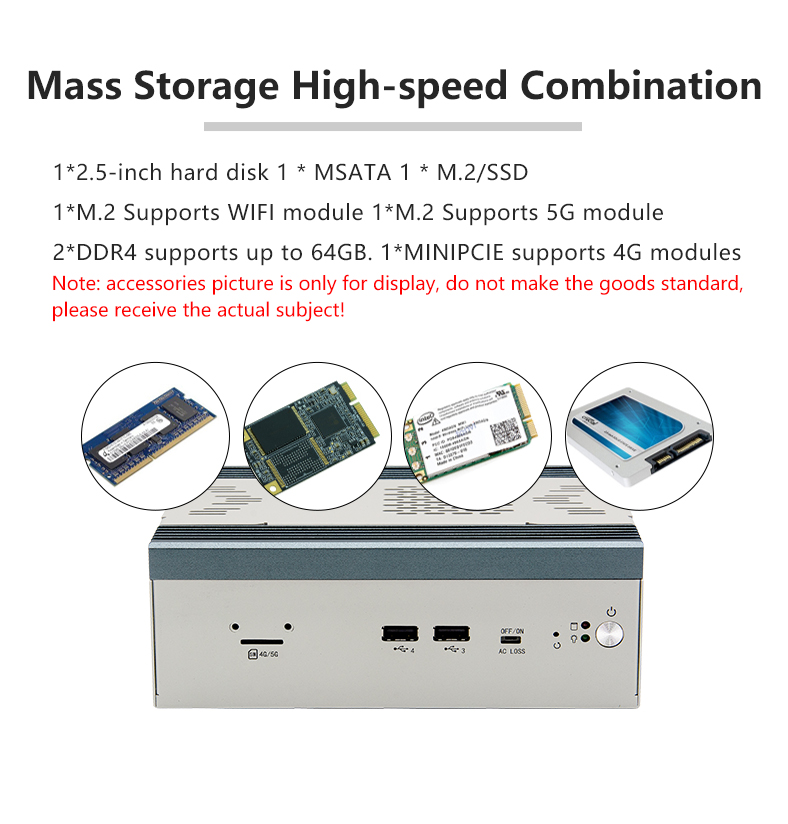

store
|
SATA |
1 * 2.5-inch hard disk |
|
MSATA |
1*MSATA |
|
|
M.2 |
1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD |
|
|

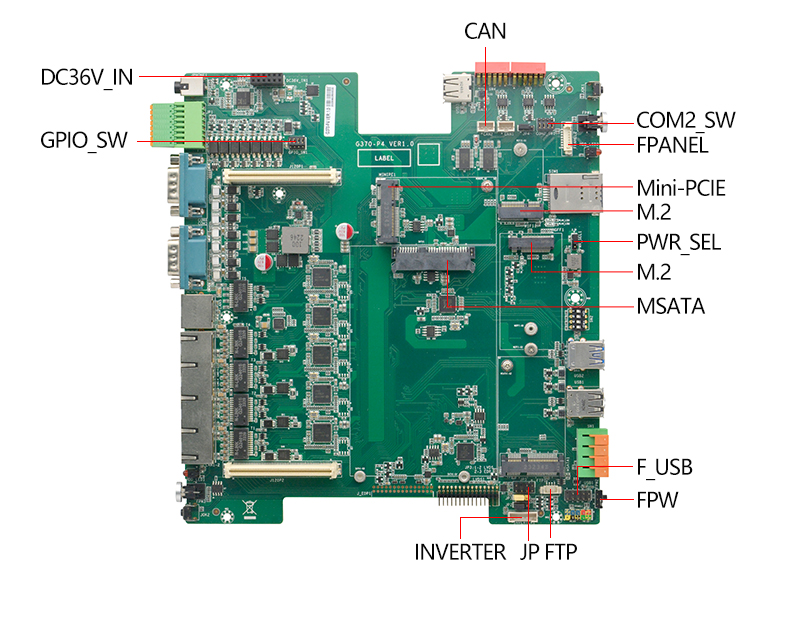

extend
|
MINIPCIE |
1*MINIPCIE, support WiFi/4G module (4G and built-in USB2.0 same signal, default built-in USB2.0) |
|
M.2
|
1*M.2/WiFi, supports Key-E, 2230, WiFi module |
|
|
1*M.2/5G, supports Key-B, 2242/52, 5G modules |
||
|
System support
|
Microsoft |
Windows 10 |
|
Linux |
Linux |
|
|
Power supply type input
|
Power supply type |
External power adapter |
|
Voltage input |
DC 9-36V wide voltage |
|
|
Power output |
AC TO DC more than 90W |
|
|
environment |
Operating temperature |
-10℃ to 50℃ |
|
Storage temperature |
-20℃ to 70℃ |
|
|
Relative humidity |
5%-95% relative humidity, no condensation |
|
|
Working vibration |
0.5g rms/5-500HZ/random/operating |
|
