Product model

B75DM VER:1.0

processor

Supports LGA1155 architecture 2th/3th Intel® Celeron/Pentium/Core™ i3/i5/i7 processors

chipset

Intel B75 high-speed chipset

memory

2 * DDR3 DIMM slots for dual-channel 1066mhz memory, 1333mhz memory, and 1600MHz memory, up to 16GB

display

Integrated Intel® HD Graphics controller with 1*VGA port and 1*HD OUTPUT1.4 port

Supports single display mode, dual display mode, and extended mode

network

1* Intel I211AT Gigabit network adapter, supporting network wake up and PXE functions

1* Intel I219V Gigabit network adapter, supporting network wake up and PXE functions

store

5* SATA 2.0 hard disk interface,SATA interface transmission speed up to 3Gbps

1* MSATA SSD interface, transmission speed up to 6Gbps

Audio frequency

Integrated ALC892 high fidelity audio controller, support Mic, Line out

Expansion slot

1* PCIE x16

1* PCIE x4

1* PCIE x1

4* PCI

1* Mini-PCIE, WiFi support (optional TPM-4COM board, can expand 4 serial ports)

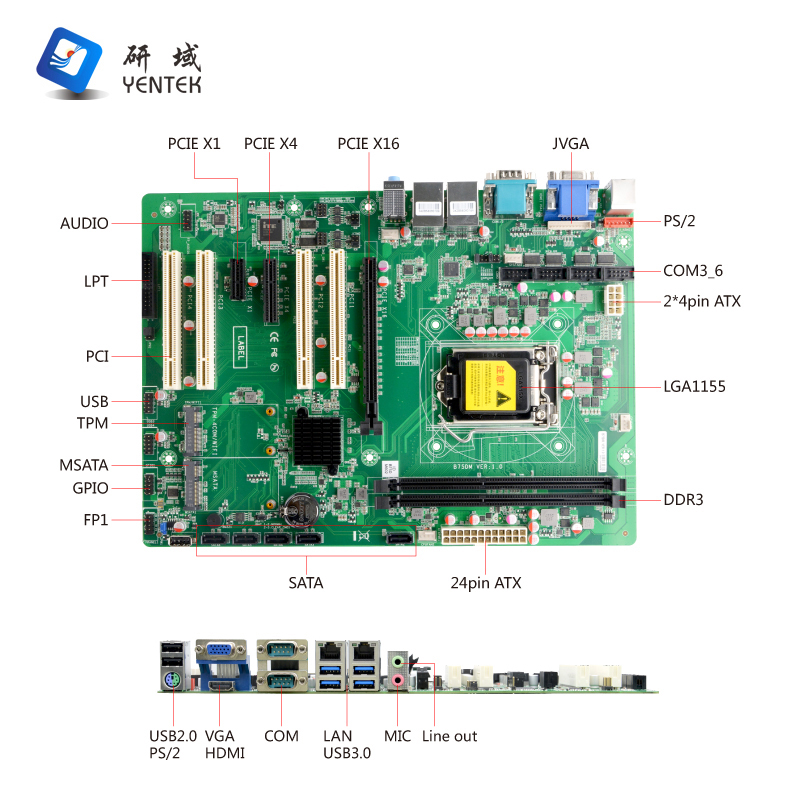

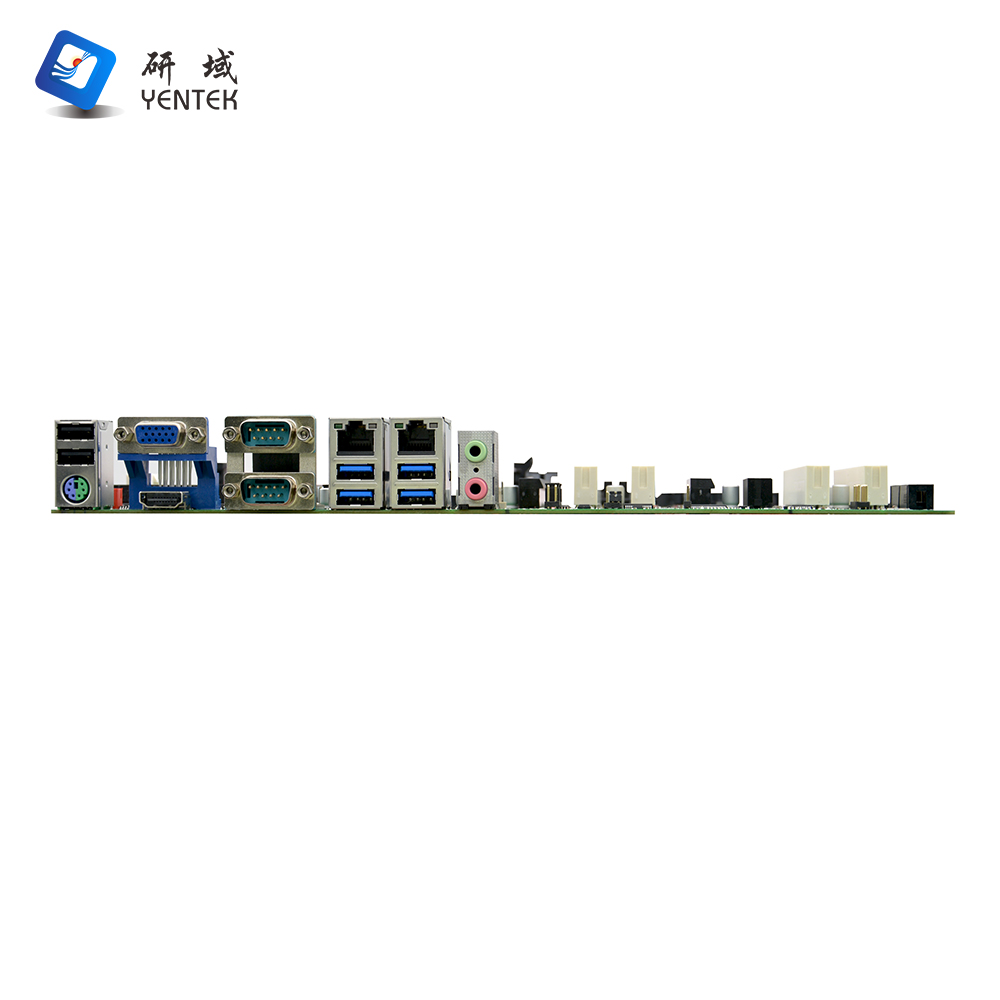

I /O ports on the backplane

1* PS/2 keyboard and mouse interface

1 x VGA display port

1* HD OUTPUT display interface

2* RS232 serial port,COM1/2 supports 5V/12V power function,COM1/2 supports RS485/422 function

2* USB 2.0 port

4* USB 3.0 interface

2* RJ-45 Gigabit network interface

1* Line out interface (green), 1* MIC interface (red)

Built-in I/O interface

4*RS232 serial port

1*JVGA1 interface, 1*12pin row pin, same signal as external VGA

1* PS/2 keyboard and mouse interface 1*6pin row pins

1*LPT print port 2*13pin row pin 2.54mm

1* front audio interface 2*5pin row pins

4* USB 2.0 port 2*5Pin row pins

1*USB2.0 port USB-TYPE A

1* Front panel function buttons and indicator ports 2*5pin row pins

1*24pin ATX power input interface

2*4pin ATX power input interface

1*AC Power-on automatic power-on function 1*3pin row

Fan interface

2*4pin CPU intelligent fan interface, 2*4pin system intelligent fan interface

GPIO

Supports four input/output GPIO functions

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 7/Linux

Power supply type

24Pin ATX power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5 ~ 90% relative humidity, no condensation

dimension

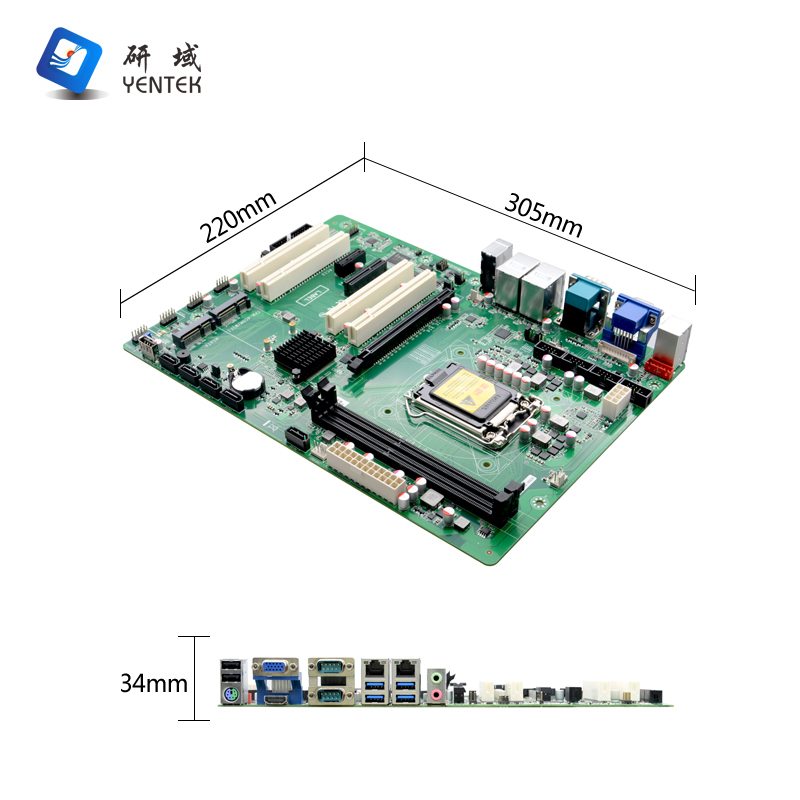

305mm * 220mm（ATX）
