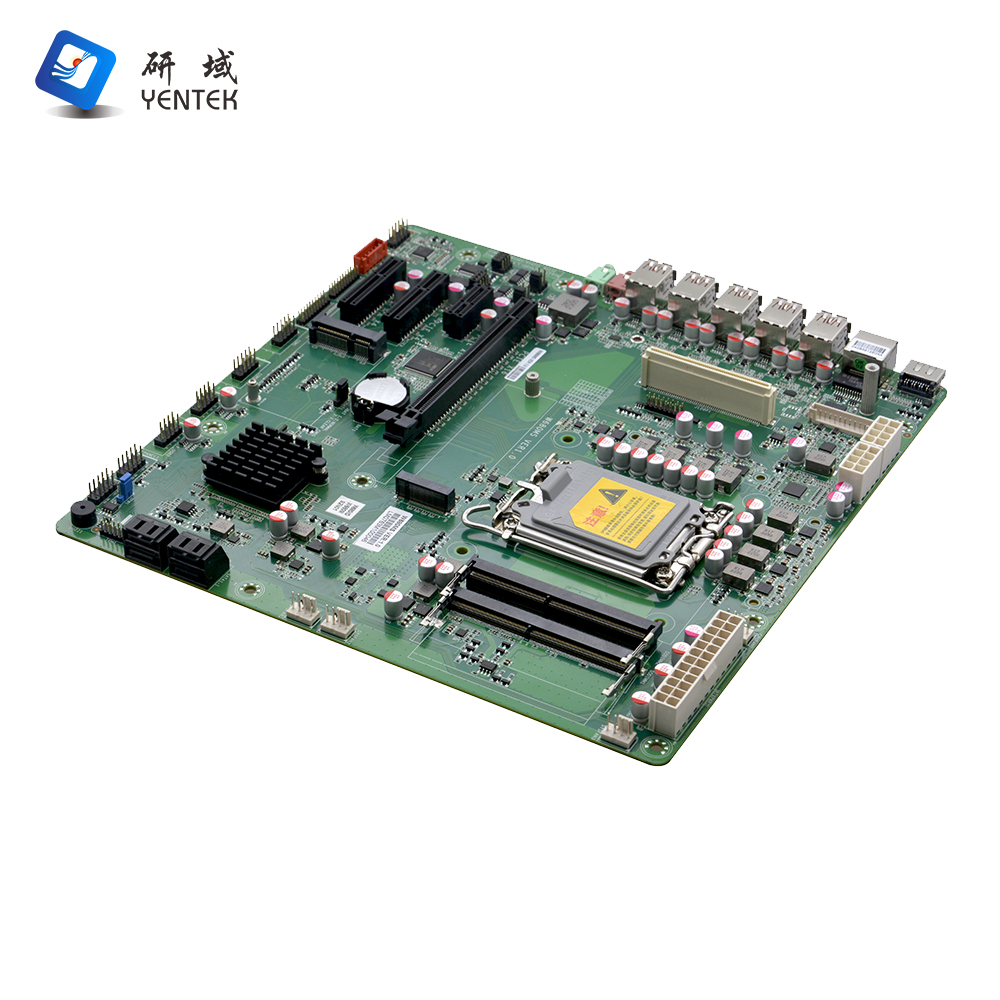

W680MS VER:1.0

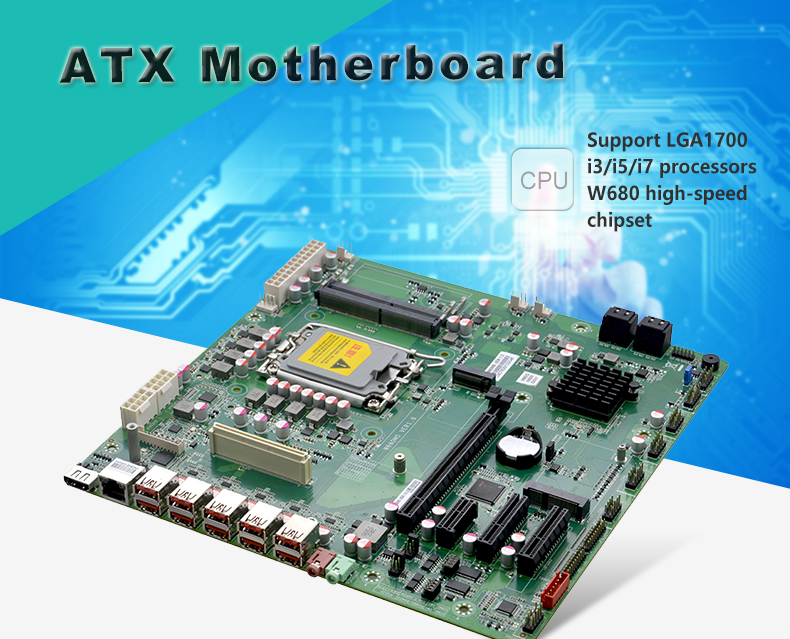

processor

Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors, Note: Supports 125W cpus

chipset

Using Intel® W680 chipset,

Internal memory

2* DDR4 SODIMM slots, supporting a dual-channel memory of up to 3200MHz, 128GB, and ECC memory

display

Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display

1 x VGA port, the maximum resolution is 1920X1200@60Hz

2* HDM1.4 interface, support the highest resolution of 4096x2160@24Hz

network

1* I210AT Gigabit network adapter chip, supports network wake up /PXE function

Store

4* SATA3.0 hard disk port, transmission speed up to 6Gbps, support RAID 0,1,5,10

1* MSATA slot, supporting Intel SSDS

1 x M.2 slot, supporting the M.2 Key M 2280 NVME PCIE X4 standard SSD

Tone frequency

Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support

Expansion slot

1* PCIE3.0 X16 slot

1* PCIE 3.0 X1 slot

2* PCIE 3.0 X4 slots

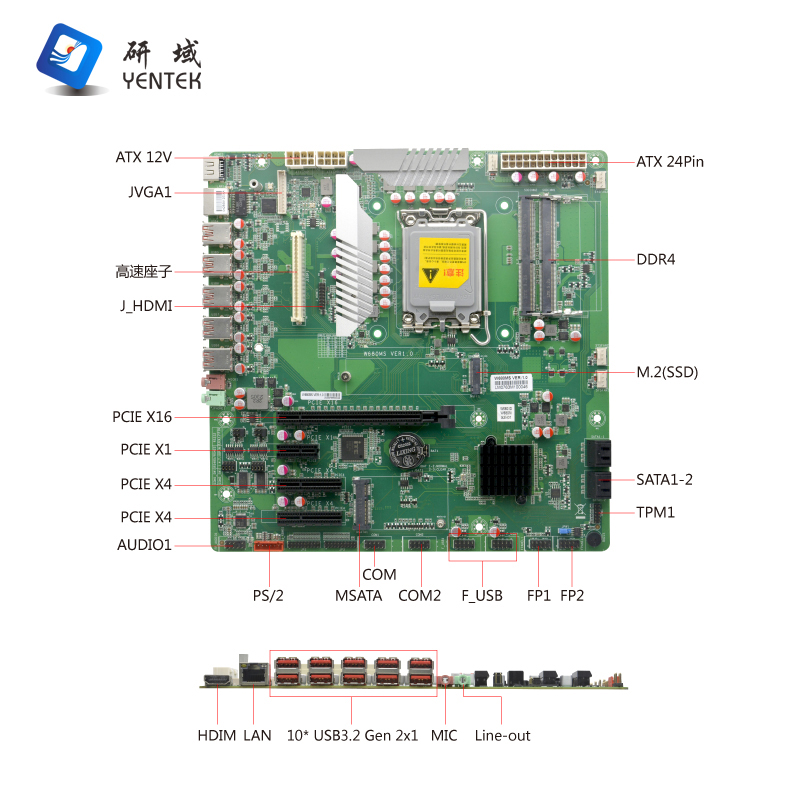

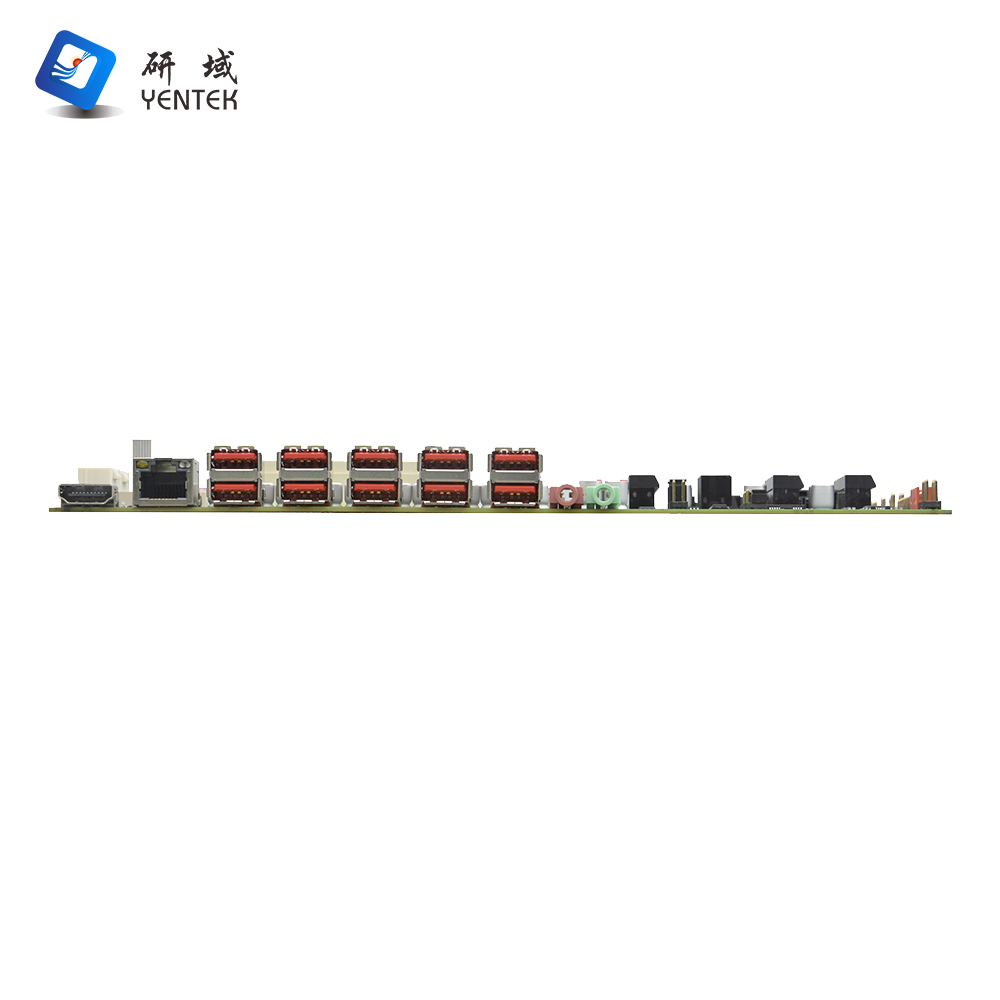

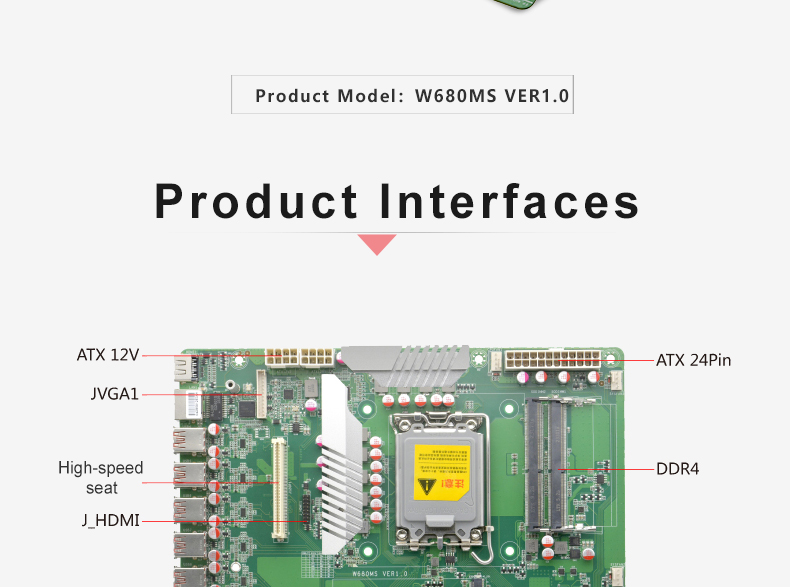

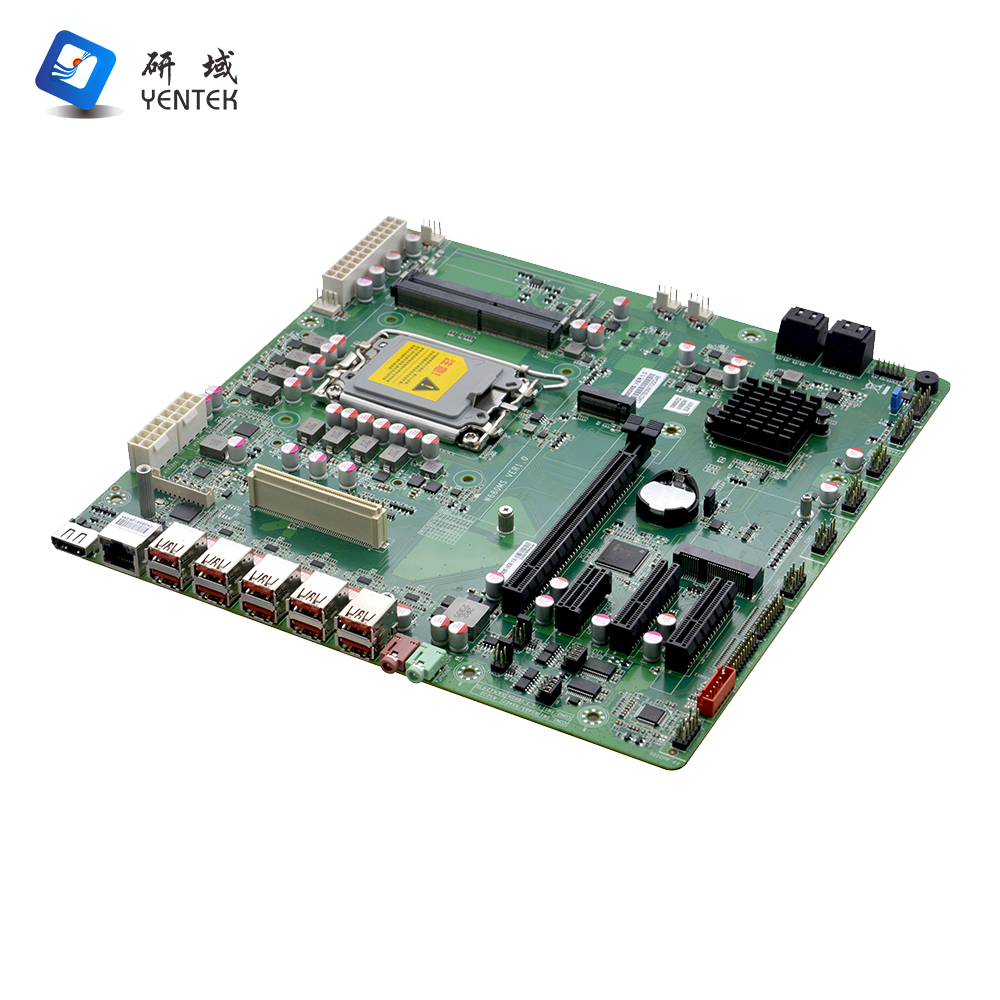

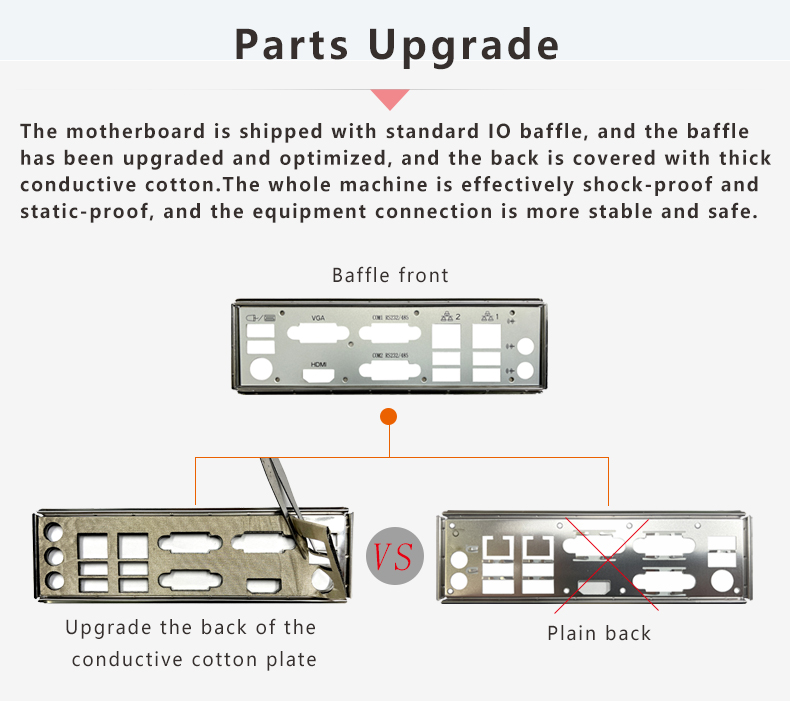

I/O ports on the backplane

1* HD OUTPUT1.4 port

1* RJ45 Gigabit network port

10* USB3.2 Gen 2x1 interface (10Gbps)

1* Line-out(green),1*MICK(red)

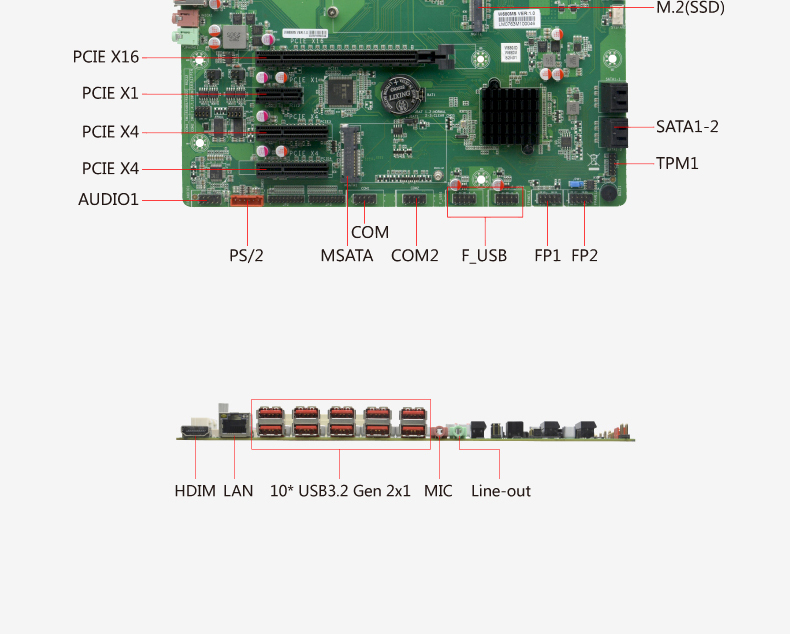

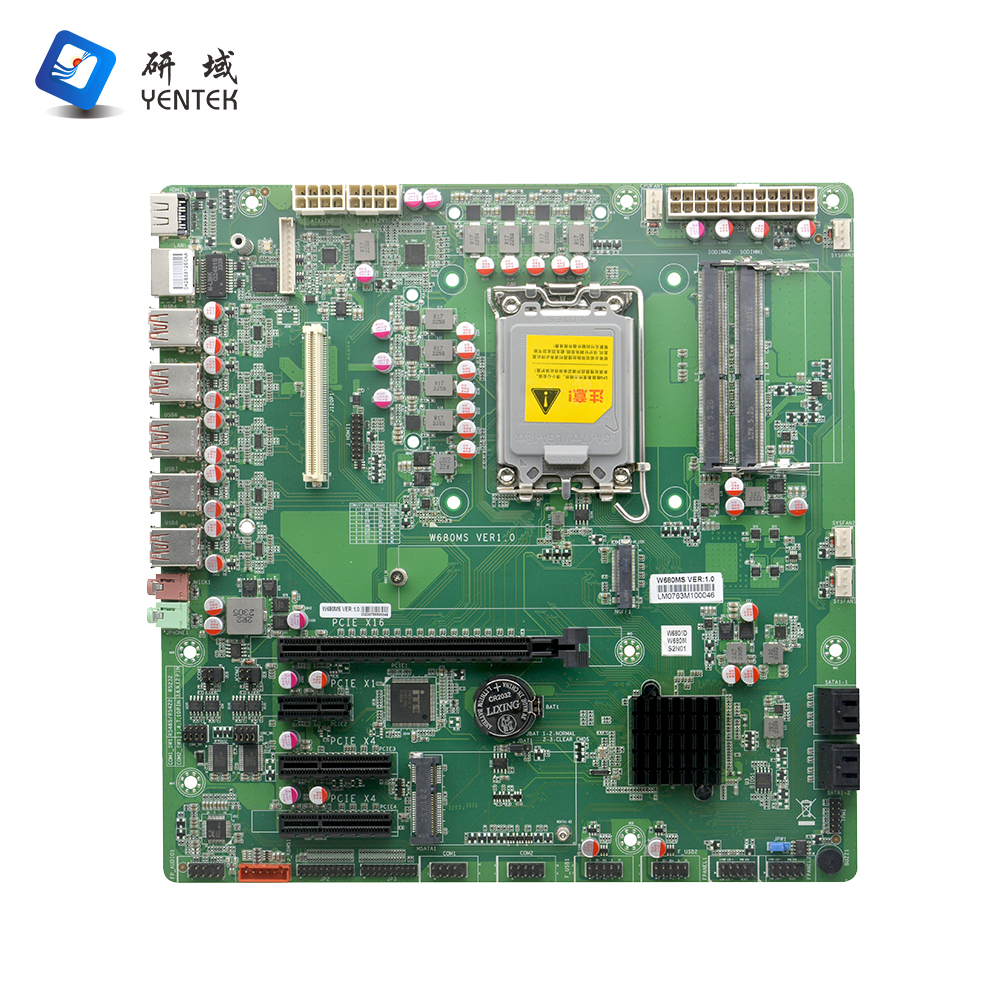

Built-in I/O interface

1* JVGA interface 1*12pin,

1* JHD OUTPUT port 2*8pin

4* USB2.0 interface 2*5pin,

2* RS232 serial port, supporting RS485/422

1* Front panel audio port 2*5pin

2* Front panel function buttons and indicator ports 2*5pin

1* 24pin ATX power socket 2* 8pin ATX power socket

1* PS/2 keyboard and mouse interface 1*6pin

1* TPM port 2*6pin

1* JHD OUTPUT port 2*8pin

1* 120pin high-speed seat, including 6 PCIE,1 VGA,VCC and other signals, for the expansion of 1 VGA port,6 POE ports (W680MS-POE board)

2* row pin, 2*10pin, for expansion 16 in 16 out GPIO(MS-GPIO small board)

Fan interface

1*4pin CPU fan interface; 3*4pin system fan port

BIOS

128Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Windows 11/Linux

Power supply type

Powered by ATX 24Pin and 8pin power supplies

Operating temperature

0℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

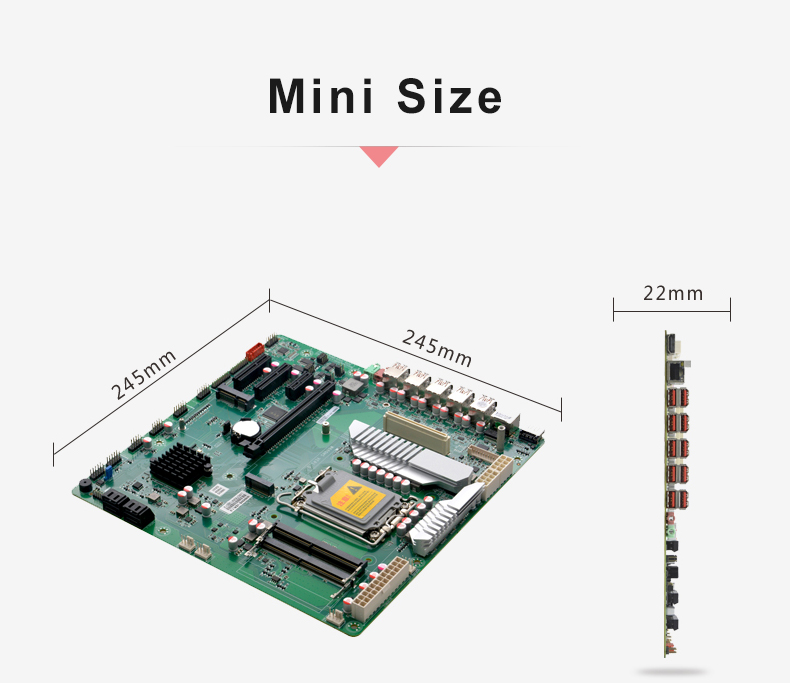

dimension

245mm * 245mm
