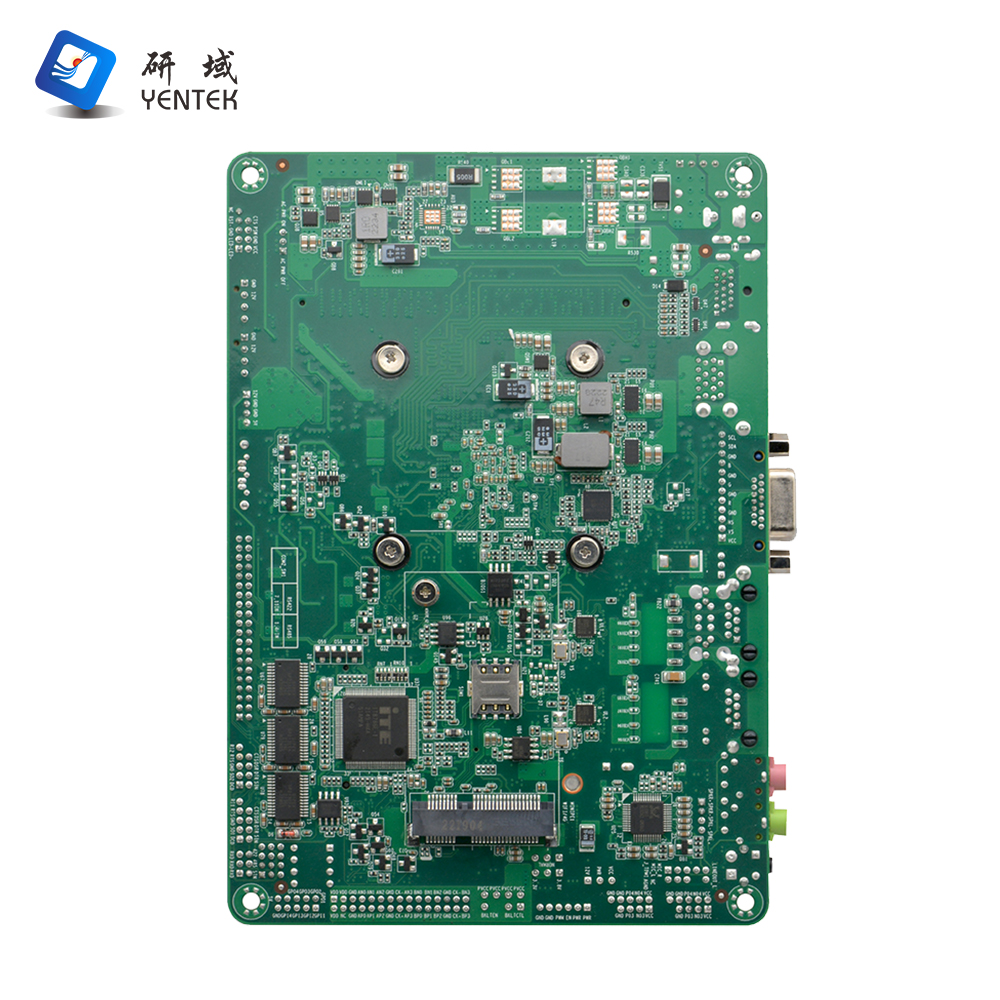

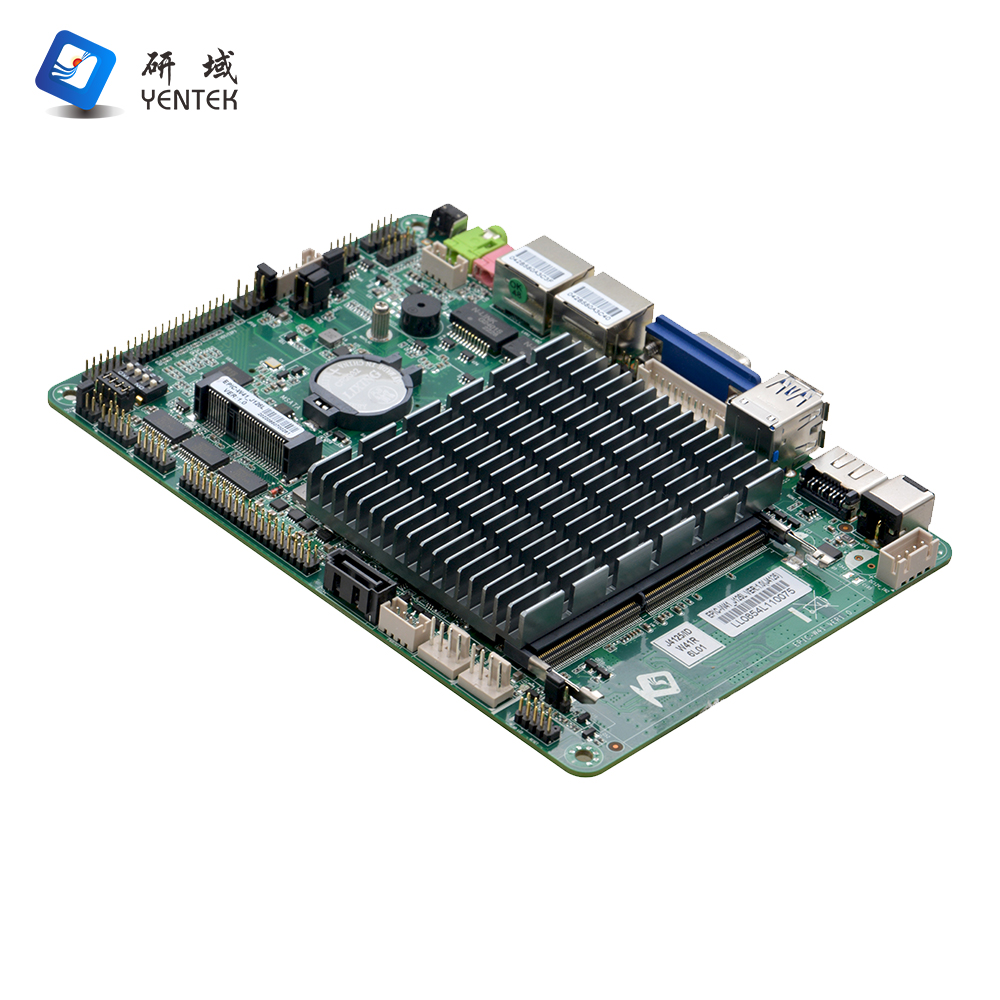

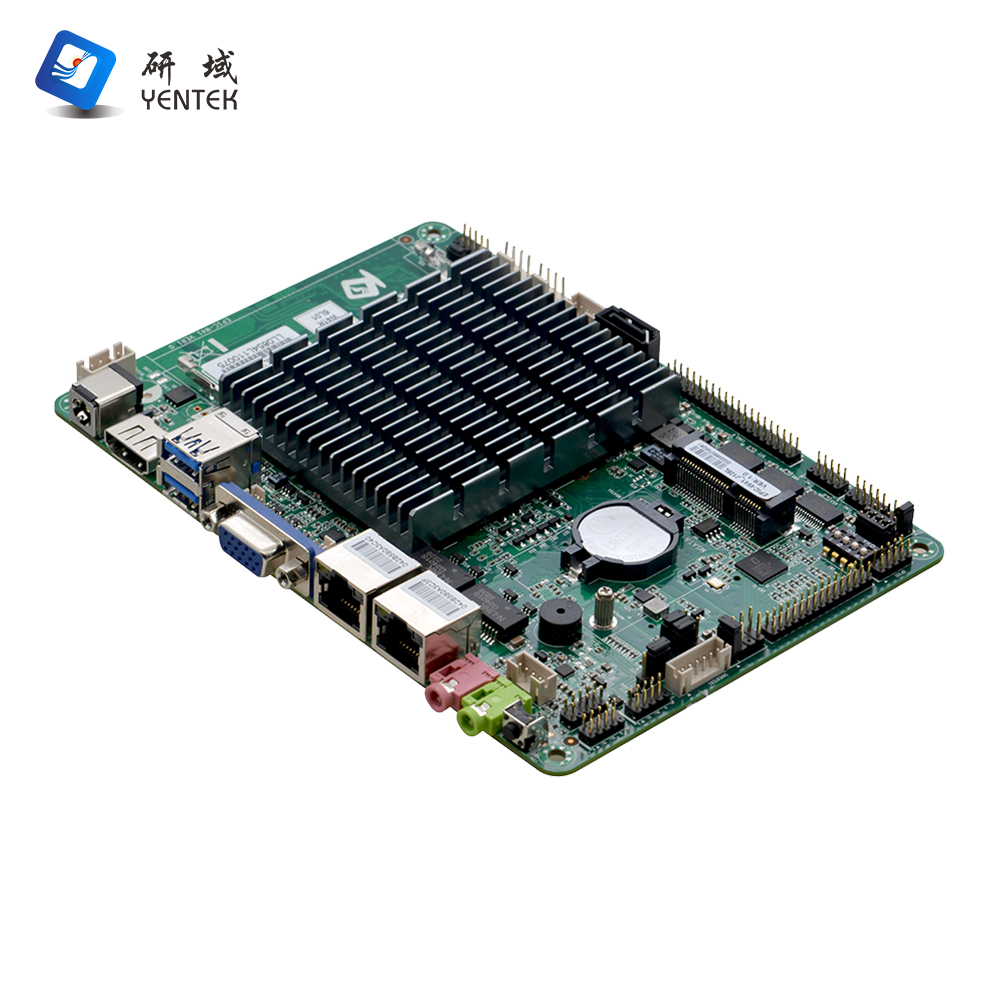

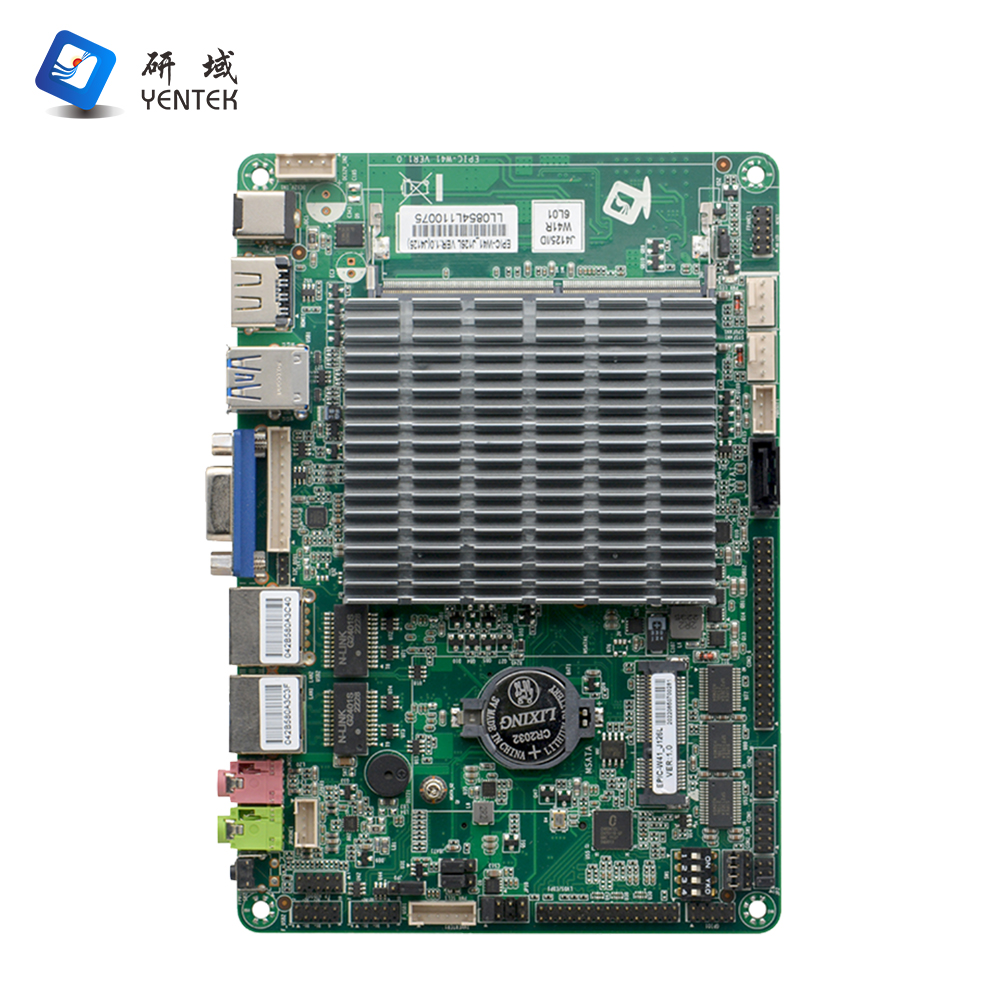

Product model

EPIC-W41_J126L VER:1.0

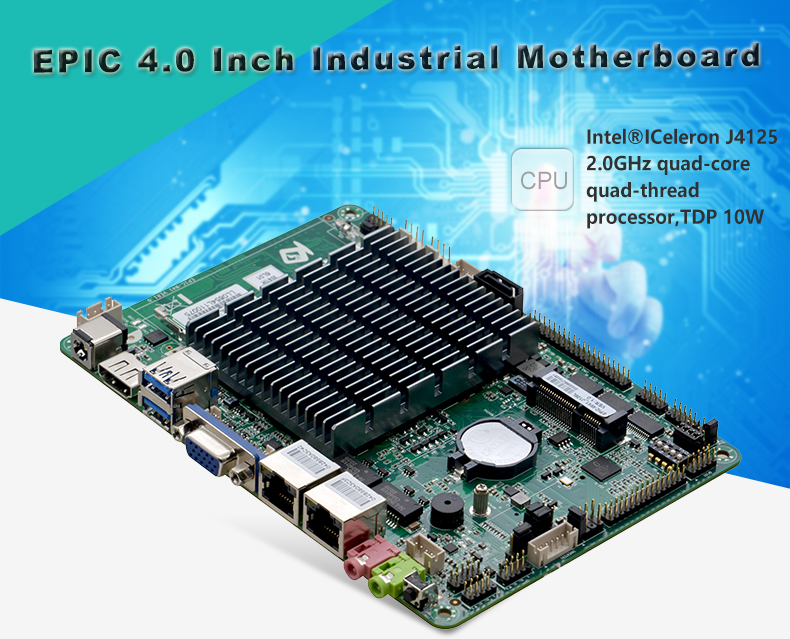

processor

Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W,Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly

chipset

SOC

Internal memory

1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB)

display

Integrated Intel®HD Graphics core graphics card

1* VGA port,1* HD OUTPUT port,1*LVDS port, supporting dual-channel 24BIT

The 1* EDP interface shares pins with the LVDS interface. The default port is the LVDS interface

network

2* RTL8111H Gigabit NIC, supports network wake up and PXE functions

Store

1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps

Tone frequency

Onboard ALC892 7.1+2 channel hi-Fi audio controller with MIC/Line-out support. Power amplifier

The power amplifier is recommended to use a 2Ω3W speaker

expansion

1*Mini-PCIE slot, supporting WIFI and 4G modules

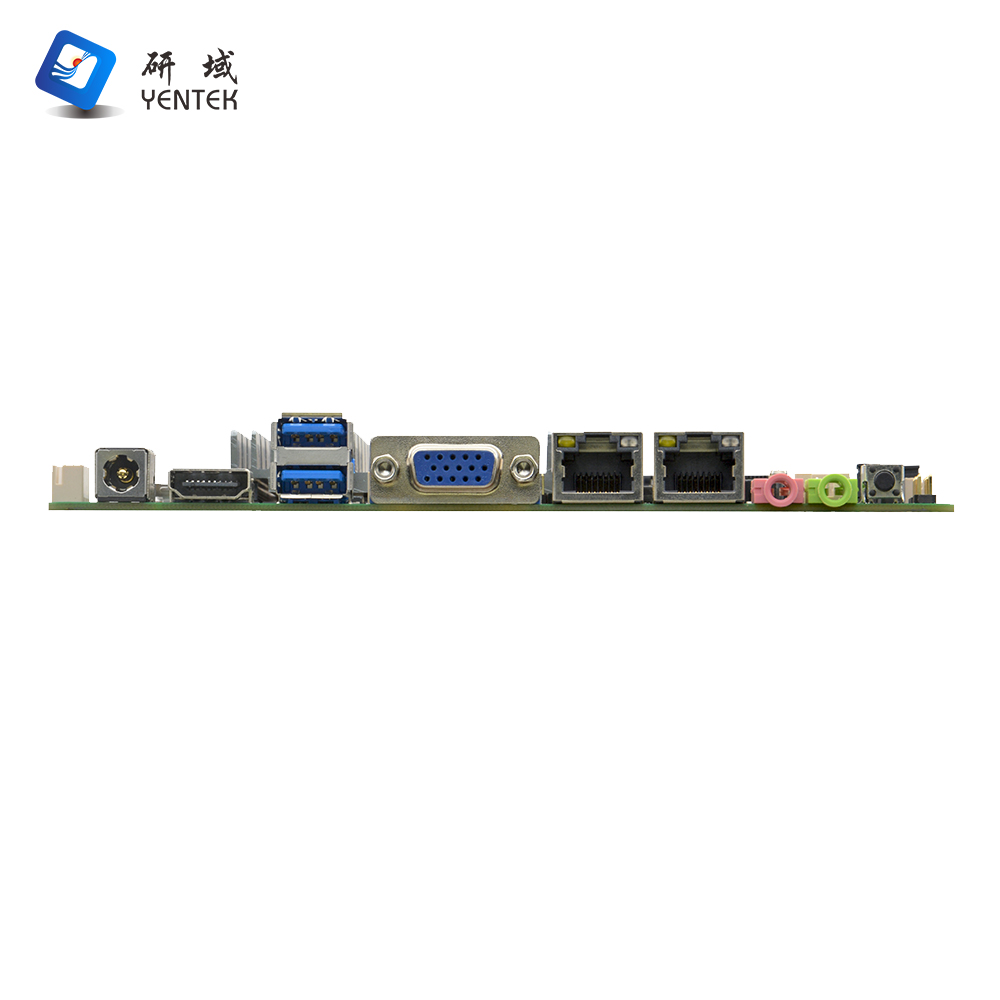

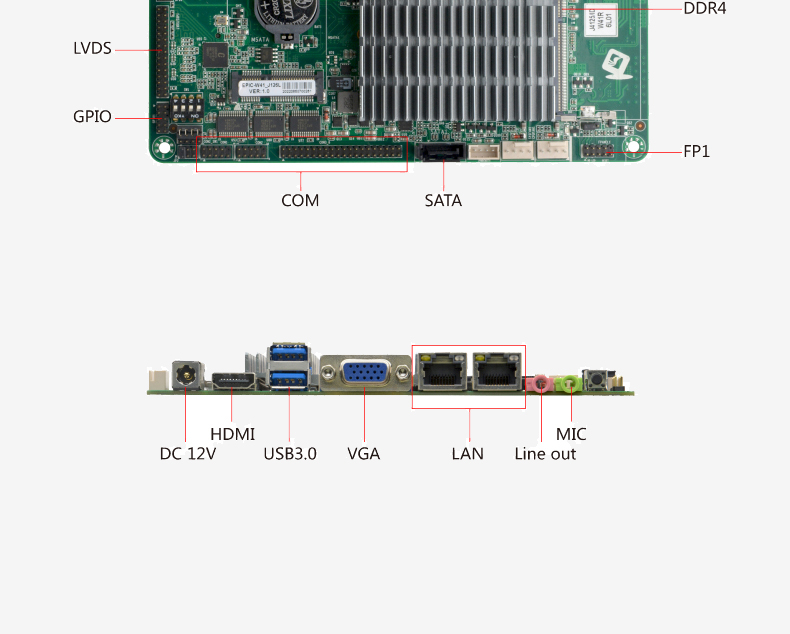

I/O ports on the backplane

The 1* DC power input port supports 12V power input and output, and supports DC9 to 36V power supplies. The default value is 12V

1* HD OUTPUT display interface

1 x VGA display port

2* RJ-45 Gigabit network interface

2* USB3.0 port

1* Line out interface (green)

1* MIC interface (red)

1* Power switch

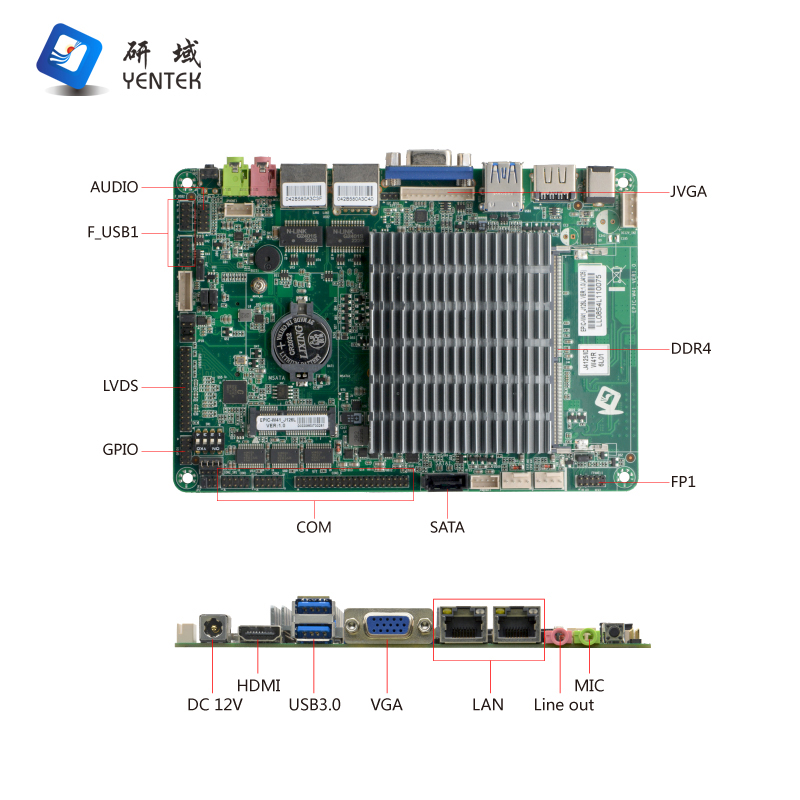

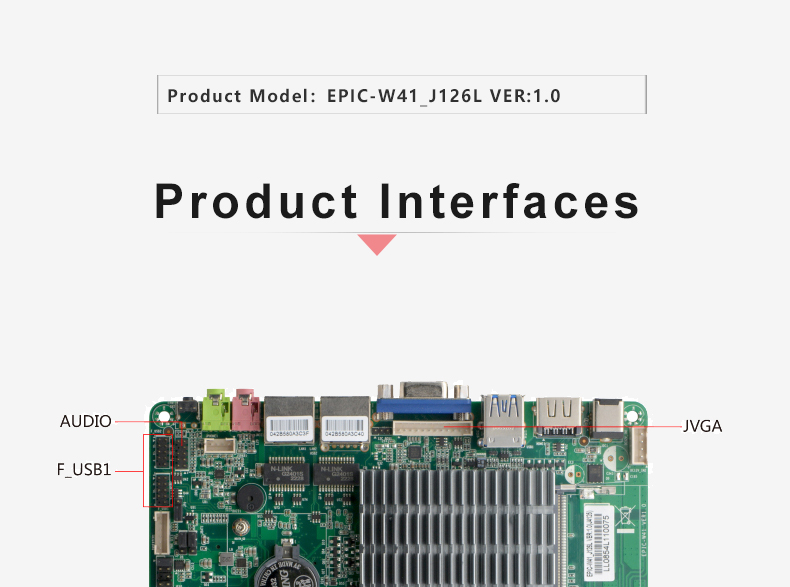

Built-in I/O interface

1* DC12V power interface 1*4pin

4* USB 2.0 interface 2*5Pin

1* JVGA port 1*12Pin, same signal as DB15

6* RS232 serial port, COM2 supports RS485/RS422 functions.

1* front audio interface 2*5pin

1* front amplifier interface 1*4Pin

1* LVDS interface 2*15pin, support dual channel 24BIT,LVDS and EDP are shared pins, optional EDP interface

1* LVDS backlight power supply interface 1*6pin

1* Front panel switch button and indicator port 2*5Pin

1* hard drive power port 1*4pin

1* SIM card seat

Fan interface

Support fan-less heat dissipation, reserved 1*4pin CPU intelligent fan port, 1*4pin system fan port

GPIO

Supports four input/output GPIO

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Linux

Power supply type

Adopts DC 12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

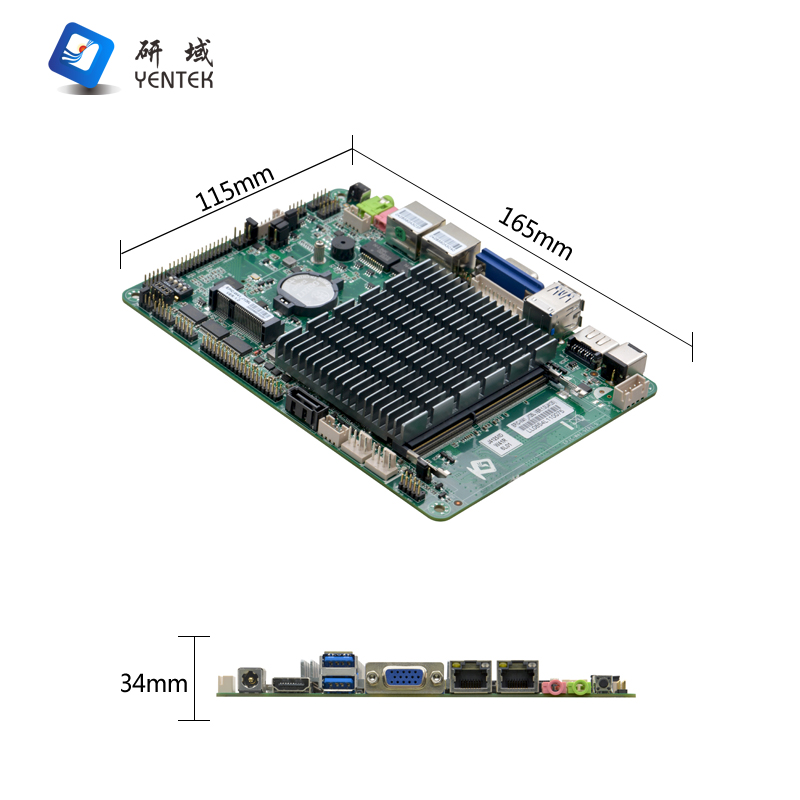

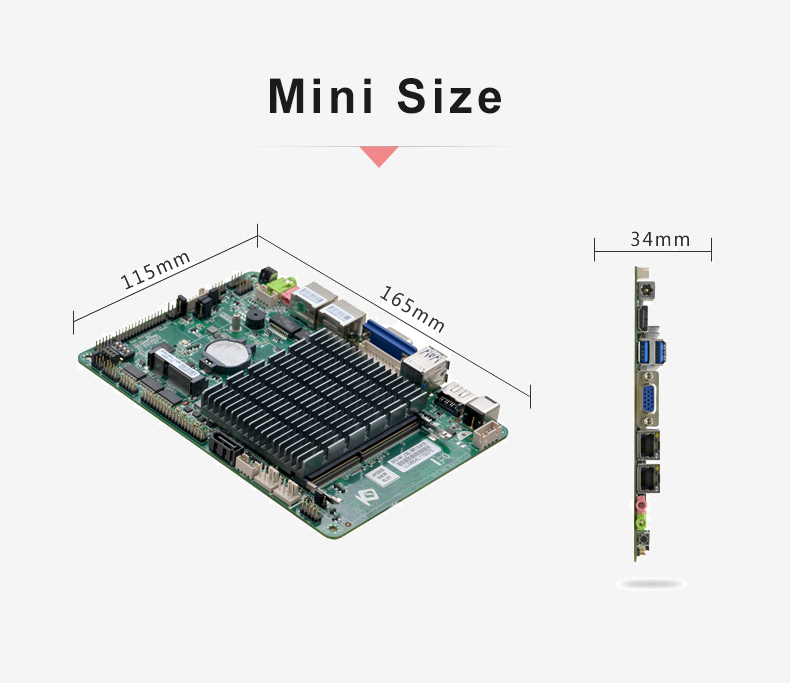

dimension

165mm * 115mm
