Product model

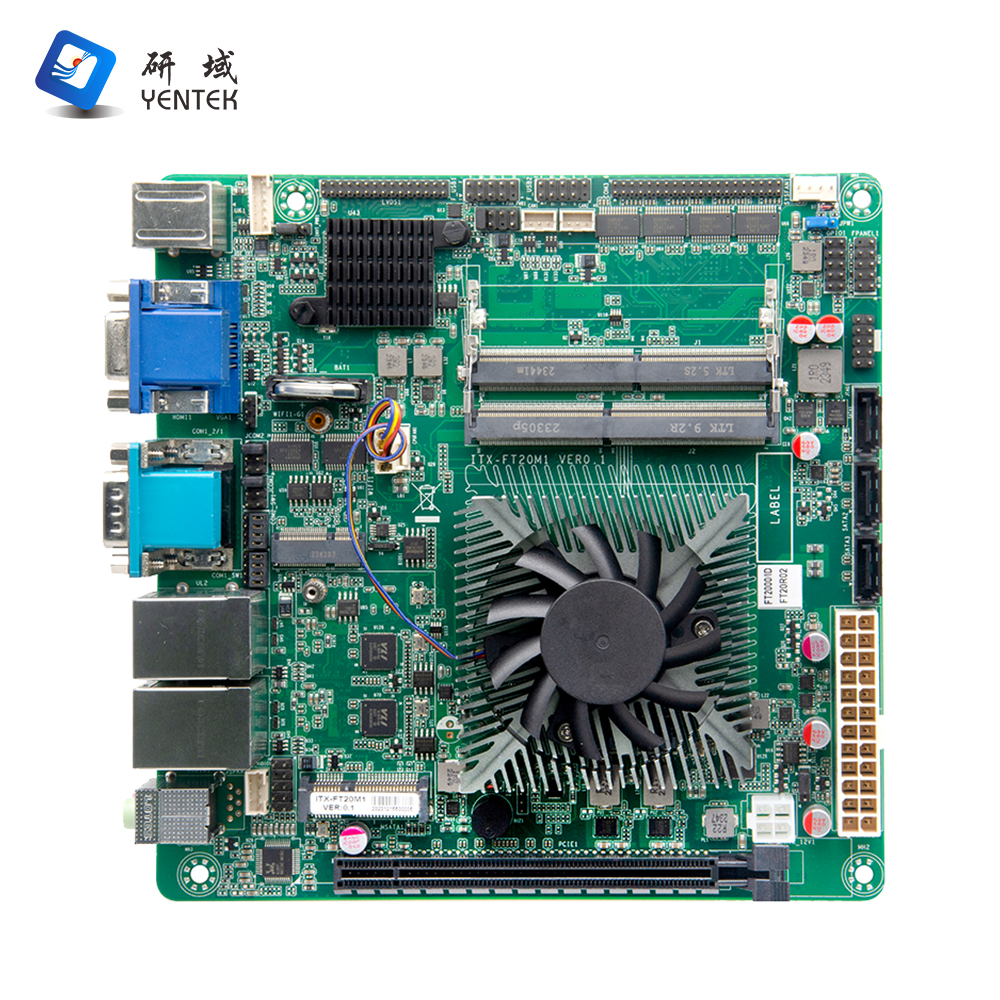

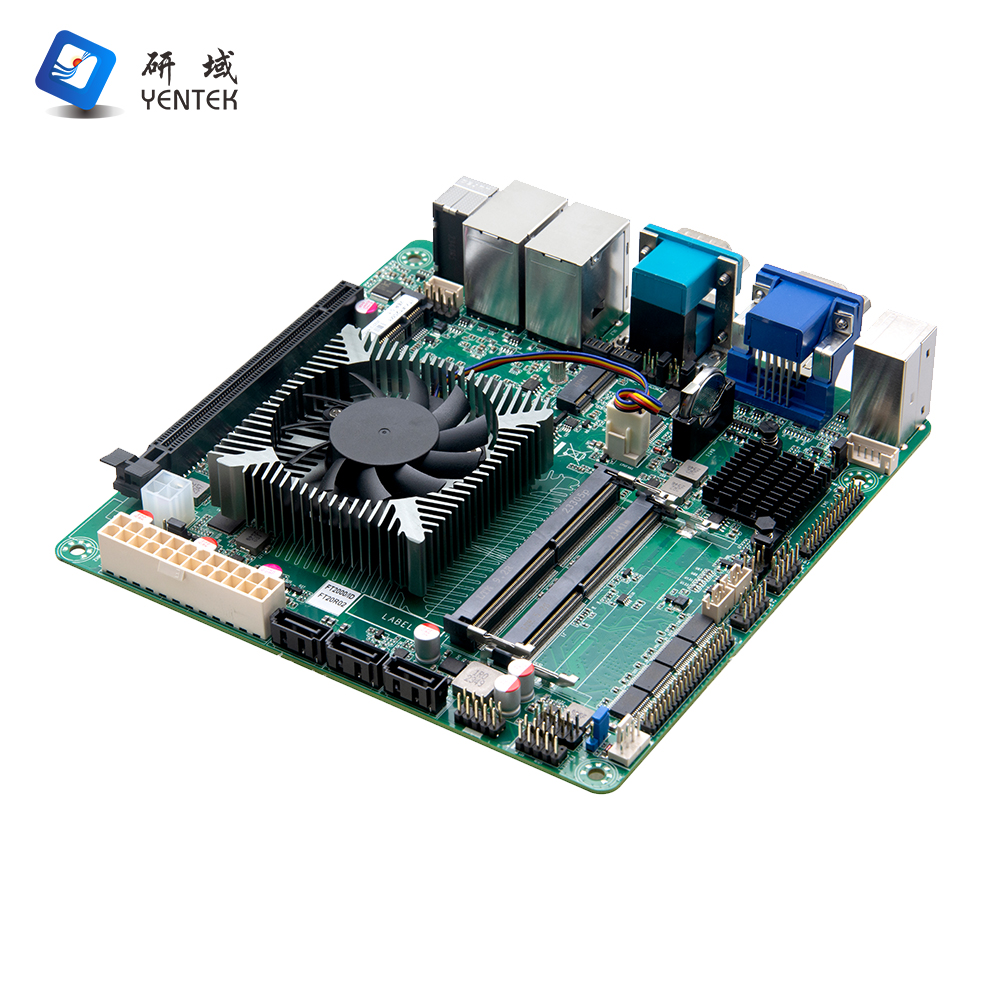

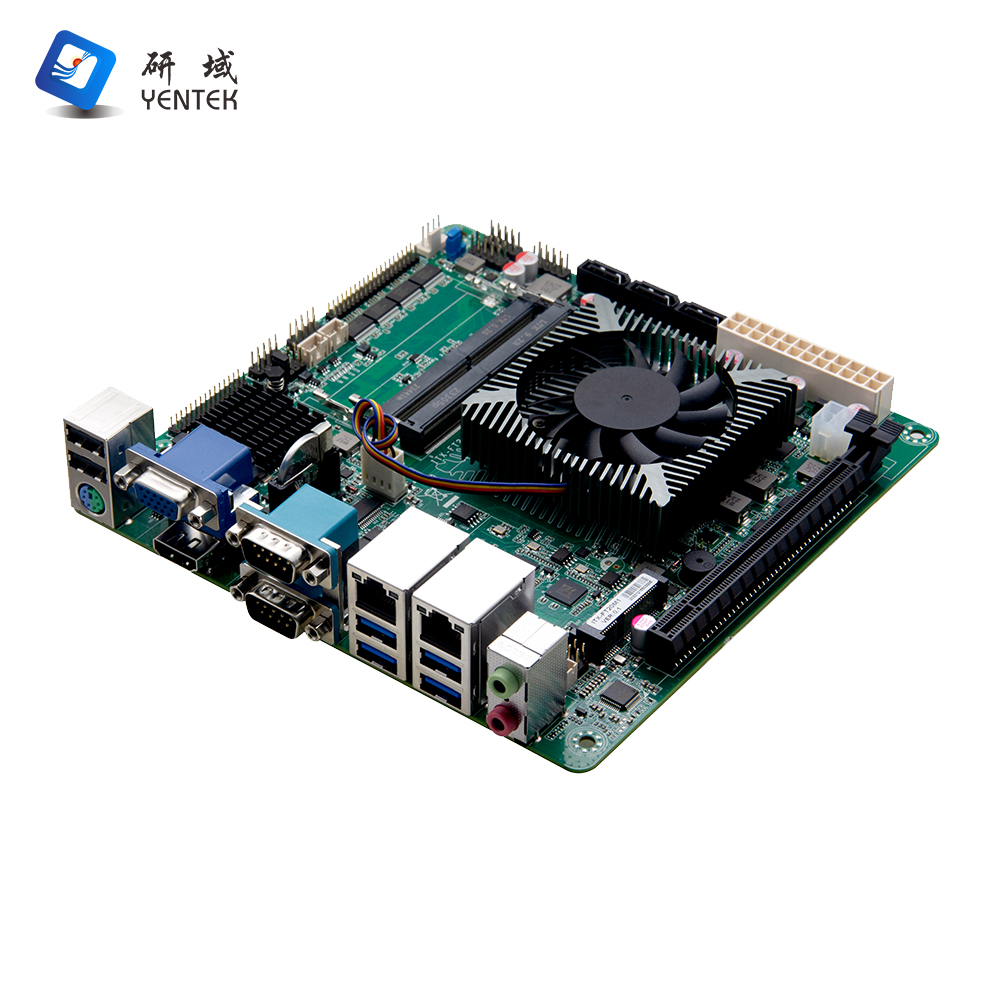

ITX-FT20M1 VER:0.1

processor

Integrated Feiteng FT-2000/4 2.2GHz quad-core processor, TDP 30W

chipset

SOC

Internal memory

2* SODIMM slots for dual-channel DDR4 memory of 2666 MHZ and up to 32GB

display

1* SM768 256M GPU

1* VGA,1* HDMI,1* LVDS, support dual-channel 24BIT

network

2* RTL8211F Gigabit NIC chip, supports network wake up /PXE function

deposit

3* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* MSATA slot, support SSD, transfer rate up to 6Gbps

Tone frequency

Integrated ALC897 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifie, The amplifier supports 4Ω/3W dual channels

Expansion slot

1* M.2 slot, supporting the M.2 2230 WIFI module

1* PCIE X16 slot (actual X8 signal)

4* USB3.0 ports,2* USB2.0 ports

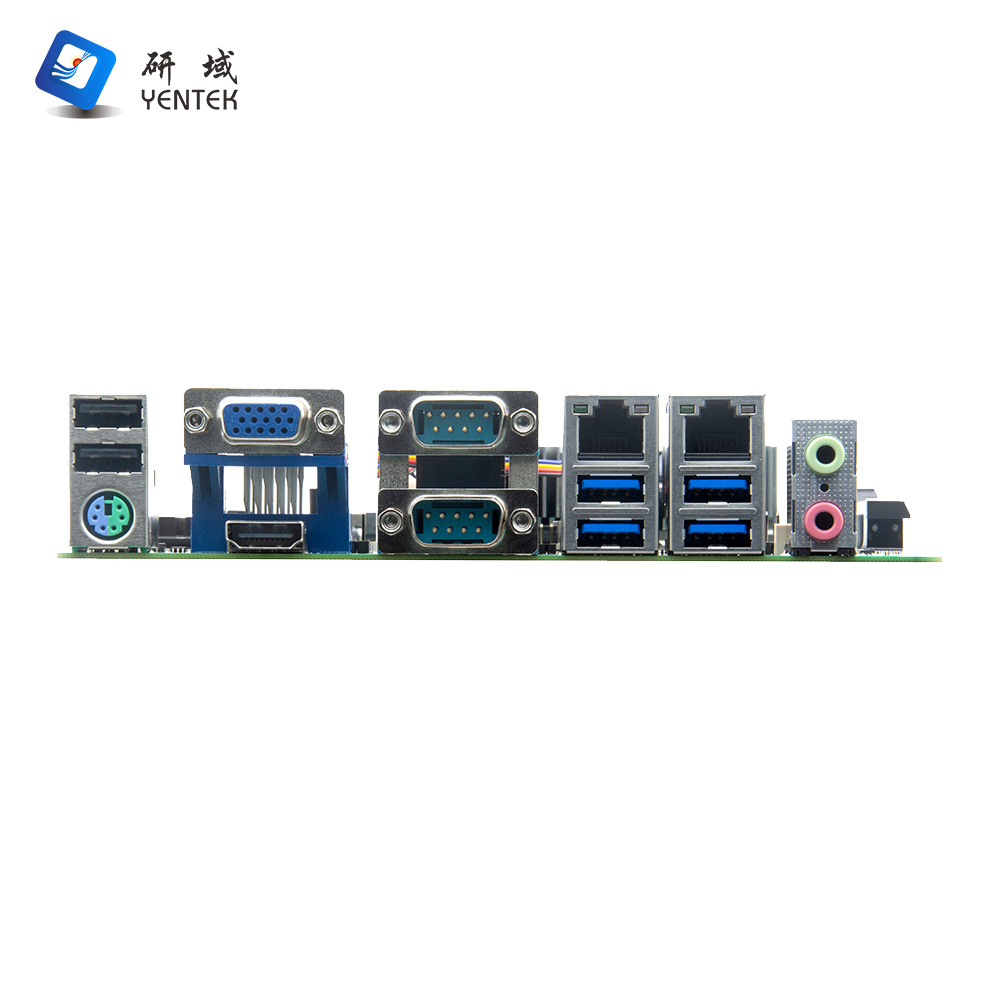

I/O ports on the backplane

1* PS/2 keyboard and mouse interface

1* HDMI port

1 x VGA port

2 x DB9 serial port, supporting RS485/422 function

2* RJ45 Gigabit network interface

1* Line-out(green),1*MIC(red)

1* DC12V power input port

1* LVDS interface, 2*15pin, support dual channel 24BIT

Built-in I/O interface

1* screen backlight power supply interface 1*6pin

4* RS232 serial port

2* CAN interface 1*2pin

4* USB2.0 interface 2*5pin

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* Front panel function button and indicator port 2*5 pin

1* CPLD burning interface 2*5pin

1* Line-out(green),1*MIC(red)

1* 2*2pin ATX power interface

1* 24pin ATX power interface

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

BIOS

128Mb Flash ROM

GPIO

Supports four input/output GPIO functions

Support system

UOS, Galactic Unicorn

Guard dog

The FT-2000/4 integrates two WDTS

Power supply type

Supports ATX power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm * 170mm
