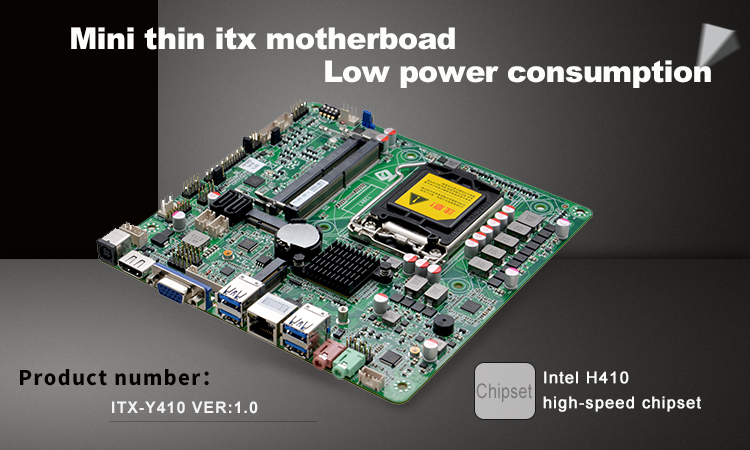

Product model

ITX-Y410 VER:1.0

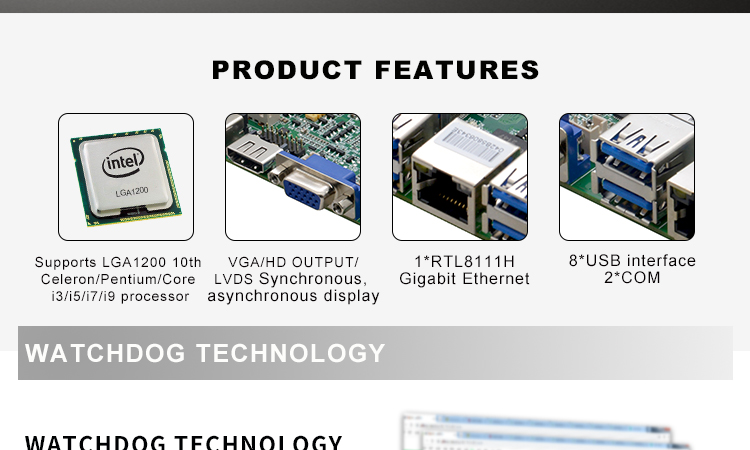

processor

Supports the LGA1200 10th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor

Note: Only 10gen cpus with 6 cores of 65W and below are supported

chipset

Using Intel® H410 high-speed chipset

Internal memory

2* DDR4 SODIMM slots, supporting up to 2933 MHZ memory and up to 128GB memory

display

Integrated Intel® HD Graphics core graphics card, support DirectX12,OpenGL4.5, support 4K/60Hz display

1 x VGA port, the maximum resolution is 1920X1200@60Hz

2* HD OUTPUT port, the maximum resolution is 4096 x 2160@30Hz

1* Supports dual-channel 24bit LVDS interface

Note: EDP interface can be supported, and the pin is shared with LVDS

network

1* RTL8111H Gigabit NIC chip, supports network wake up /PXE function

deposit

2* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* M.2 slot, supporting M.2 2260/2280 SATA SSDS

Tone frequency

Onboard ALC892 7.1+2 channel high fidelity audio controller, support MIC/Line-out, power amplifier

Expansion slot

The amplifier supports 4Ω/3W dual channels

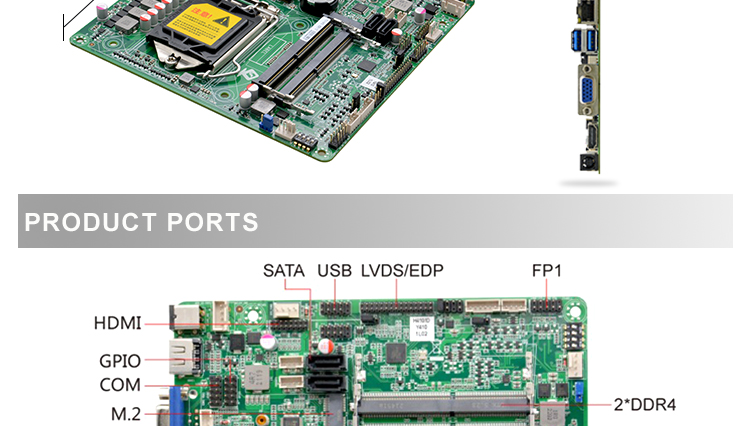

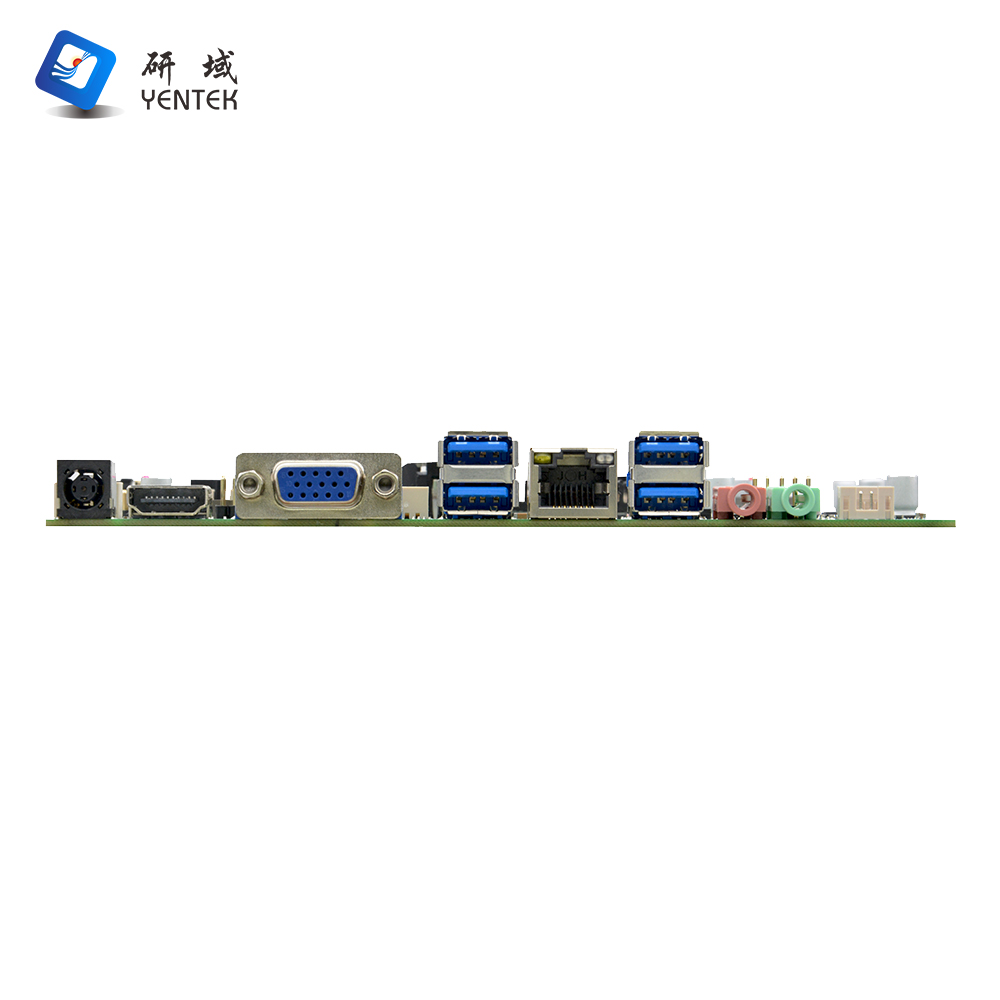

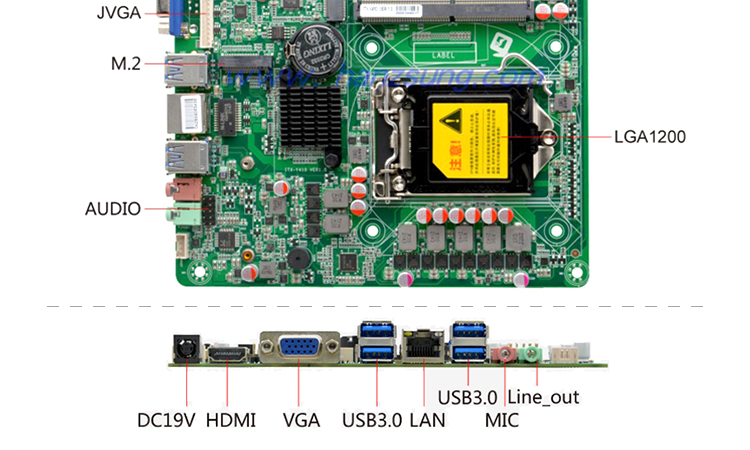

I/O ports on the backplane

1* M.2 slot, supporting the M.2 2230 WIFI module

4* USB3.0 port

1* HD OUTPUT port

1 x VGA port

1* RJ45 Gigabit network port

1* Line-out(green),1*MIC(red)

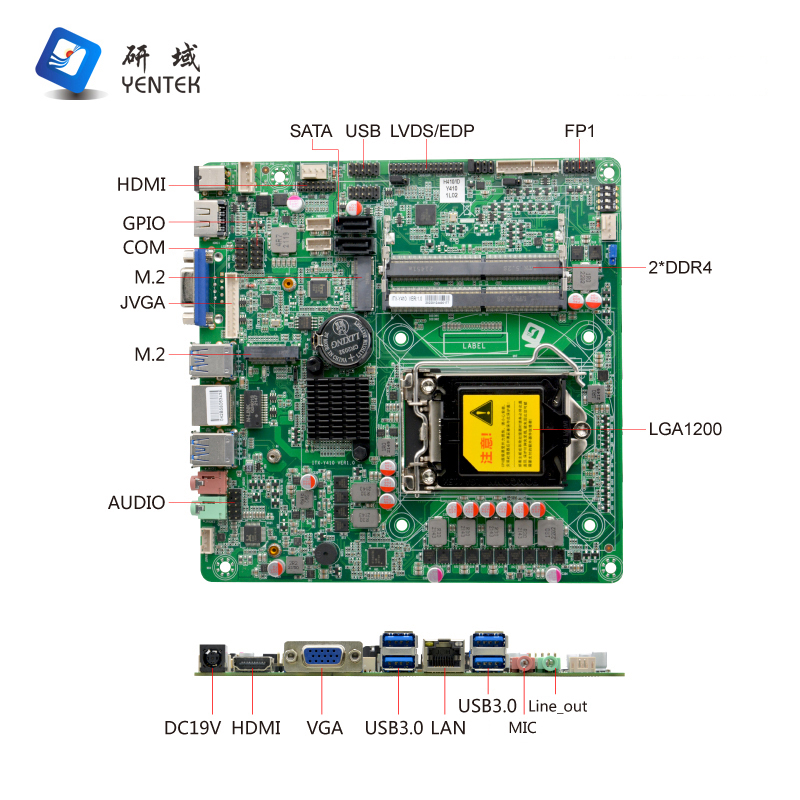

Built-in I/O interface

1* DC12~19V power input interface

1* JVGA port 1*12pin, same signal as VGA port

1* LVDS interface or EDP interface 2*15pin, support dual channel 24bit

1* backlight power supply interface 1*6pin

1* screen brightness adjustment interface 1*4pin

1* RS232 serial interface,

4* USB2.0 interface 2*5pin

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* hard disk power supply voltage port 1*4pin

1* Front panel function button and indicator port 2*5pin

1* DC power interface.1*4pin support DC12~19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system fan port

GPIO

Supports four input/output GPIO functions

BIOS

128Mb Flash ROM

Support system

Windows 10/Linux

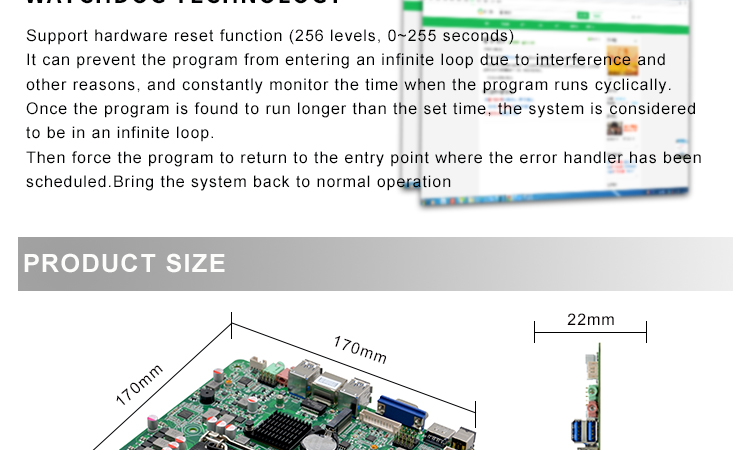

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

Support DC12~19V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

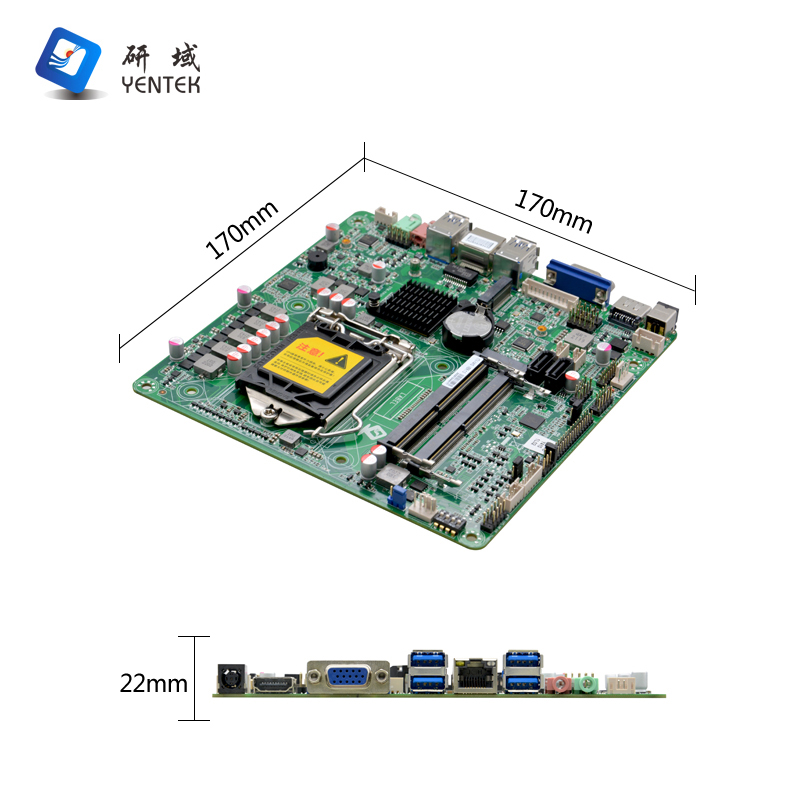

Size

170mm * 170mm
