Product model

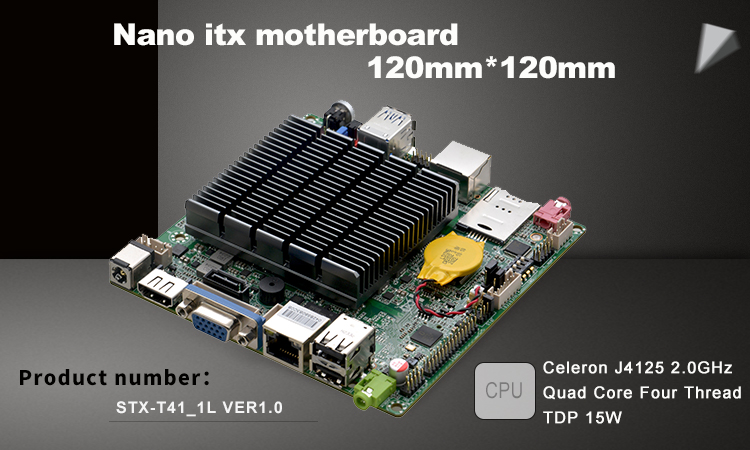

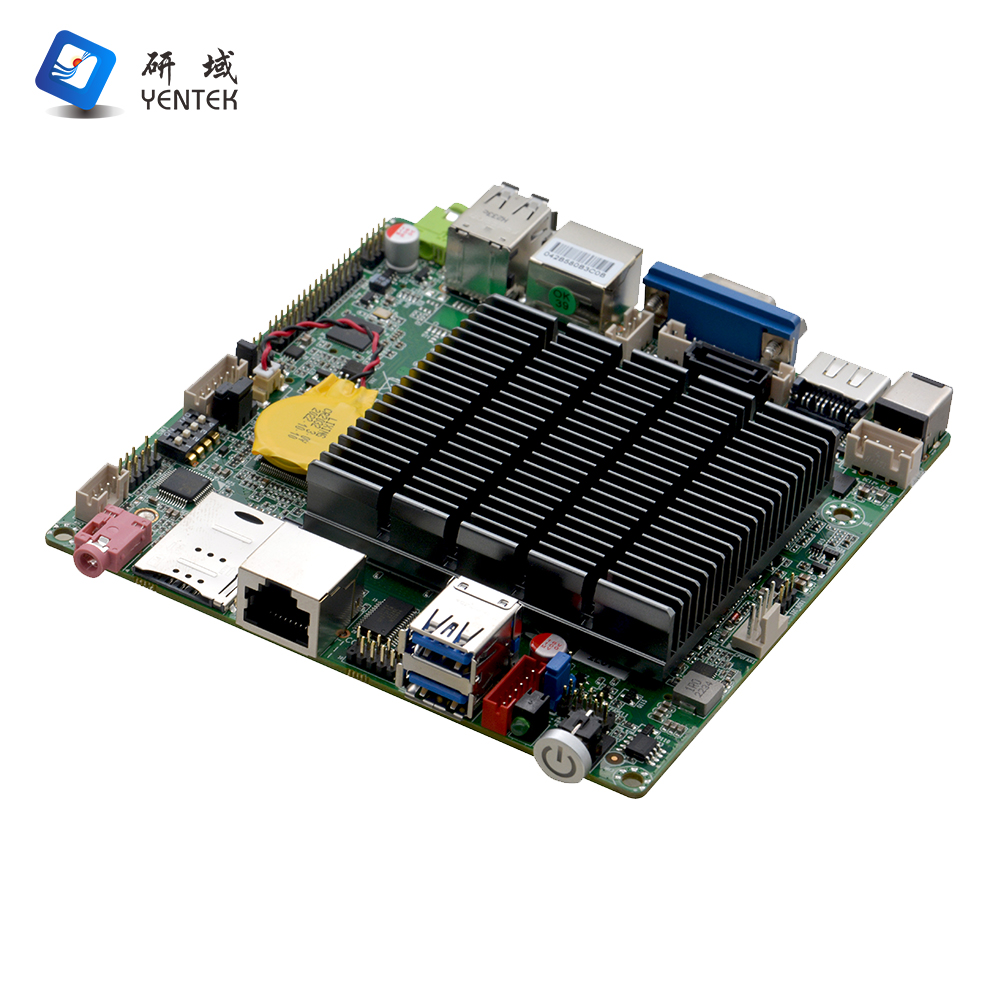

STX-T41_1L VER:1.0(J4125)

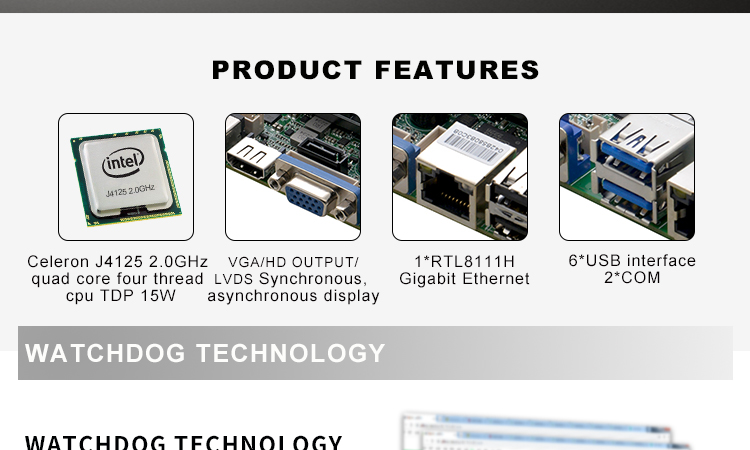

processor

Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W

Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly

chipset

SOC

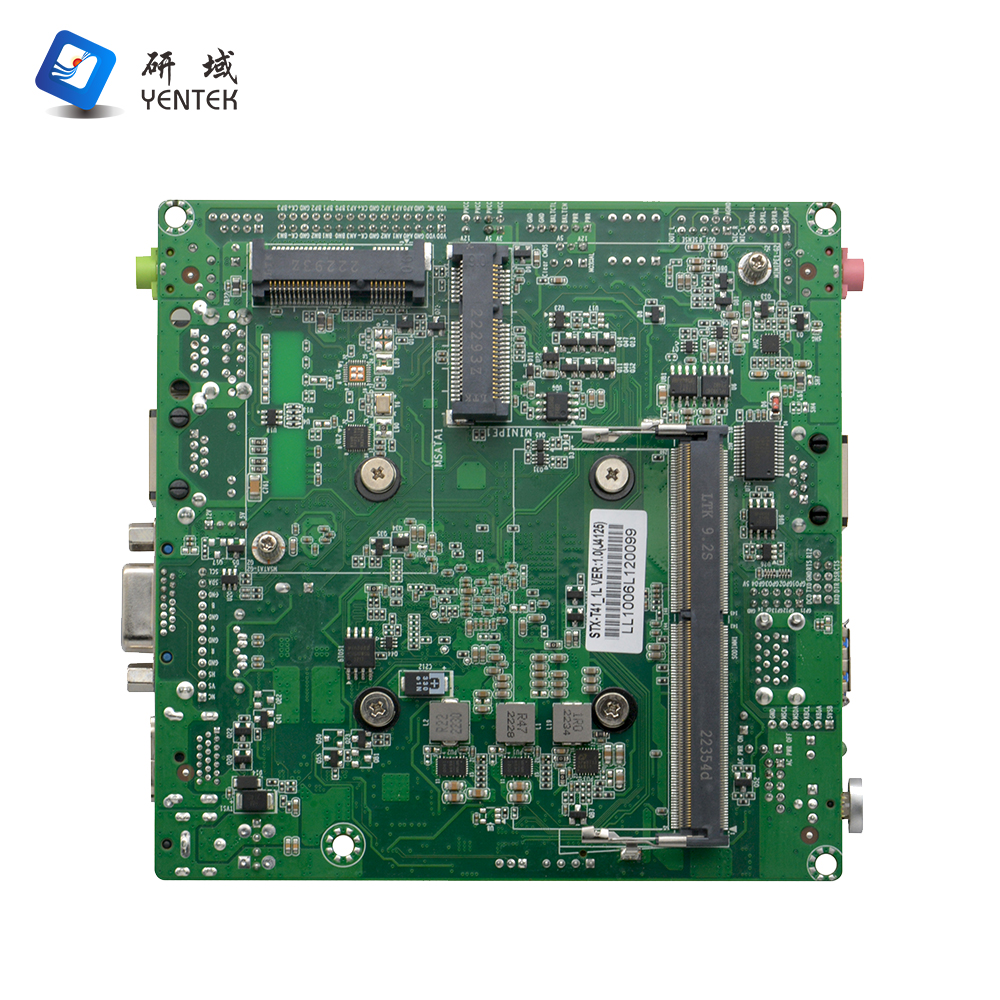

Internal memory

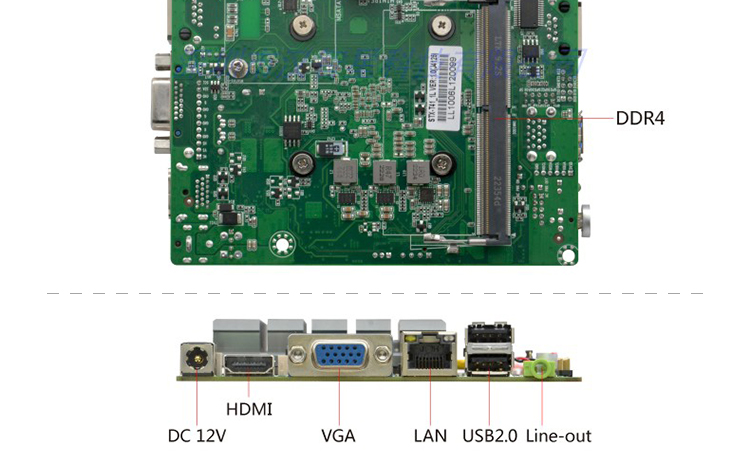

1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB)

display

Integrated Intel® UHD Graphics 600 core graphics card

1*VGA,1*HD OUTPUT,1*LVDS interface (Support dual channel 24BIT)

Support VGA; HD OUTPUT; LVDS Synchronous or asynchronous display

network

1* RTL8111H Gigabit NIC chip, supports network wake up /PXE function

deposit

1* 7pin SATA3.0 hard disk port

The 1* MSATA slot supports SSDI, and the SSD transfer speed is up to 6Gbps

Tone frequency

Onboard ALC897 6-channel hi-fi audio controller with MIC/Line-out support. Power amplifier

The power amplifier is recommended to use a 4Ω3W speaker

Expansion slot

The 1* Mini-PCIE slot supports WIFI/4G modules

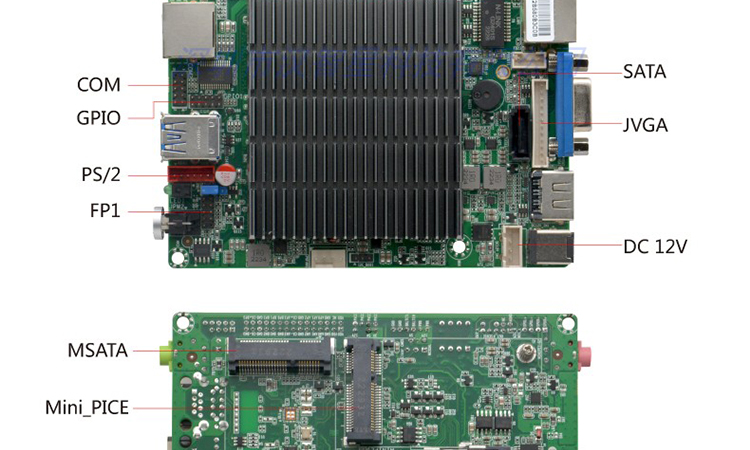

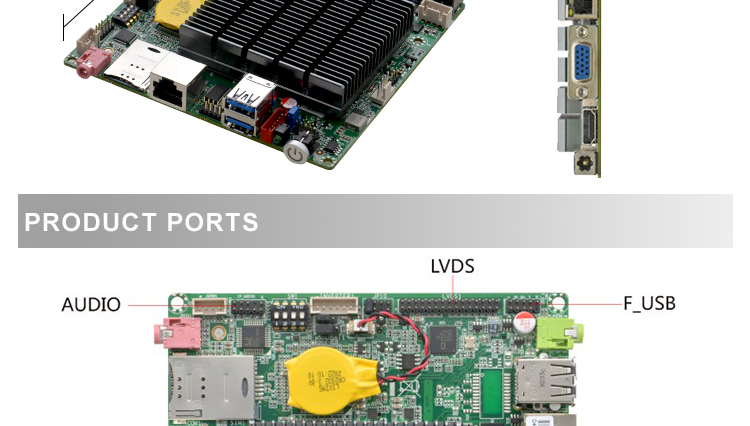

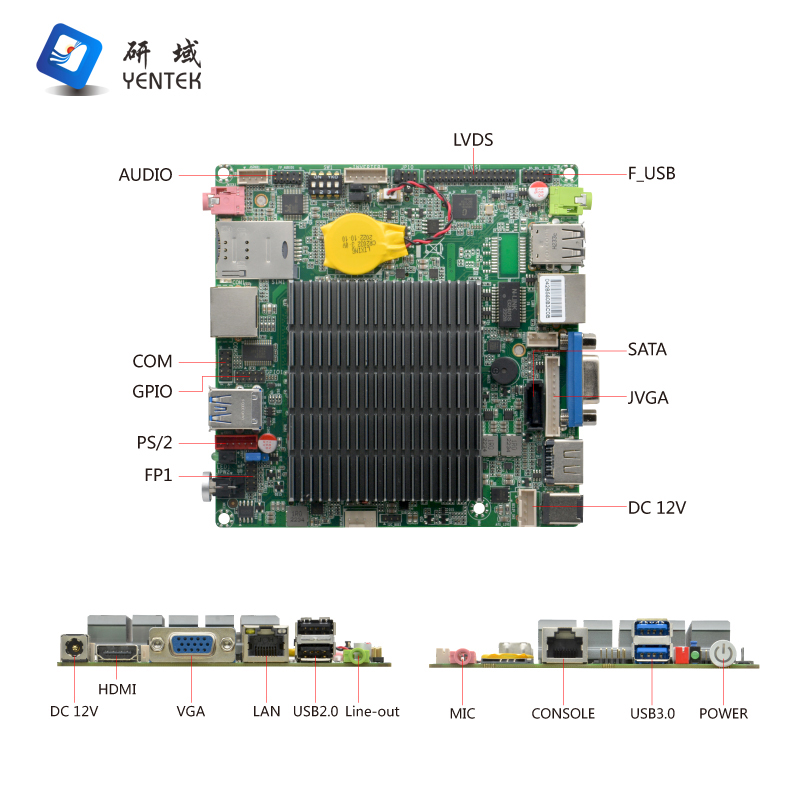

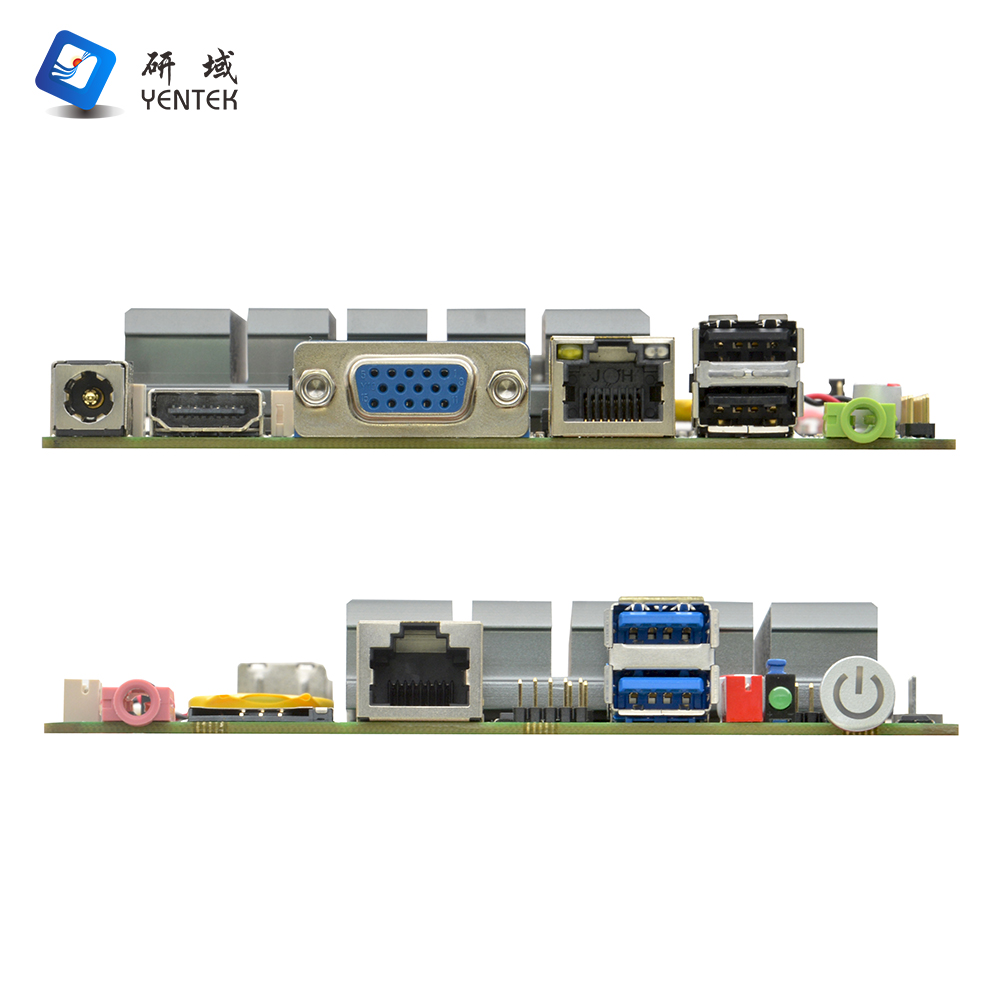

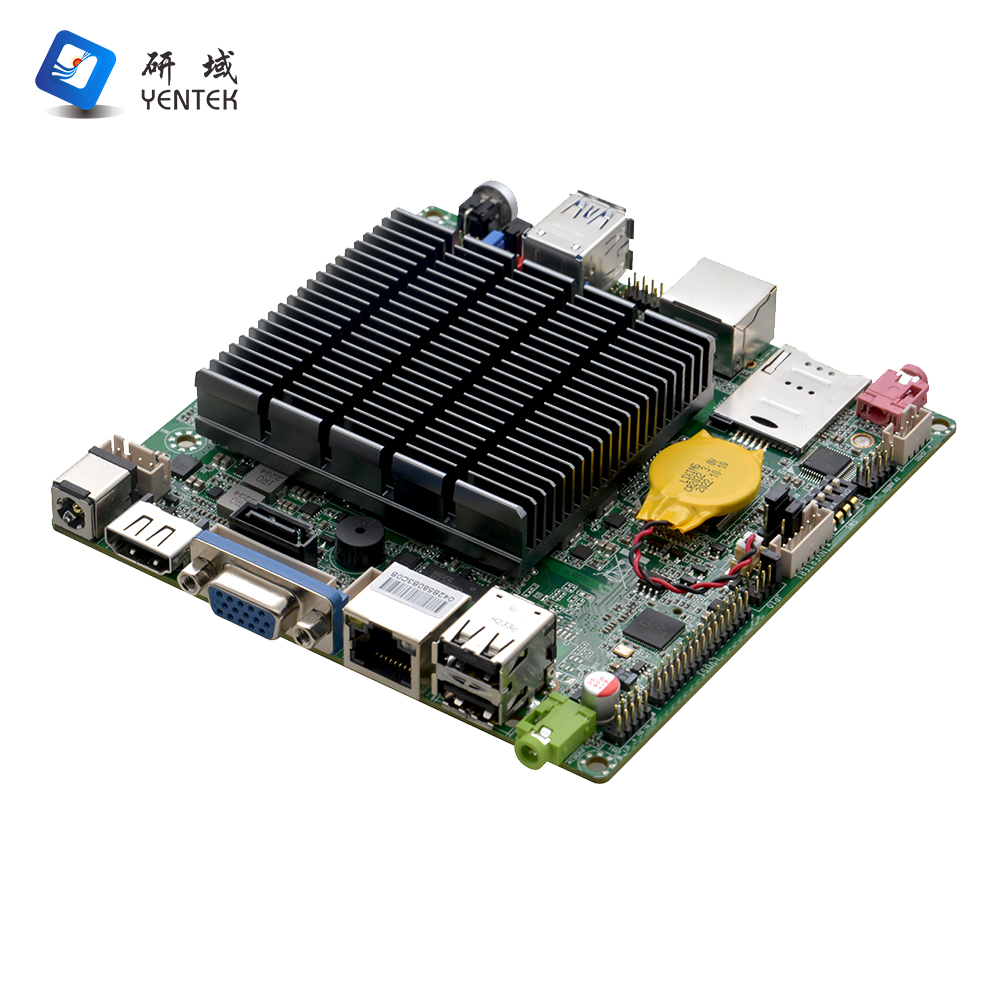

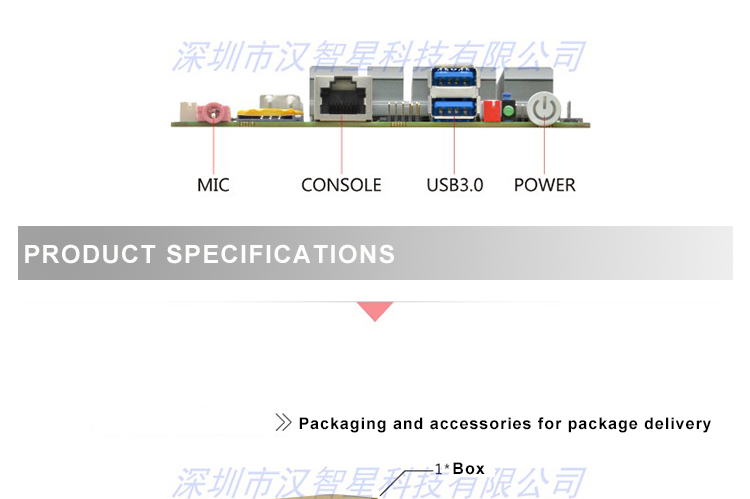

I/O ports on the backplane

2 x USB3.0,2 x USB2.0

1* HD OUTPUT port

1 x VGA port

1* RJ-45 Gigabit network interface

1* Line out (green),1* MIC (purple)

1* RJ-45 serial port

1* Power button

1 x 12V DC power port

1* SIM card slot

Built-in I/O interface

1* LVDS interface (2*15pin), supporting dual-channel 24BIT LCD display

1* LVDS backlight interface 1*6pin)

The 1* JVGA1 interface (1*12pin) has the same signal as the DB15

1* RS232 serial port 2*5pin

2* USB2.0 interface (2*5pin)

1* PS/2 Mouse and keyboard interface (1*6Pin)

1* Front panel audio interface (2*5pin)

1* hard drive power port 1*4pin

1* Front panel function buttons and indicator ports (2*5pin)

1* 4pin DC power interface, support 12V power input and output

1* Power amplifier interface (1*4pin)

Fan interface

Supports fan-less heat dissipation, and a 1* 4pin CPU intelligent fan port is reserved

GPIO

Supports four input/output GPIO

BIOS

AMI 64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Linux

Power supply type

DC_12V single power input

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

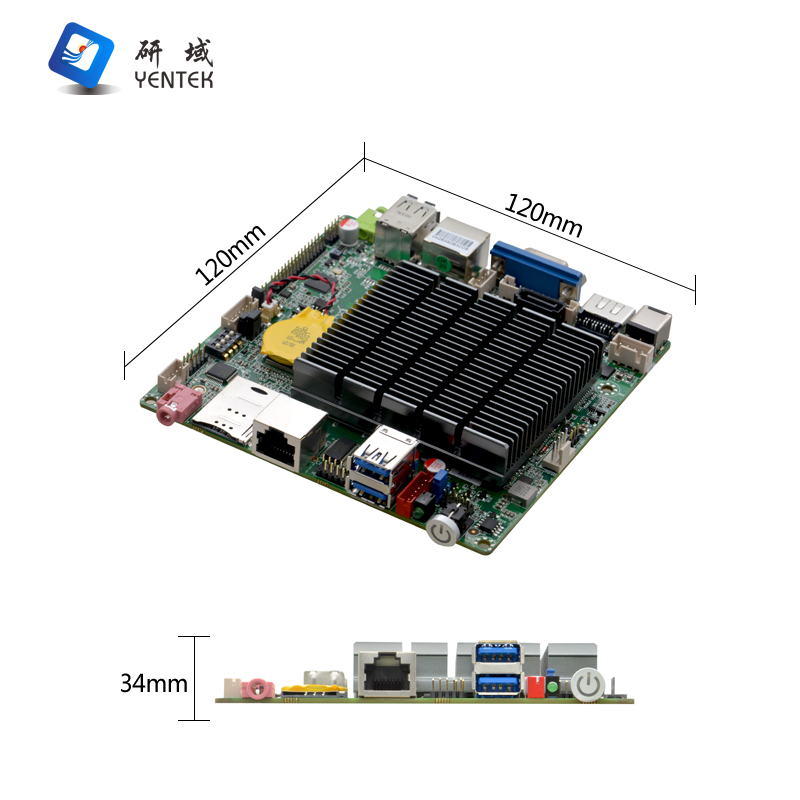

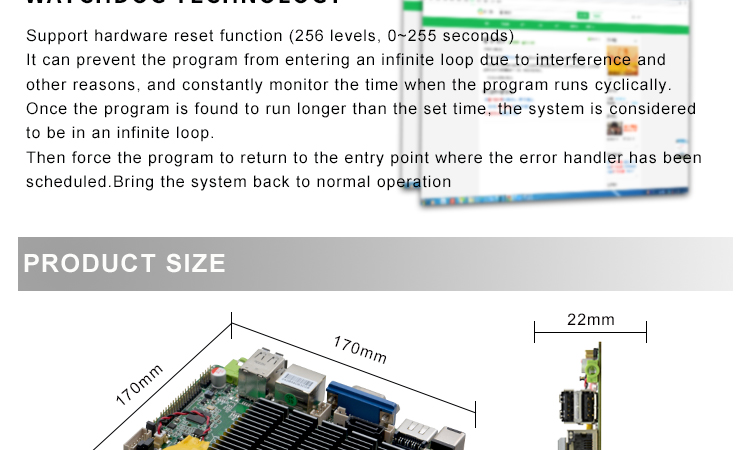

dimension

120mm x 120mm
