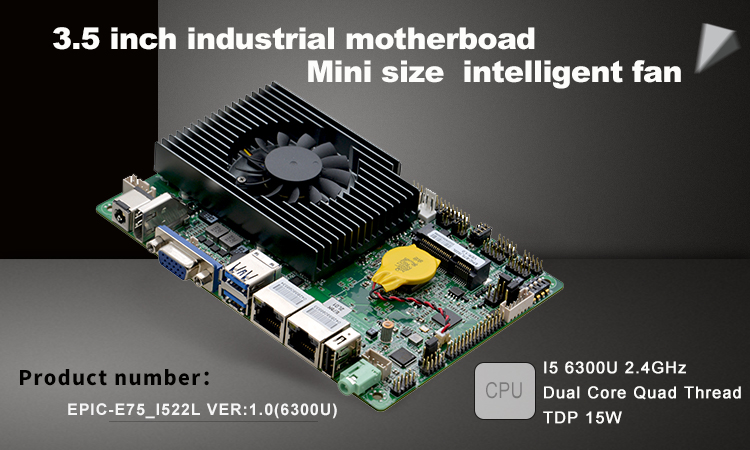

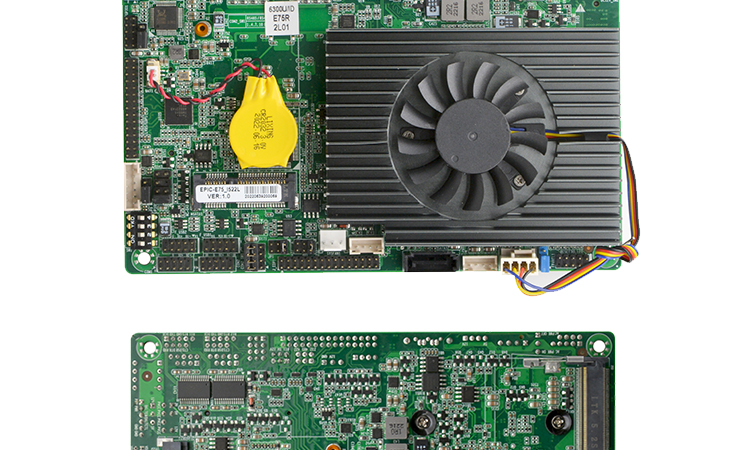

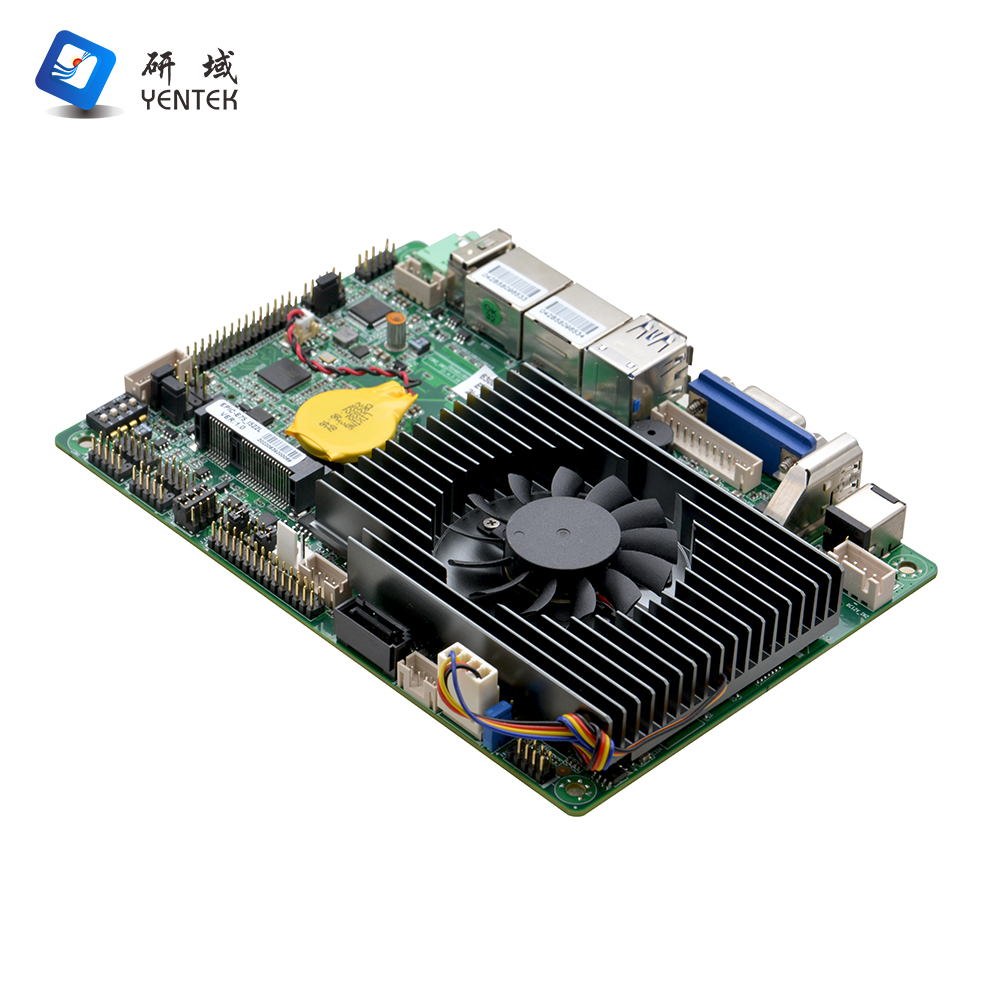

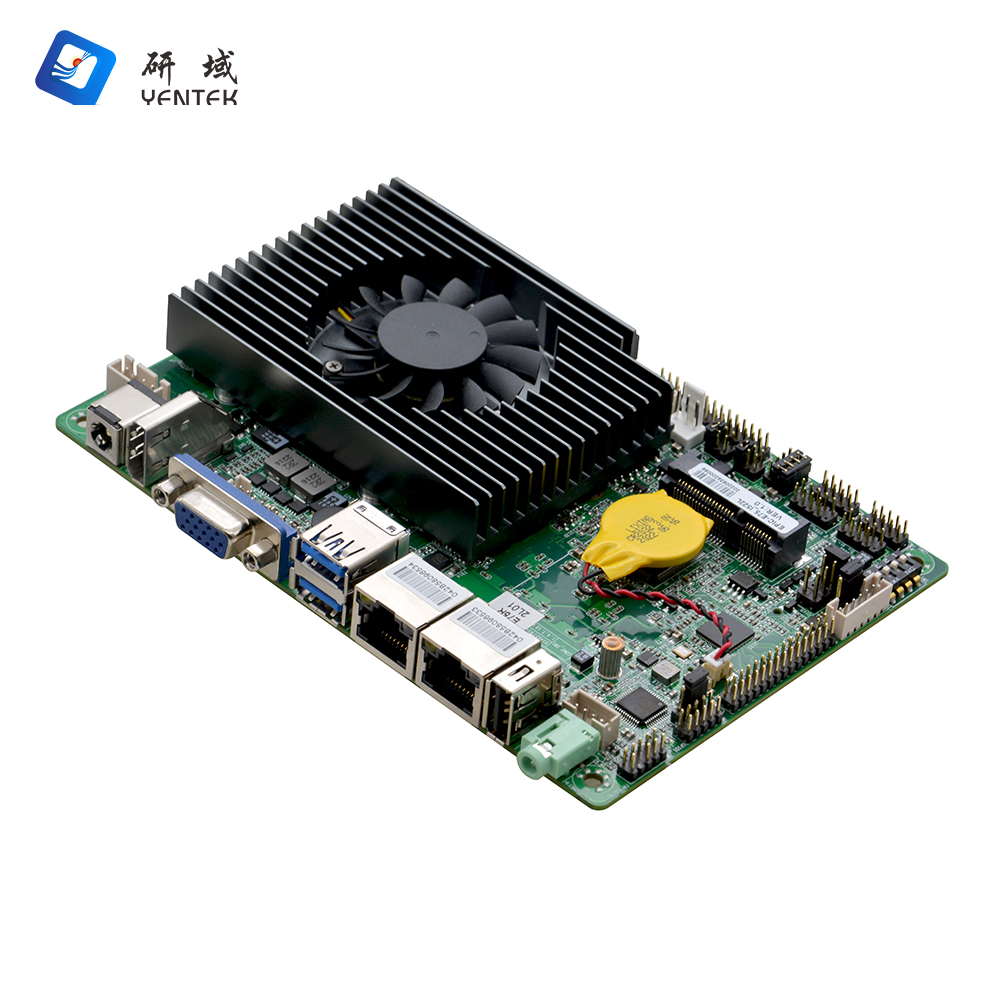

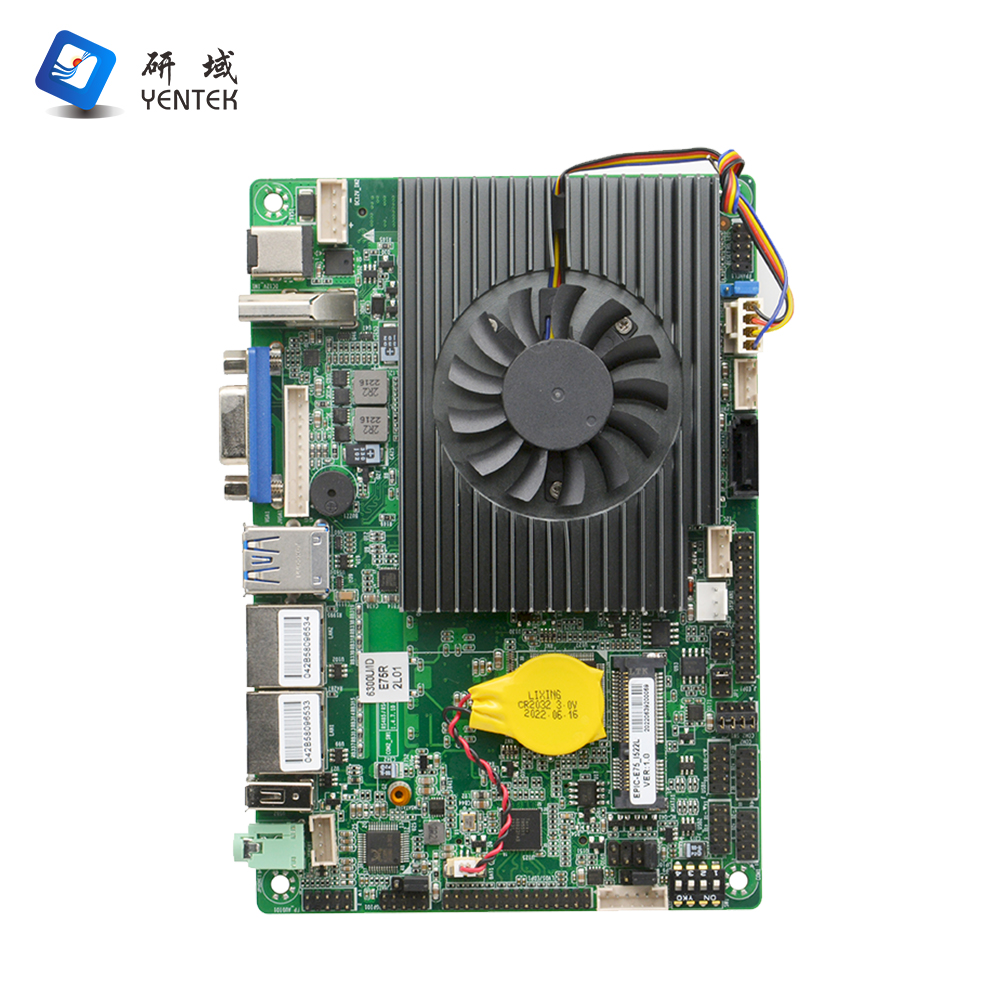

Product model

EPIC-E75_I522L VER:1.0(6300U)

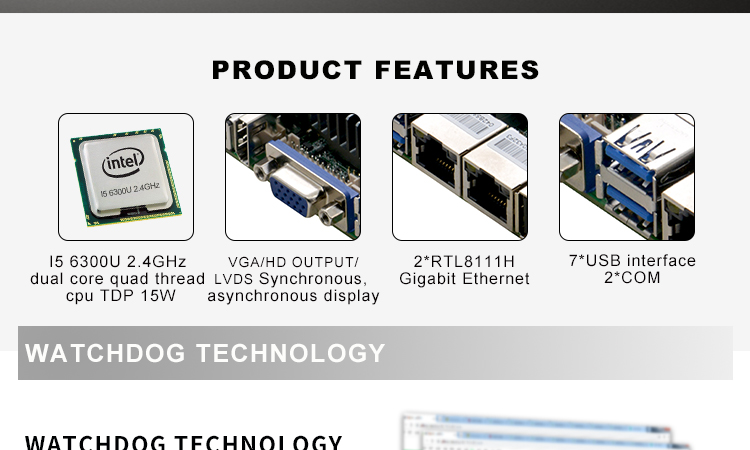

processor

Integrated Intel® I5-6300U 2.4GHz dual-core quad-thread processor, TDP15W

Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low power processors

chipset

SOC

Internal memory

1*SODIMM slot for supporting DDR4 2133MHz memory and a maximum of 32GB

display

Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5 and 4K

1*VGA,1* HD OUTPUT interface,1*LVDS interface, support dual channel 24Bit or EDP

Note:LVDS and EDP are optional

network

2* RTL8111H Gigabit NIC, supports network wake up and PXE functions

deposit

1* 7pin SATA3.0 slot, transmission rate up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps

Tone frequency

Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with Line-out support. Power amplifier

The amplifier supports 4Ω/3W dual channels

Expansion slot

1* Mini-PCIE slot, supporting WIFI/4G module

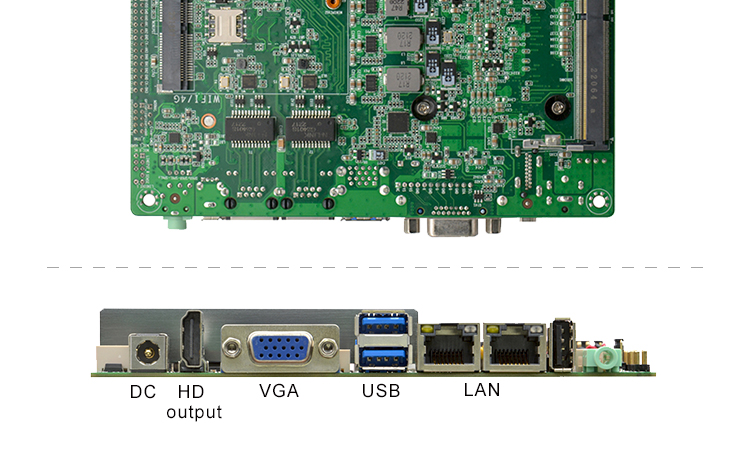

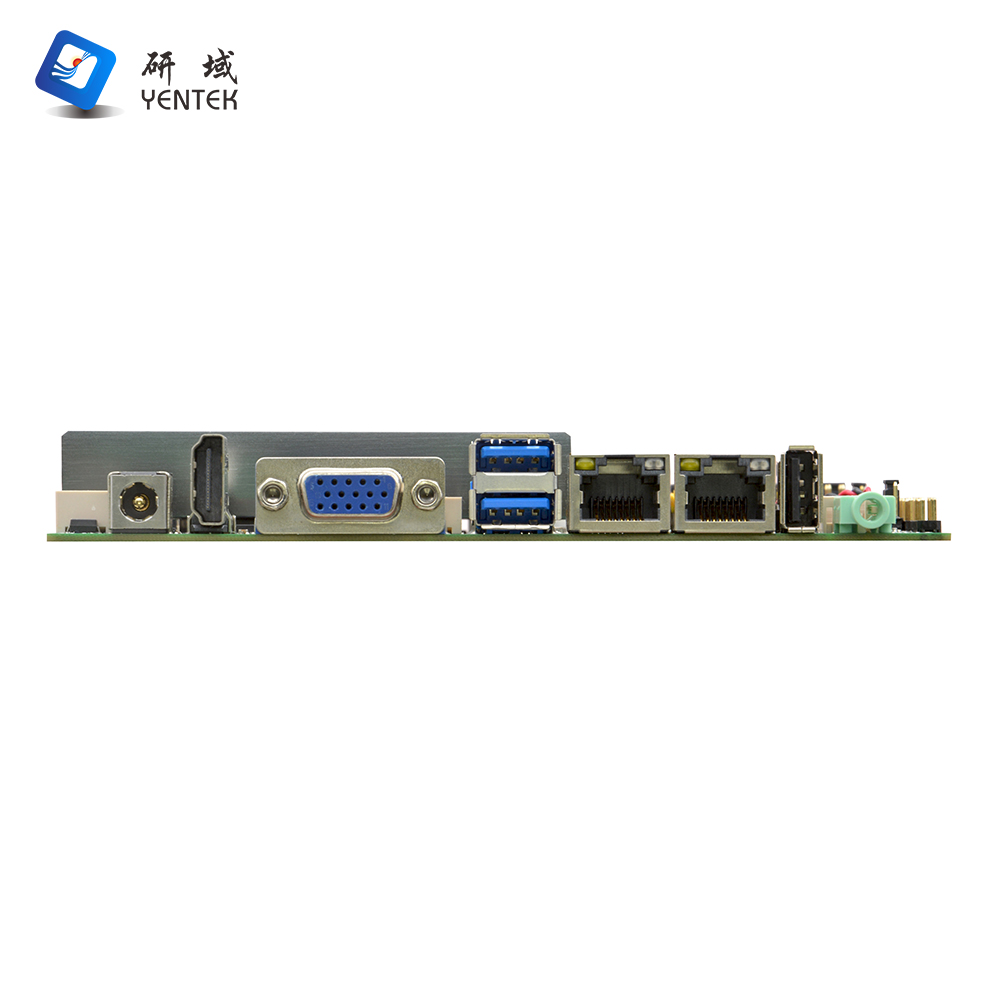

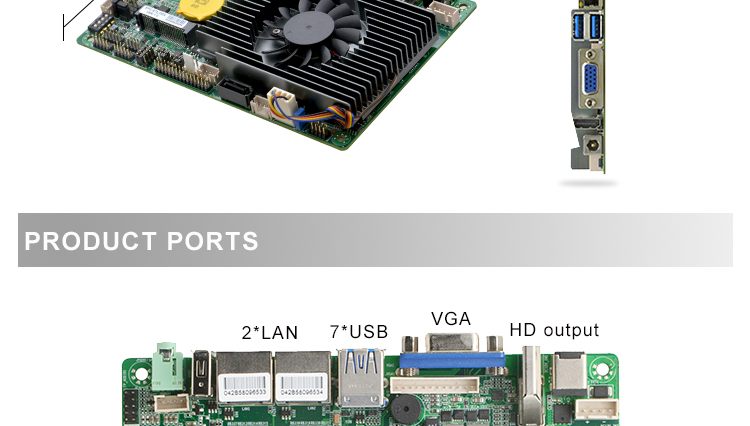

I/O ports on the backplane

1* DC 12V power input port

1* HD OUTPUT port

1 x VGA port

2* USB3.0 port

1* USB2.0 interface

2* RJ45 Gigabit network interface

1* Line-out (green),

Built-in I/O interface

1* 4pin DC power interface, support 12V power input and output

1* JVGA port 1*12pin, same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT,

1* EDP interface, 2*15pin, and LVDS interface is one of two options, default LVDS

1* screen backlight power supply interface 1*6pin

2* RS232 serial interface, where COM1 supports 9pin live function,COM2 can support RS485 function

4* USB2.0 interface 2*5pin

1* front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* hard drive power port 1*4pin

1* Front panel function button and indicator port 2*5pin

Fan interface

1*4pin CPU intelligent fan interface,1*3pin system fan interface

GPIO

Supports four input/output GPIO

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows7/Windows 10/Linux

Power supply type

Adopts DC 12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

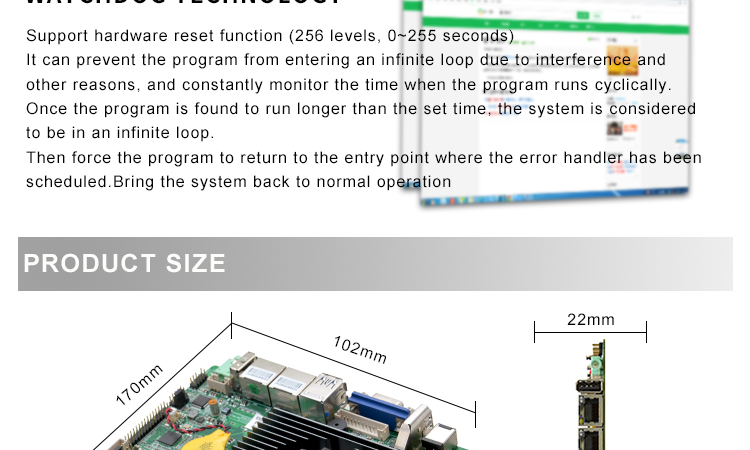

Size

148mm x 102mm
