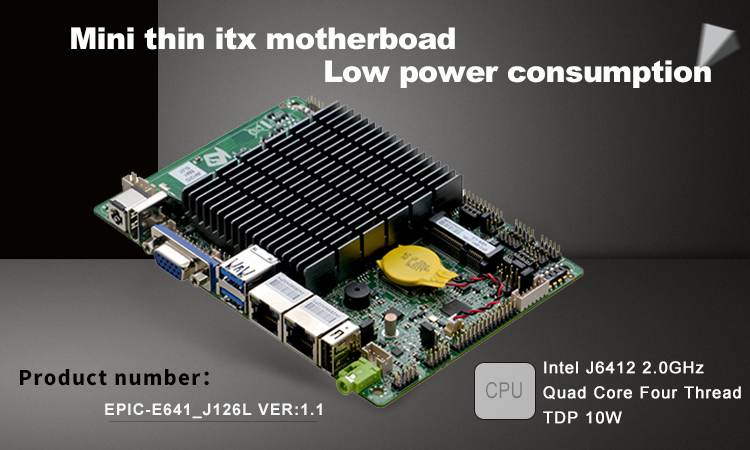

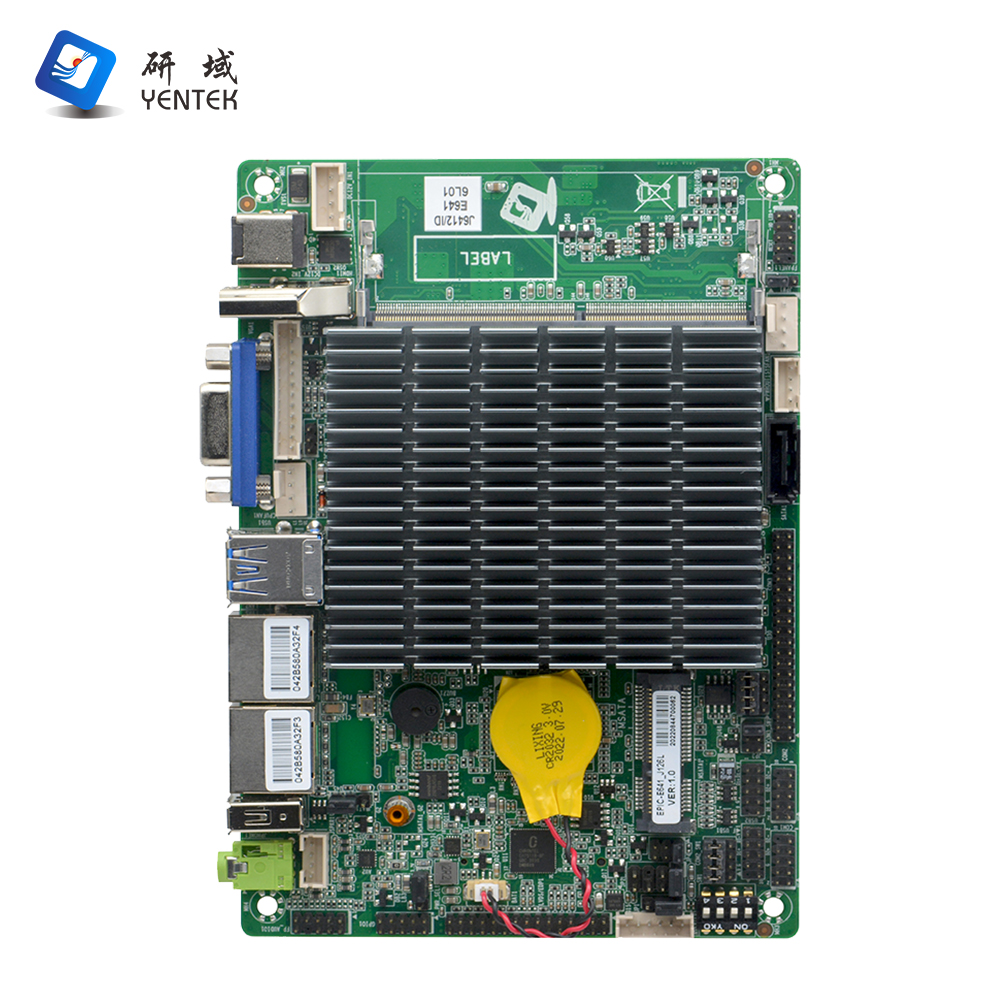

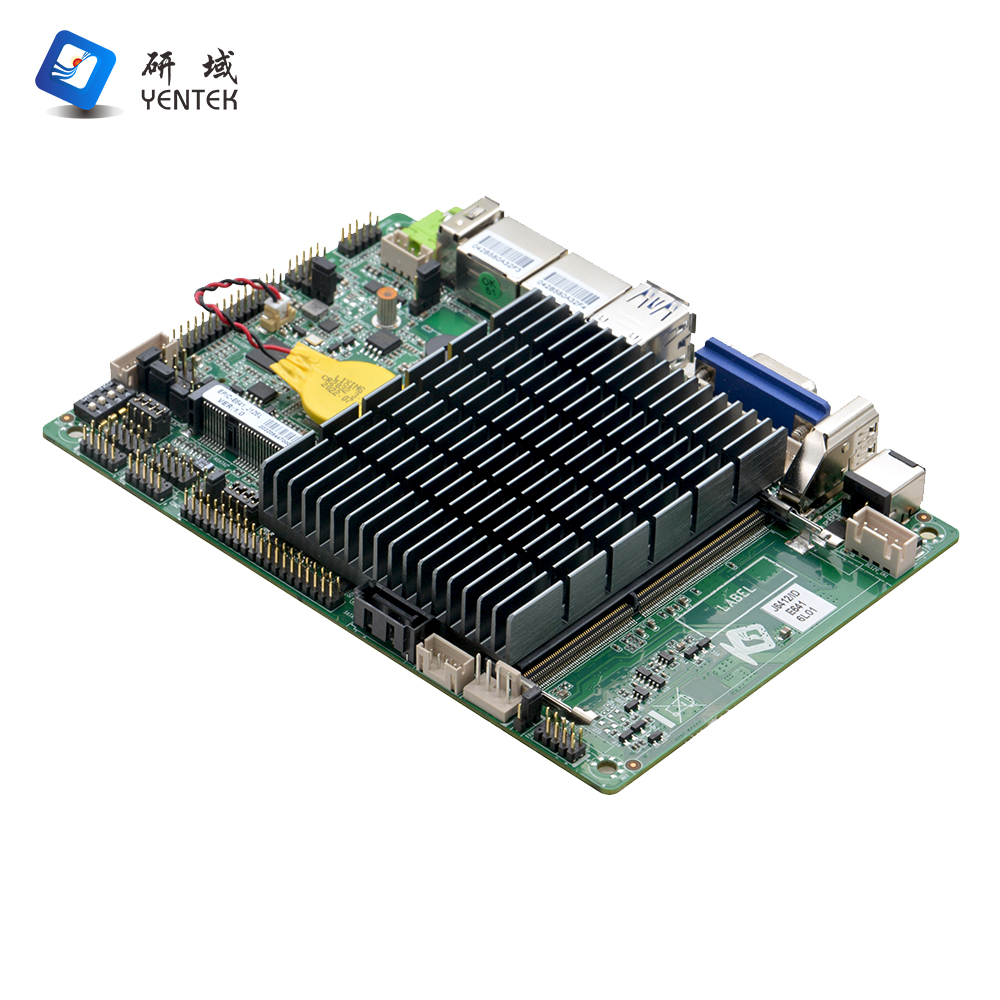

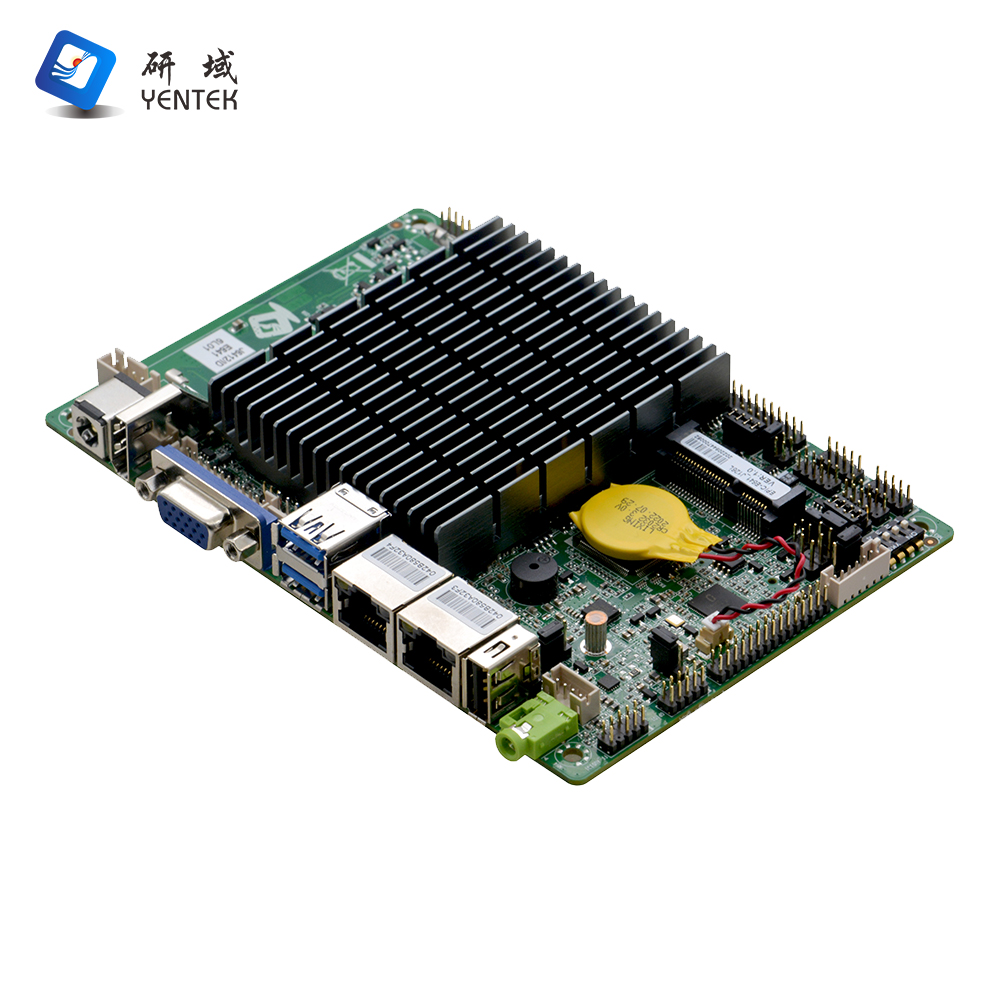

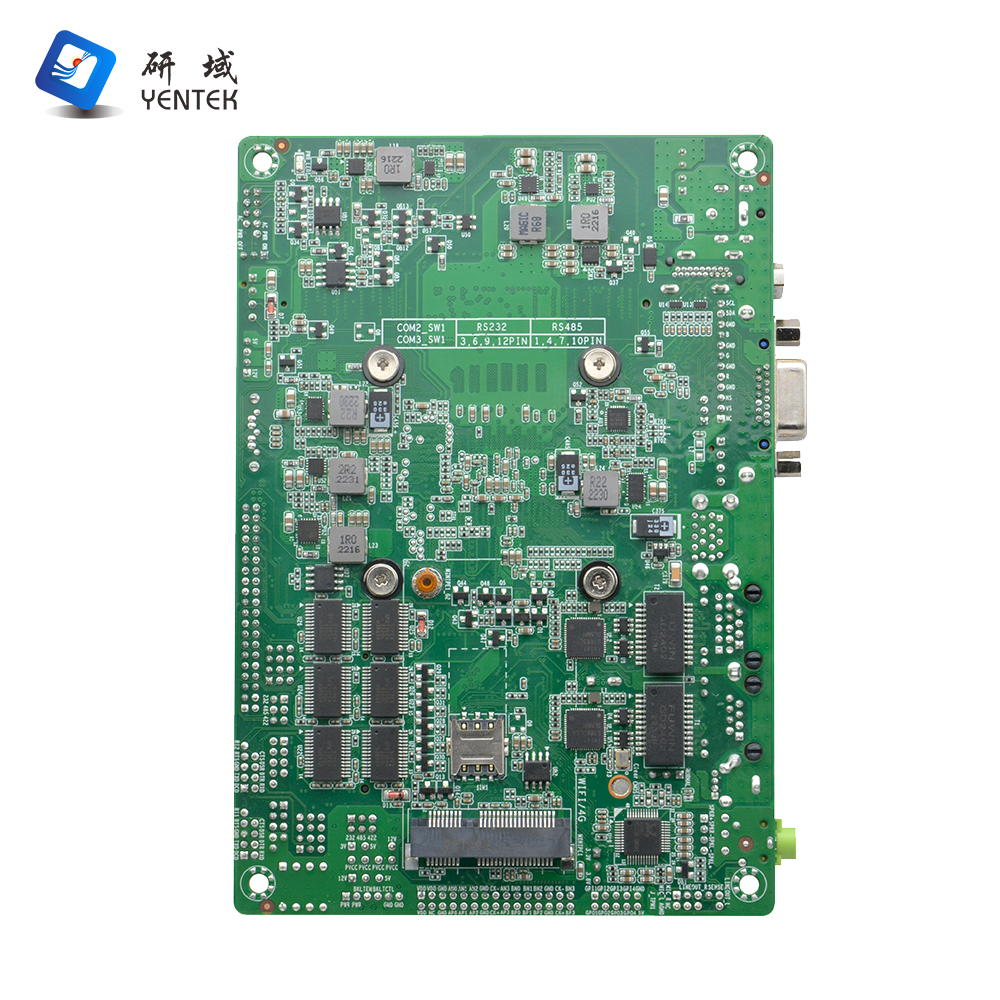

Product model

EPIC-E641_J126L VER:1.0(J6412)

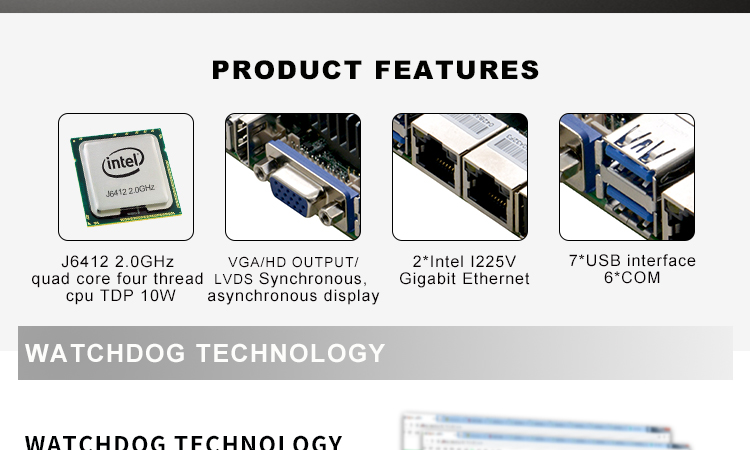

processor

Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor,TDP 10W, Compatible with the full range of Intel® Elkhart Lake cpus, customers can choose flexibly

chipset

SOC

Internal memory

1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 16GB)

display

Integrated Intel® UHD Graphics core graphics card

1* VGA,1*HD OUTPUT,1* LVDS

network

2 x Intel I225V Gigabit network adapter, supporting network wake up and PXE functions

deposit

1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps

Tone frequency

Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier

The power amplifier is recommended to use a 4Ω3W speaker

Expansion slot

1* Mini-PCIE slot, supporting the WIF/4G module

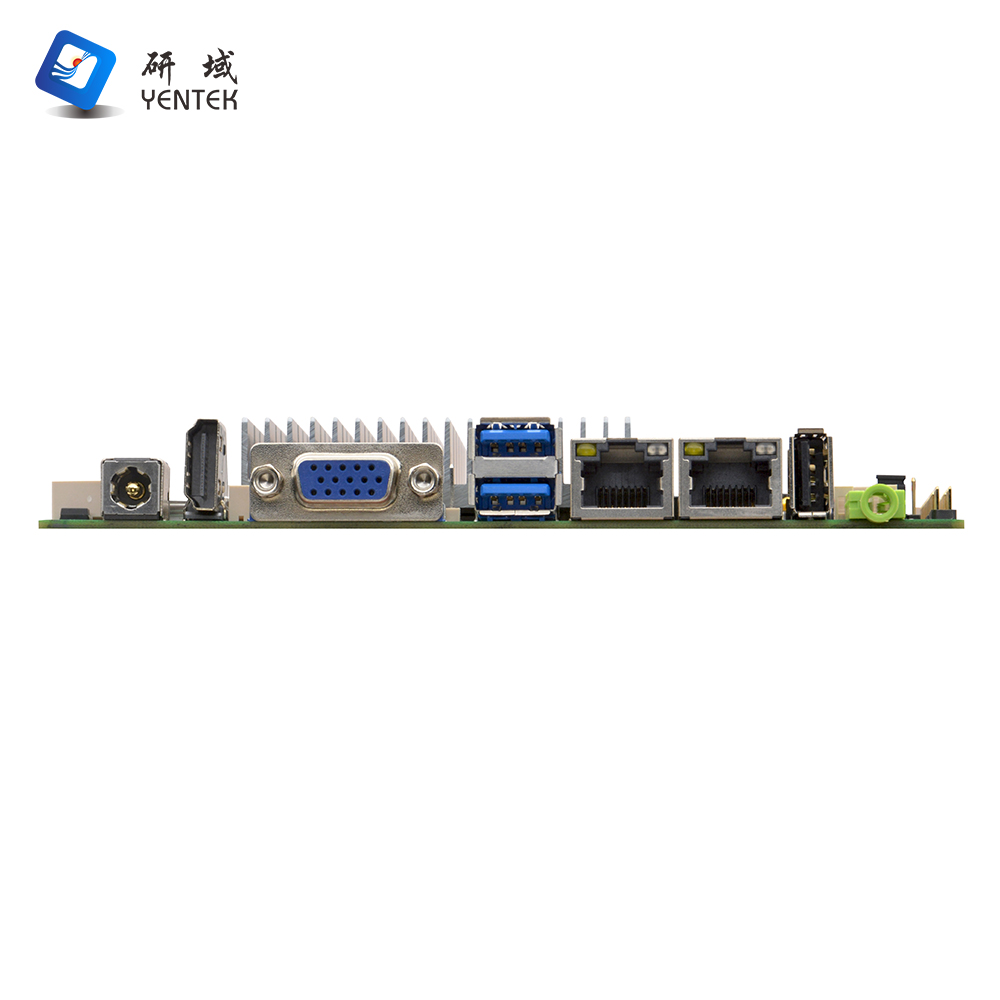

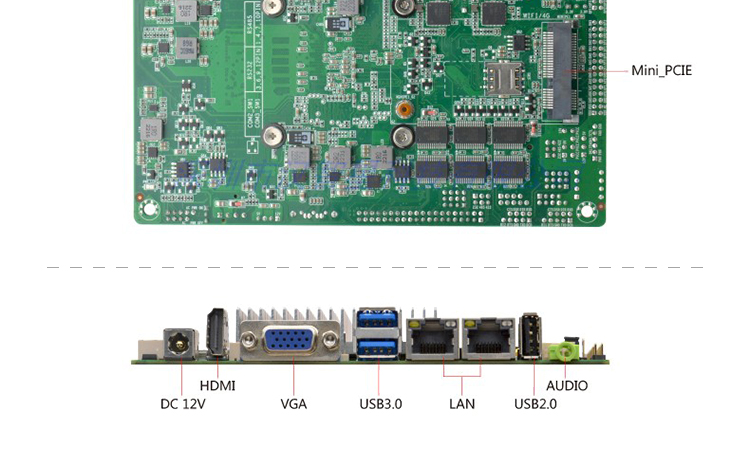

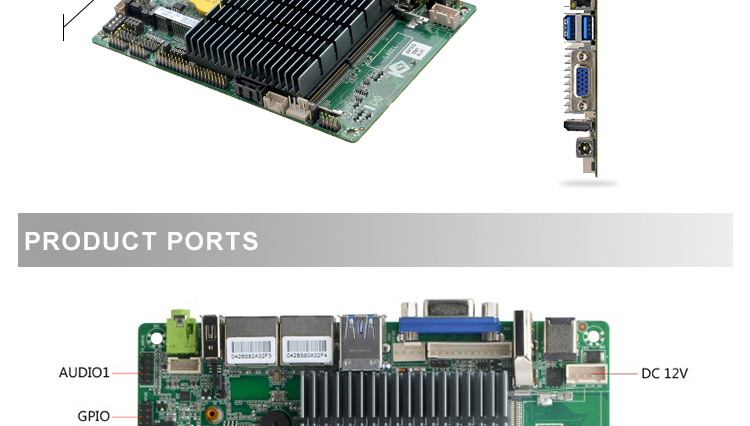

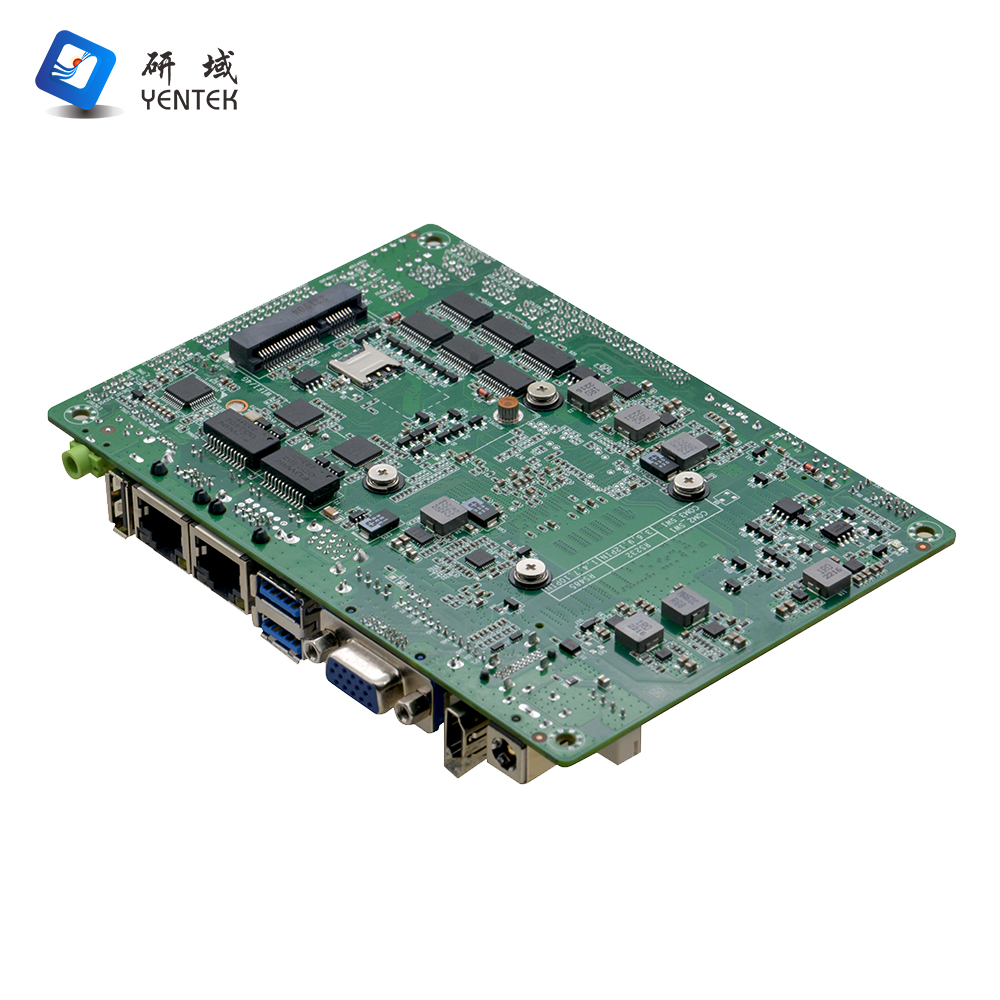

I/O ports on the backplane

1* DC 12V power input port

1 x VGA display port

1* HD OUTPUT display interface

2* USB3.0 ports,1* USB2.0 ports

2* RJ45 Gigabit network interface

1* Line-out (green)

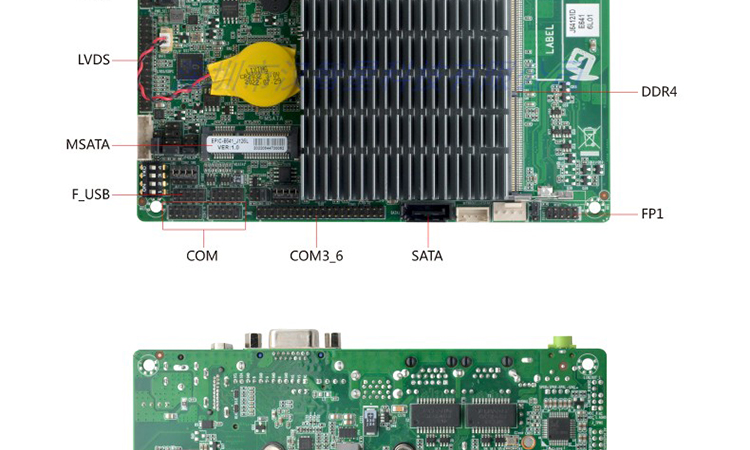

Built-in I/O interface

1* DC power interface, 1*4pin support 12V power input and output

1* JVGA port 1*12pin, same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT, and EDP for shared pin

1* screen backlight power supply interface 1*6pin

4* USB2.0 interface, 2*5pin

6* RS232 serial interface,COM2/COM3 support RS485/422 function,

1* hard drive power port 1*4pin

1 Front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* SIM card slot

1* Front panel function button and indicator port 2*5pin

Fan interface

Without fan heat dissipation, a 1*4pin CPU intelligent fan port and a 1*4pin system fan port are reserved

Note: can support with fan radiator, please customers according to their own structural design to decide passive heat dissipation or active heat dissipation, there is a need to have a fan radiator, please contact the salesman

GPIO

Supports four input/output GPIO

BIOS

64Mb Flash ROM

Guard dog

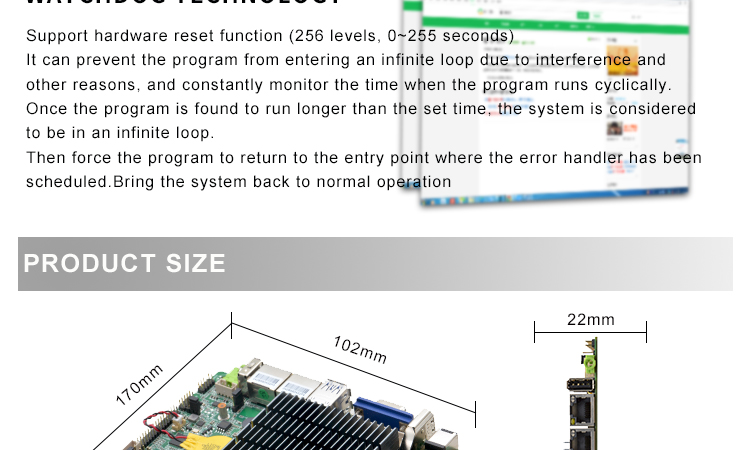

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Linux

Power supply type

Adopts DC 12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

dimension

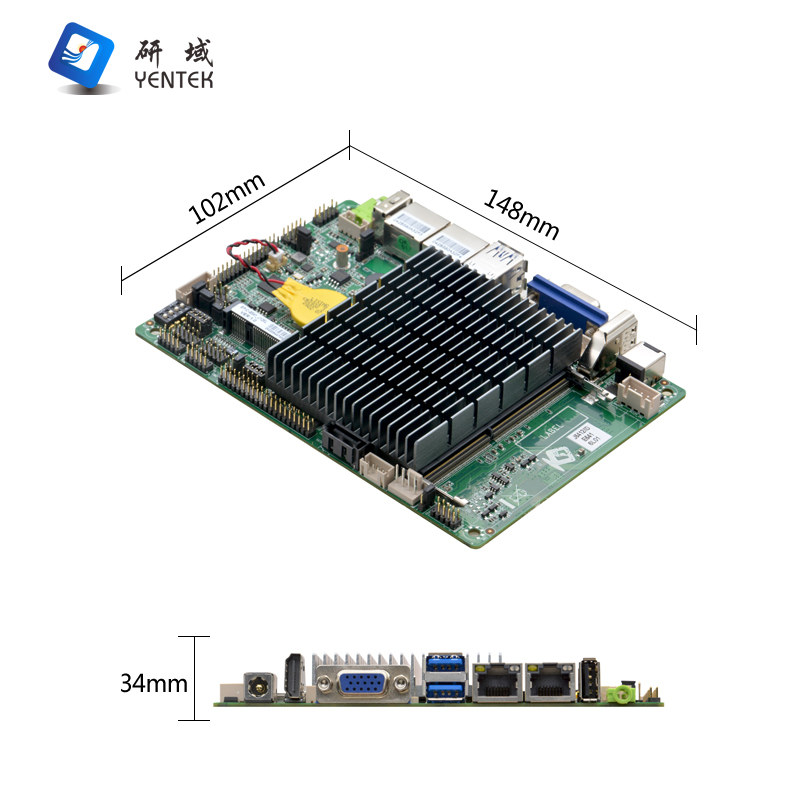

148mm x 102mm
