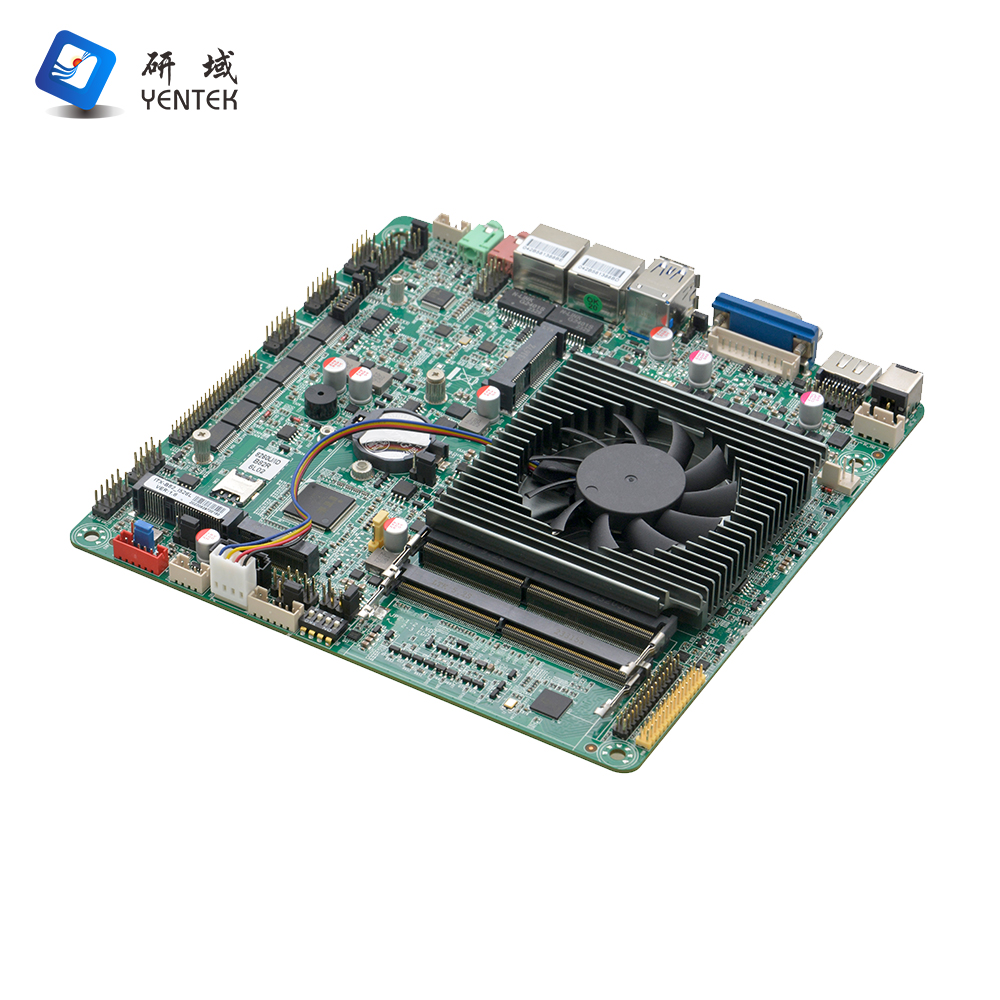

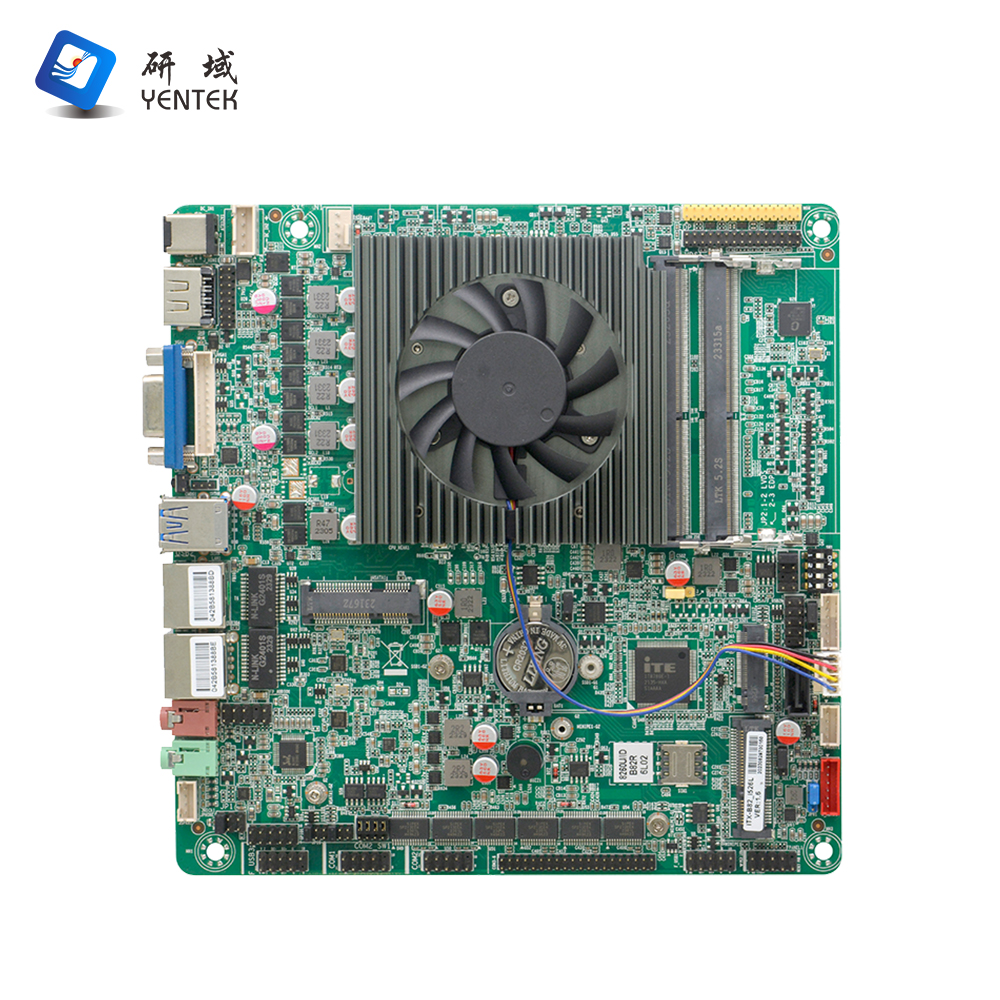

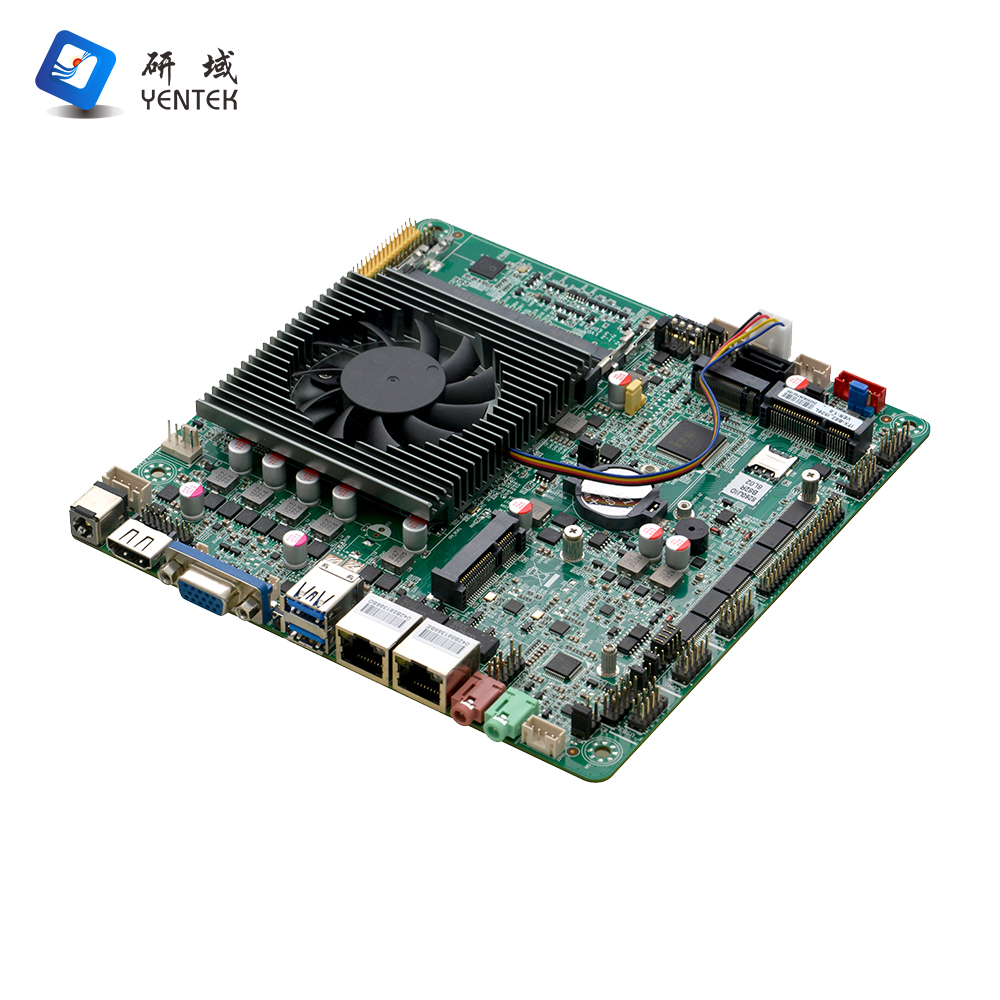

Product model

ITX-B82_I526L VER:1.6(8260U)

processor

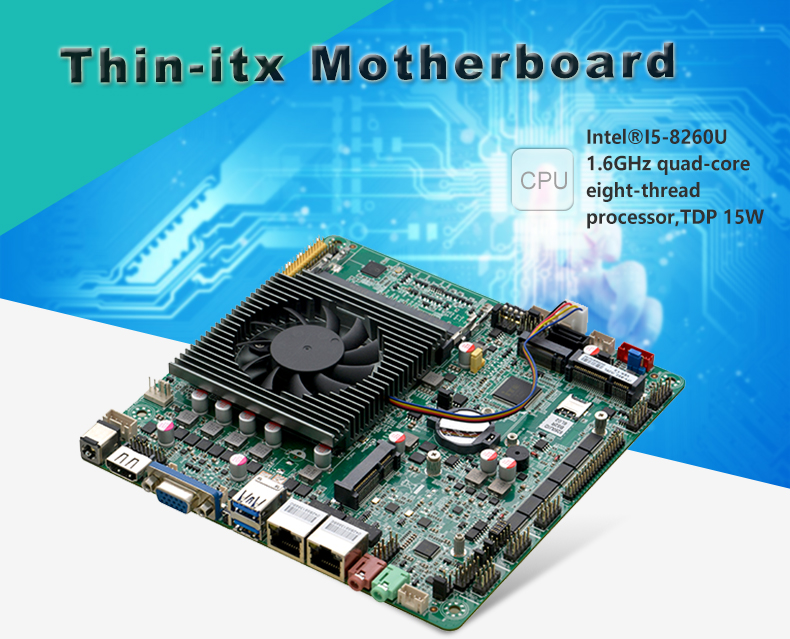

Integrated 8 generation Intel®I5-8260U 1.6GHz quad-core eight-thread processor,TDP 15W

Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors

chipset

SOC

Internal memory

2* DDR4 SODIMM slots, supporting 2400 MHZ memory and a maximum of 64GB memory

display

Integrated Intel® UHD Graphics 620, supports DirectX 12 OpenGL 4.5, supports 4K

The maximum resolution supported by the 1 x VGA port is 1920X1200@60Hz

1*HD OUTPUT1.4 port, the highest resolution supported is 4096x2304@24Hz

1* Supports dual channel 24bit LVDS interface,1* EDP, and LVDS by jumping one of two options, default LVDS

network

2* RTL8111H Gigabit NIC, supports network wake up and PXE functions

deposit

1* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps

1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD

Tone frequency

Integrated ALC897 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier

Support power amplifier 4Ω3W speaker

Expansion slot

1* Mini-PCIE slot, supporting WIFI/4G module

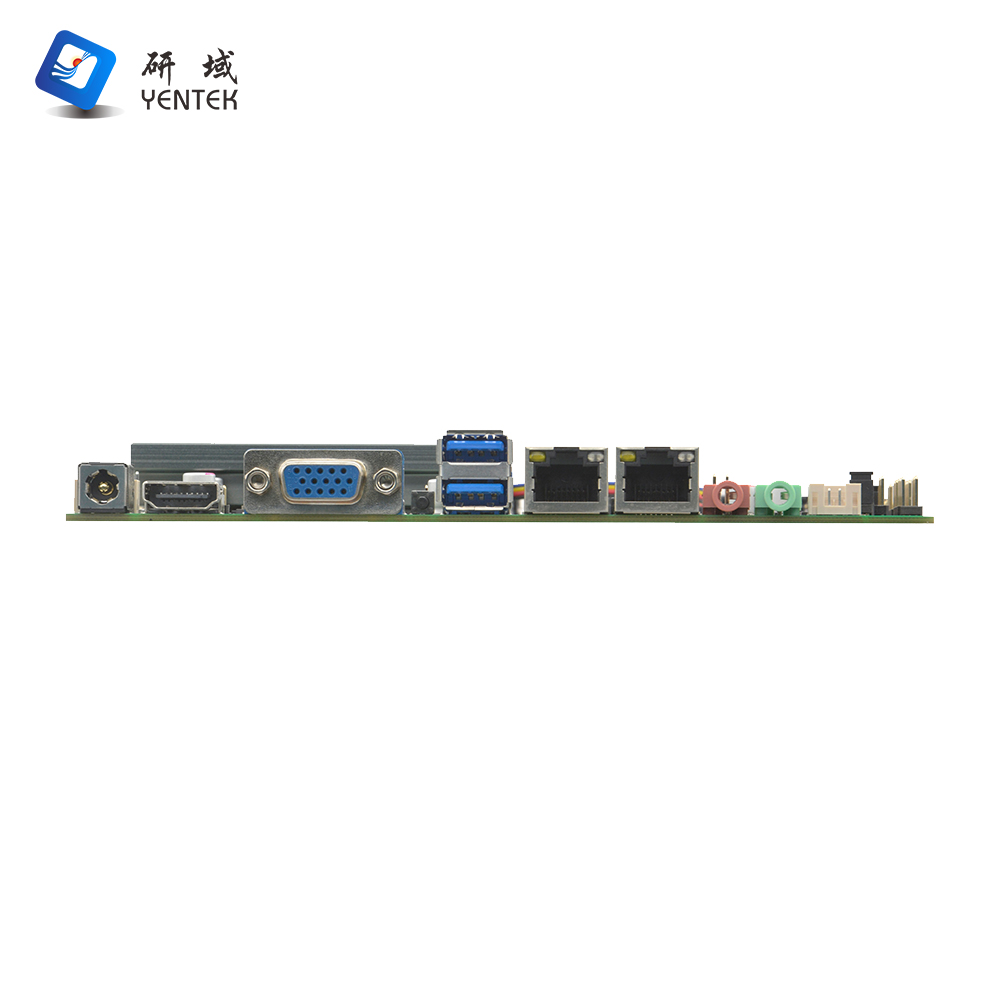

I/O ports on the backplane

2* USB3.0 interface,

1* HD OUTPUT port

1 x DB15 VGA port

2* RJ45 Gigabit network interface

1* Line-out(green), 1*MIC(red)

1* DC12V power port, supports 12V power input

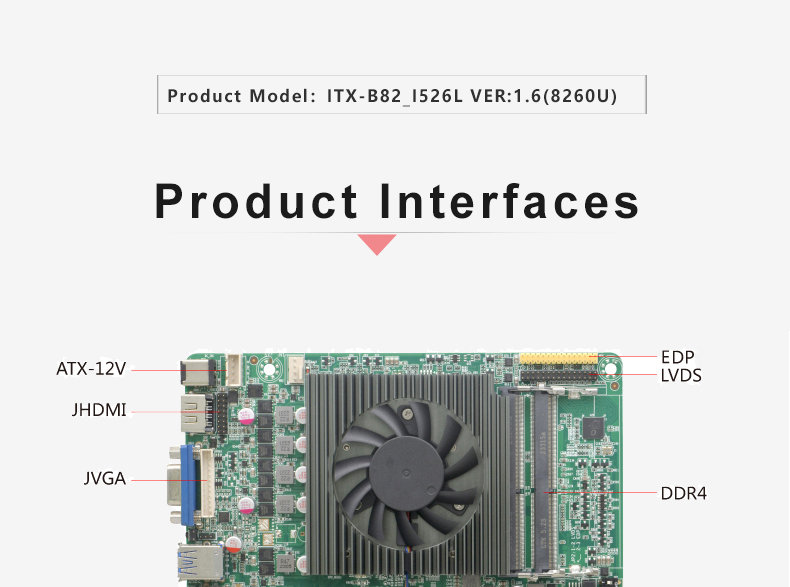

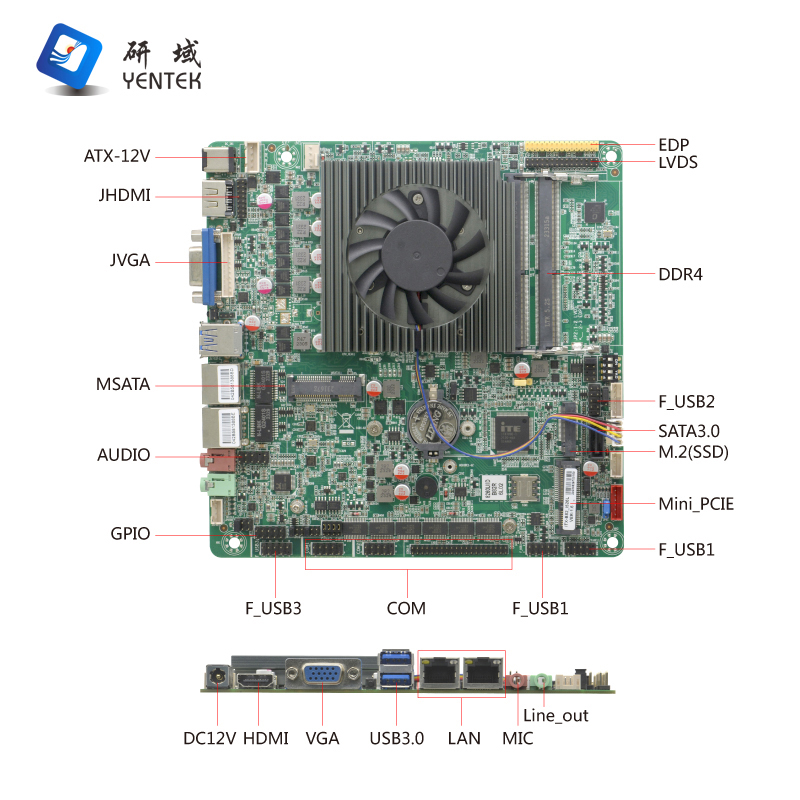

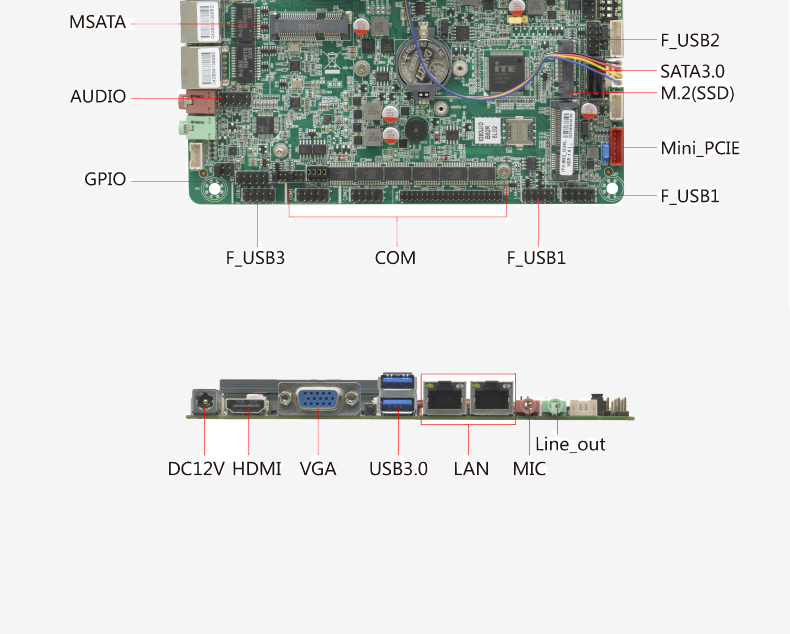

Built-in I/O interface

1* JVGA1 Interface 1*12pin(same signal as DB15)

1* JHD OUTPUT interface 2*10pin, the same signal as the HD OUTPUT interface

1* LVDS interface 2*15pin, support dual channel 24bit,

1* EDP interface (yellow) 2*15pin, with LVDS by jumping one of two, default LVDS

1* LVDS backlight power supply interface 1*6pin

6* RS232 serial interface,COM1/2 support 9pin live function,COM2 support RS485/422 function,

1* PS/2 Keyboard and mouse interface (red) 1*6Pin

6* USB2.0 interface 2*5pin,

1* front audio interface 2*5pin

1* Front panel switch button and indicator port 2*5Pin

1* hard drive power port 1*4pin

1* power amplifier interface 1*4pin

1* DC power port 1*4pin, support 12V power input and output

1* SIM card seat

Fan interface

1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Supports four input/output GPIO functions

BIOS

128Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

Adopts DC 12V power supply

Operating system

Windows 10 ,/Linux

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

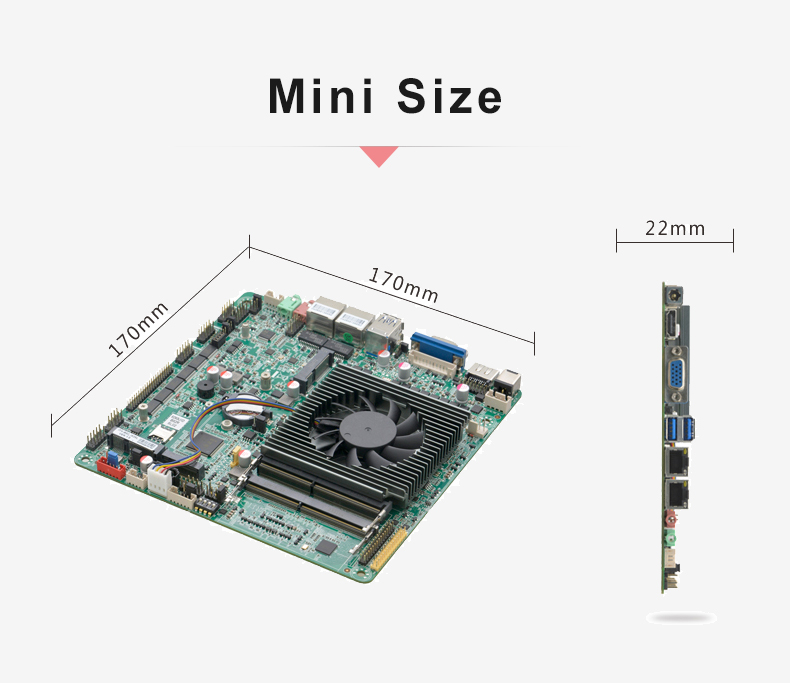

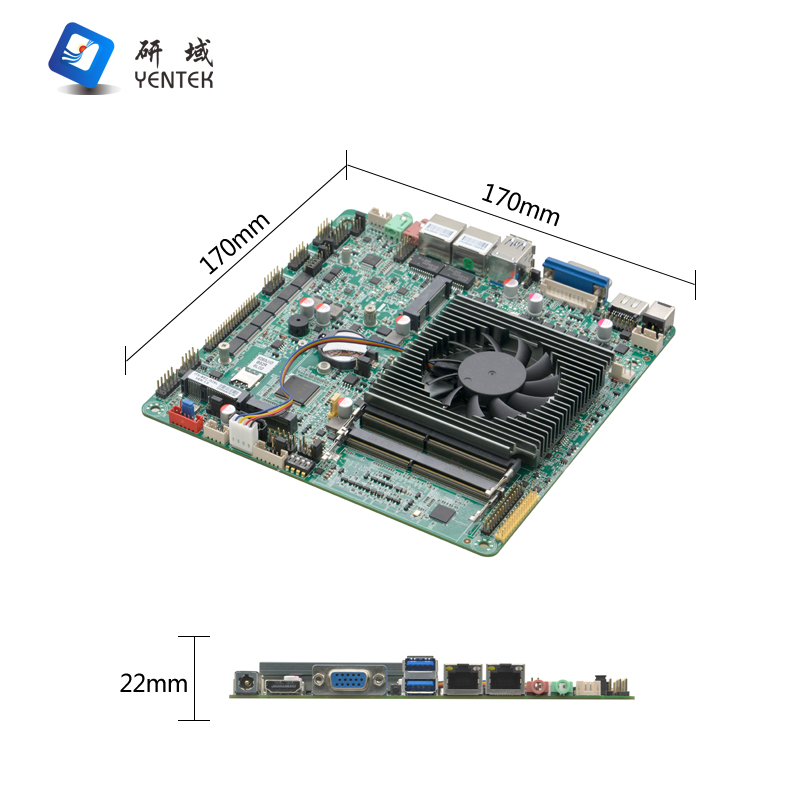

dimension

170mm x 170mm
