Product model

HG30SL_6L  VER:0.1

processor

Integrated Haiguang C86 3350 processor 3.0GH 8 core 16 threads TDP 65W

chipset

SOC

Internal memory

4*DDR4 UDIMM memory slot, support up to 3200MHz DDR4 memory, support up to 128GB,

display

1* VGA port (This port is an IPMI display port and requires IPMI function)

network

6* Intel® WGI210AT Gigabit network adapter, support network wake up, PXE functions

1*RTL8211F Gigabit network adapter, support network wake up, PXE (IPMI management port)

Store

3* SATA 3.0 hard disk interface,SATA interface transmission speed up to 6Gbps

1* M.2 slot, supporting the M.2 Key M 2260/2280 SATA SSD standard

Tone frequency

N/A

Expansion slot

1* Mini-PCIE slot with WIFI support

2 x PCIE X8 gold finger

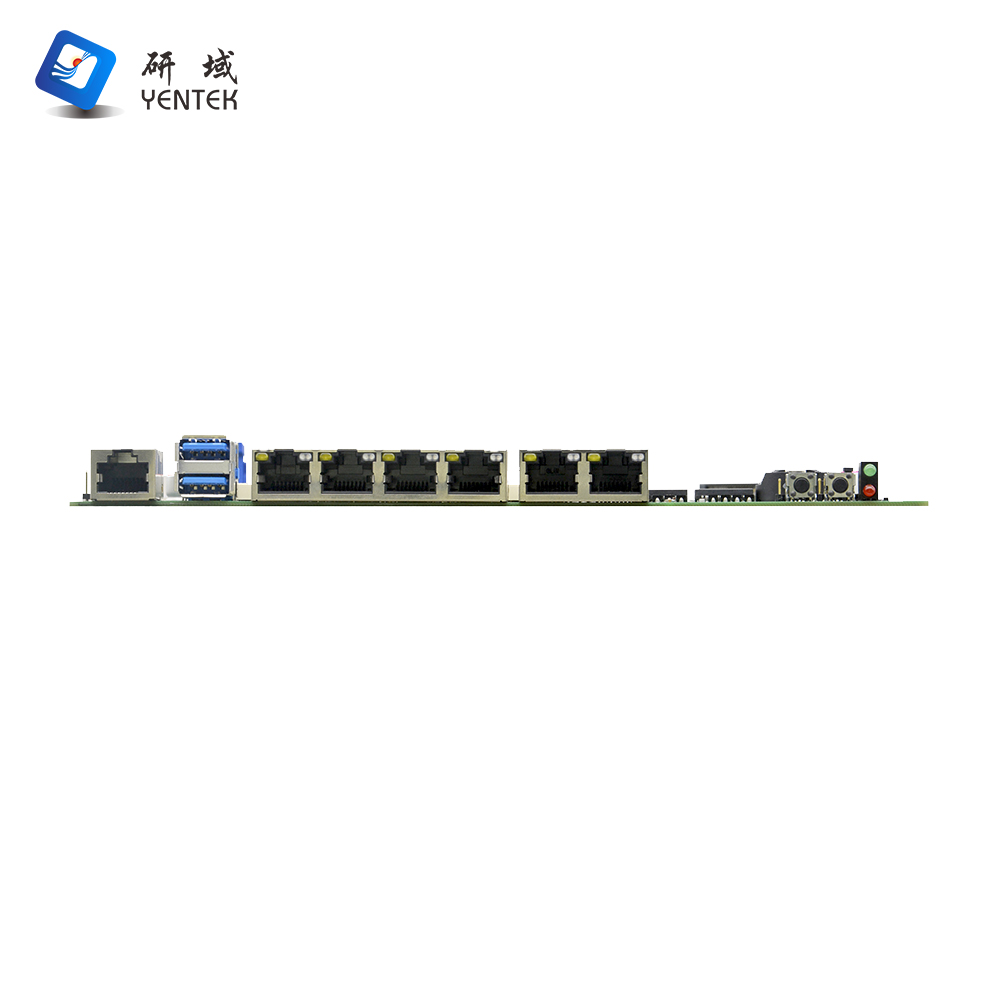

I/O ports on the backplane

1* RJ45 serial port

2* USB3.0 interface (5Gbps)

6* RJ45 Gigabit network interface

1* Power switch, 1* reset switch

1* Power indicator, 1* hard disk indicator

Built-in I/O interface

1* JVGA port 1*12pin(IPMI display port)

1* RS232 serial port, 2*5pin

2* USB 3.0 interface 2*10Pin

1* TPM interface, 2*6pin

1* Front panel function button and indicator port 2*5pin

1* LPC interface 2*5pin

1* Network indicator port 2*13pin

1* PS/2 keyboard and mouse interface 1*6pin

1 x network pin port 2 x 6pin(IPMI management port)

1* 24pin ATX power input interface

1* 8pin ATX power input interface

Fan interface

1*4pin CPU intelligent fan interface, 4* 4pin system intelligent fan interface

BIOS

128Mb Flash ROM

Operating system

Windows 10/Windows 11/Linux

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

ATX power input

Operating temperature

0℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

Size

220mm x 280mm
