IPC-705Z V1.0
● 10th/11th support for Intel LGA1200 architecture Celeron/Pentium/Core i3/i5/i7/i9 processor ● Intel H570 chipset ● 4*DDR4 3200MHz, up to 128GB ● 4*USB3.0,4*USB2.0 ● 1*VGA, 1*HD OUTPUT1.4 ● 2*Intel I226V ● 2*RS232/485/422 DB9 serial port, 4*RS232 DB9 serial port can be expanded ● 1*PCIE x16,3*PCIE x4,1*PCIE x1,2*PCI
|

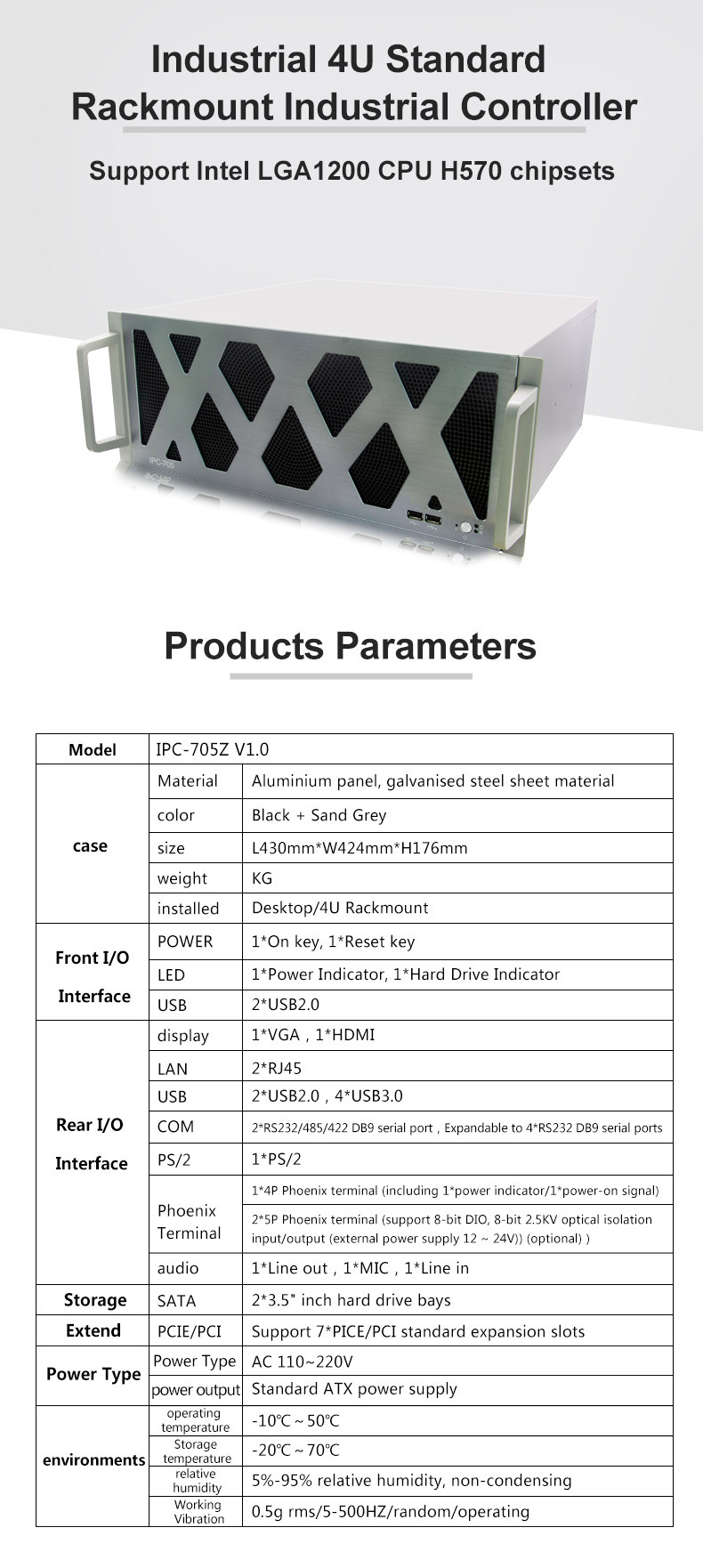

Model number |
IPC-705Z V1.0(H570VM) |
|
|

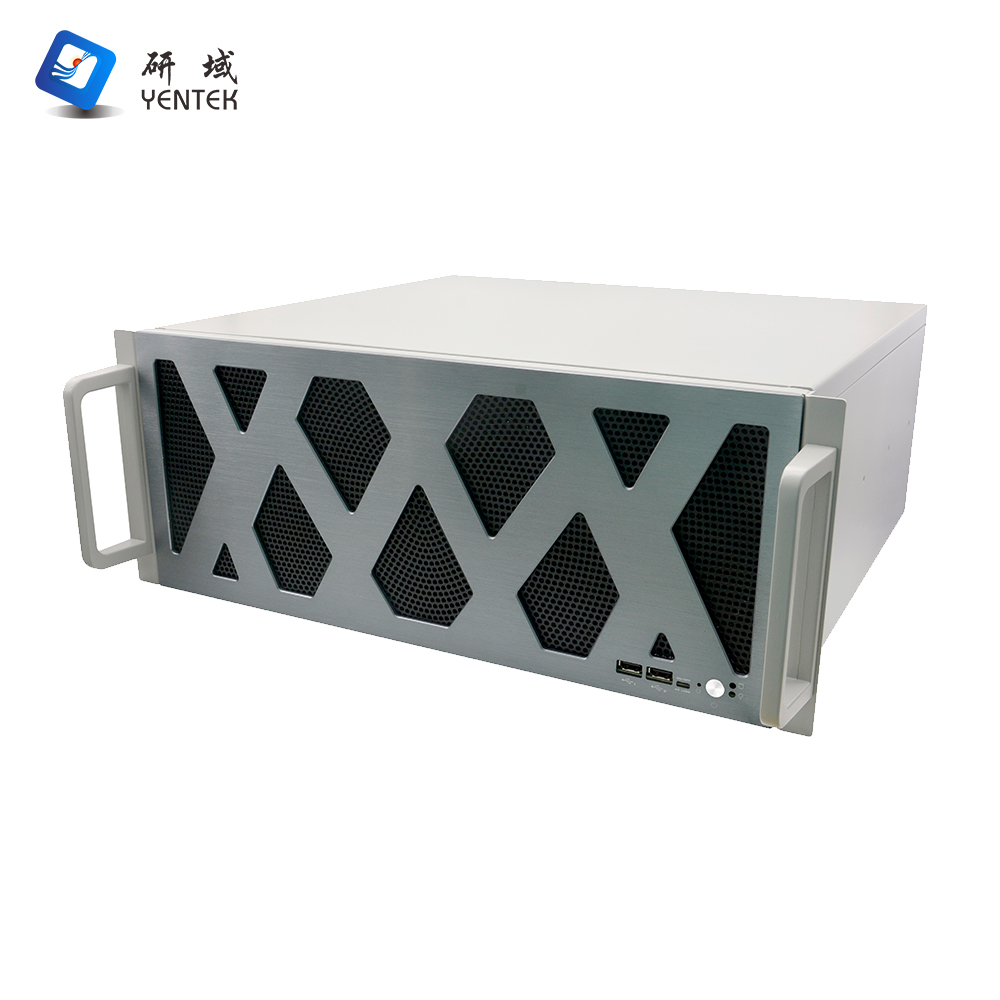

chassis
|
Material/Structure |
Active cooling structure, galvanized steel material |
|
colour |
Black + Grey |
|
|

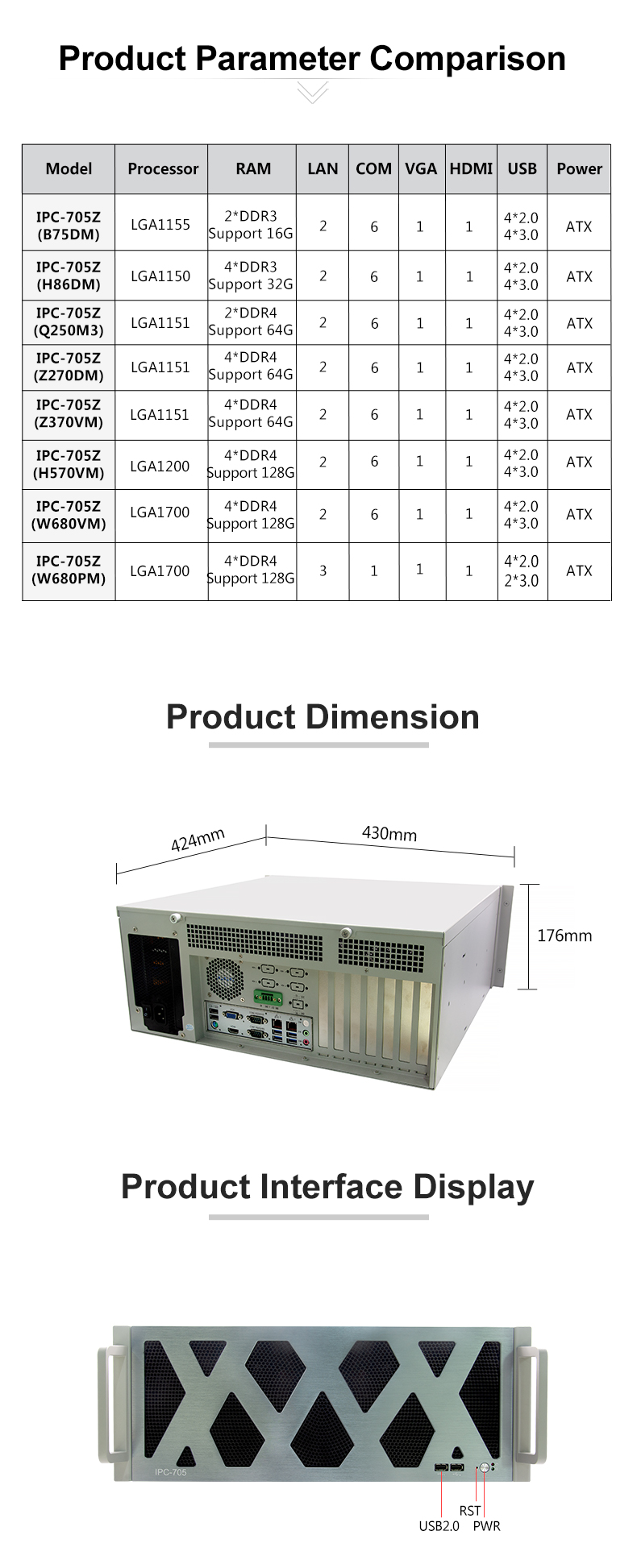

Dimensions (length, width and height) |
L430mm*W424mm*H176mm |
|
|
Weight (bare weight) |
KG |
|
|
Install |
Desktop /4U rack type |
|
|

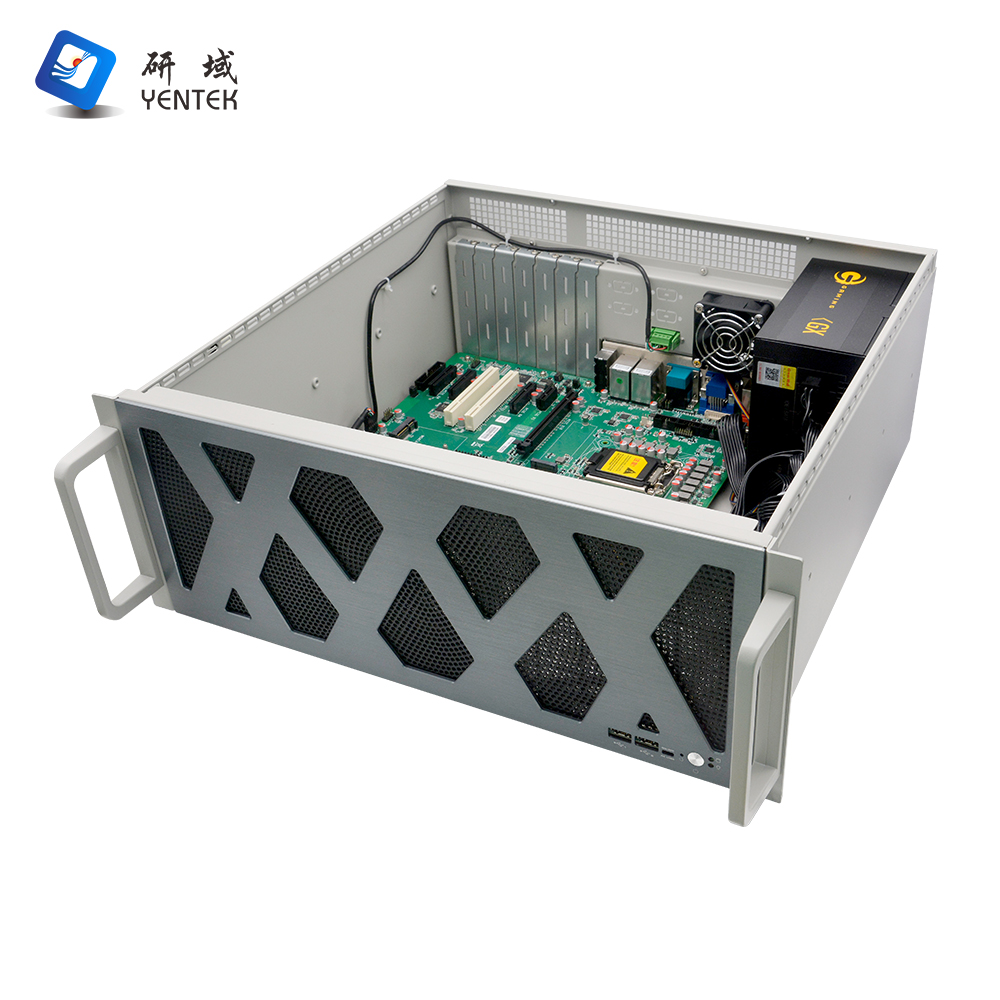

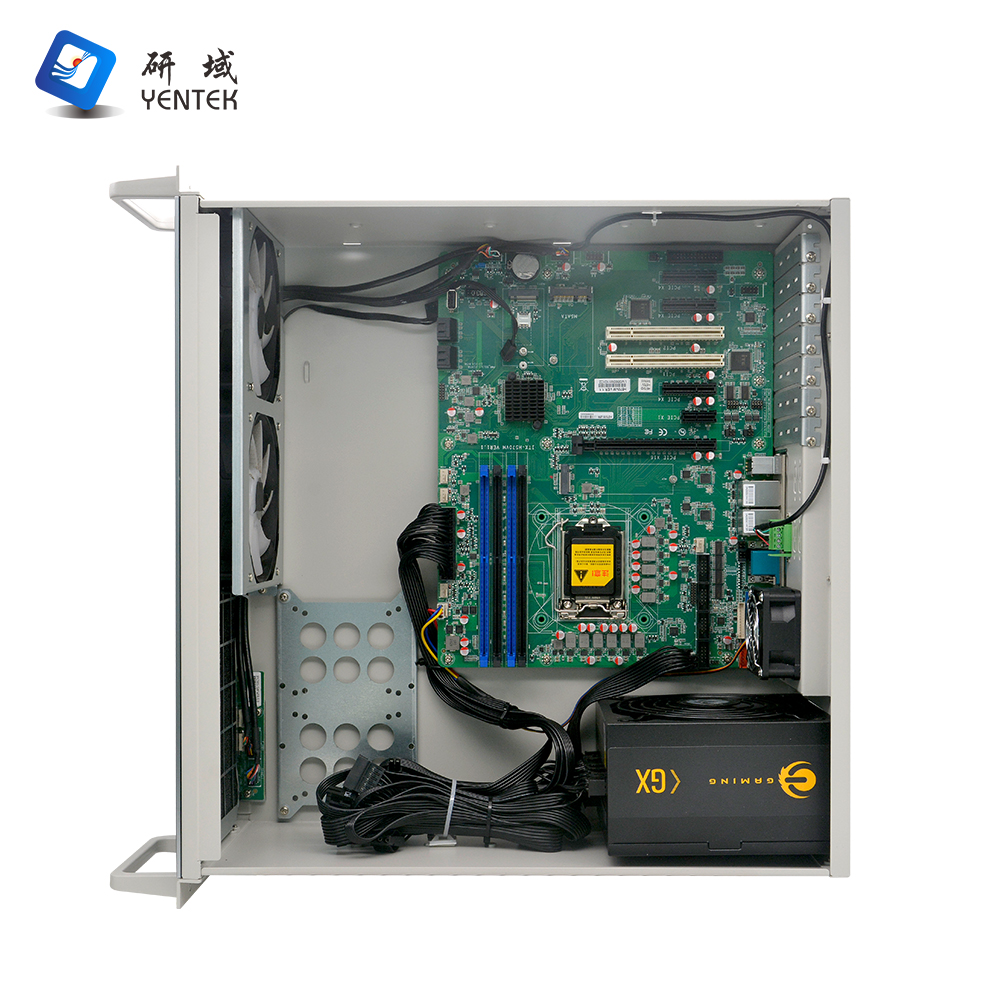

Main board
|
CPU |
Supports Intel LGA1200 10th/11th Intel Celeron/Pentium/Core i3/i5/i7/i9 processors |
|
System chip |
Supports 10/11 generation cpus below 125W |
|
|
reveal |
Intel H570 chipset |
|
|
Internal memory |
Integrated Intel® HD Graphics Graphics control |
|
|

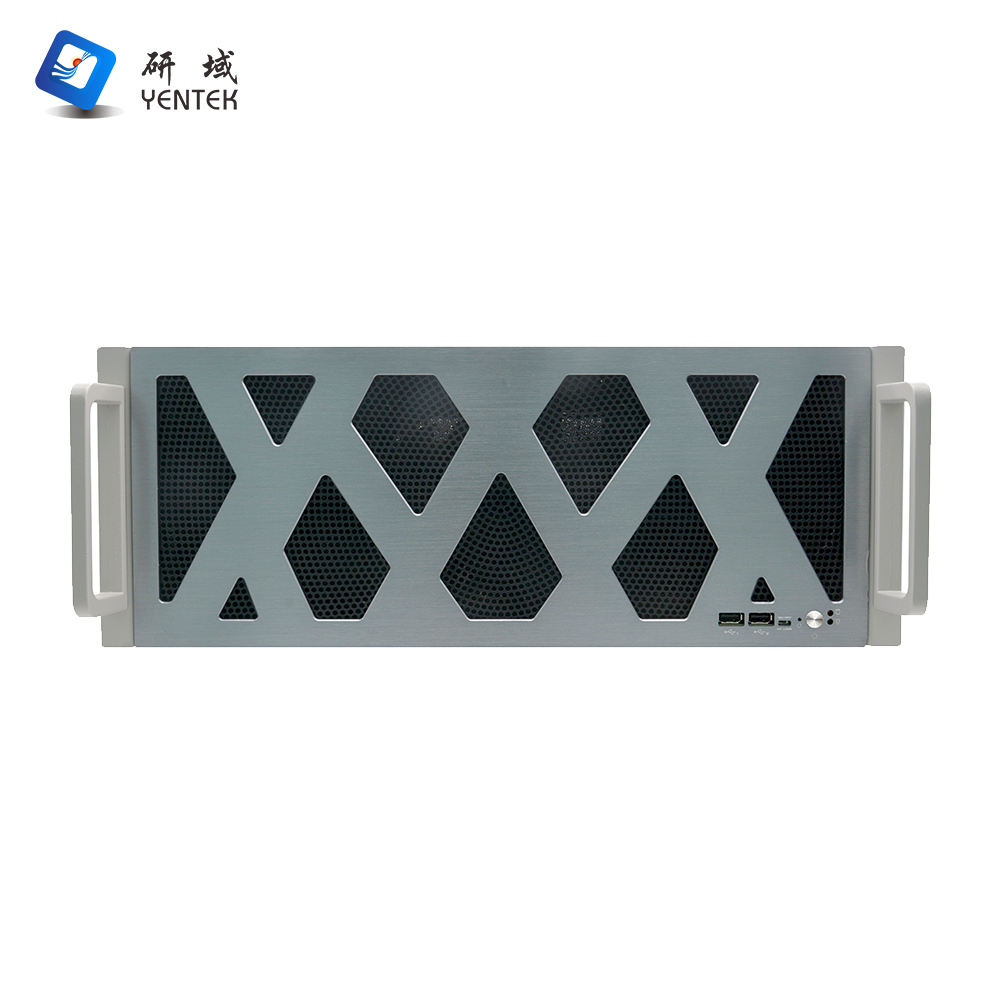

Front panel interface
|
POWER |
4 x DDR4 DIMM slots, supporting up to 3200MHz and 128GB in dual-channel mode |
|
LED |
1* Power button, 1* Reset button, 1*ACLOSS(Power on DIP switch, this function is not supported) |
|
|
USB |
1* Power indicator, 1* hard disk indicator |
|
|

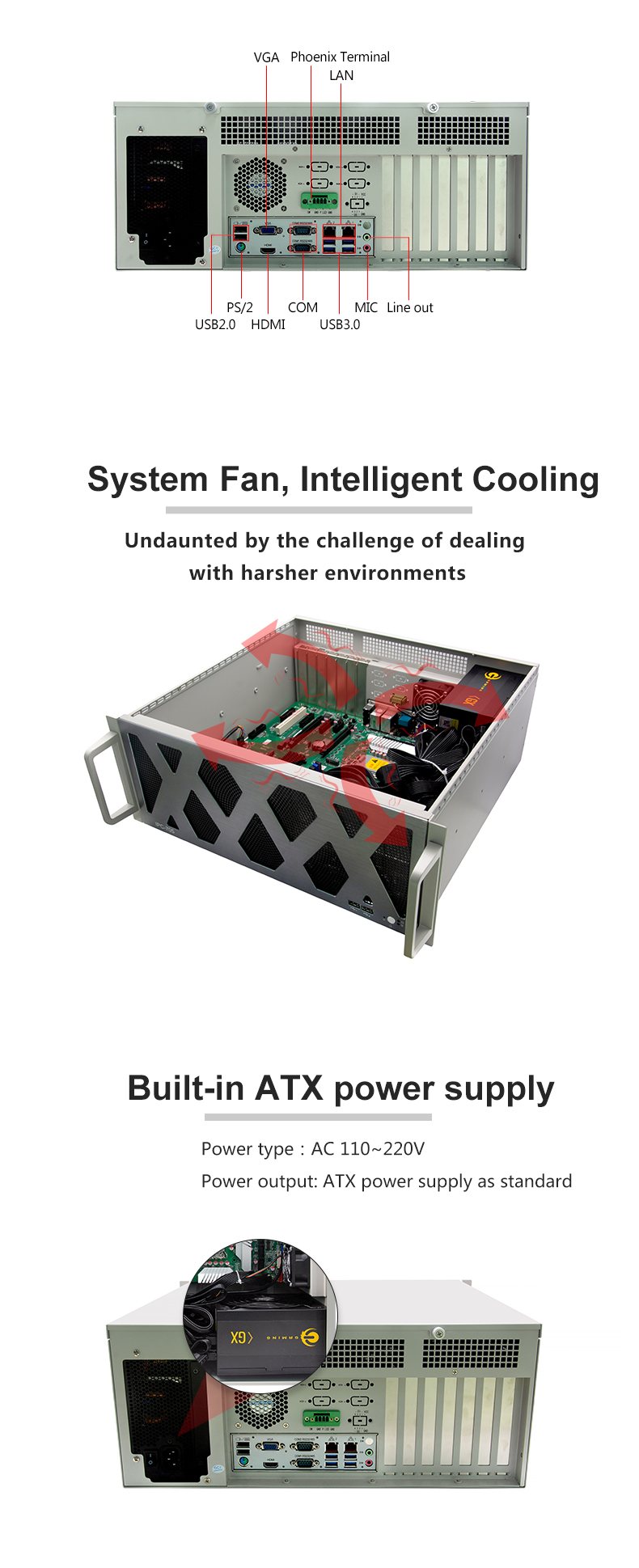

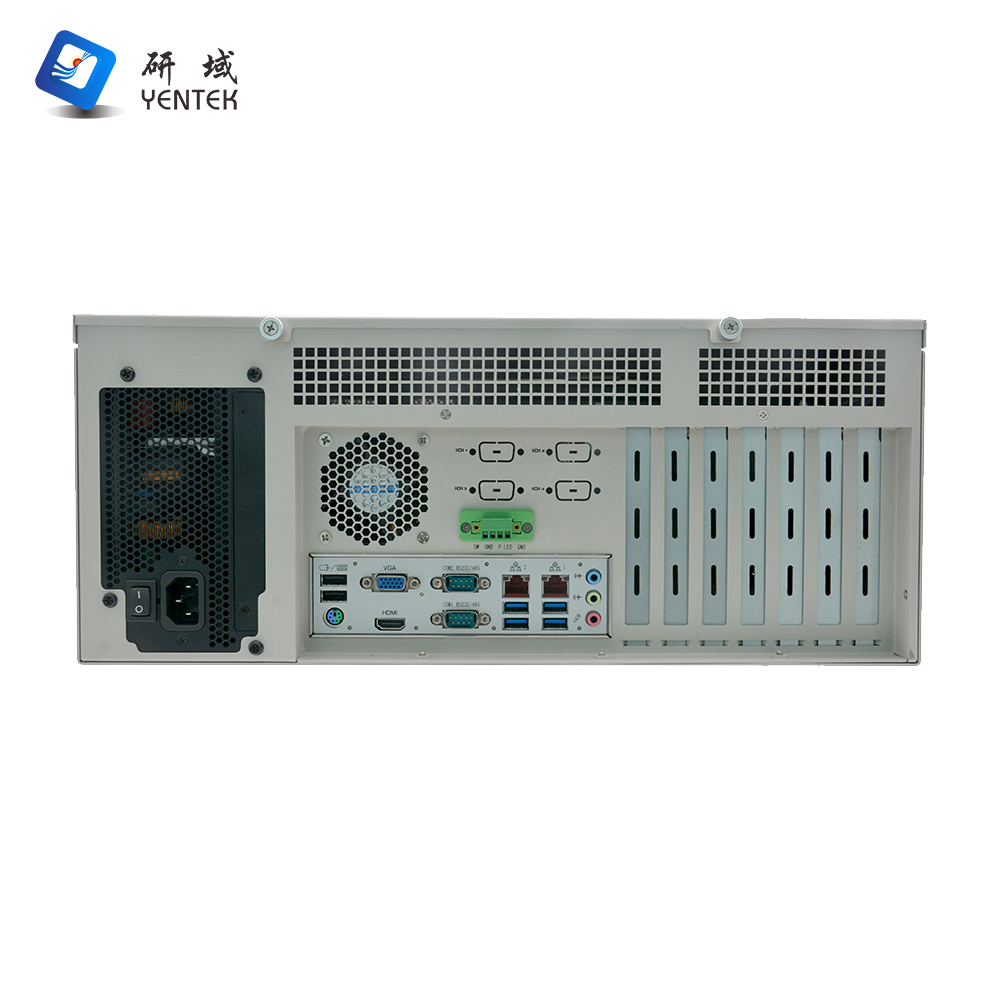

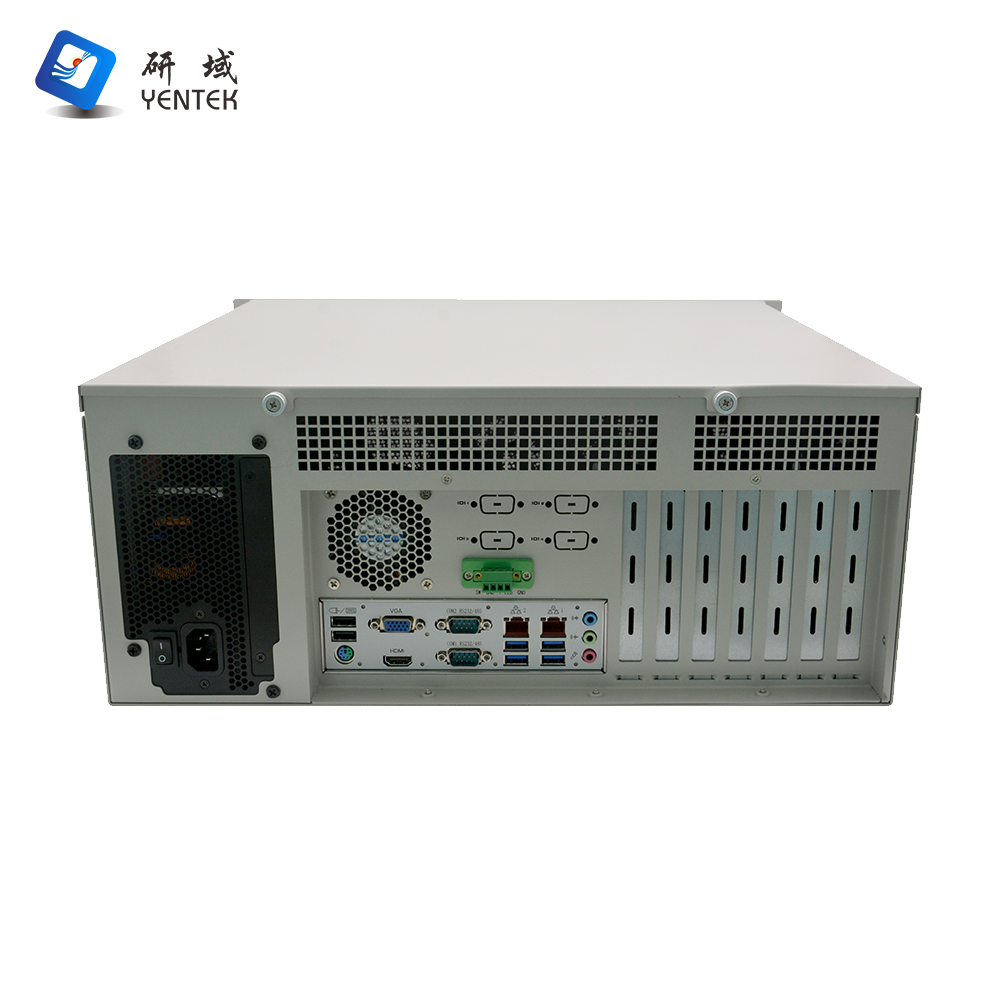

Rear panel interface
|
Display interface |
2 * USB2.0 |
|
LAN |
1*VGA, 1*HD OUTPUT1.4 |
|
|
USB |
2*Intel I226V 2.5G Gigabit network adapter |
|
|
COM |
4 x USB3.0, 2 x USB2.0 |
|
|
PS/2 |
2*RS232/485/422 DB9 serial port, support 9Pin live, can be extended to 4*RS232 DB9 serial port |
|
|
Phoenix terminal |
1*PS/2 |
|
|
Audio frequency |
1*4pin Phoenix terminal (Power indicator/Power on signal) |
|
|
Power source |
1*Line out, 1*MIC, 1*Line in |
|
|
store
|
SATA |
1*AC power input port |
|
MSATA |

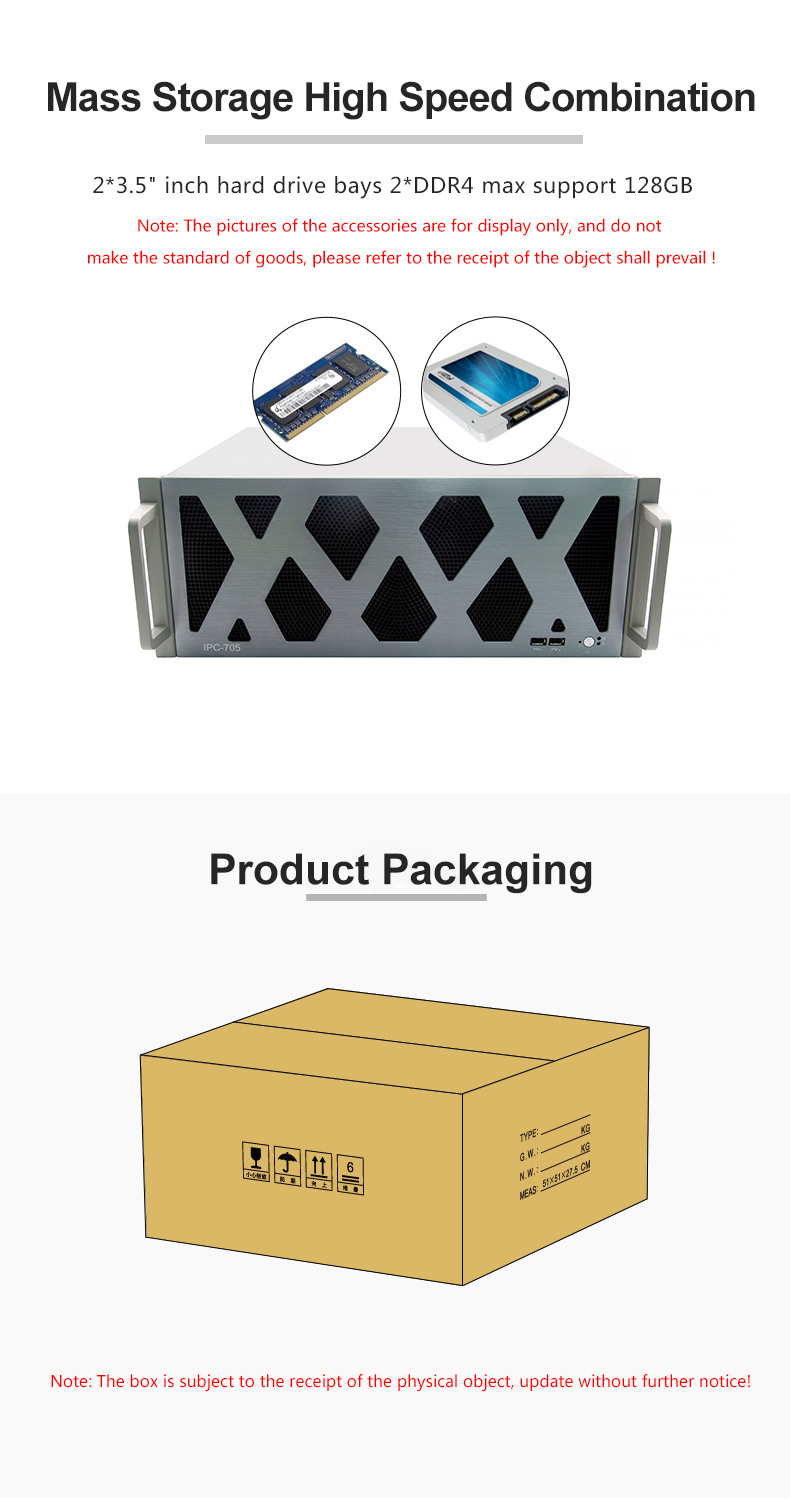

2 x 3.5" hard disk |
|
|
M.2 |
1*MSATA |
|
|
extend
|
PCIE x16 |
1*M.2/SSD, supports Key-M, 2280, NVME PCIEx4/SATA adaptive SSDS |
|
PCIE x4 |
1* PCIE4.0x16 |
|
|
PCIE x1 |
3* PCIE4.0x4 |
|
|
PCI |
1*PCIE4.0 x1 |
|
|
M.2 |
2*PCI |
|
|
System support
|
Windows |
1*M.2/5G, supports Key-B, 2242/52, 5G modules |
|
Linux |
Windows 11 |
|
|
Power demand
|
Power supply type |
Ubuntu |
|
Power output |
AC 110~220V |
|
|
environment |
Operating temperature |
The ATX 850W comes standard |
|
Storage temperature |
-10℃ to 50℃ |
|
|
Relative humidity |
-20℃ to 70℃ |
|
|
Working vibration |
5%-95% relative humidity, no condensation |
|
