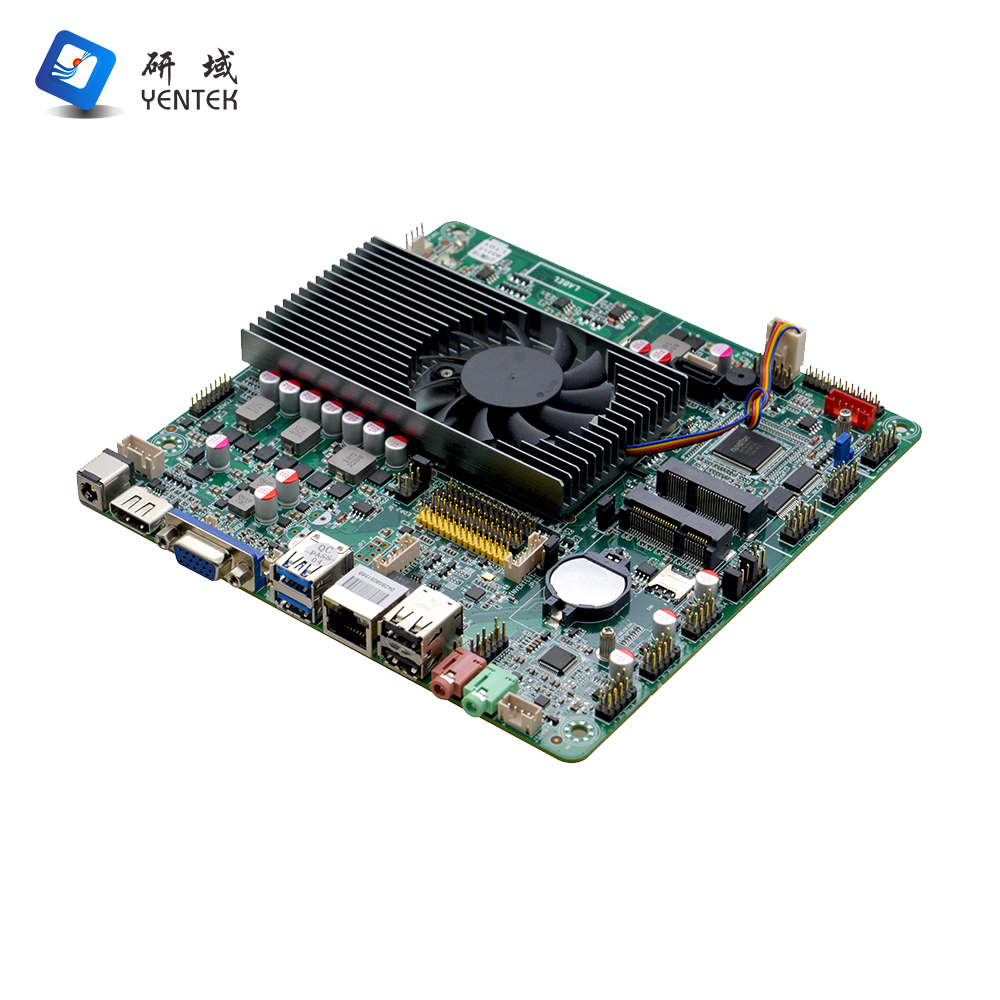

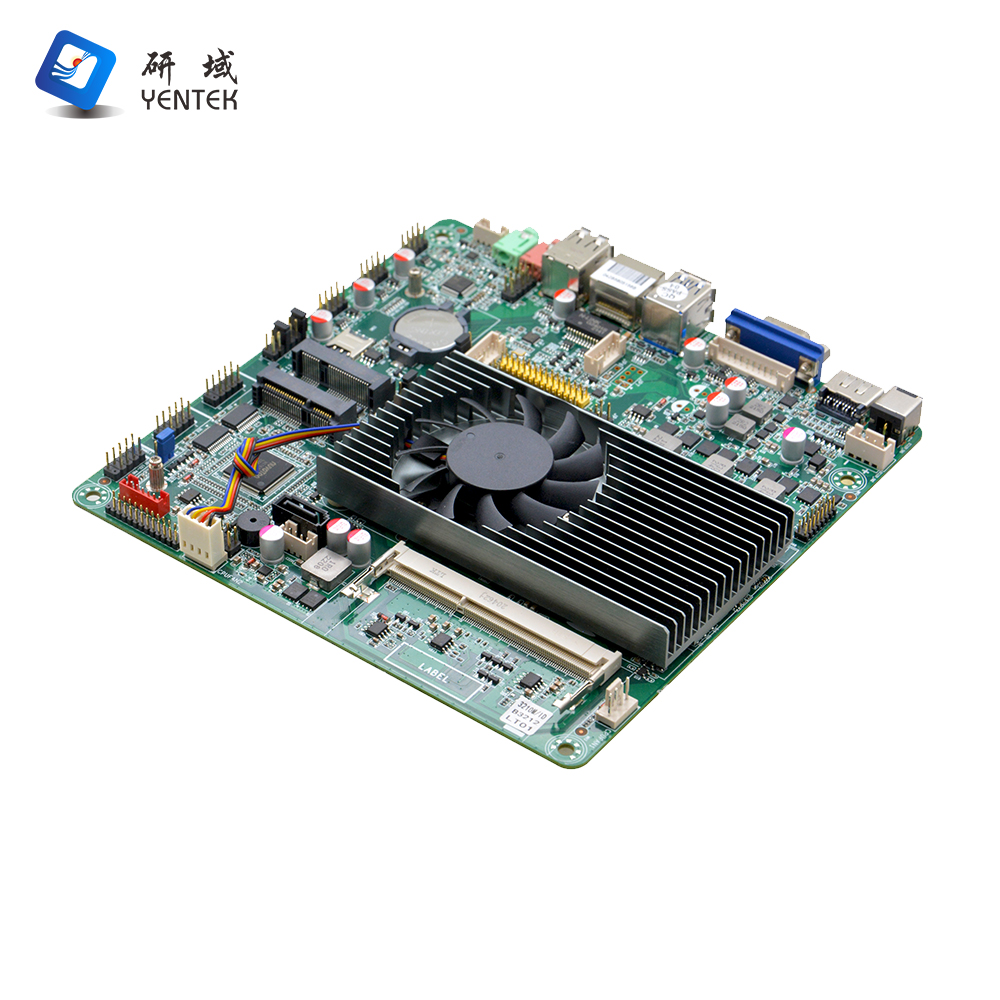

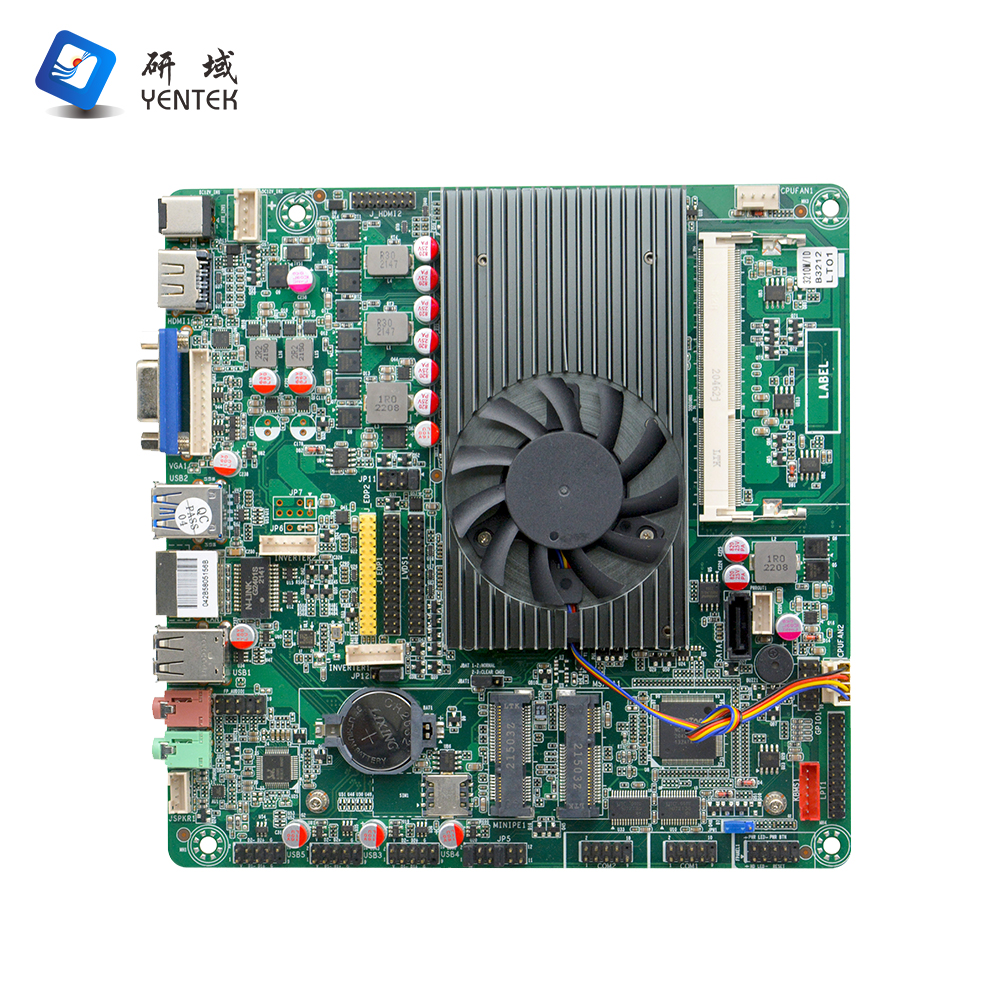

Product model

ITX-B321_I512L VER:1.0(3210M)

processor

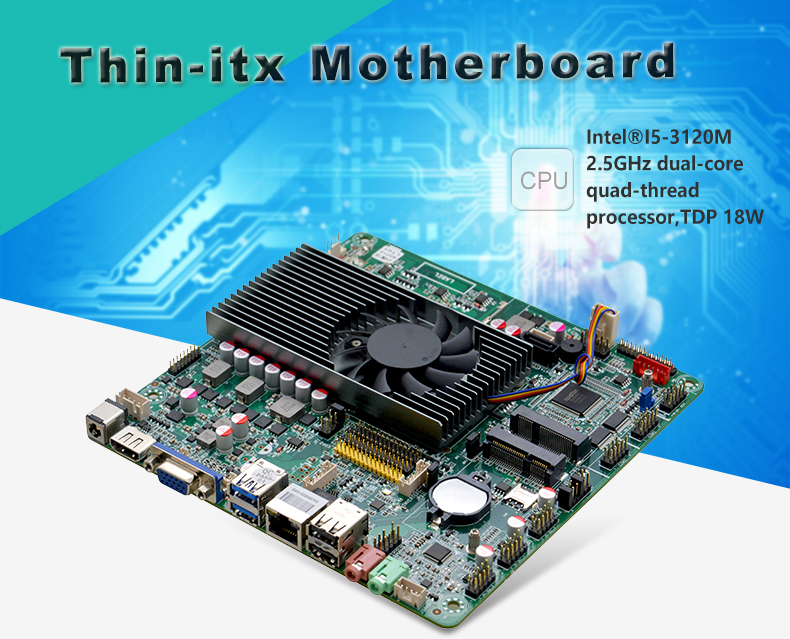

Integrated Intel®Core I5-3210M /2.5GHz dual-core quad-thread processor, TDP 18W,Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processors

Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processors

chipset

Intel® HM76 high-speed chipset

Internal memory

1*SODDR3 memory slot, supporting single-channel DDR3 1600/1333 memory, supporting a maximum of 8GB

display

Integrated Intel® HD Graphics4000 core graphics card, support single display, dual display mode, extended mode,1*VGA, 2*HD OUTPUT, 2*EDP interface or 1* LVDS, 1*EDP display

Note:LVDS and EDP are adaptive, supported display combinations are :LVDS single display, EDP1 single display, LVDS+EDP2 dual display, EDP1+EDP2 dual display,

J_EDP2 can not be used alone, the use of dual display, brightness adjustment is ineffective, only the single display is effective. EDP2 backlight control is shared with EDP1.

network

1* RTL8111H Gigabit NIC, supports network wake up and PXE functions.

Store

1* SATA2.0 hard disk interface, transmission rate up to 3Gbps

1*MSATA slot, support SSD SSD,SSD transmission speed up to 6Gbps

Tone frequency

Onboard ALC262 6-channel hi-fi audio controller with MIC/Line-out support. Power amplifier

The power amplifier is recommended to use a 2Ω3W speaker

expansion

1* Mini-PCIE slot, supporting WIFI, 3G/4G modules

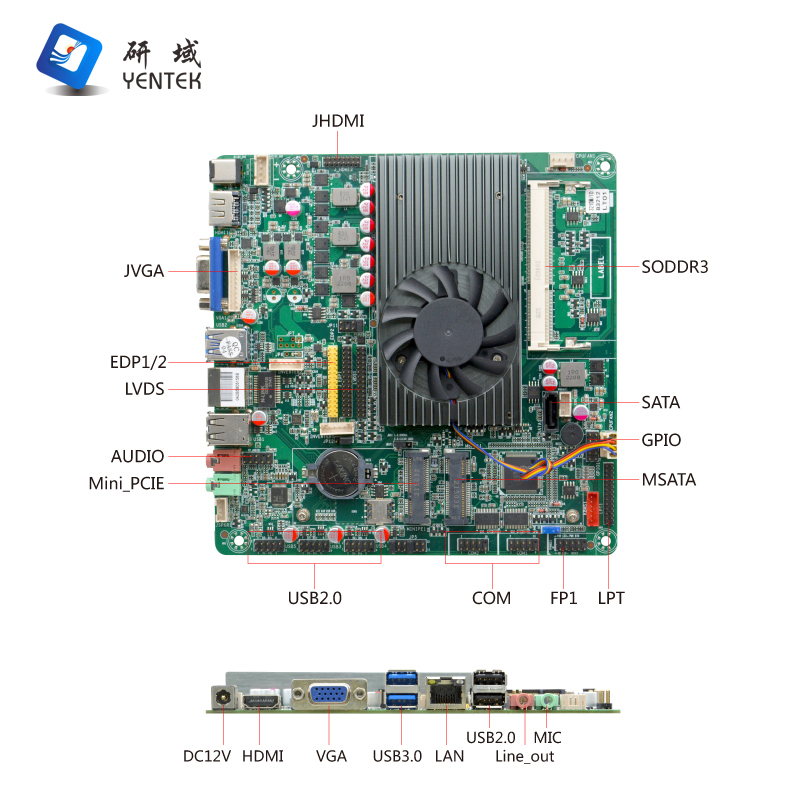

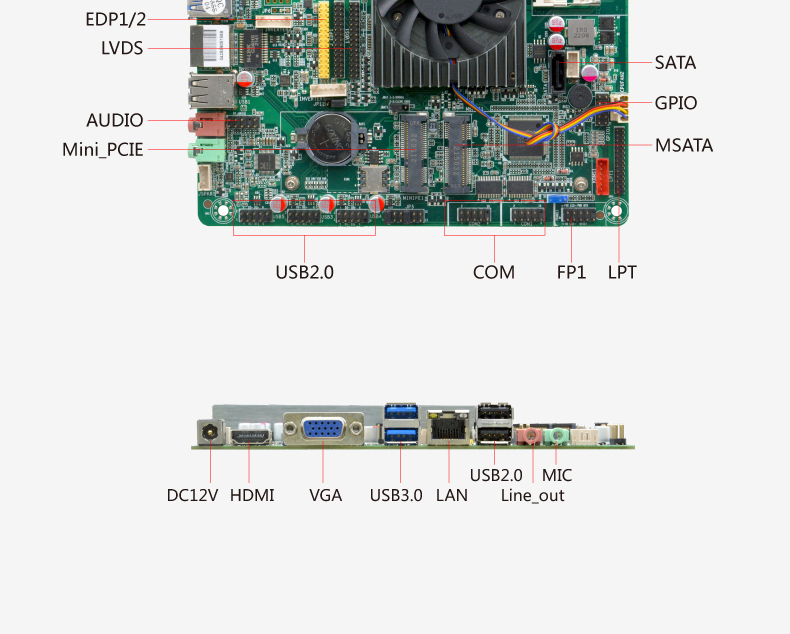

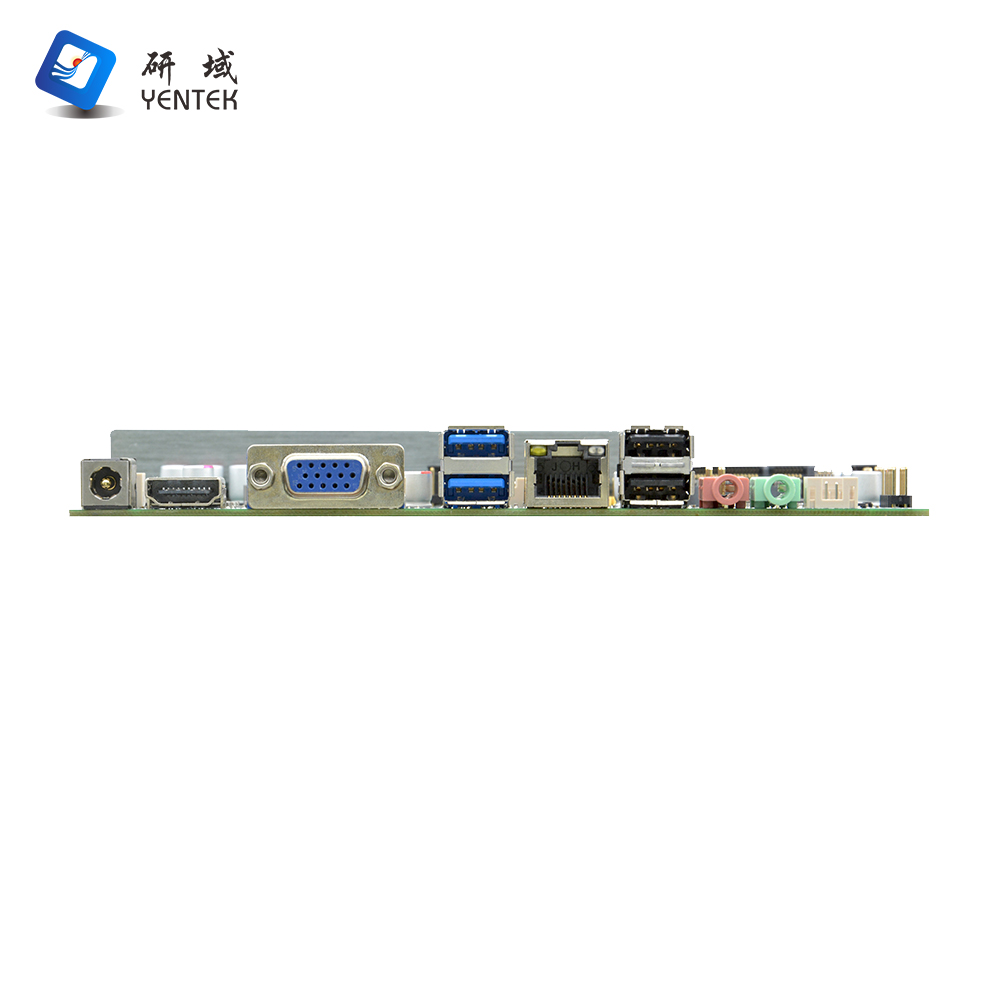

I/O ports on the backplane

2* USB3.0,2 x USB2.0

1* HD OUTPUT port

1* VGA port

1* RJ-45 Gigabit network interface

1* Line out (green)

1* Mic (red)

1* 12V DC_JACK input

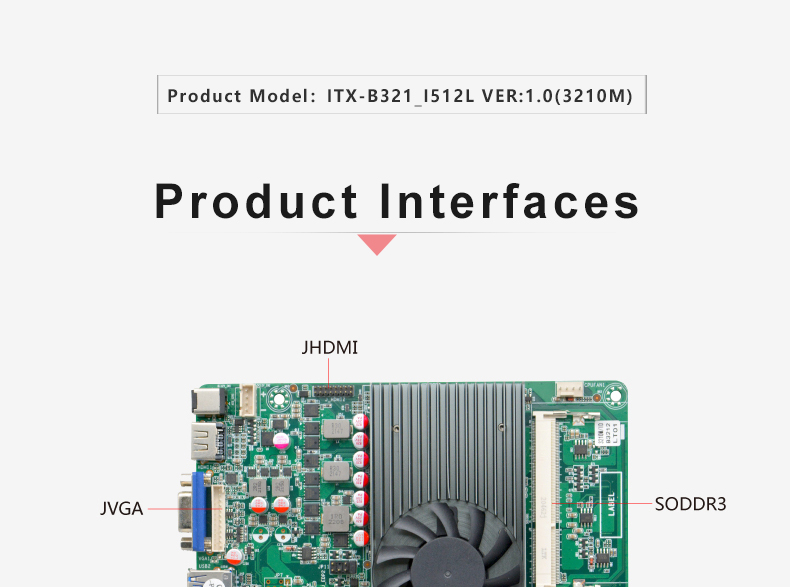

Built-in I/O interface

2* EDP interface

1* LVDS port. The LVDS port and J_EDP1 are either optional

1* screen backlight power supply 1*6pin(optional)

1* J_HD OUTPUT interface (2*8Pin)

1* JVGA1 interface (1*12pin), same signal as DB15

2* RS232 serial port (COM1/COM2 9pin support live function)

1* LPT print port (2*13pin)

6* USB 2.0 interface (2*5pin),

1* PS/2 Mouse and keyboard interface (1*6Pin)

1* Front panel function buttons and indicator ports (2*5pin)

1* Front panel audio interface (2*5pin)

1* Power amplifier interface (1*4pin)

1* SIM card seat

1* Hard disk power supply (1*4pin)

1* 4pin DC power interface, support 12V power input and output

Fan interface

1*4pin CPU intelligent fan interface,1*4pin system fan interface

GPIO

Supports four input/output GPIO

BIOS

32Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Window 7/Windows 10/Linux

Power supply type

Adopts DC 12V power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

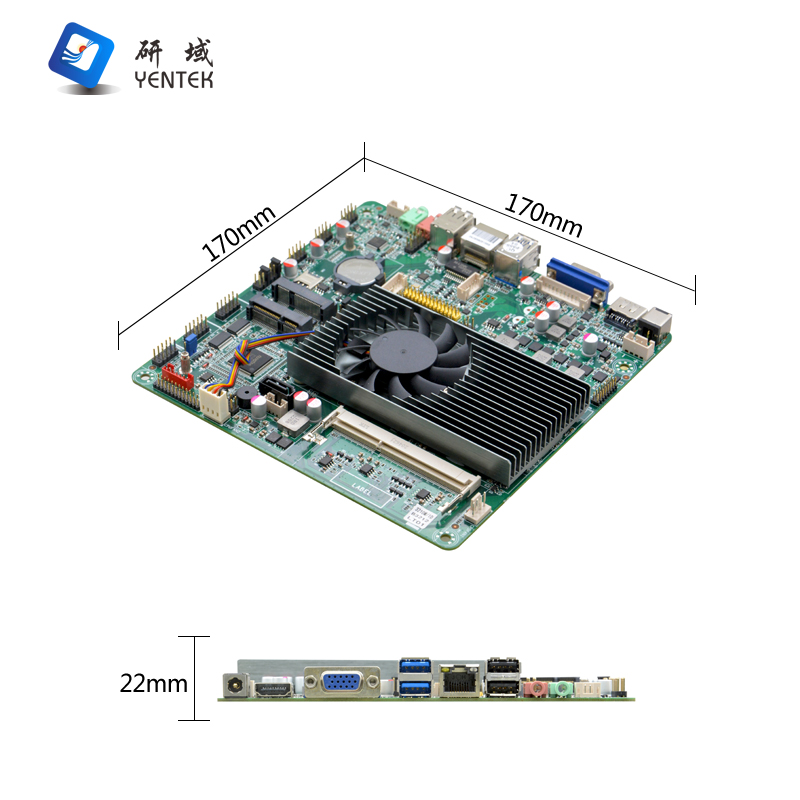

dimension

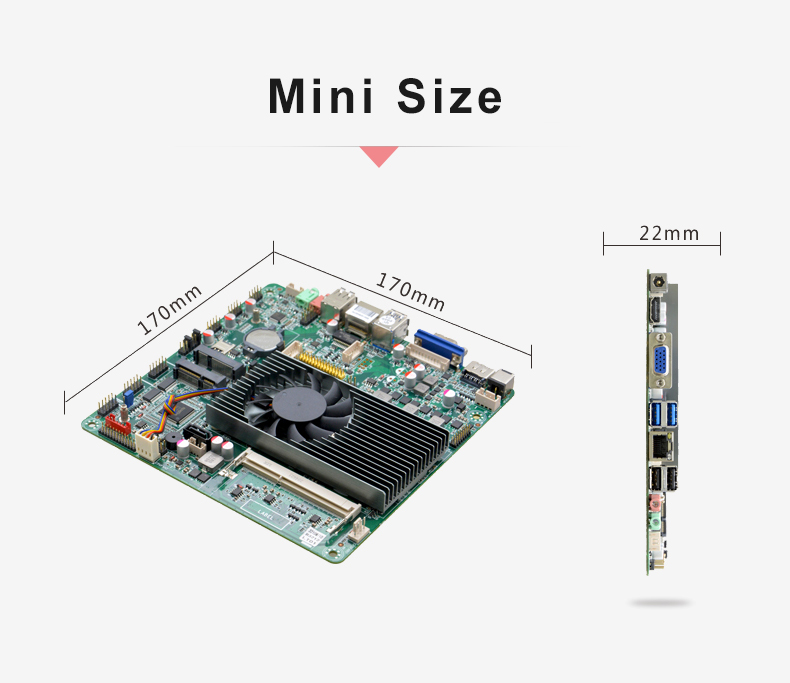

170mm * 170mm
