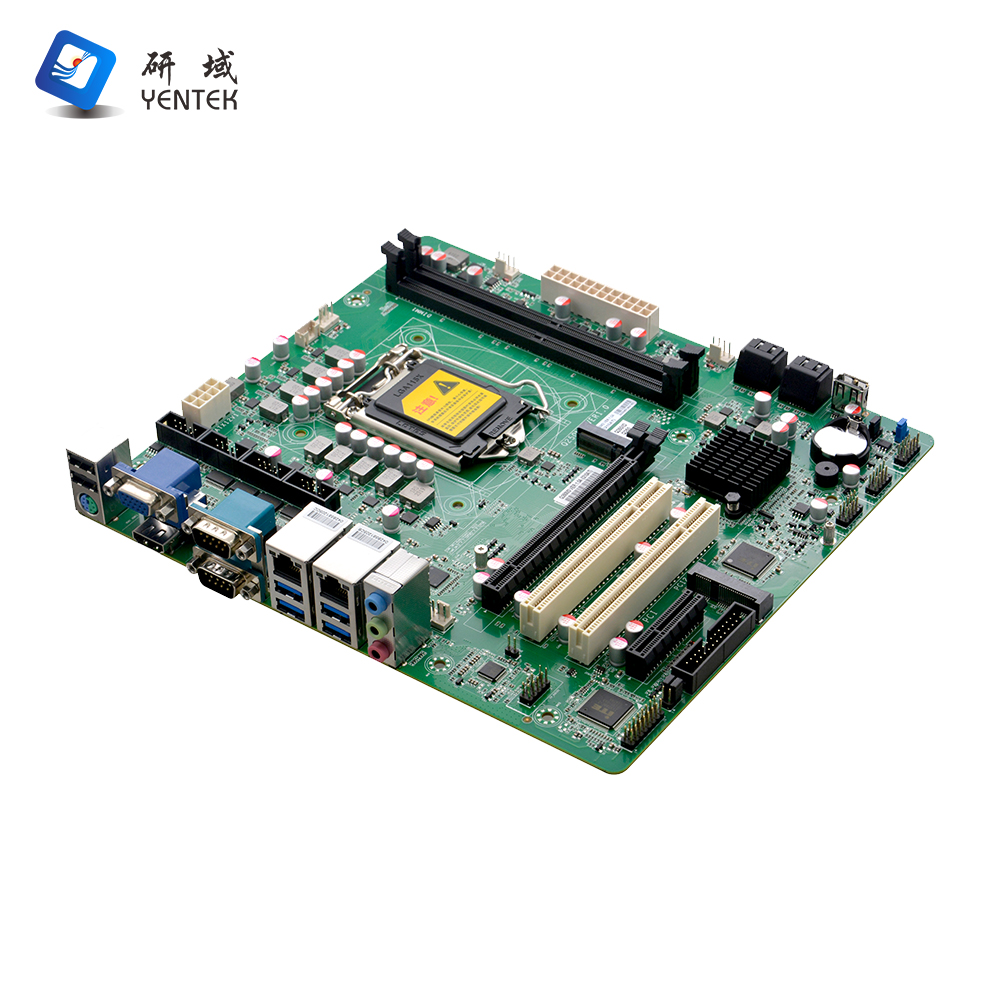

Product model

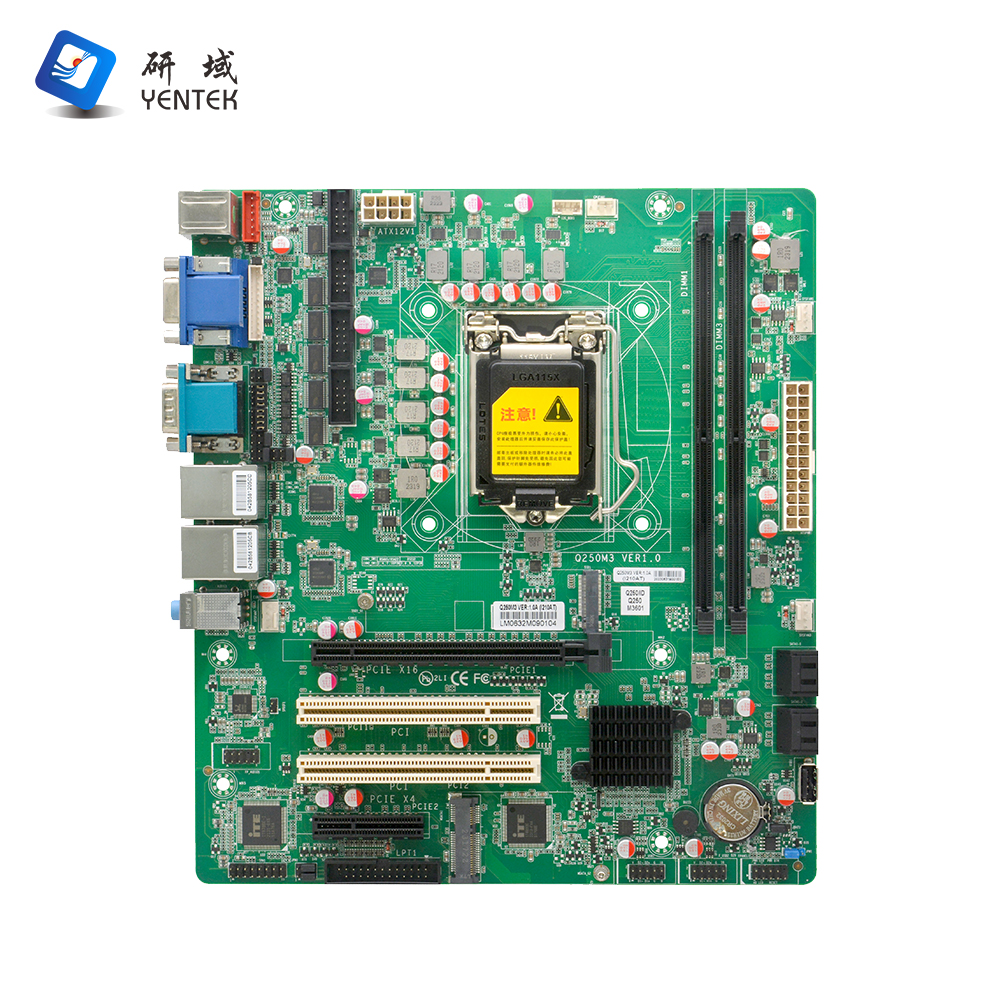

Q250M3 VER:1.0A(I210AT)

processor

6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors supporting the LGA1151 architecture, Note: Support 6/7/8/9 generation 95W CPU

chipset

Intel Q250 high-speed chipset

Internal memory

2 x DDR4 DIMM slots for dual-channel 2133 MHZ memory, 2400 MHZ memory, and 2666 MHZ memory, with a maximum capacity of 64GB

Integrated Intel® HD Graphics controller with 1*VGA port and 1*HD OUTPUT1.4 port

display

Supports single display, dual display mode, and extended mode

network

2* Intel I210AT Gigabit network adapter, supporting network wake up and PXE functions

deposit

4* SATA3.0 hard disk interface,SATA transmission speed up to 6Gbps

1* MSATA interface, support Intel protocol SSD, transmission rate up to 6Gbps

1* M.2 slot, supporting the M.2 2280 PCIE x4/SATA adaptive standard SSD

Tone frequency

Onboard ALC888S high fidelity audio controller, support Mic, Line out, line-IN

Expansion slot

1 x PCIE x16 slot

1 x PCIE x4 slot

2* PCI slot

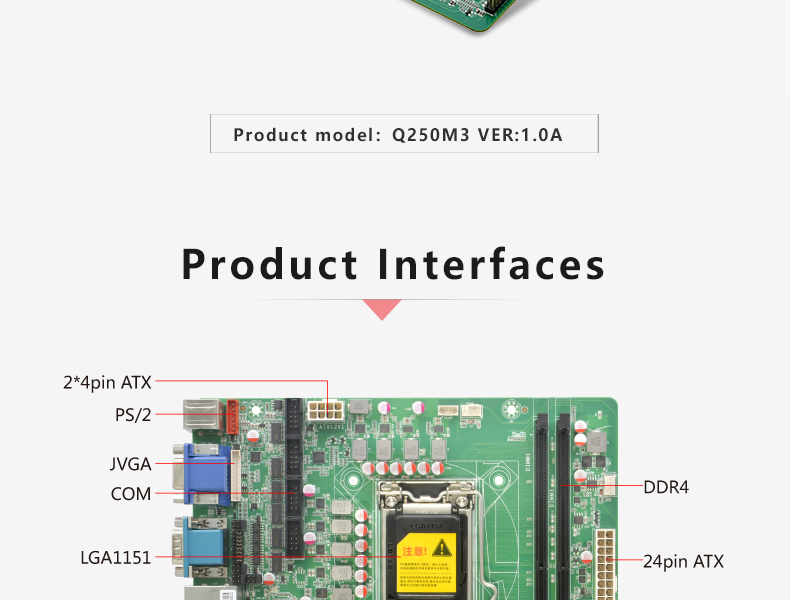

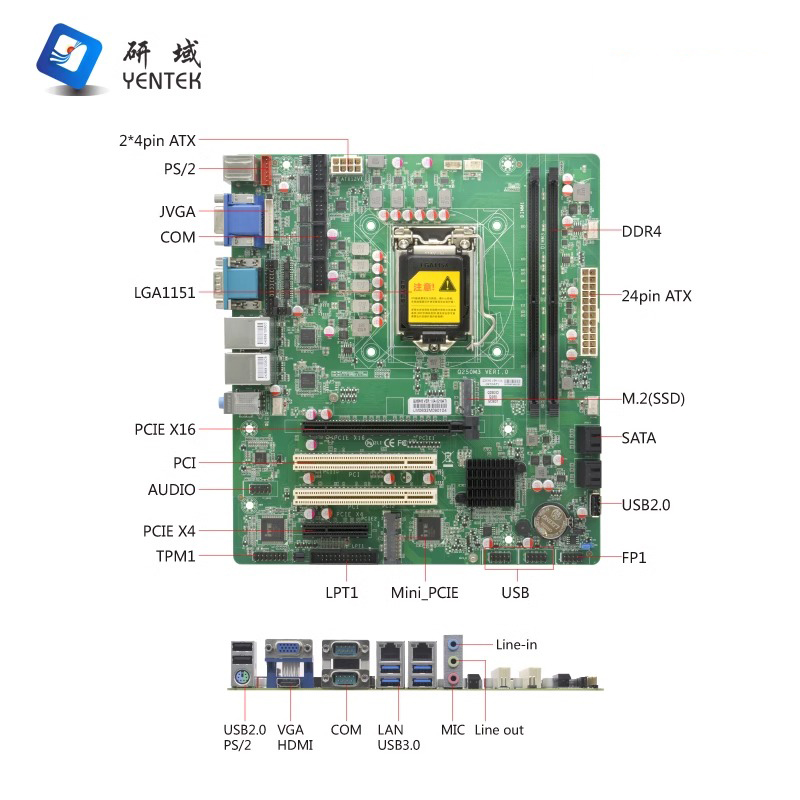

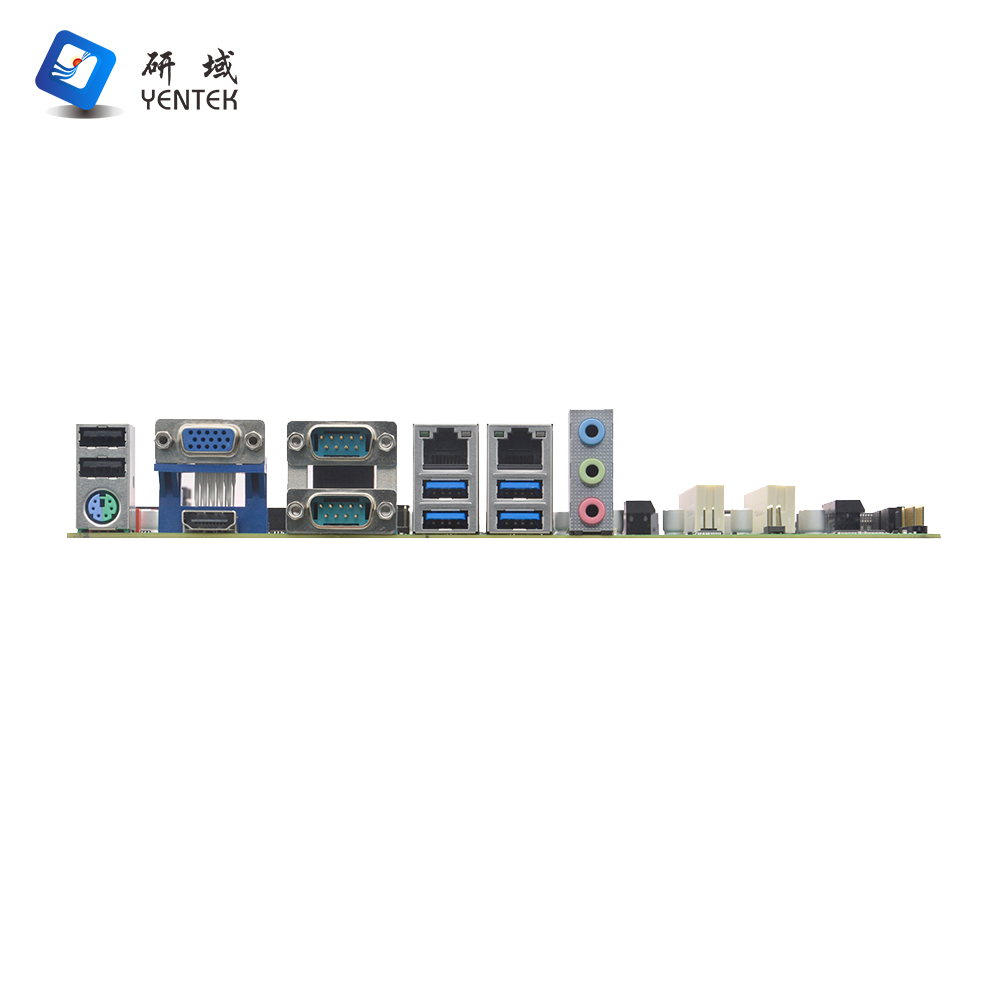

I/O ports on the backplane

1* PS/2 keyboard and mouse interface

1 * VGA display port

1*HD OUTPUT display interface

2* RS232 serial port (COM1/2 supports 5V/12V live function,COM1/2 supports RS485/422 function)

2* RJ45 Gigabit network interface

2* USB 2.0 port

4* USB 3.0 interface

1*Line out interface (green), 1* Mic interface (red), 1* Line-IN interface (blue)

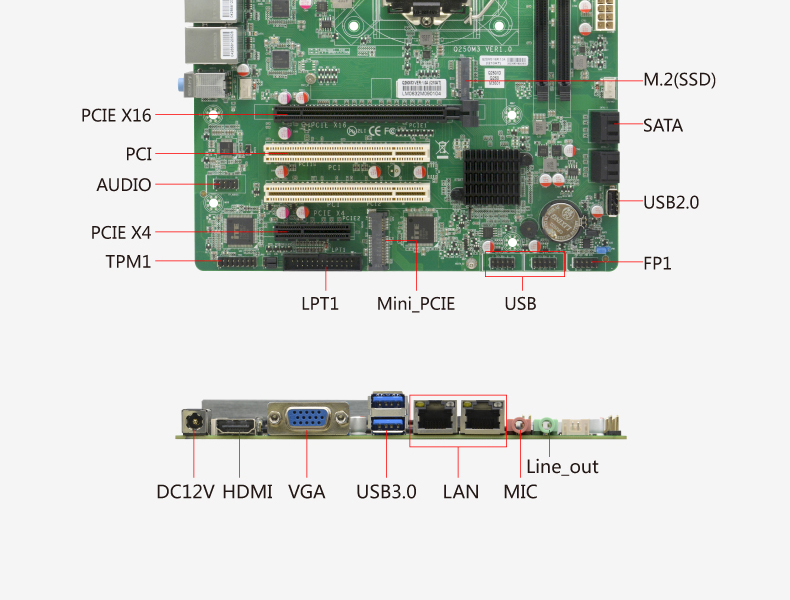

Built-in I/O interface

1* PS/2 keyboard and mouse interface 1*6pin row pin and UK1 signal

1* JVGA port 1*12pin pin row, same signal as DB15

4 x RS232 serial port 2 x 5pin row pins

1* front audio interface 2*5pin row pins

4* USB 2.0 port 2*5Pin row pins

1*USB2.0 port USB TYPE-A

1* TPM port 2*8pin row pins

1* Front panel function buttons and indicator ports 2*5pin row pins

1*LPT 2*13 pin row

1* 24pin ATX power input interface

1* 8pin ATX power input interface

Fan interface

1*4pin CPU intelligent fan interface, 3* 4pin system intelligent fan interface

BIOS

64Mb Flash ROM

Operating system

Windows 7 / 10 / Linux

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

ATX power input

Operating temperature

0℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

dimension

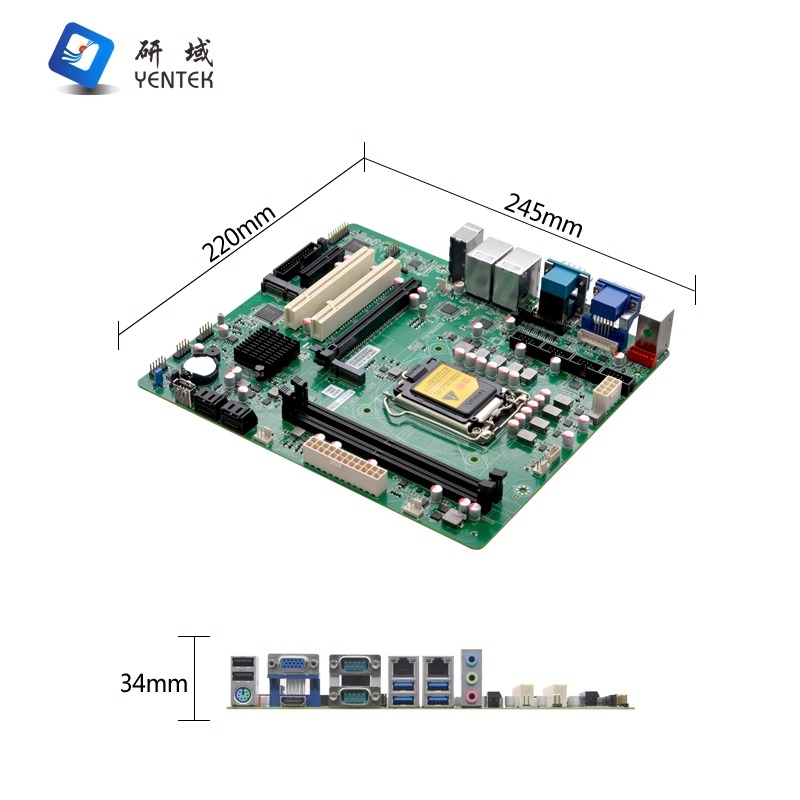

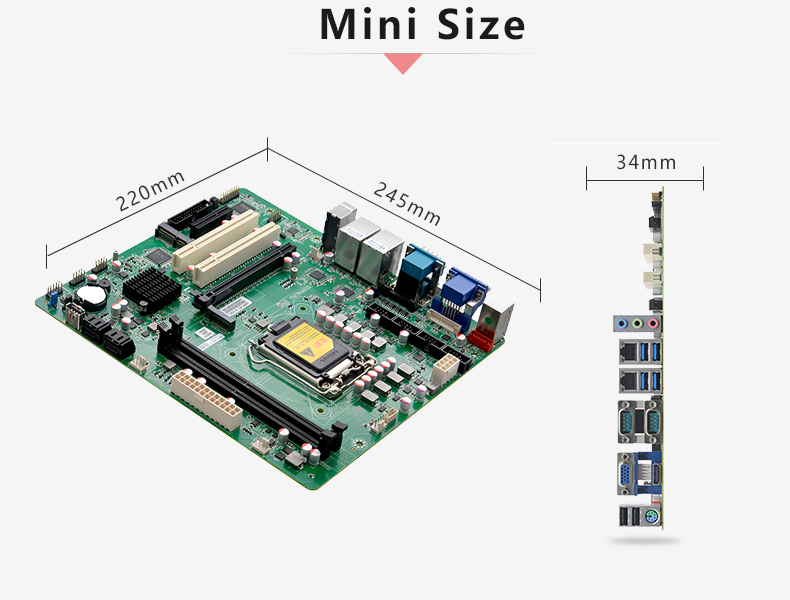

245mm x 220mm(mATX)
