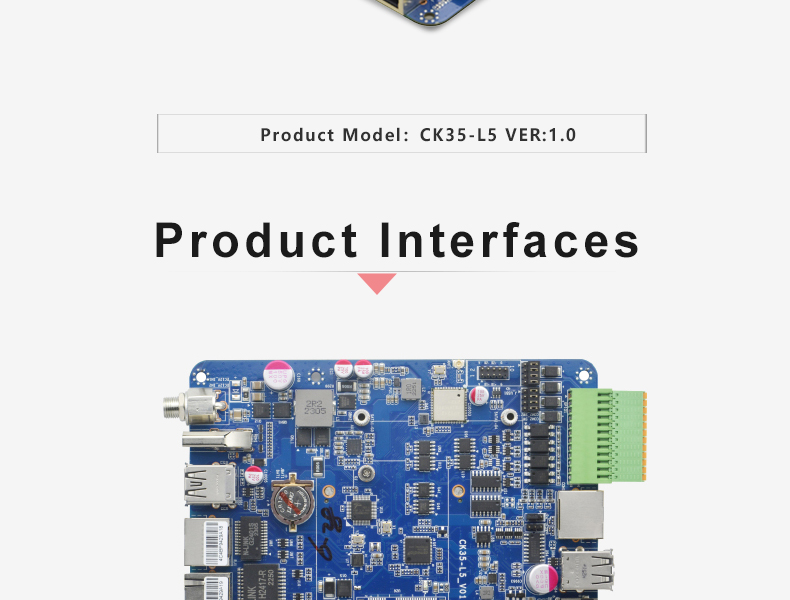

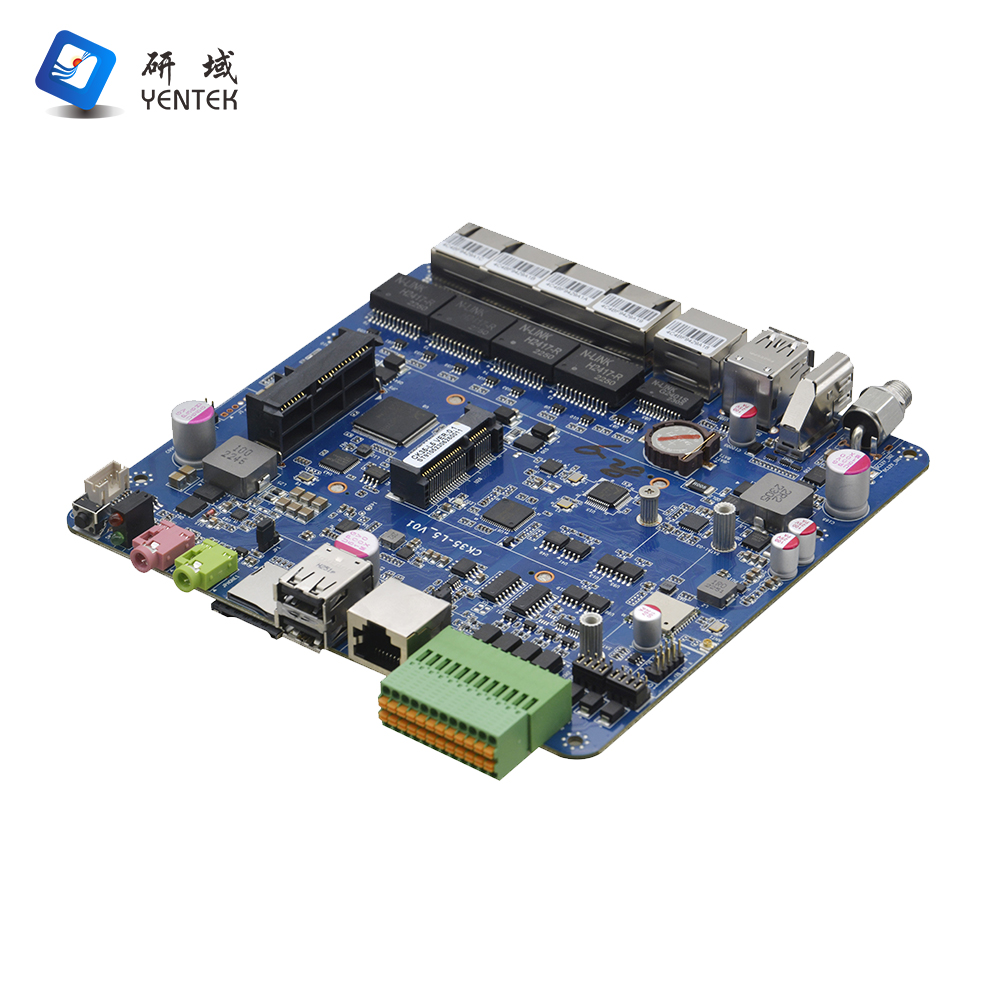

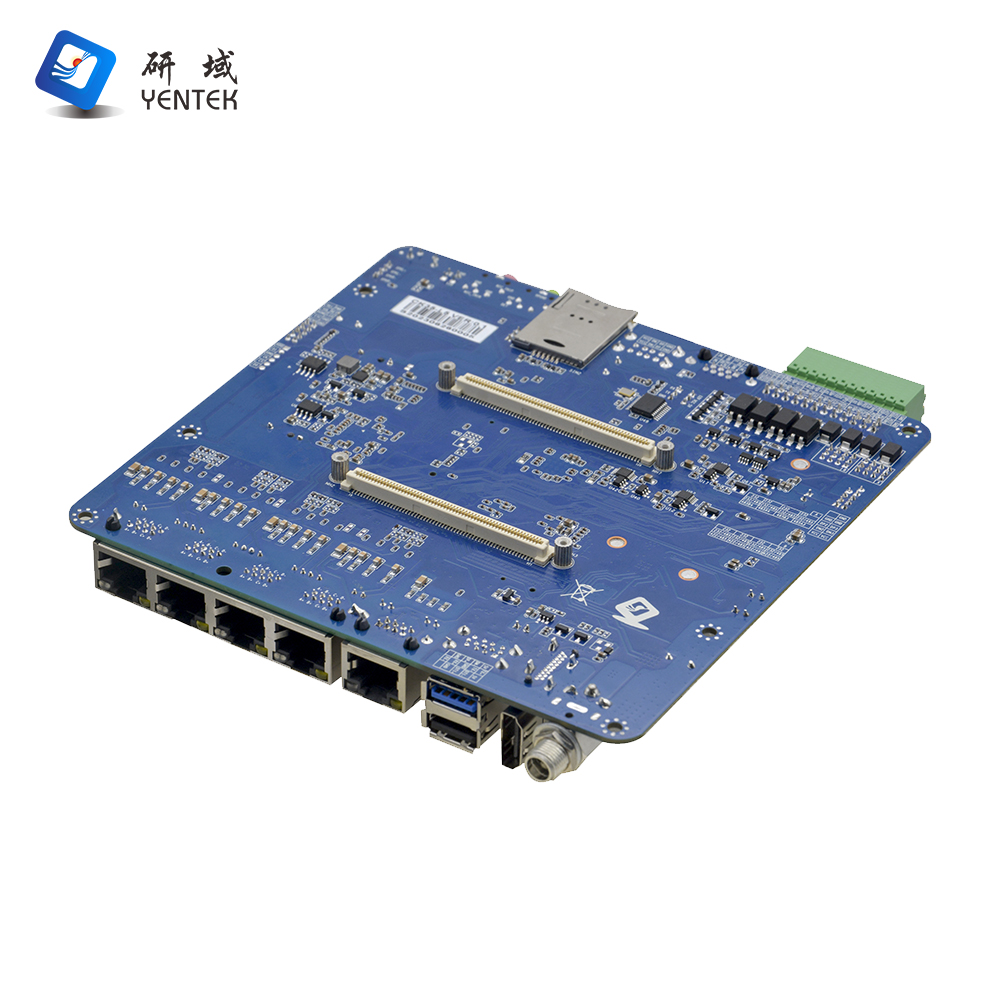

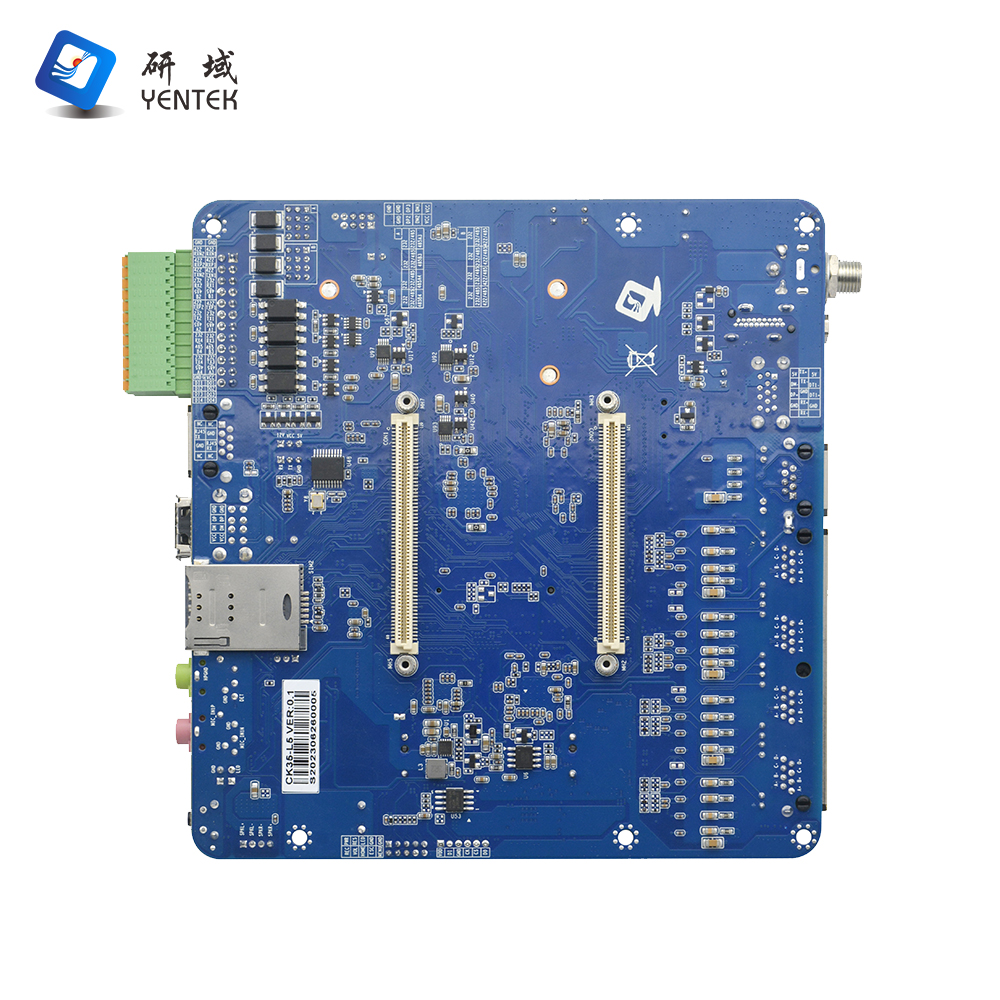

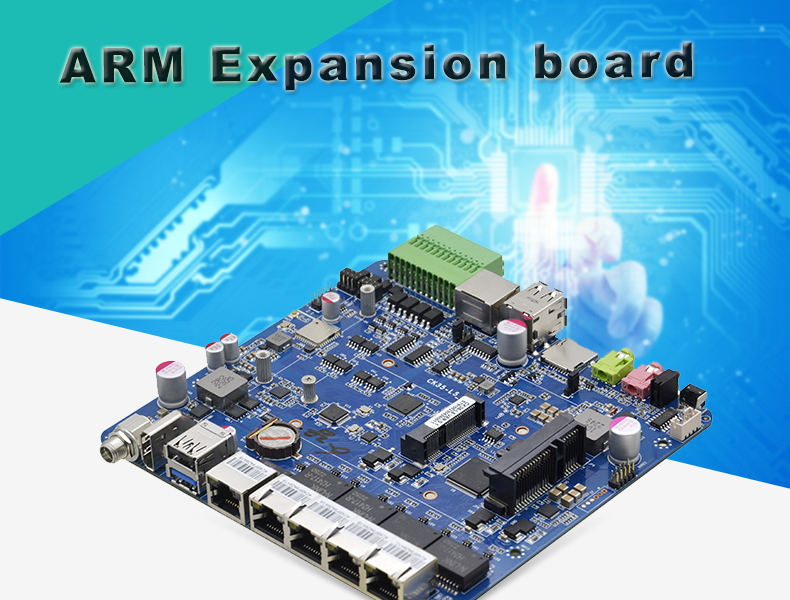

Product model

CK35-L5 VER:1.0

processor

CPU Rockchip RK3568J Quad-core Cortex-A55 up to 2.0GHz processor

chipset

Based on RK3568J SOC platform (used with CK35H core board)

Internal memory

Onboard LPDDR4 4G memory

display

Integrated ARM Mali-G52 GPU, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

1*HDMI port

network

1*WAN port, 4* LAN port (48V POE)

1*WIFI(dual band)/Bluetooth module (reserved)

deposit

1* eMMC memory chip 32G

1* Support TF card expansion

Tone frequency

Line-out, MICK

Power amplifier

Supports 2Ω5W dual channels

Expansion slot

1* mini PCIe slot (embedded with USB3.0 signal, supporting 5G), 1*SATA

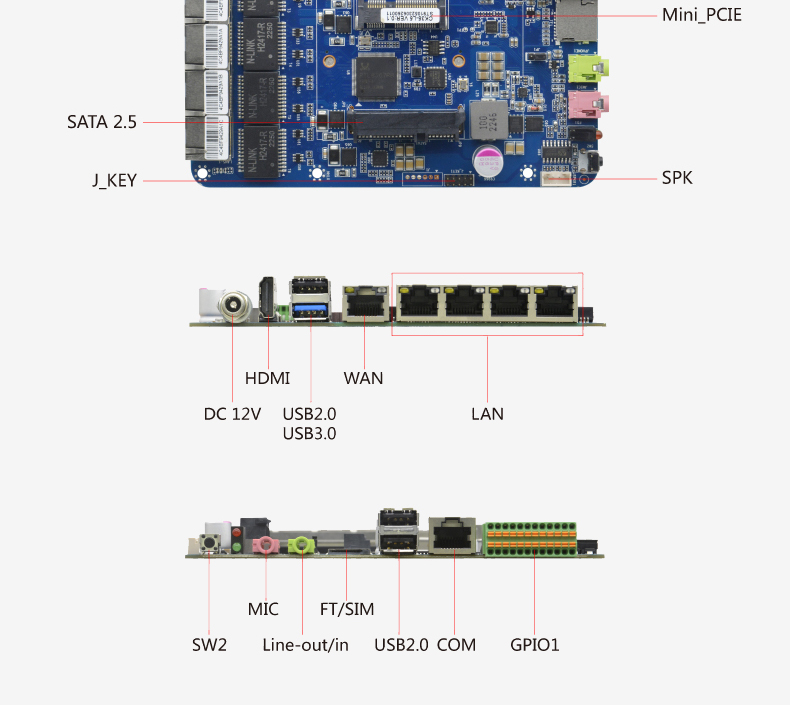

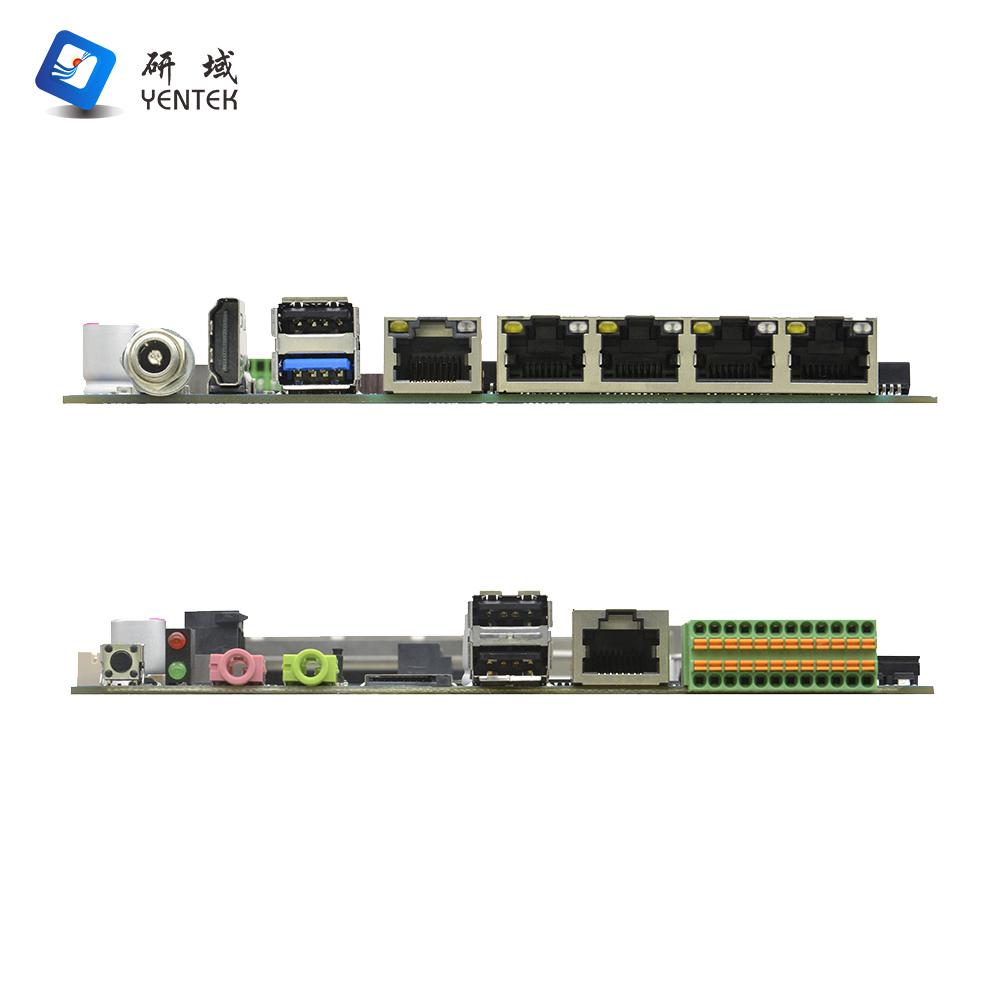

Rear I/O interface

2* 12PIN Phoenix terminal (4*DI/4*DO/4*RS232, can do 4*RS485 or 2*RS422+2*RS232, overall jump cap switch)

1* CONSOLE port

2* USB2.0

1* SIM/TF card holder

1* Line-out (green)

1* MICK(red)

1* Power indicator (red above and green below)

1* Burning key

Front I/O interface

1* DC 9-36V input (threaded and unthreaded LAYOUT)

1* HDMI port

1* USB2.0(upper-layer OTG), 1* USB3.0

1* RJ45 Gigabit (WAN port)

4* RJ45 Gigabit (LAN port) with 48V POE function

Built-in I/O

1* mini PCIe slot (4G/5G)

1* SATA interface (height 12mm)

1* Front panel function button and indicator port 2*5pin

2* USB2.0

Power supply type

DC 9-36V input

DIO

Supports four DI ports and four DO ports

System

Android 11, Ubuntu20.04, Debian 10 (used with CK35H core board)

Operating temperature

-40℃～85℃

Storage temperature

-40℃～85℃

Working humidity

5%-95% relative humidity, no condensation

dimension

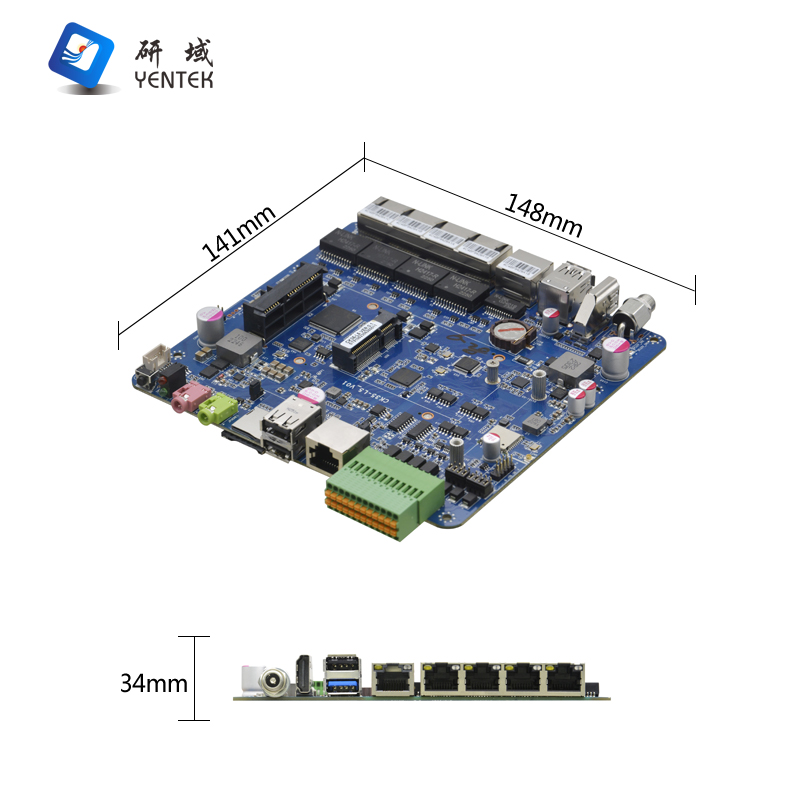

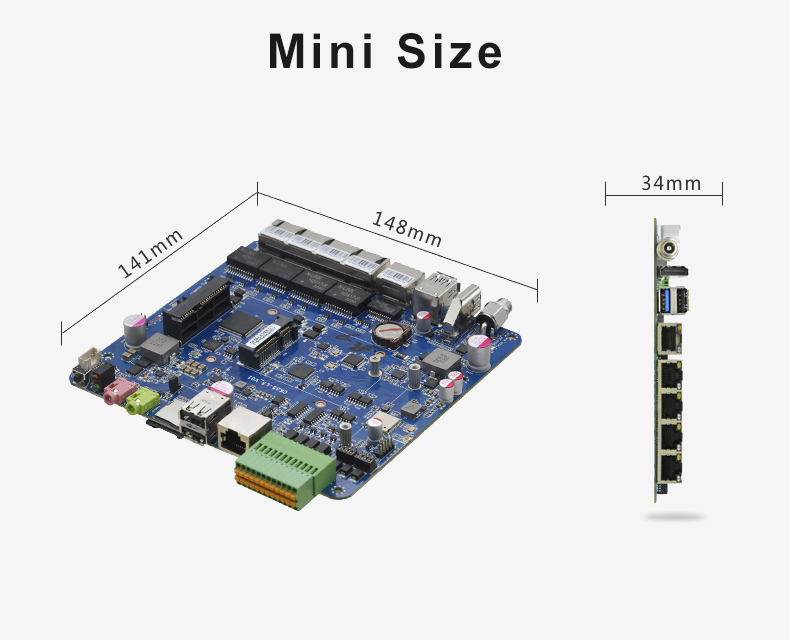

148mm x141 x 25.1mm universal C57 dimensions and screw holes (6-ply plate, screw hole specification :Ø3.5mm x 4)
