Product model

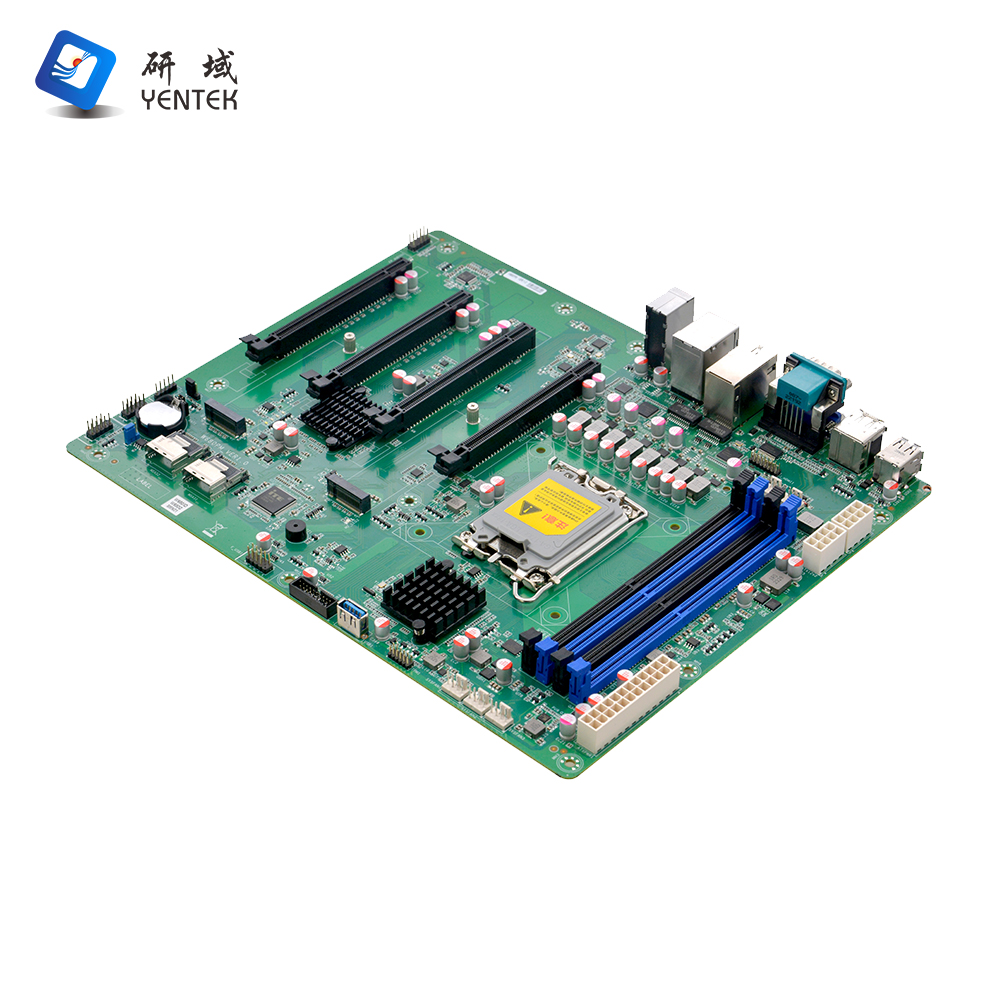

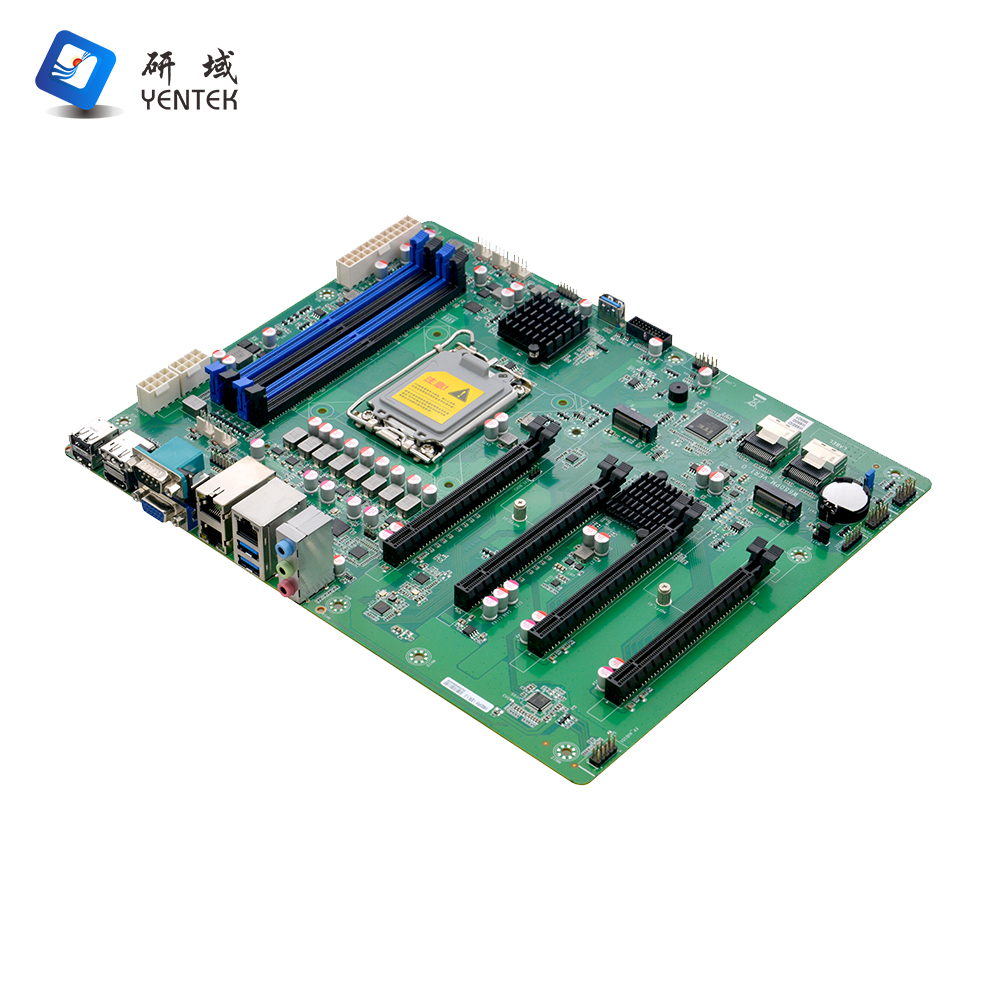

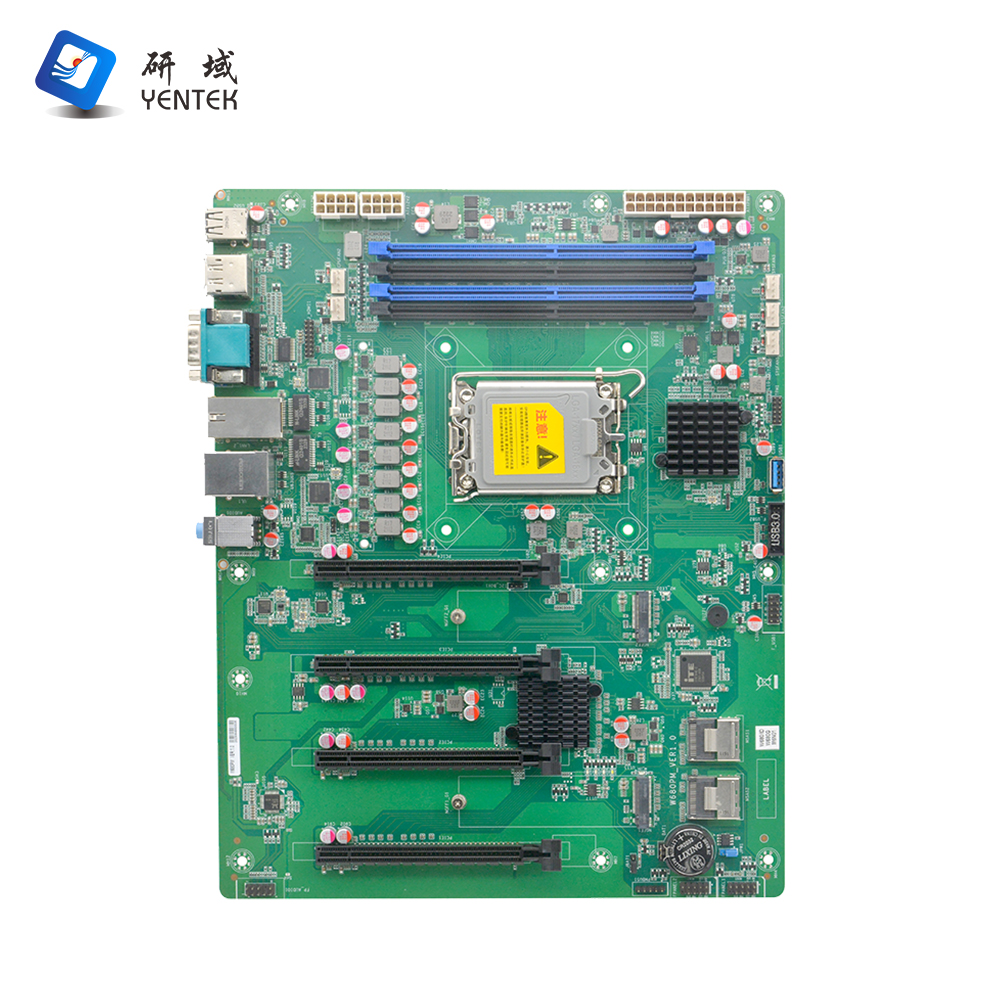

W680PM VER:1.0

processor

Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 Alder Lake-S and Raptor Lake-S and Xeon processors,Note: Supports 125W cpus

chipset

Using Intel® W680 chipset,

Internal memory

4* DDR4 DIMM slots support a dual-channel memory of up to 3200MHz, 128GB, and ECC memory

display

Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display

1* VGA port

1* HD OUTPUT1.4 interface, support the highest resolution of 4096*2160@24Hz

1* DP interface, the maximum resolution is 4096*2160@60Hz

network

2* I210AT Gigabit network adapter chip, supports network wake up /PXE function

1* I219LM Gigabit network adapter, support network wake up /PXE function, support PRO function

deposit

2* MSAS hard disk interface, each MSAS supports 4 7pin SATA, a total of 8 7pin SATA transmission speed up to 6Gbps

2 * M.2 slot, support M.2 Key M 2280 NVME PCIE X4 standard SSD

Tone frequency

Onboard ALC897 7.1+ 2-channel hi-Fi audio controller with MIC/Line-out/Line-in support

Expansion slot

4* PCIE3.0 X16 slot, the actual X8 signal

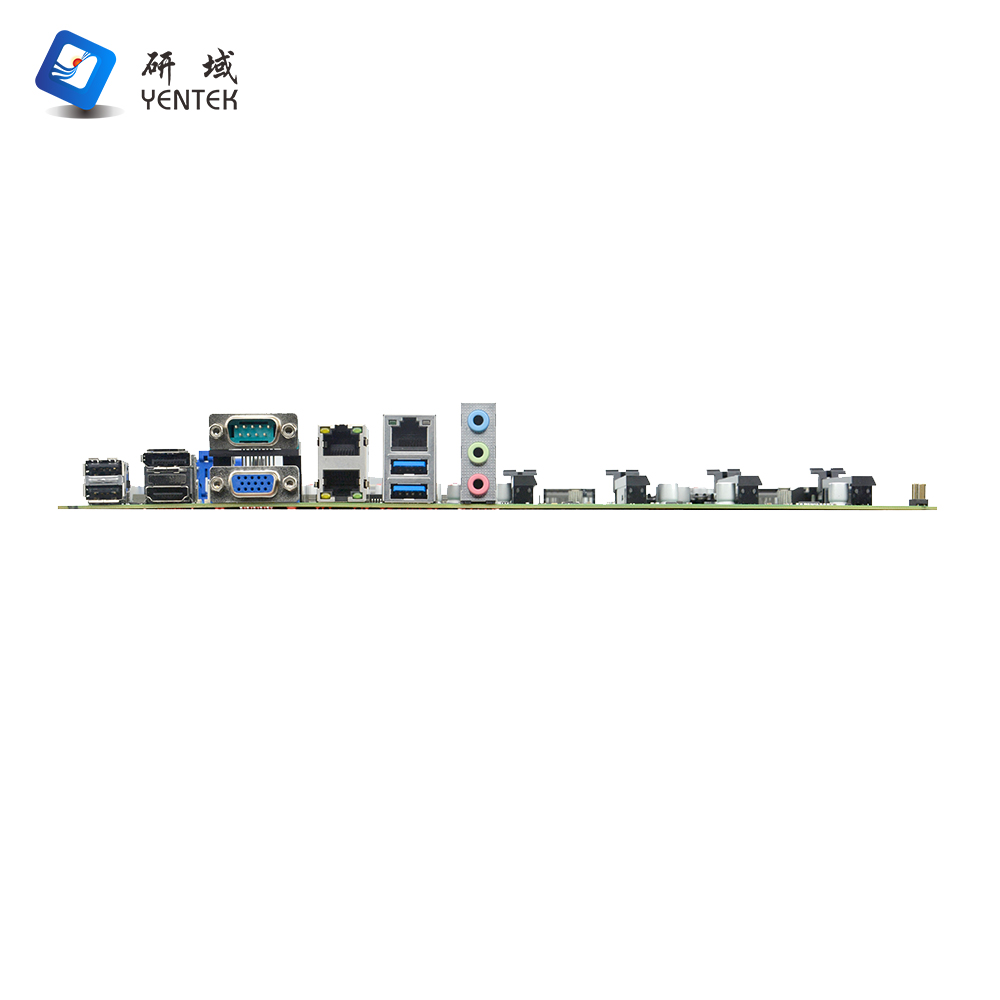

I/O ports on the backplane

2* USB2.0 port

1* DP interface

1* HD OUTPUT1.4 port

1* VGA port

1* DB9 serial interface

3* RJ45 Gigabit network interface

2* USB3.0 port

1* Layer 3 audio interface, support Line-out,MICK,Line-in

Built-in I/O interface

1* vertical USB3.0 interface

2* USB2.0 interface 2*5pin

2* USB3.0 interface 2*10pin

1* front audio interface 2*5pin

1* TPM1 interface 2 x 6pin

1* 24pin ATX power interface

2* 8pin ATX power interface

2* Front panel function buttons and indicator ports 2*5pin

Fan interface

2*4pin CPU fan interface; 3*4pin system fan port

BIOS

128Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 10/Windows 11/Linux

Power supply type

Powered by ATX 24Pin and 8pin power supplies

Operating temperature

0℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

Size

305mm * 245mm
