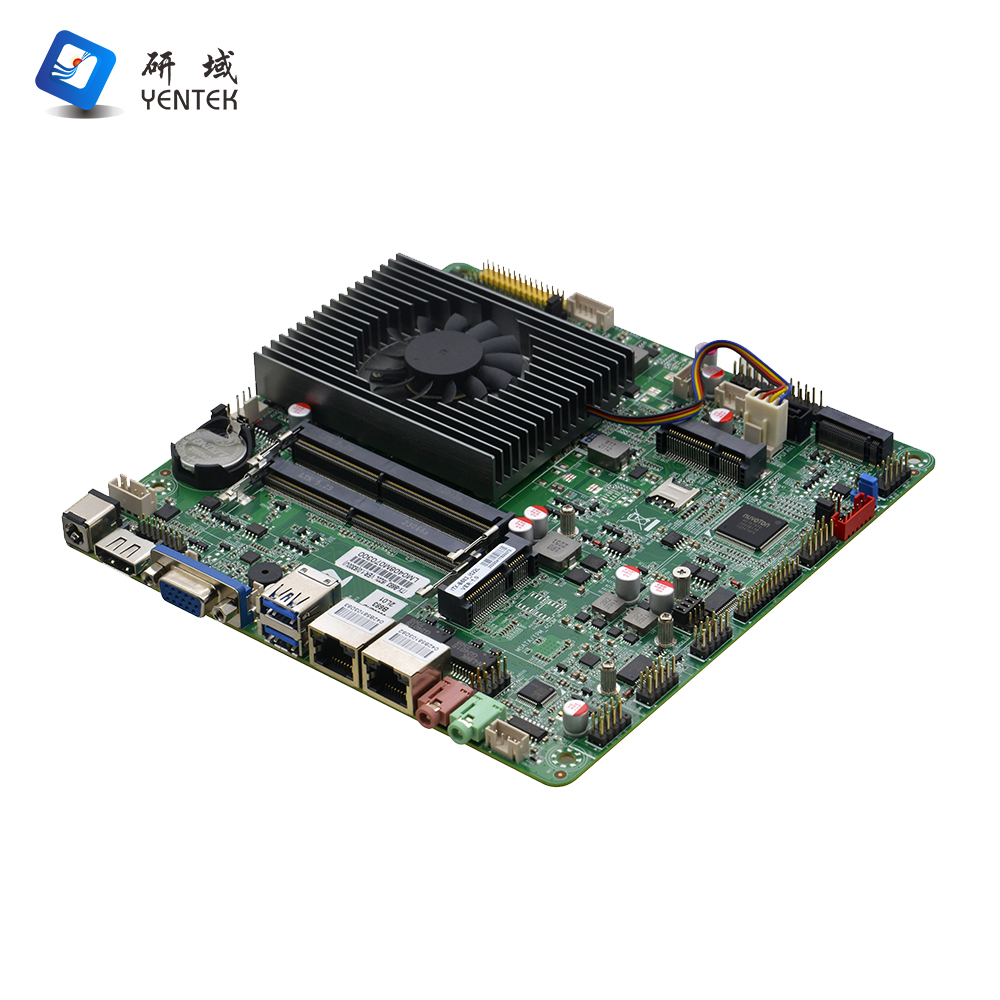

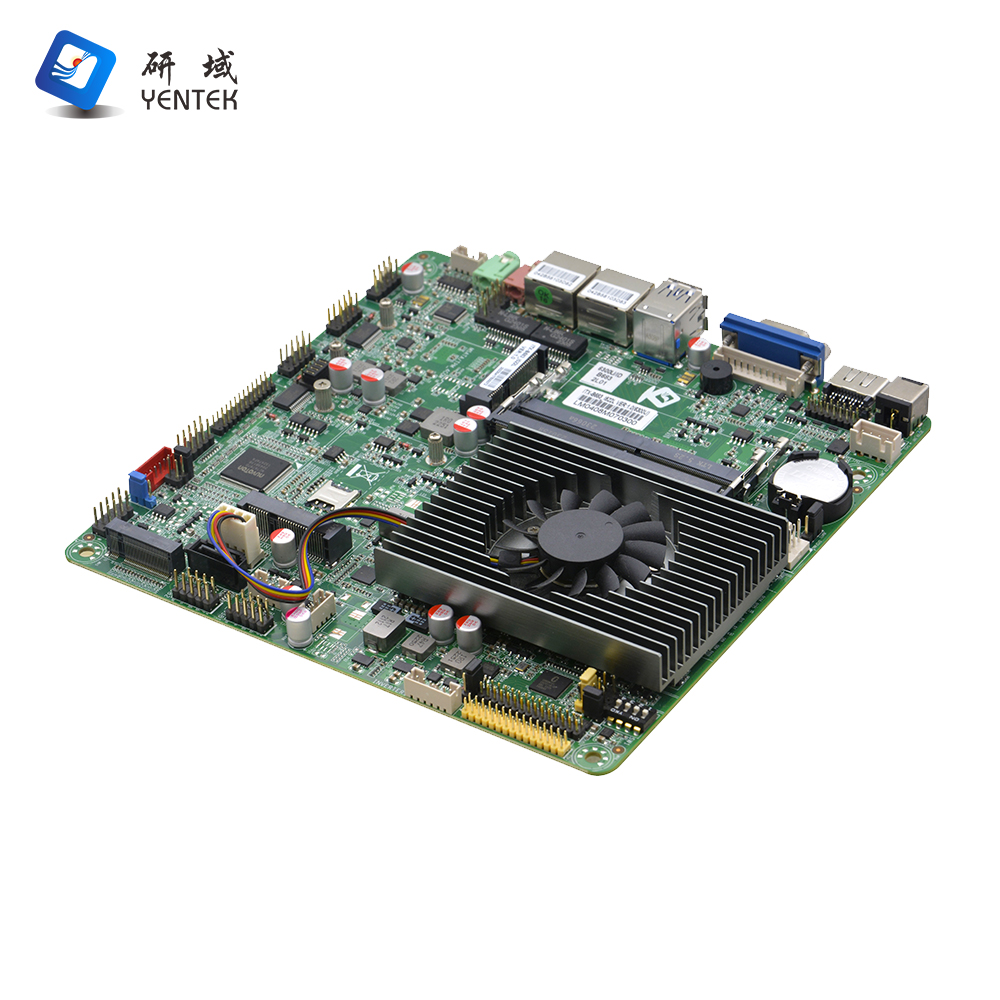

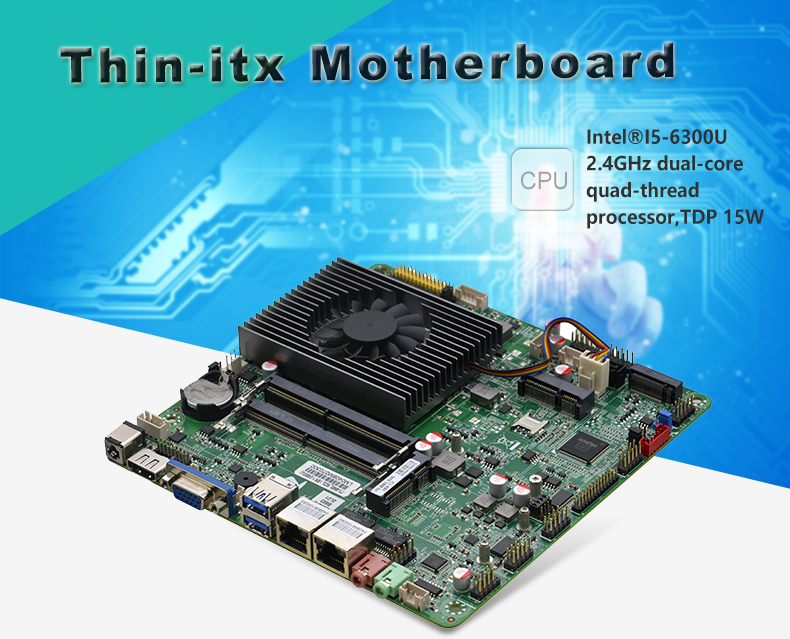

Product model

ITX-B683_I522L VER:1.0（6300U）

processor

Integrated Intel®I5-6300U 2.4GHz dual-core quad-thread processor,TDP 15W

Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power processors

Chipset

SOC

Internal memory

2 * DDR4 SODIMM slots, supporting 2133 MHZ memory and a maximum of 32GB memory

Display

Integrated Intel®HD Graphics S520, support DirectX 12, OpenGL 4.5, support 4K

The maximum resolution supported by the 1 x VGA port is 1920X1200@60Hz

1*HD OUTPUT1.4 port, the highest resolution supported is 4096X2304@24Hz

1* Supports dual-channel 24bit LVDS interface

1*EDP interface, and LVDS interface to choose one of the two through the jump

Network

2* Intel WGI210AT Gigabit network adapter, supporting network wake up and PXE functions

Deposit

1* SATA3.0 hard disk interface, transmission speed up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps

1* M.2 slot, supporting M.22280 NVMEPCIE X4 or SATA SSDS

Note:MSATA and TPM-4COM are optional. Four serial ports can be extended by TPM-4COM. The default port is MSATA

Tone frequency

Integrated ALC888S 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier

Support power amplifier 2Ω5W speaker

Expansion Slot

1* Mini-PCIE slot, supporting WIFI/4G module

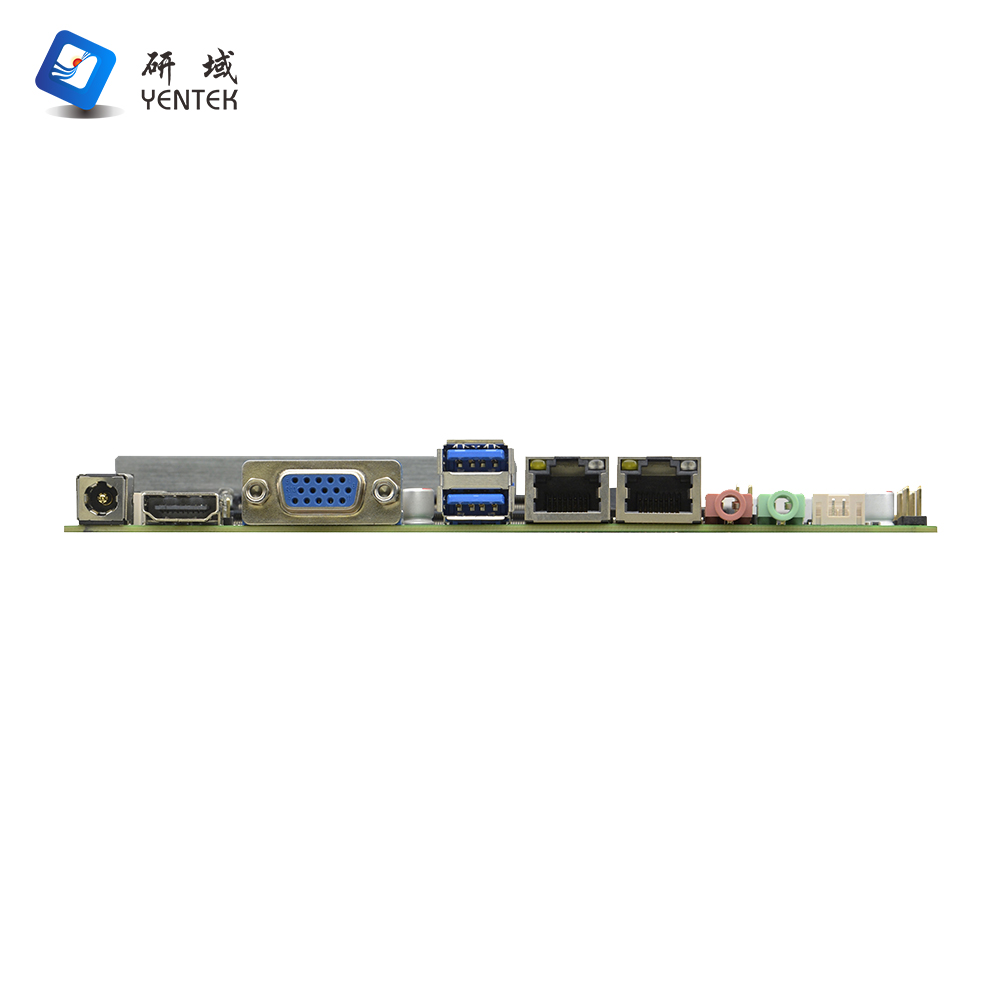

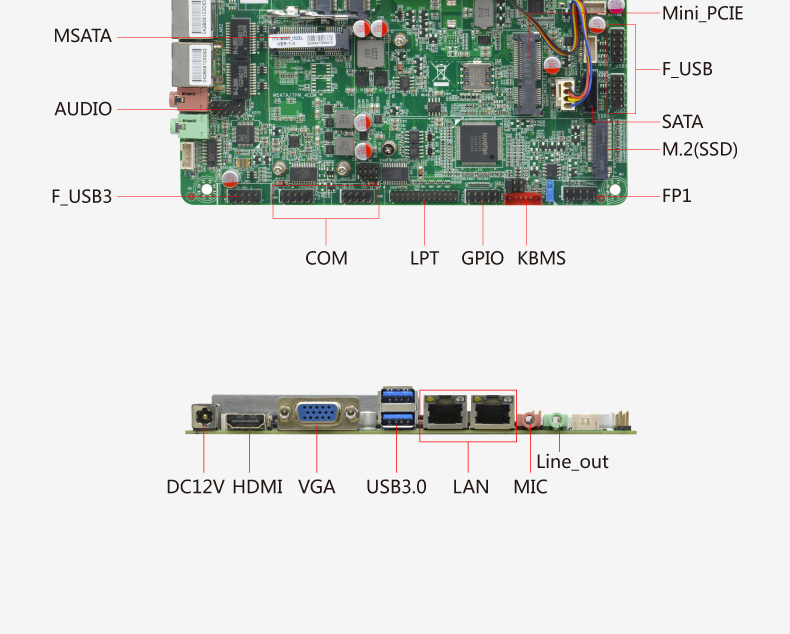

I/O ports on the backplane

2* USB3.0 port

1* HD OUTPUT port

1 x DB15 VGA port

2* RJ45 Gigabit network interface

1*Line-out(green), 1*MIC(red)

1*DC12V power supply Supports 12V power input and output

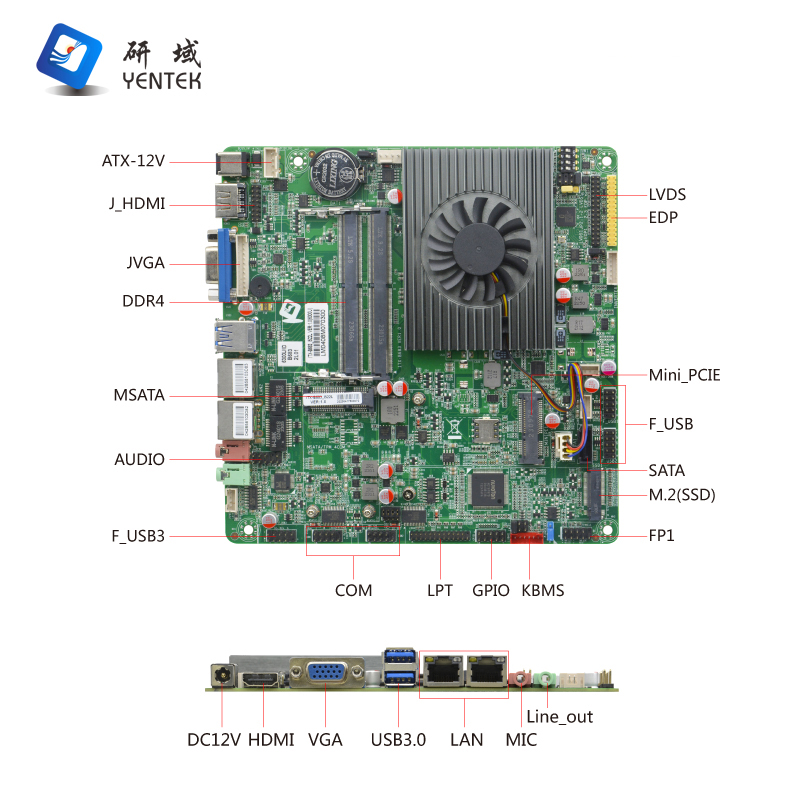

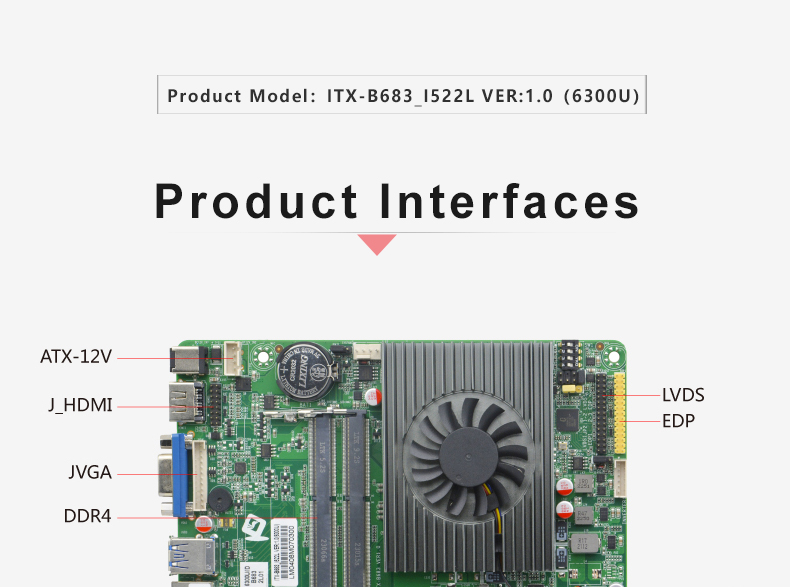

Built-in I/O interface

1* JVGA1 Interface 1*12pin(same signal as DB15)

1* JHD OUTPUT interface 2*8pin(same signal as HD OUTPUT interface)

1* LVDS interface 2*15pin, support dual channel 24bit

1* EDP interface (yellow) 2*15pin, with LVDS for one of two via jump

1* LVDS backlight power supply interface 1*6pin

2* RS232 serial interface, where COM1 supports 9pin live, COM2 supports RS485/422 function

6* USB2.0 interface 2*5pin

1* front audio interface 2*5pin

1* Front panel switch button and indicator port 2*5Pin

1* hard drive power port 1*4pin

1* power amplifier interface 1*4pin

1* LPT print interface 2*13pin

1* PS/2 keyboard and mouse interface

1* 4pin DC power interface (12V input/output power interface)

1* SIM card slot

Fan interface

1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Supports four input/output GPIO

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

Adopts DC 12V power supply

Operating system

Windows 7 , Windows 10 , Linux

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

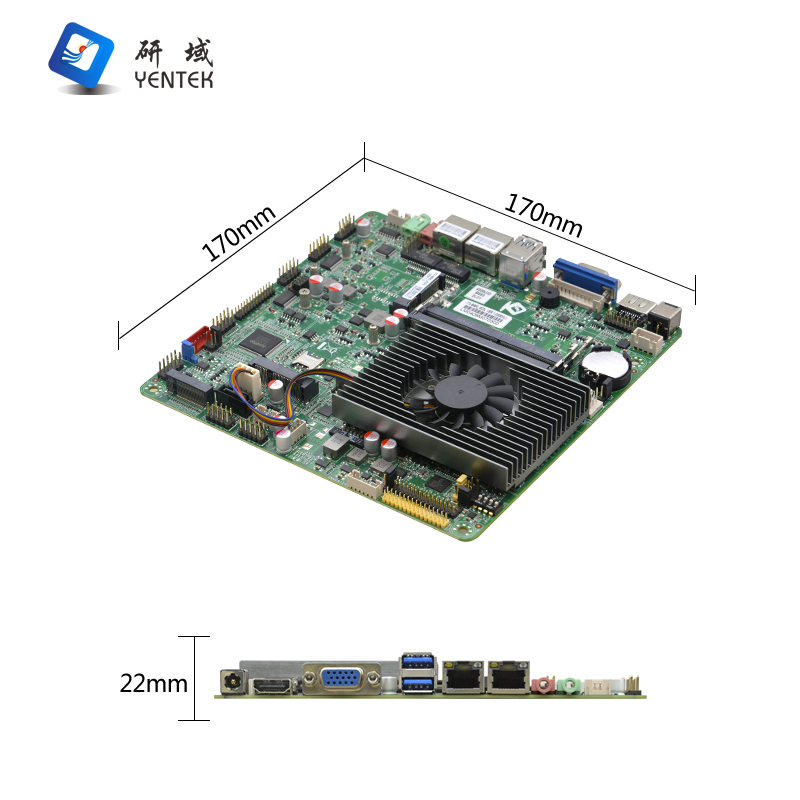

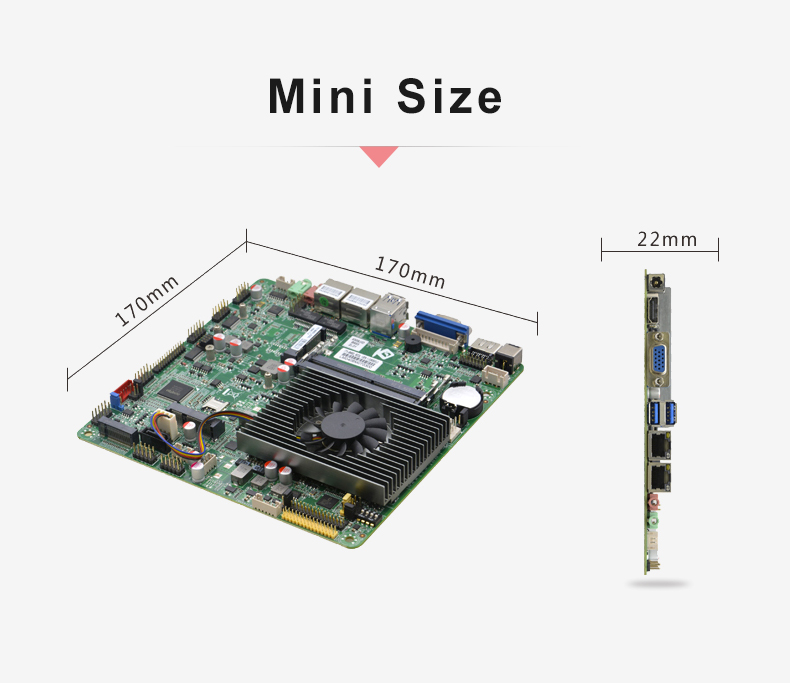

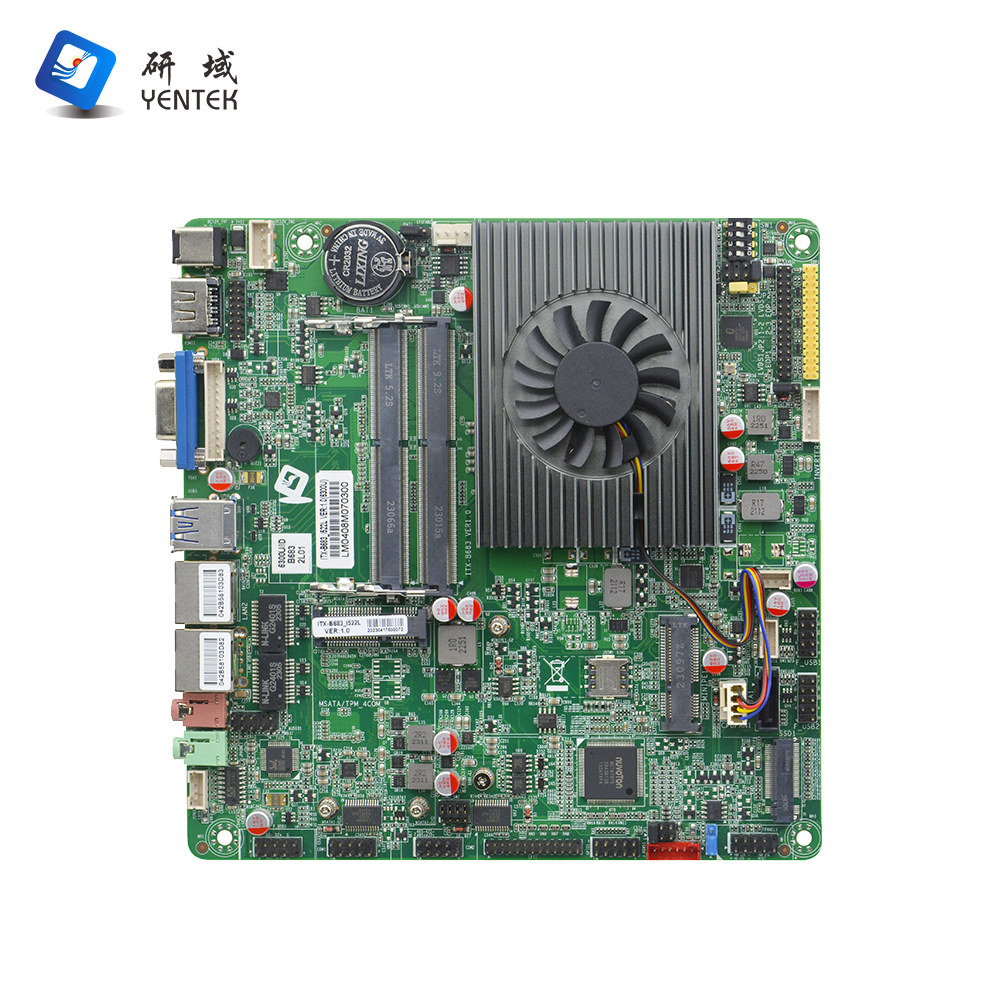

Dimension

170mm x 170mm
