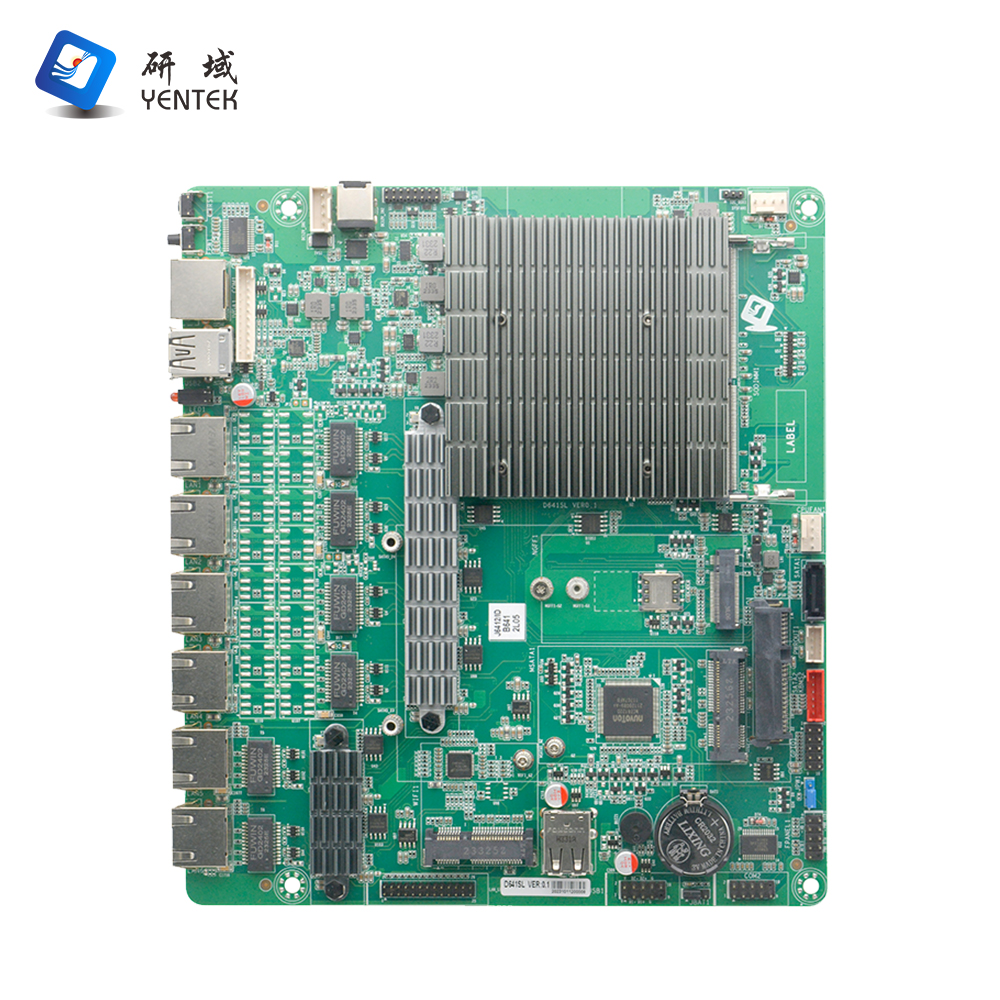

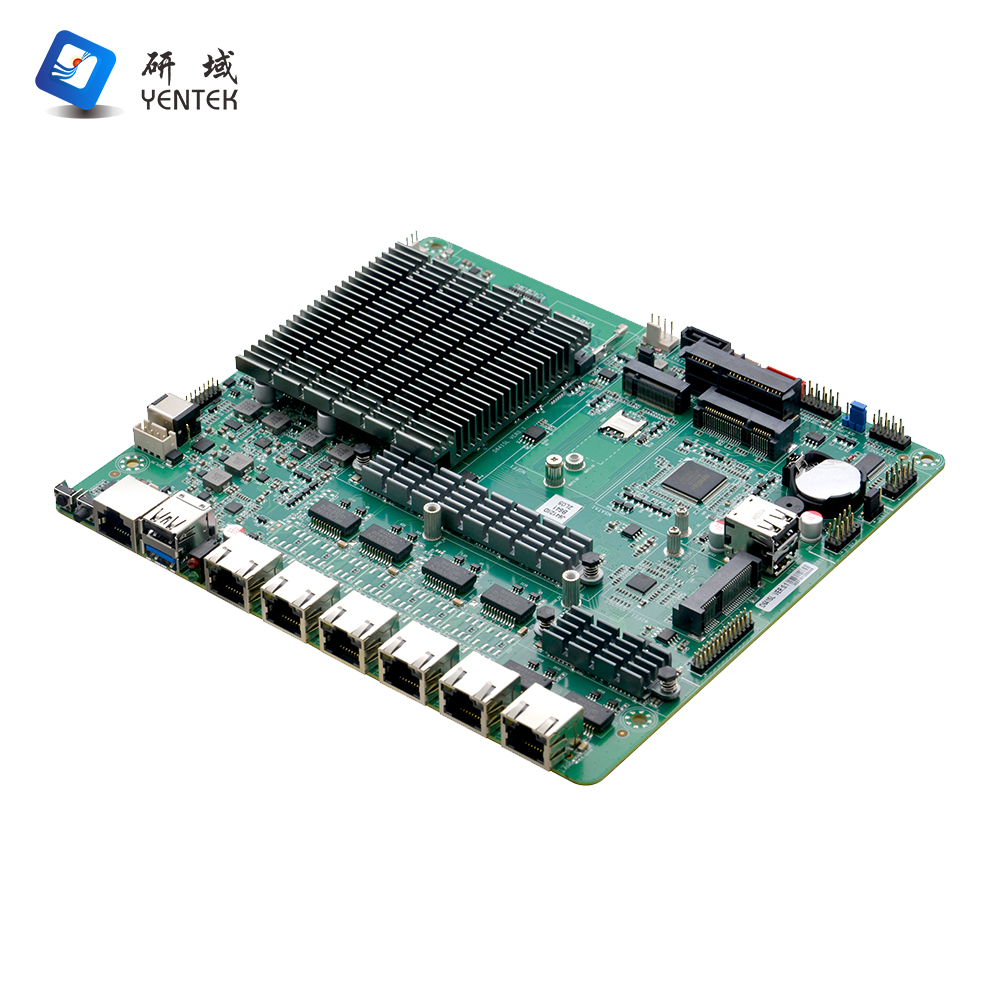

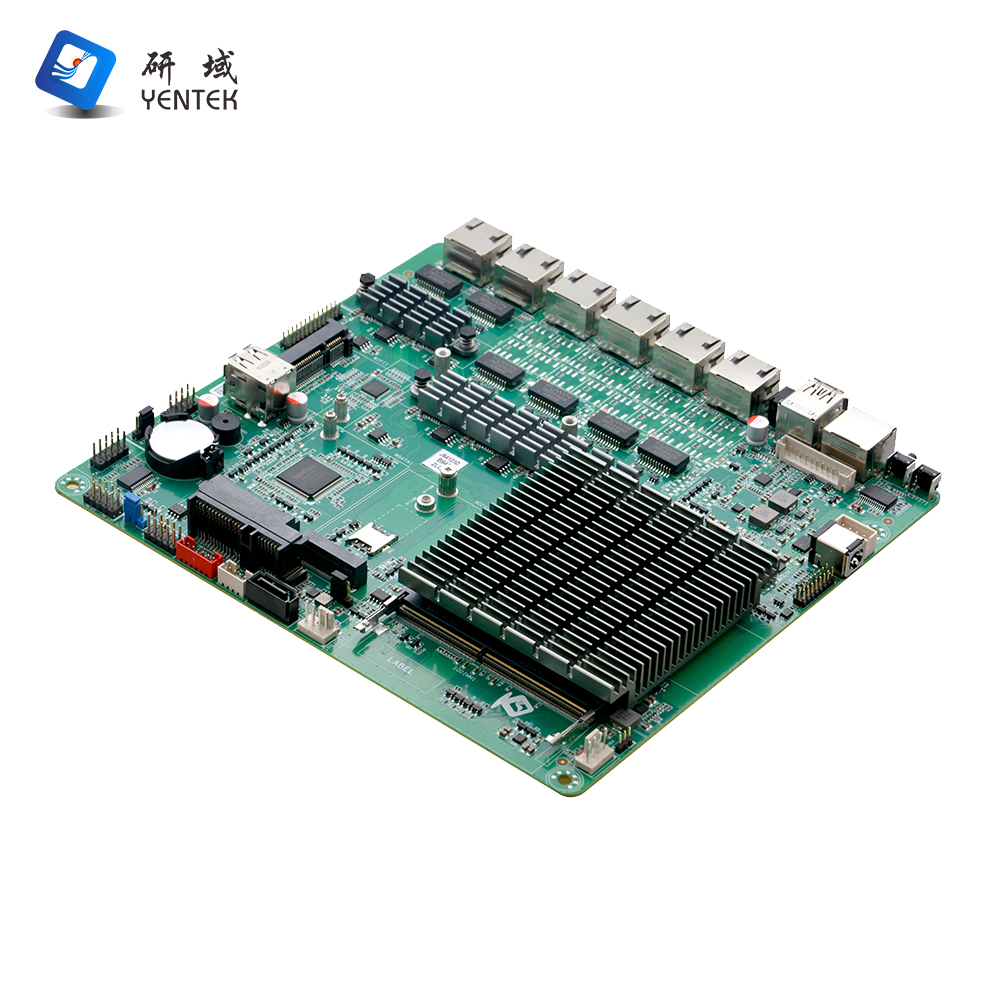

Product model

D641SL VER:0.1

processor

Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor,TDP 10W，Compatible with the full range of Intel® Elkhart Lake cpus, customers can choose flexibly

chipset

SOC

Internal memory

1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 16GB)

display

Integrated Intel® UHD Graphics core graphics card, providing 1*VGA,1*HDMI display output

network

6* Intel I226V Gigabit network adapter, support network wake up, PXE functions,

deposit

1* SATA3.0 2.5-inch laptop hard disk, you can directly install the hard disk

1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps, and 2.5-inch hard disk is one of two options, the default is 2.5 inches

1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps

Expansion slot

1* Mini-PCIE slot, supporting the WIF module.

1* M.2 slot, supporting the M.2 2242/2252 4G/5G module

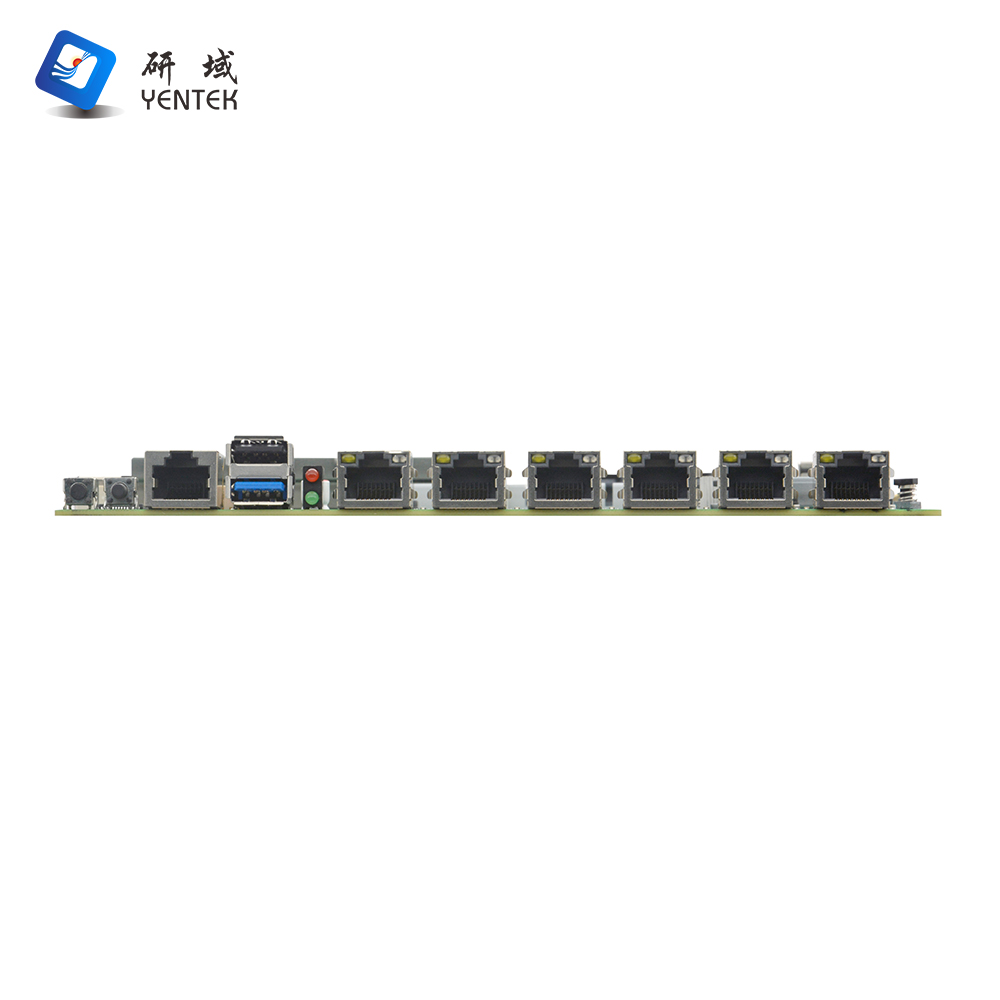

I/O ports on the backplane

1* CISCO standard RS232 serial interface

2* USB 2.0 port

6* RJ-45 Gigabit network port

1* Power switch, 1* reset switch

1* Power indicator (green)/Hard disk indicator (red)

1* DC power interface, support 12V power input and output (side)

Built-in I/O interface

1 x JVGA port 1 x 12pin

1* JHDMI port 2*8pin

1* Network indicator port 2*13pin

1* RS232 serial port 2*5pin

2* USB2.0 interface 2*5pin

2* Standard USB2.0 interface

1* hard drive power port 1*4pin

1* Front panel function button and indicator port 2*5pin

1* PS/2 keyboard and mouse interface 1*6pin

1*4pin DC power input interface, support 12V power input and output

Fan interface

1* 4pin CPU intelligent fan interface, 1* 4pin system fan interface

GPIO

Supports four input/output GPIO

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Power supply type

Adopts DC 12V power supply

Operating system

Window 10/Linux

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

dimension

200mm x 180mm
