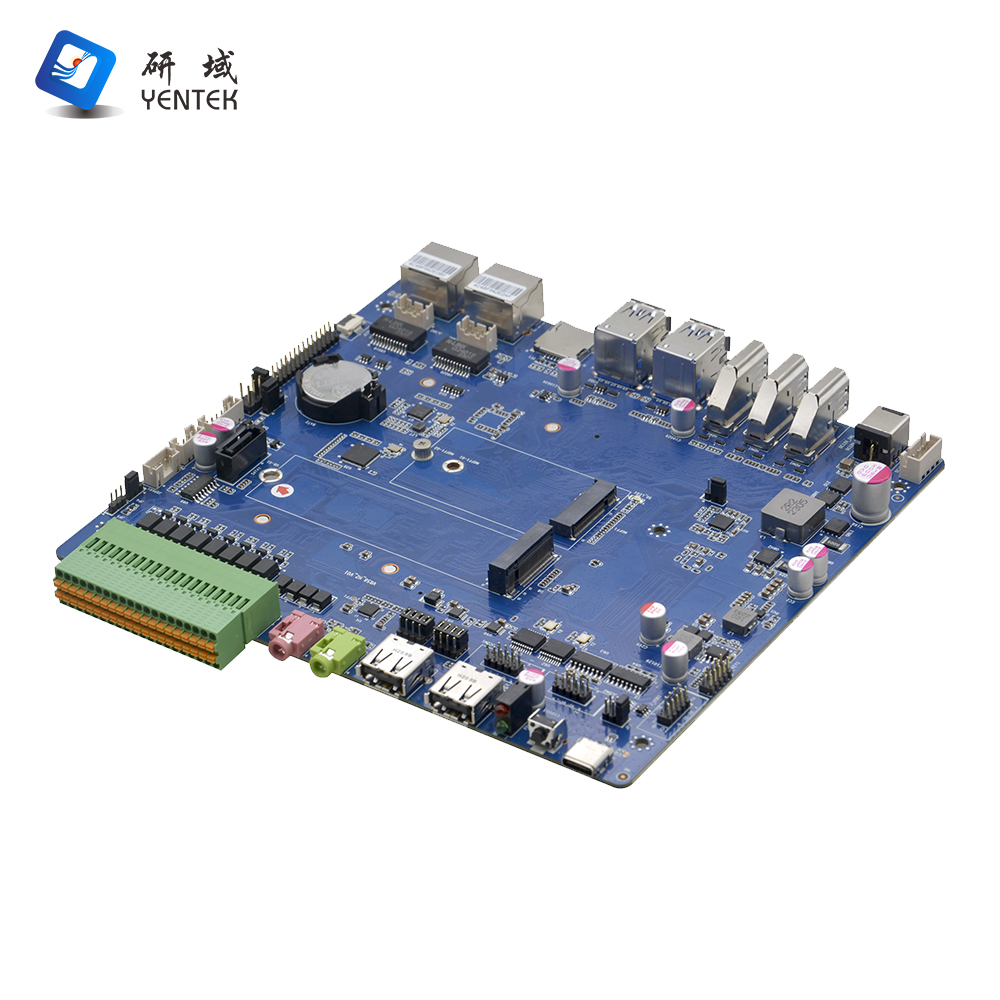

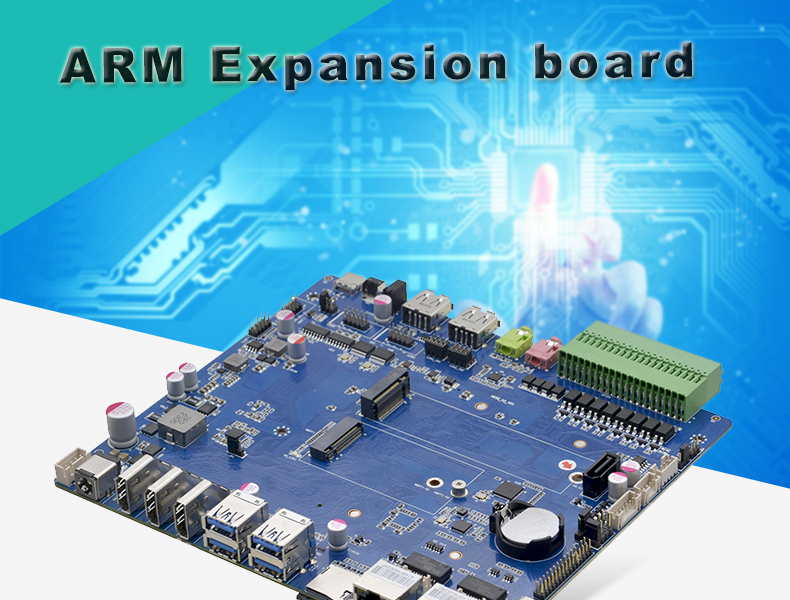

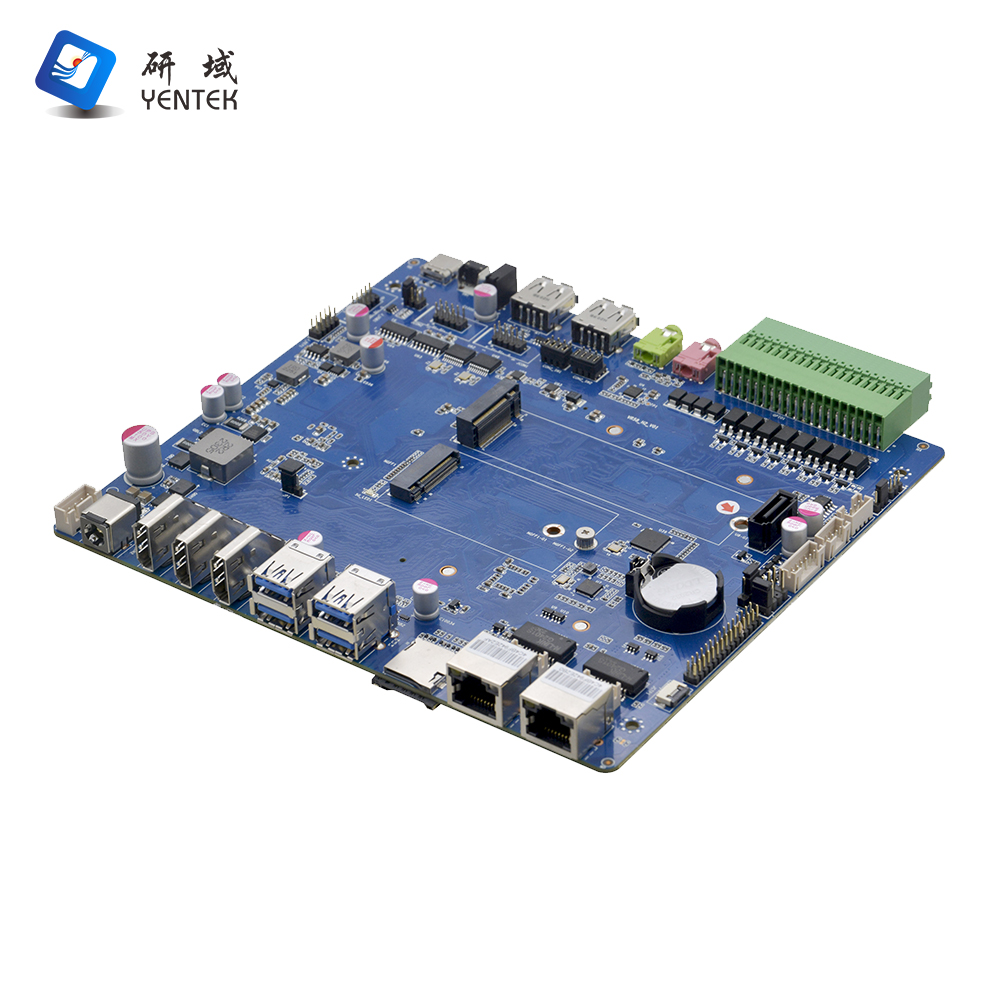

Product model

VR58-H2  VER:0.1

reveal

2 * HDMI-OUT port, 1*HDMI-IN port, 1*LVDS port

network

2 * RTL8211F Gigabit NIC chip

1 * WIFI/BT module

Internal memory

Onboard LPDDR4 4GB(2GB/8GB/16GB optional) memory, up to 32GB

deposit

1* eMMC memory chip 32G(16GB/64GB/128G optional)

Tone frequency

PMIC power management chip RK809-5 comes with sound card, support Line-out, MICK, power amplifier

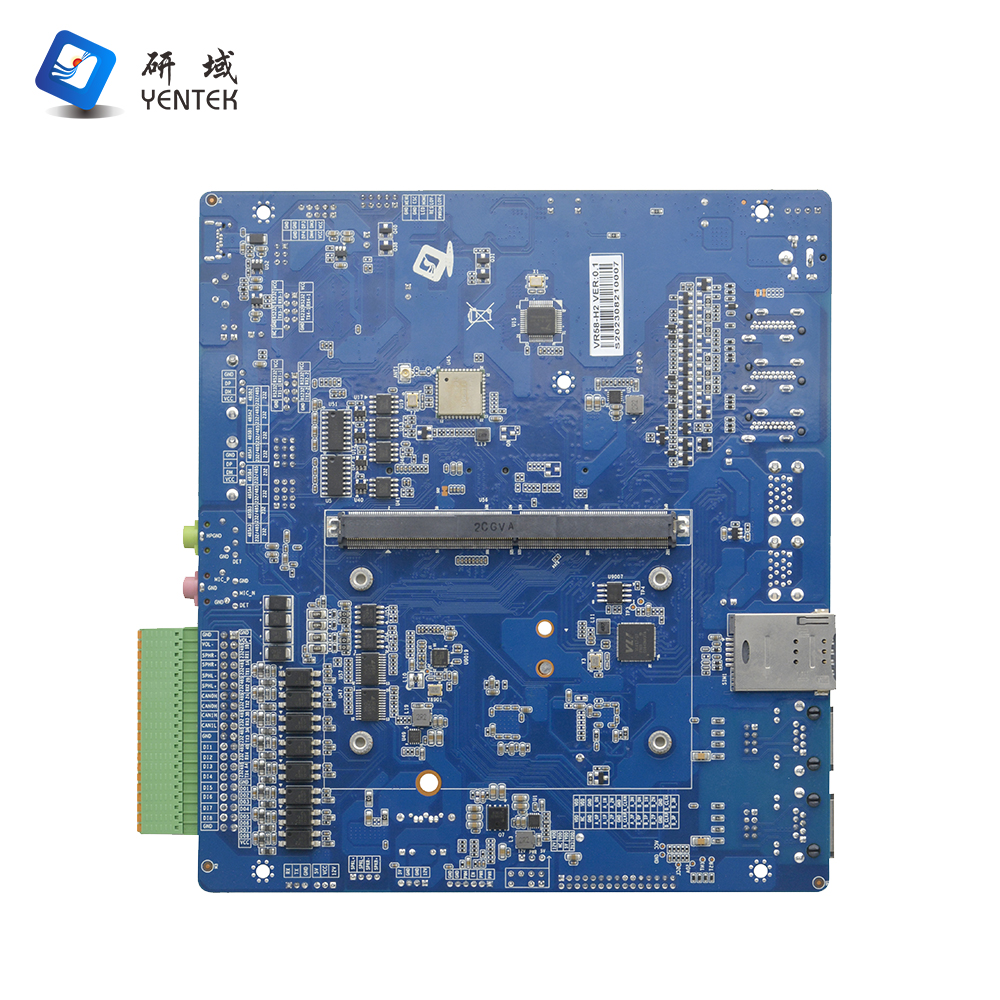

Expansion slot

1*M.2 Supports 4G/5G modules, 1*M.2 M Key to connect to the accelerator rod/hard disk, 1*MXM to connect to the core board, and SATA hard disk ports

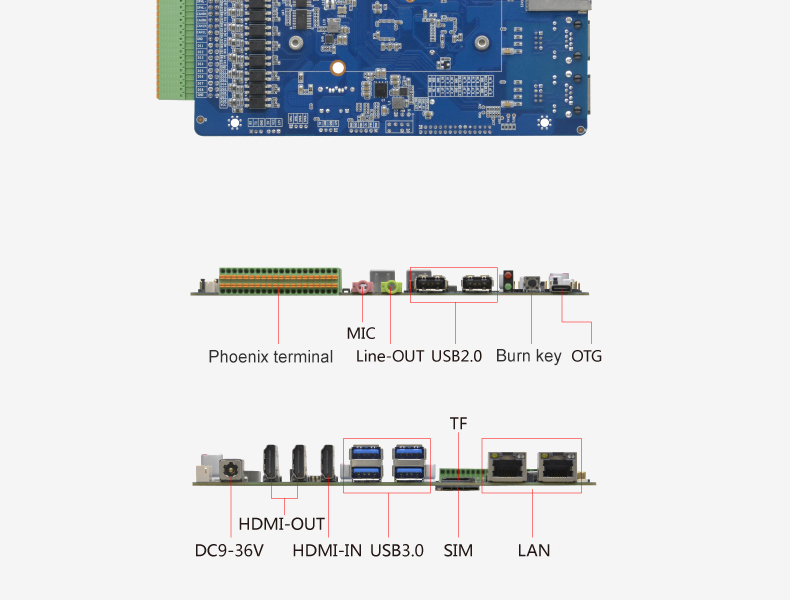

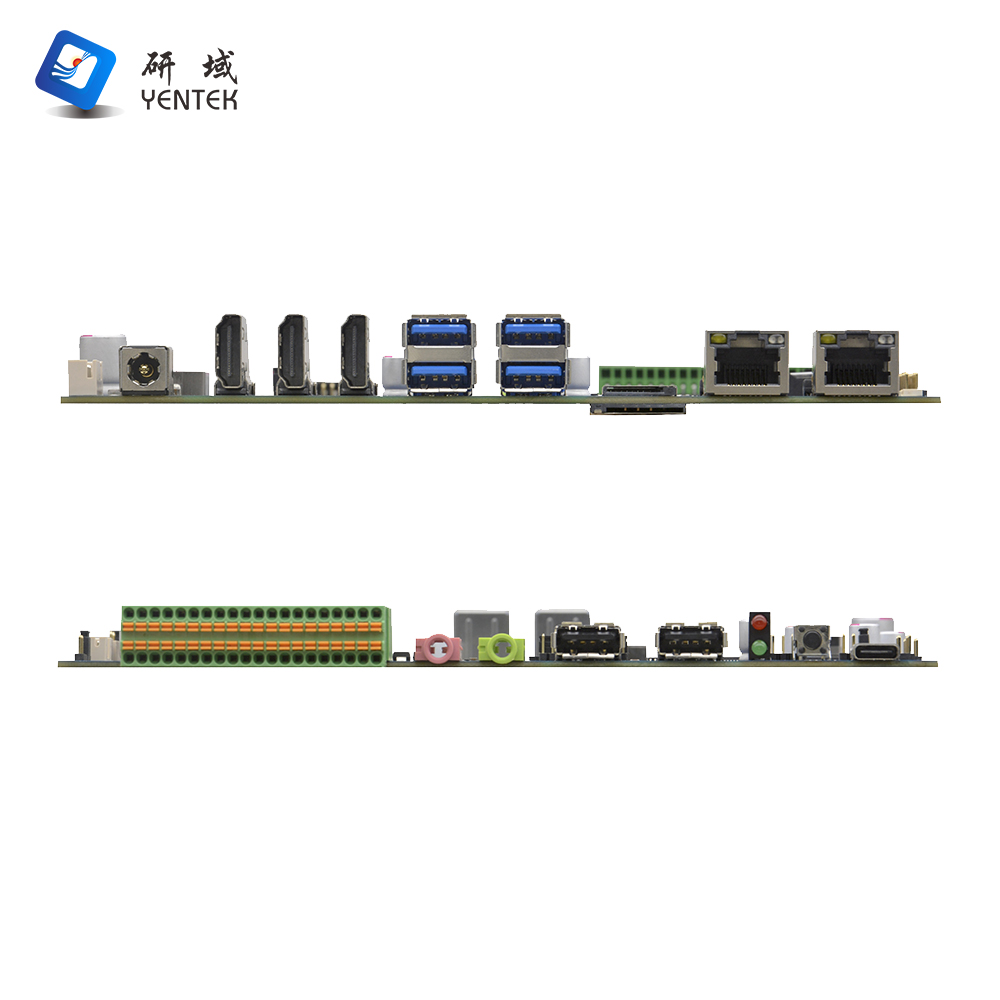

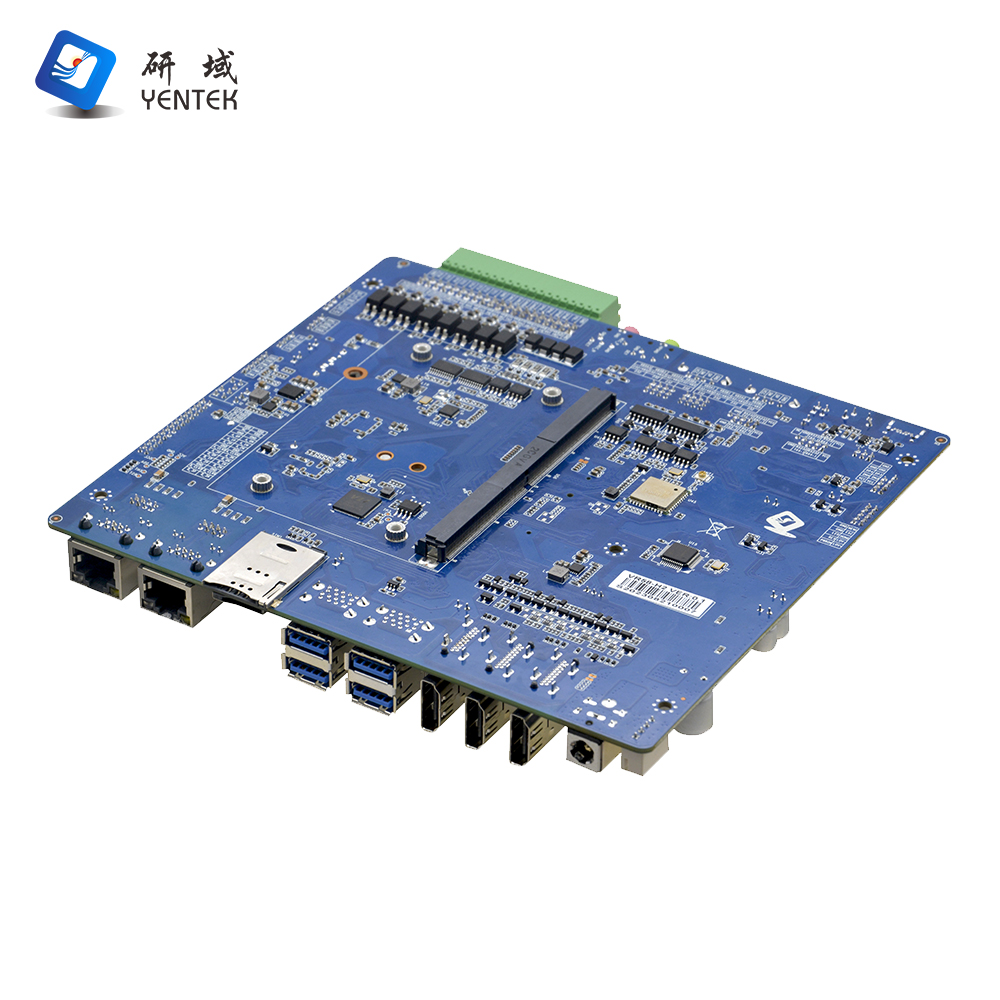

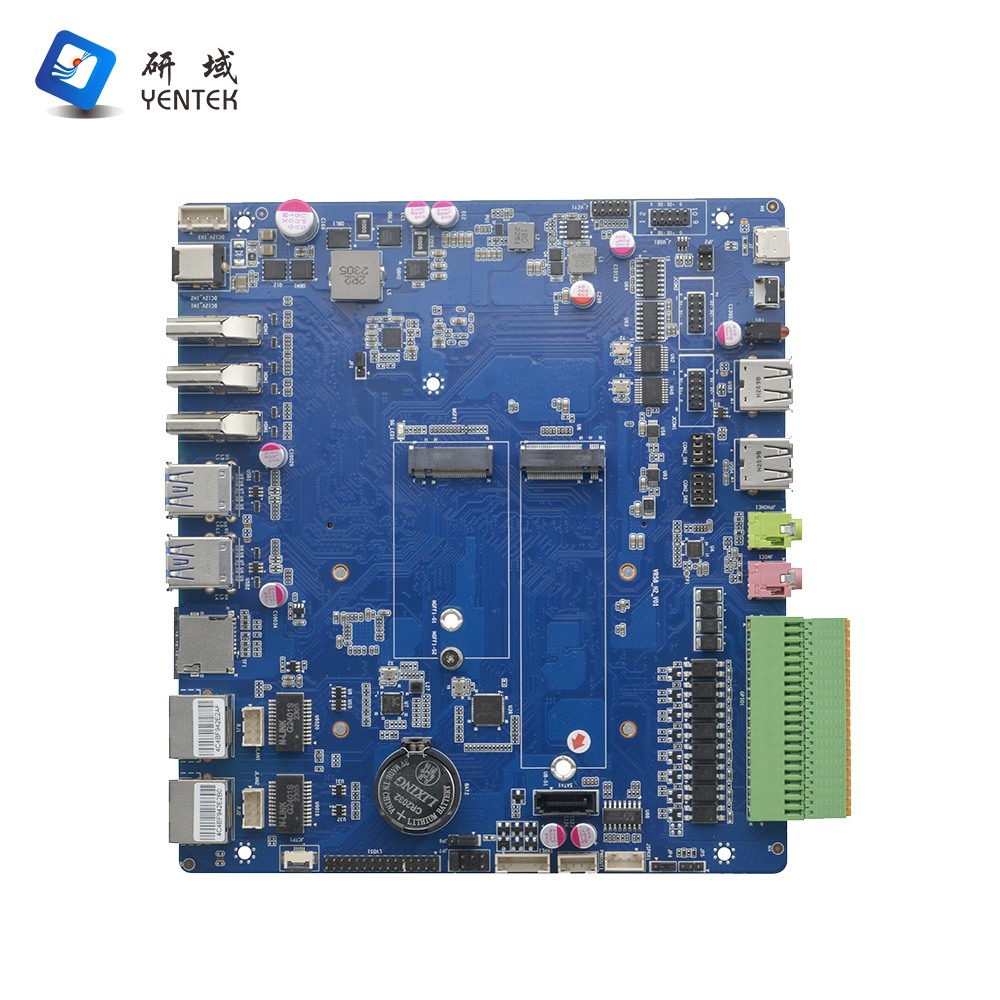

Rear I/O interface

1 * DC interface (9-36V)

2 * HDMI-OUT port

1 * HDMI-IN port

4 * USB3.0 port

1 * SIM/TF card

2 * RJ45 Gigabit network interface

Front I/O interface

1 * OTG

1 * Burning key

1 * indicator light (top red/bottom green)

2 * USB2.0

1 * Line-OUT

1 * Mic

2 * 20PIN Phoenix terminal (DC12V/8*DO/8*DI/CAN1/CAN2/1*SPK/ Volume +-/4*RS232/4*RS485,4 RS232 and RS485 via jump cap conversion)

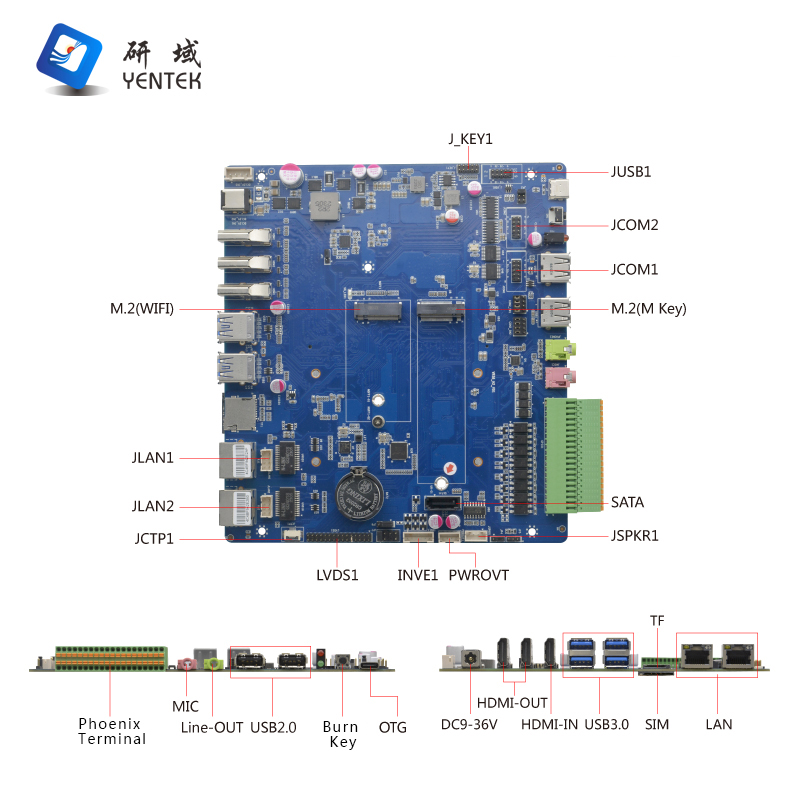

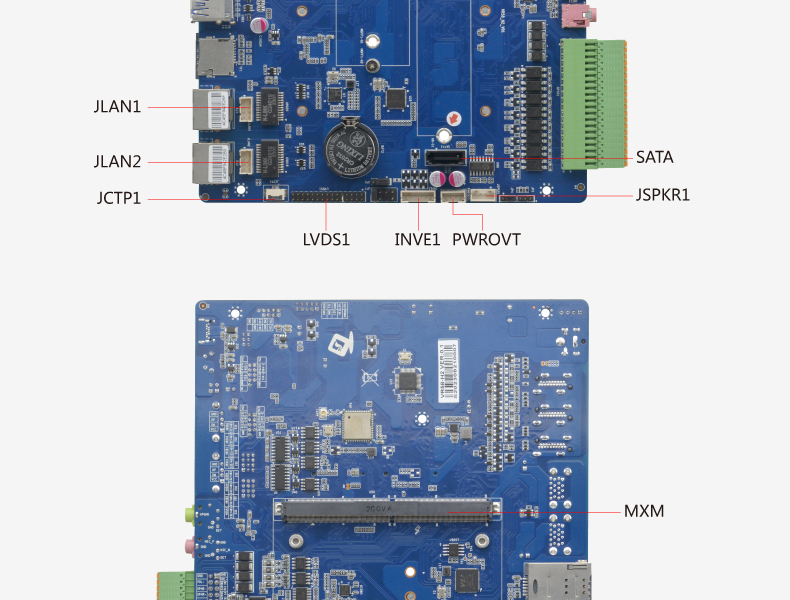

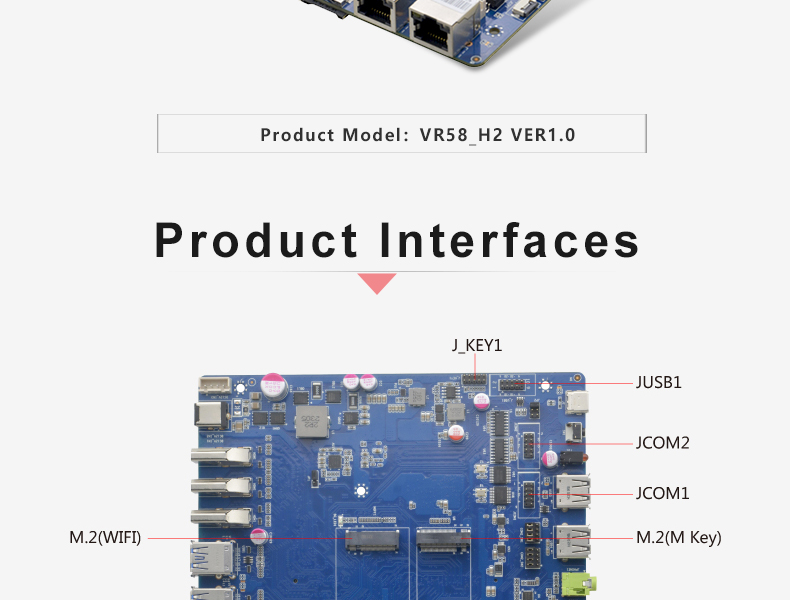

Built-in I/O

1* DC9-36V power supply (1*4pin)

2* USB2.0 interface 2*5Pin

1 x SATA hard disk port

1* hard drive power port 1*4pin

1* LVDS interface 2*15pin, support dual channel 24bit

1* screen backlight power supply interface 1*6pin

2* power amplifier interface (2 Euro 5W) 1*4pin

1* Front panel function button and indicator port 2*5pin

1* touch interface (I2C) 1*6pin, 0.6mm pitch

2* Gigabit network interface (and RJ45 two options), can be used to connect the external POE module

Power supply type

DC input voltage 9-36V

GPIO

Supports eight input and eight output DIO ports

system

Android 12, Ubuntu 20.04(used with VR58 core board)

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5%-95% relative humidity, no condensation

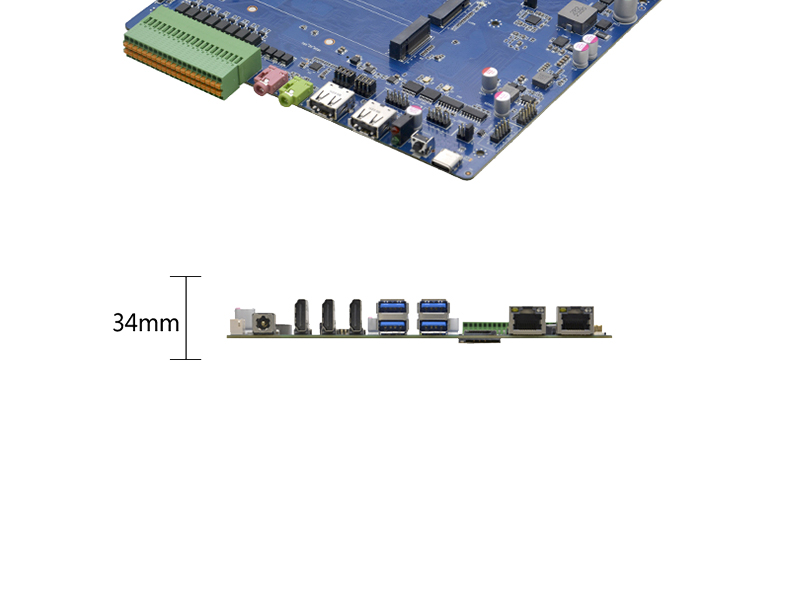

dimension

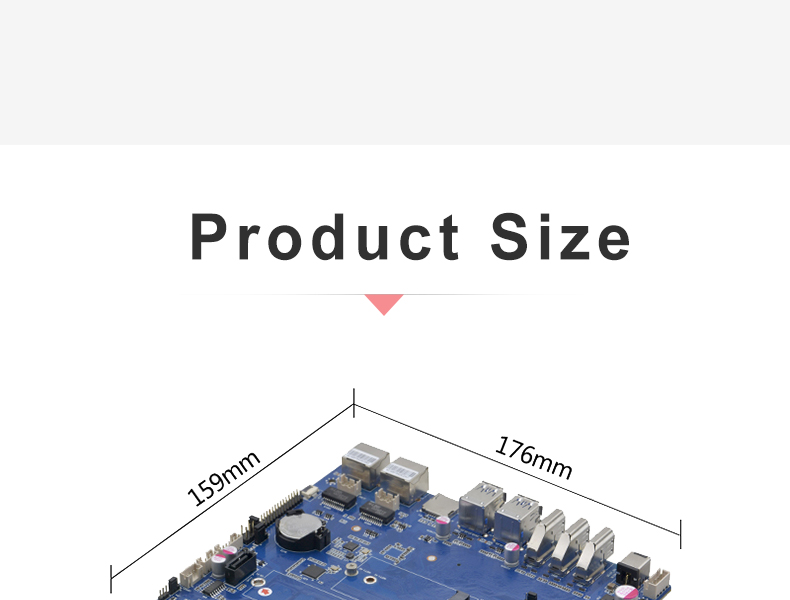

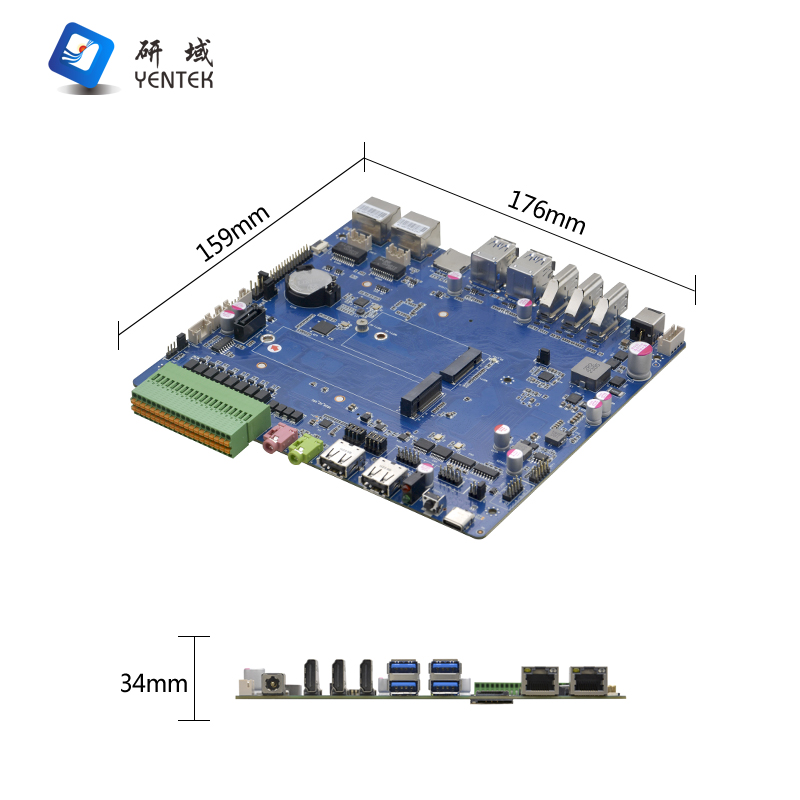

176 * 159 *1.6mm (6 layers, screw hole specification :Ø3.2mm x 4)
