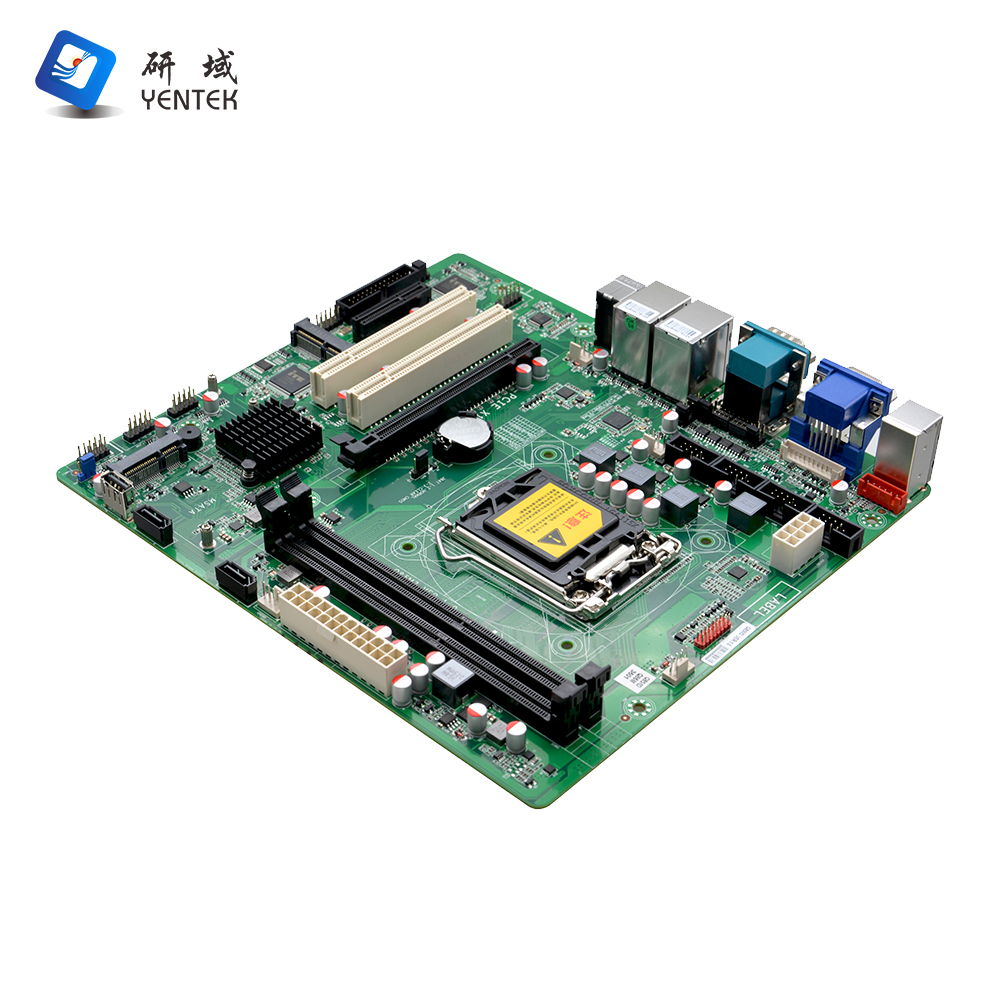

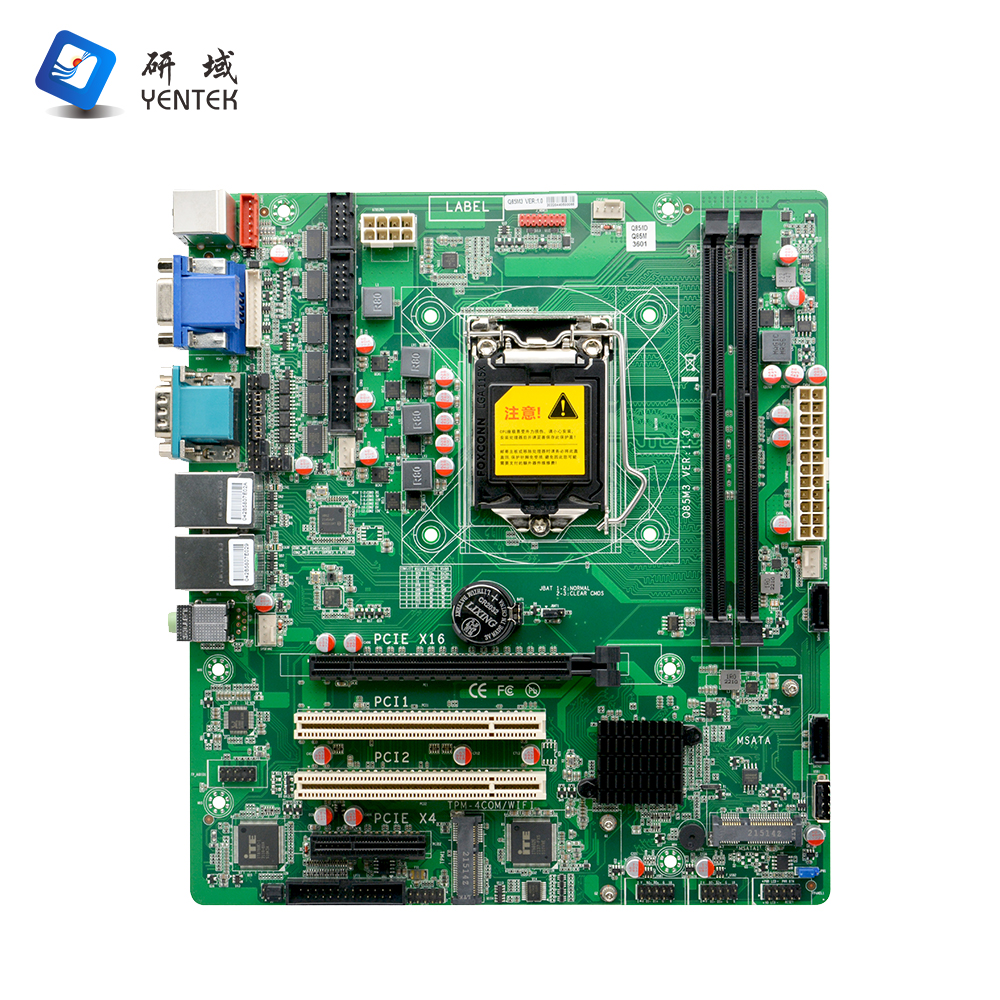

Product model

Q85M3 VER:1.0

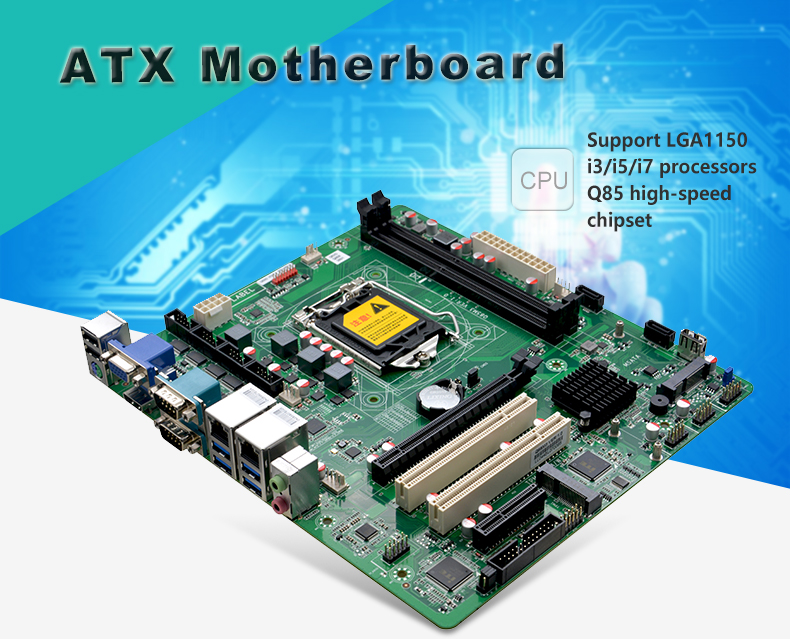

processor

Support LGA1150 4th Intel Celeron/Pentium/Core i3/i5/i7 processors with LGA1150 architecture

chipset

Intel Q85 high-speed chipset

memory

2 x DDR3 DIMM slots, supporting a dual-channel memory of 1600mhz, 1333mhz, or 1066MHz, with a maximum of 16GB

reveal

Integrated Intel® HD Graphics controller with 1*VGA port and 2*HD OUTPUT1.4 port

Supports single display, dual display mode, and extended mode

network

1* Intel I211AT Gigabit network adapter, supporting network wake up and PXE functions

1* Intel I219V Gigabit network adapter, supporting network wake up and PXE functions

store

2* SATA 3.0 hard disk interface,SATA interface transmission speed up to 6Gbps

1* MSATA SSD interface, transmission speed up to 6Gbps

Audio frequency

Integrated ALC888S 7.1+2 channel hi-fi audio controller, support Mic, Line out

Expansion slot

1* PCIE2.0 x16

1* PCE2.0 x4

2* PCI

1* Mini-PCIE slot, WiFI(TPM-4COM expansion 4 serial port is optional, and the corresponding BIOS is required)

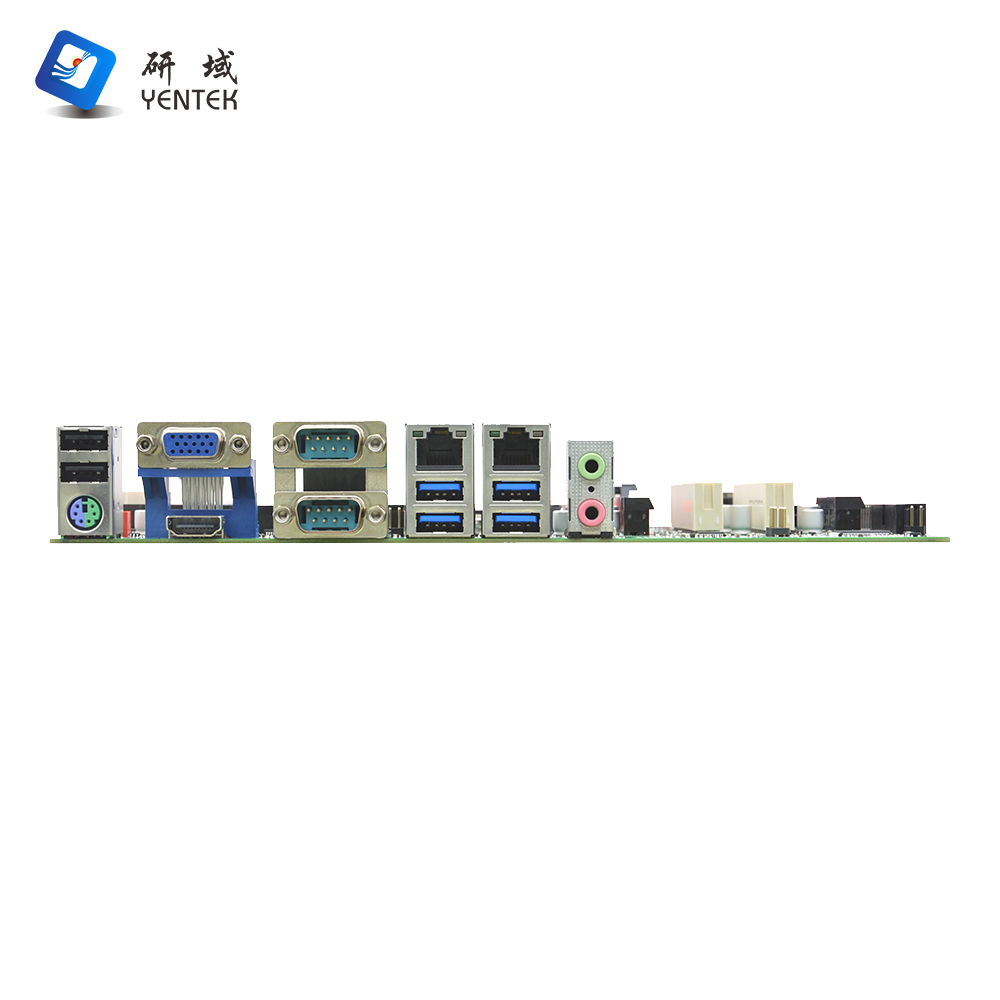

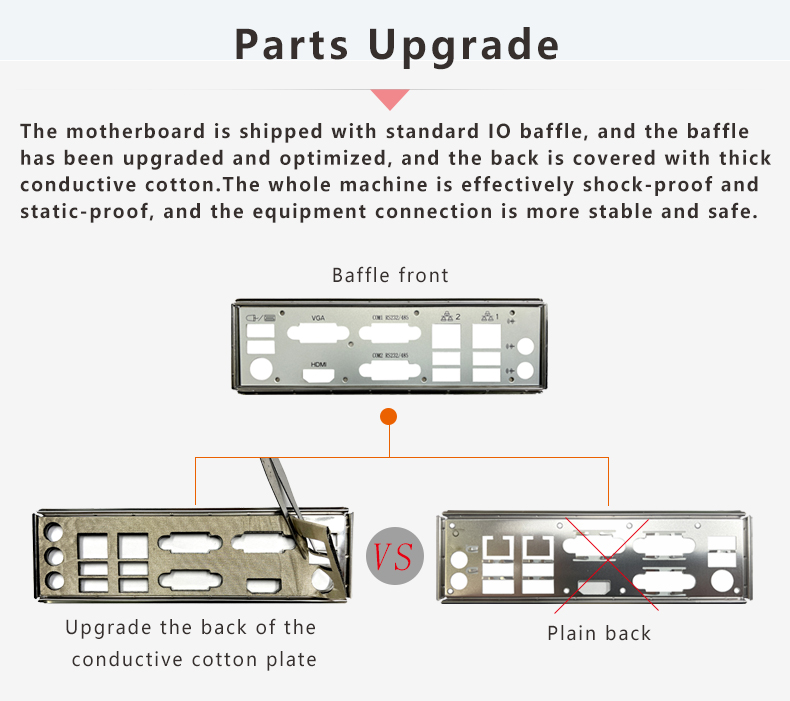

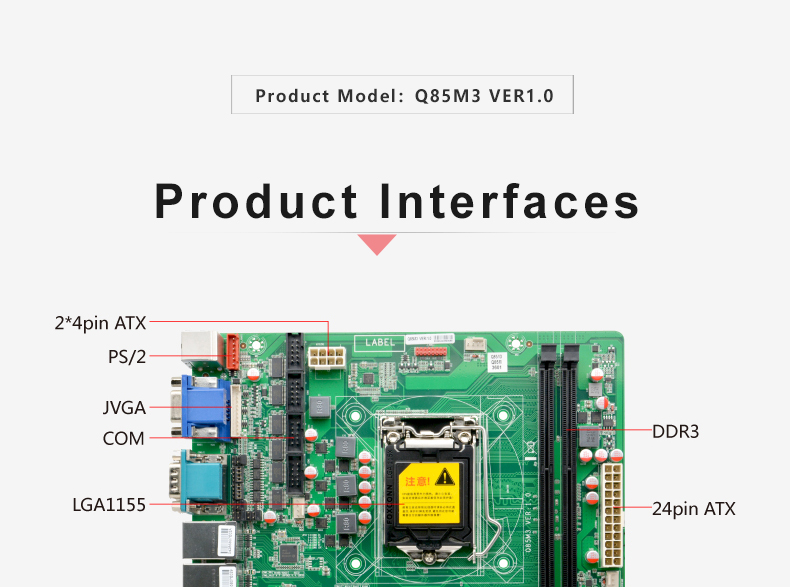

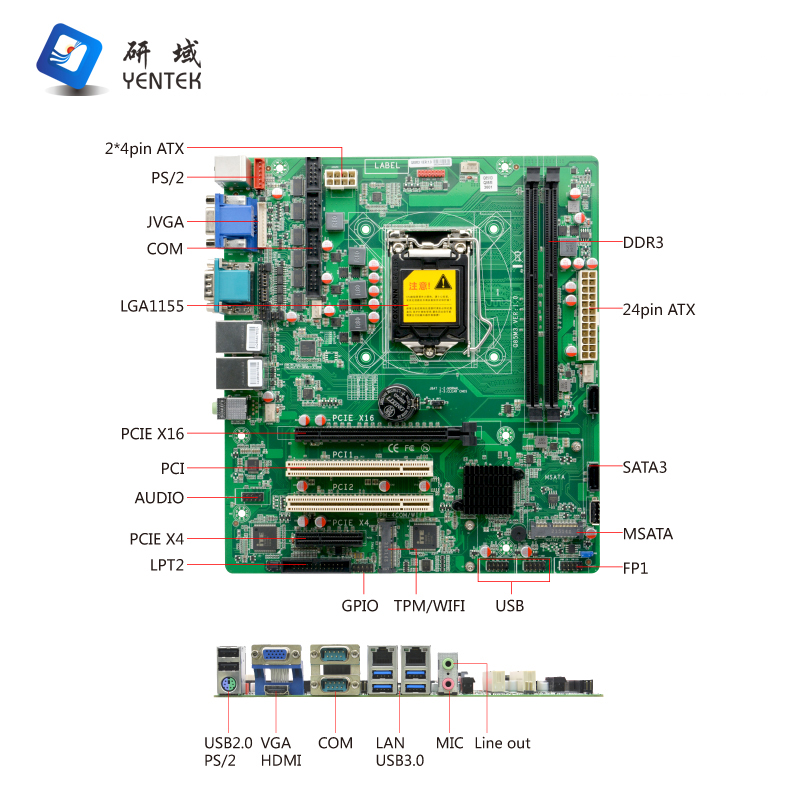

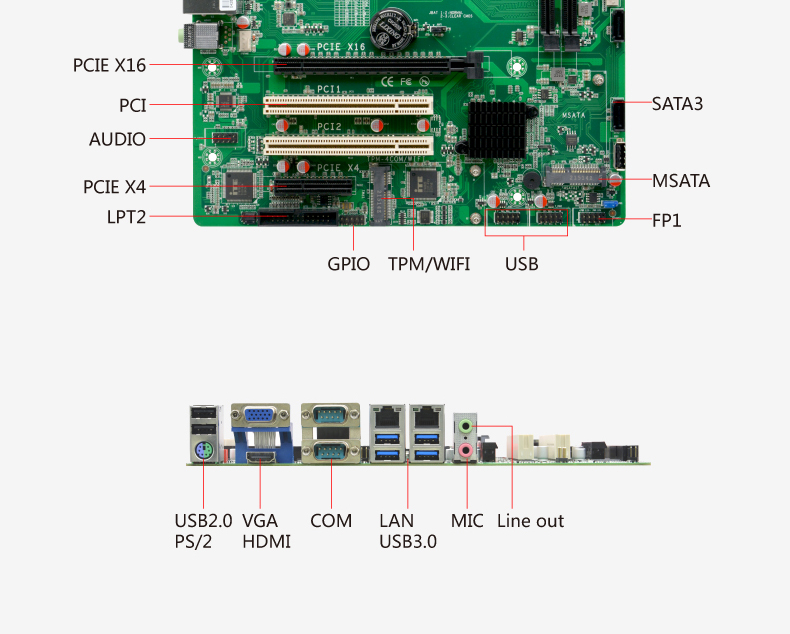

I /O ports on the backplane

1* PS/2 keyboard and mouse interface

1 x VGA display port

1* HD OUTPUT display interface

2* RS232 serial port, support 9pin live function, support RS485/422 function

2* USB 2.0 port

4* USB 3.0 interface

2* RJ-45 Gigabit network interface

1* Line out interface (green), 1* MIC interface (red)

Built-in I/O interface

4* RS232 serial port,2*5pin row pin

1* JVGA port 1*12pin pin row, the same signal as the external VGA

1* JHD OUTPUT port Red 2*8pin row pin

1* PS/2 keyboard and mouse interface 1*6pin red row pins

1* LPT print port 2*13pin row pins

1* front audio interface 2*5pin row pins

4* USB 2.0 port 2*5Pin row pins

1* USB2.0 port USB TYPE A

1* Front panel function buttons and indicator ports 2*5pin row pins

1* 24pin ATX power input interface

1* 8pin ATX power input interface

Fan interface

2*4pin CPU intelligent fan interface, 2*4pin system intelligent fan interface

GPIO

Supports four input/output GPIO functions

BIOS

64Mb Flash ROM

Guard dog

Support hardware reset function (256 level, 0~255 seconds)

Operating system

Windows 7/ 10 /Linux

Power supply type

24Pin ATX power supply

Operating temperature

-10℃ to 60℃

Storage temperature

-20℃ to 70℃

Working humidity

5 ~ 90% relative humidity, no condensation

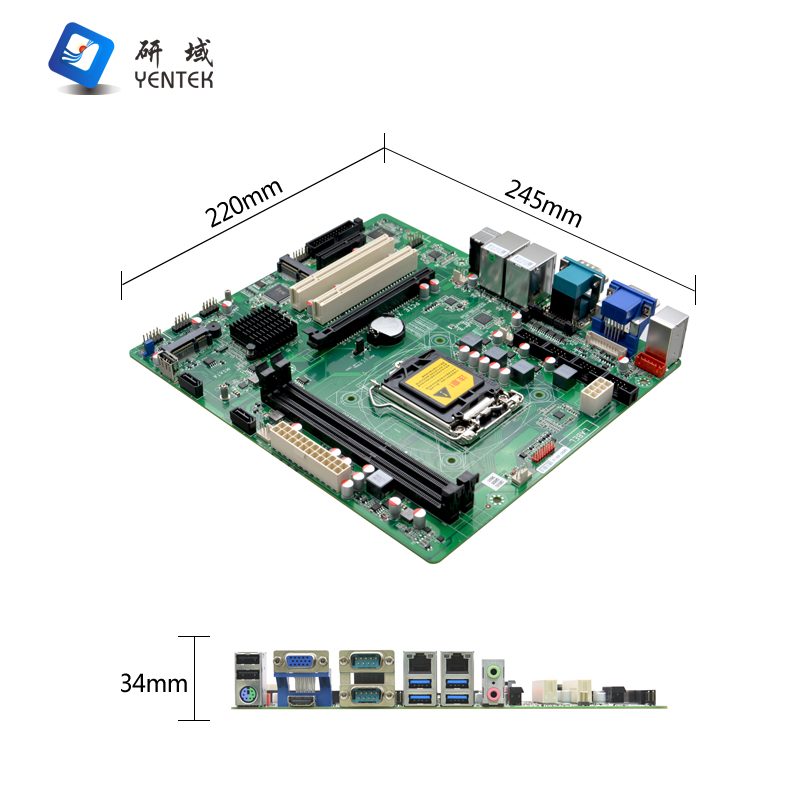

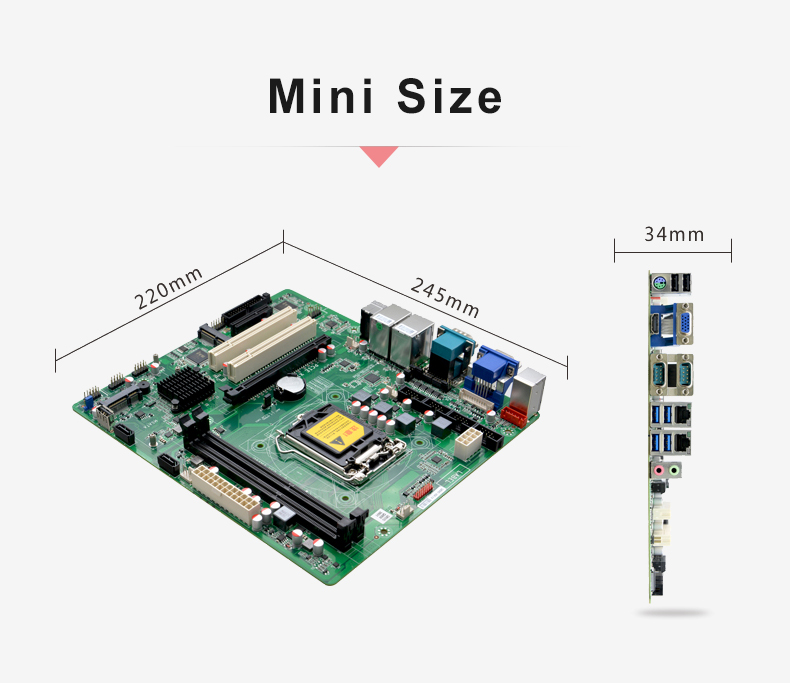

dimension

245mm x 220mm
